Ultra-Premium Specifications
Awoco products are engineered with performance in mind. Each one can go toe-to-toe with quality, big names brands.- DESCRIPTION
- SHIPPING & RETURN
- SPECIFICATIONS
- USER-MANUAL DOWNLOAD
- AWOCO SERVICE VIDEOS
- PARTS & ACCESSORIES
DESCRIPTION
- WALL MOUNT, CHIMNEY, OUTSIDE DUCTED VENT, 6” ROUND TOP VENT, 1mm THICK: Wall mounted, high quality 1 mm thick stainless steel with brush finishing.

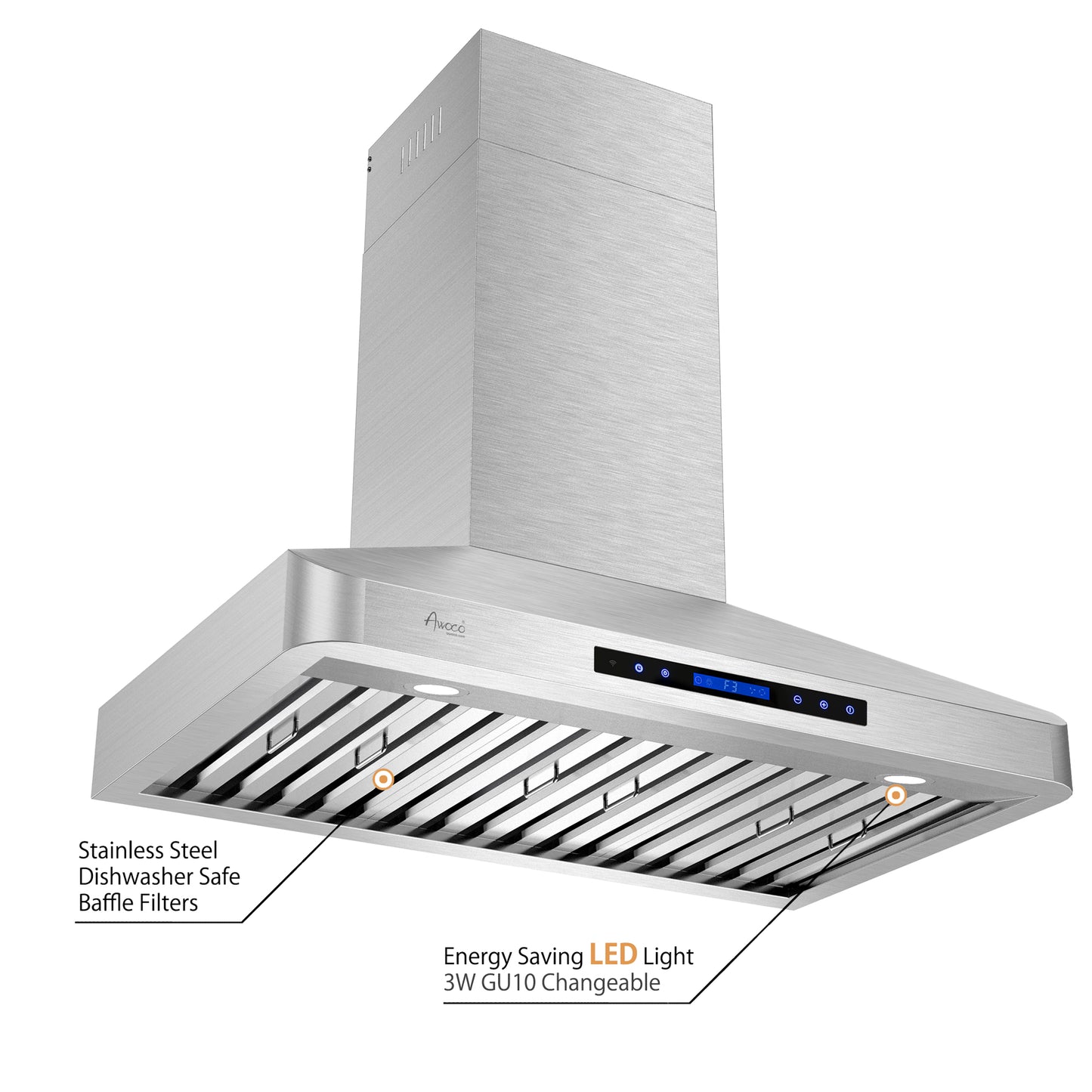

- INTERNAL OIL COLLECTOR & TWIST LOCK LED LIGHTS: Comes with an easily removable internal oil collector, 1 air damper is included on the top. 2 3W twist lock energy saving cold bright LED lights. Turn left to remove the light bulb and turn right to lock. Light button operates independently from the power button. It works even when the range hood is not turned on. LED light indicator will illuminate in the LCD display once the lamps are turned on.

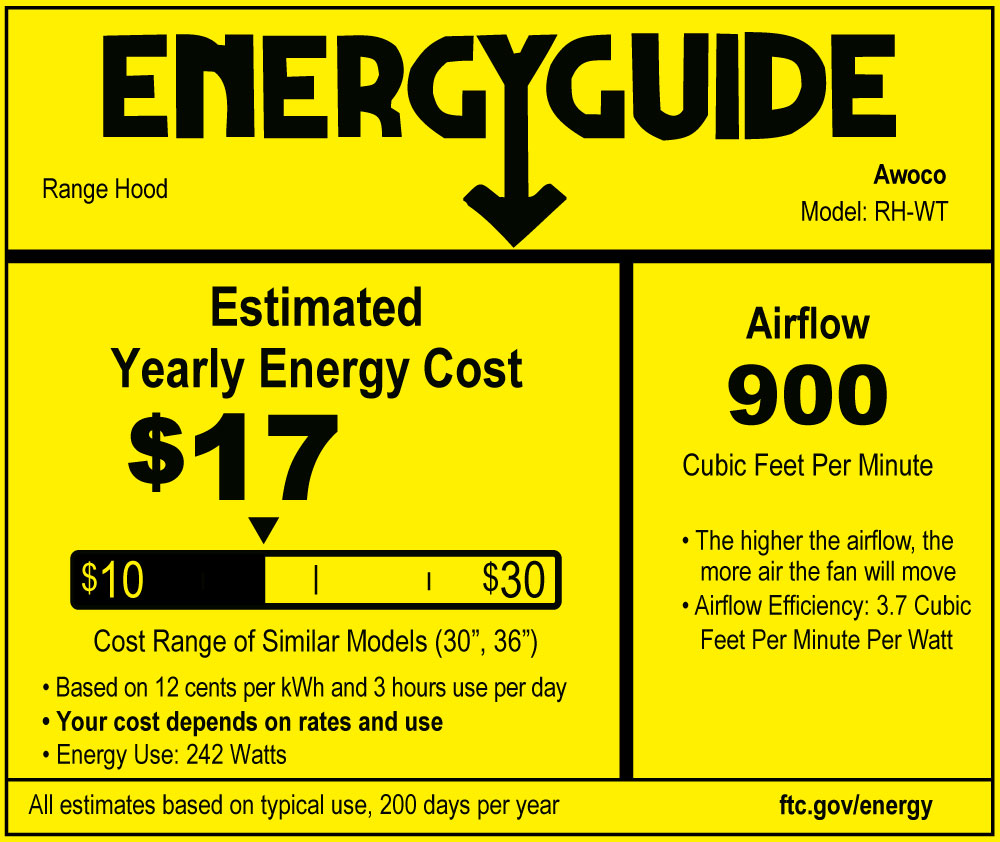

- 4 SPEEDS POWERFUL OPERATION WITH REMOTE CONTROL: 4 speeds (385/490/715/900 CFM), touch sensor panel with a remote-control sensor that receives infrared signal from the remote. Powerful centrifugal squirrel cage fan. More powerful and quieter than a traditional blower. Power rating: 120V/60Hz, 230W Min. 242W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.

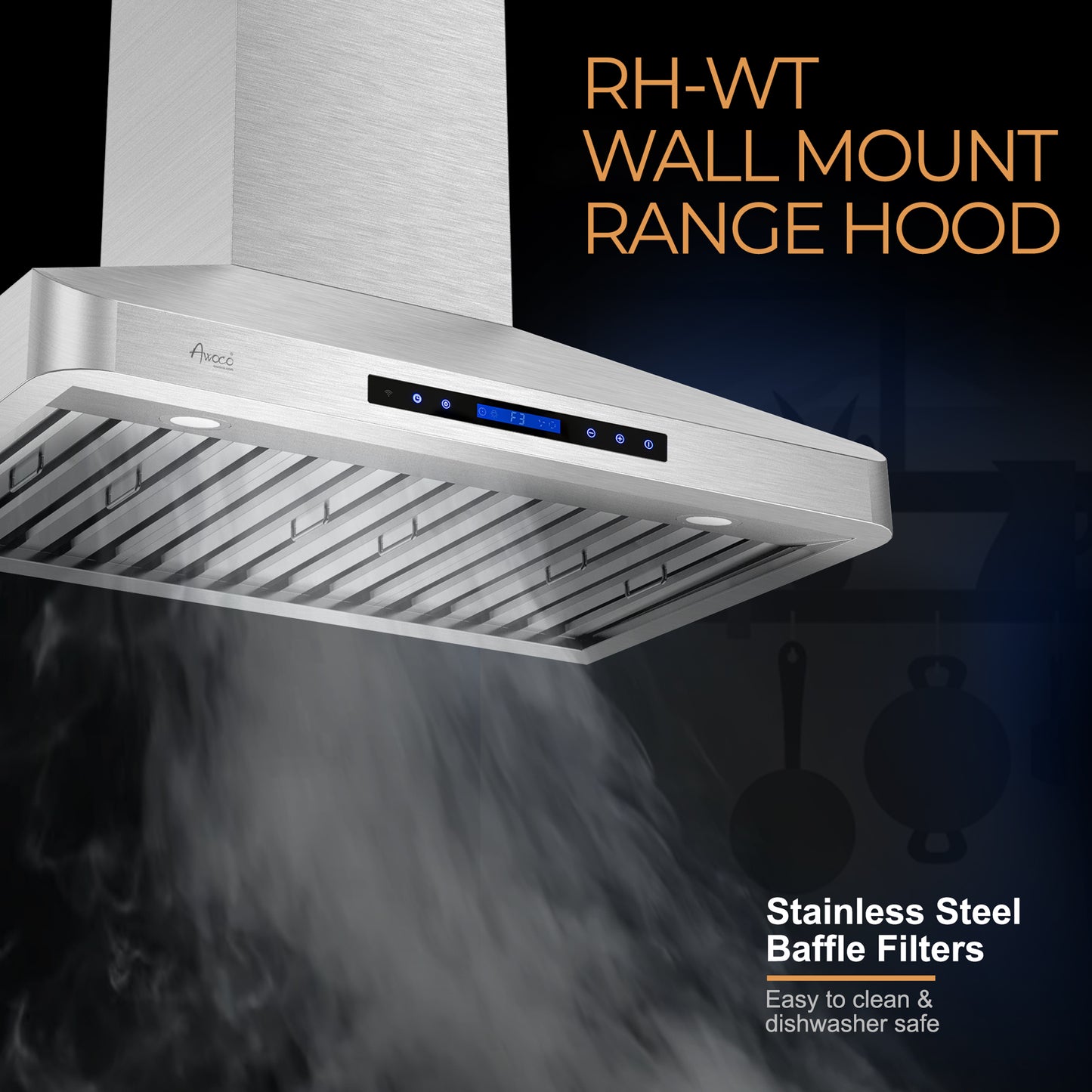

- 3 DISHWASHER SAFE BAFFLE FILTERS, 1-15 MINUTES AUTO SHUT OFF: Dishwasher safe with an easily removable commercial style stainless steel baffle air filter. The oil is contained in the baffle filters and internal oil collector. Up to 15 minutes timer that offers a delayed auto shut off to vent the leftover smoke after cooking.
- 1 YEAR LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco guarantees quality products with our superb reputation and supreme customer service.
- 30" Hood Dimensions: 29-½” W x 22” D x 9-½” H. Hood weight: 54.5 lbs.

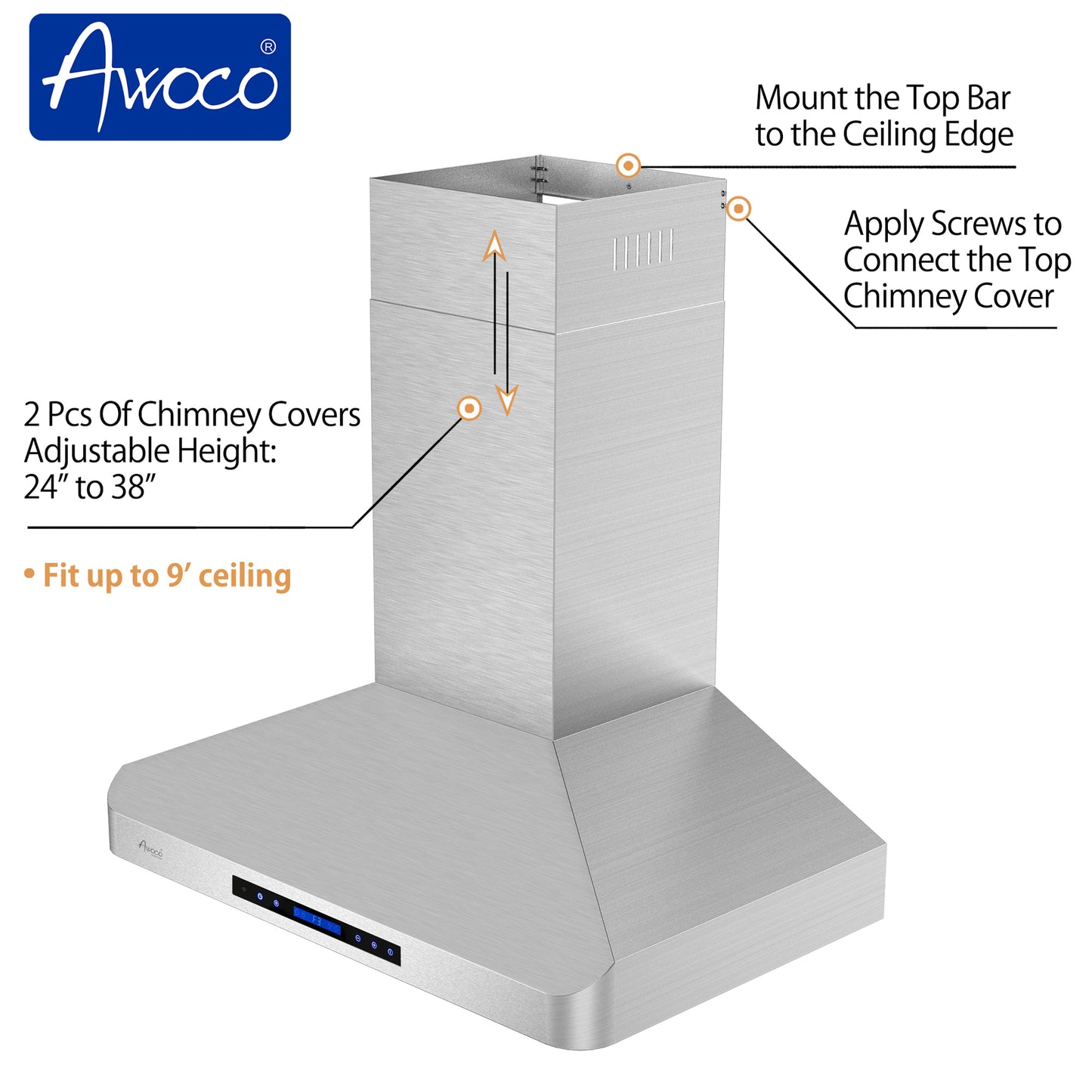

- Adjustable Chimney Height: 24” - 38”.
- Overall Max Height: 48-1/2"
- 30" Hood XL Dimensions: 29-½” W x 22” D x 9-½” H. Hood weight: 55.5 lbs.
- Adjustable Chimney Height: 28” - 47”.
- Overall Max Height: 56-1/2"

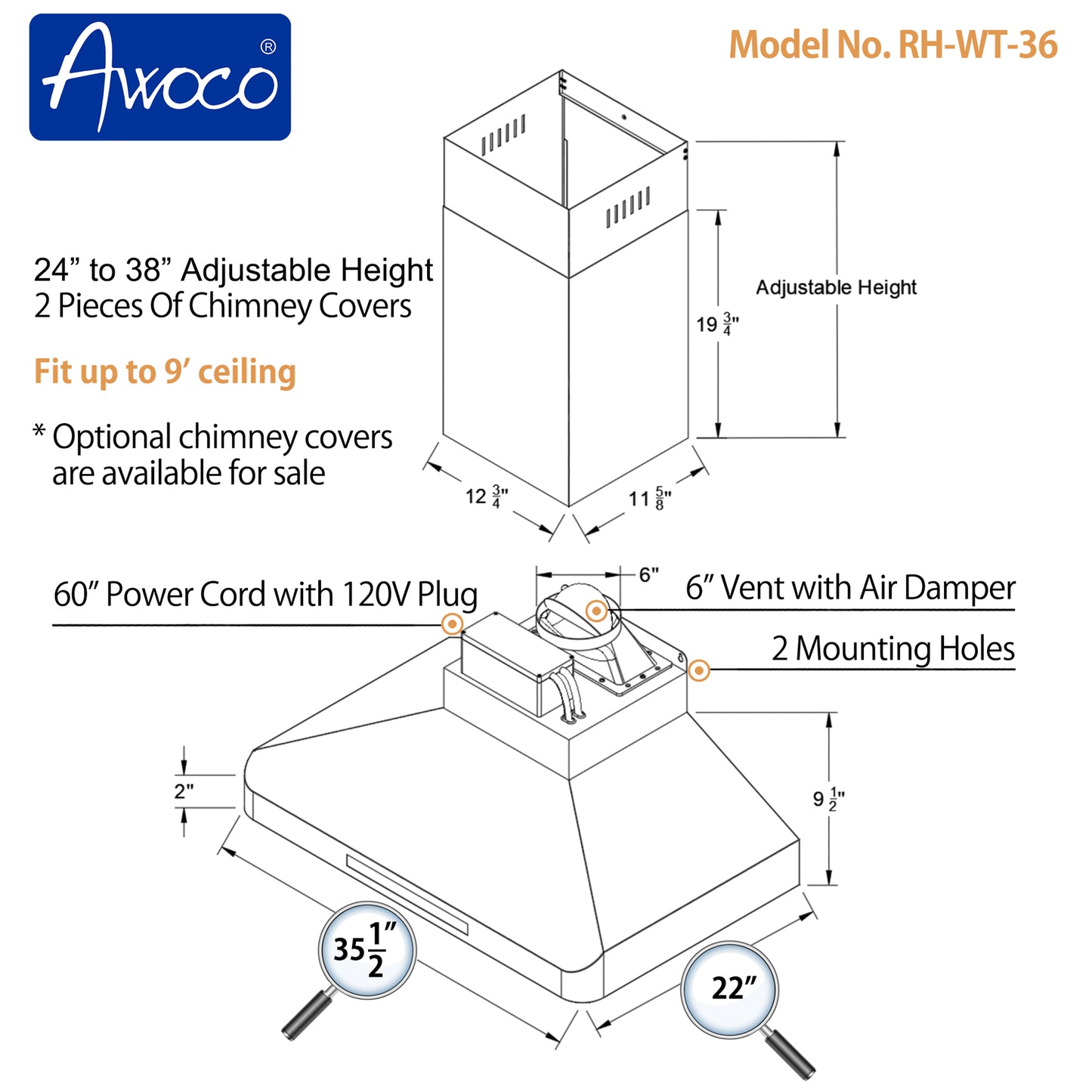

- 36" Hood Dimensions: 35-½” W x 22” D x 9-½” H. Hood weight: 58 lbs.
- Adjustable Chimney Height: 24” - 38”.
- Overall Max Height: 48-1/2"
- 36" Hood XL Dimensions: 35-½” W x 22” D x 9-½” H. Hood weight: 59 lbs.
- Adjustable Chimney Height: 28” - 47”.
- Overall Max Height: 56-1/2"
Outstanding Features:1mm Thick High Quality Brushed Finish Stainless Steel.
High-Quality Stainless Steel Baffle FiltersStainless steel baffle filters are adapted from the concept of commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.Other Features & Specifications:
- Mounting Version: Wall Mounted.
- 1mm Thick, High-Quality Stainless-Steel Construction.
- Stainless steel chimney.

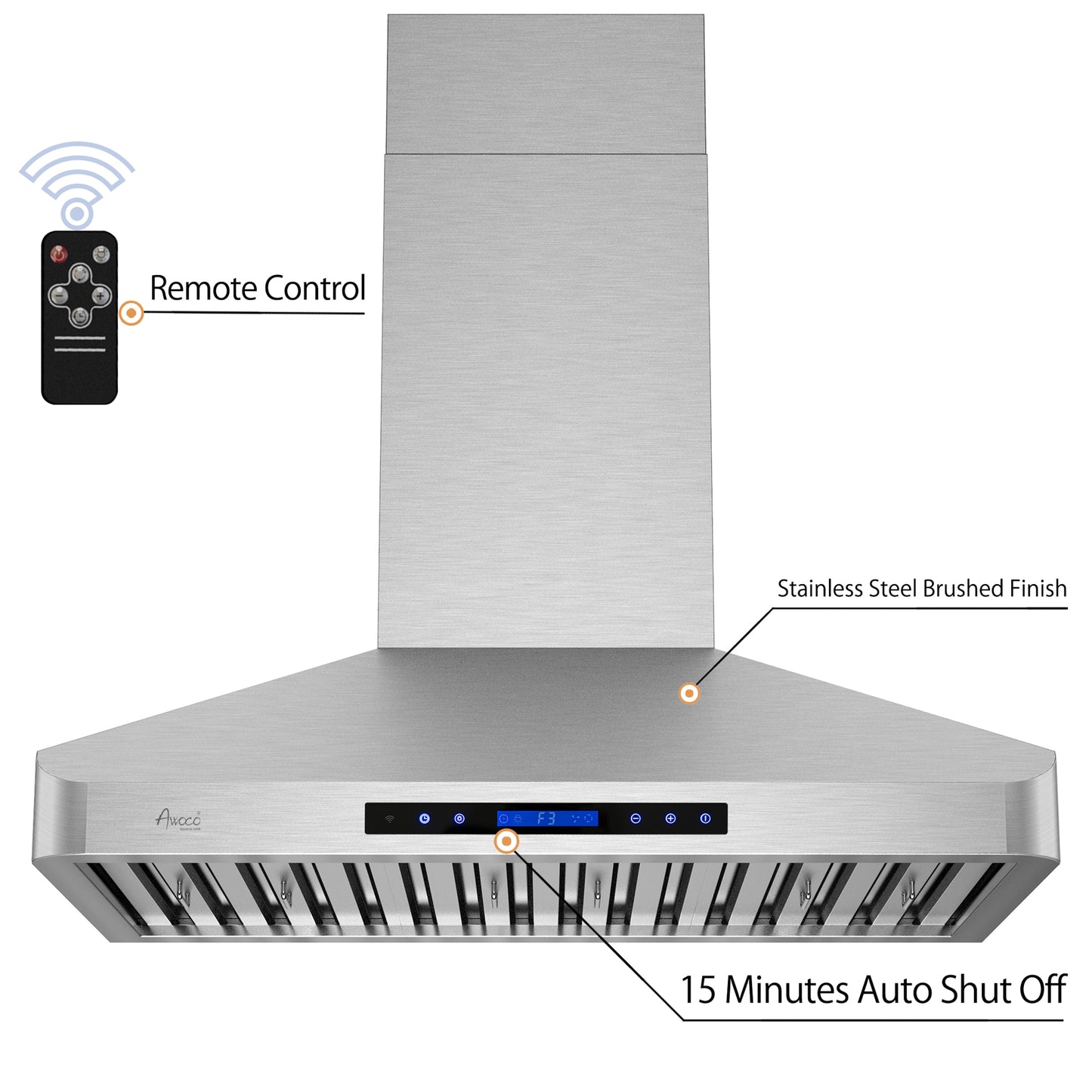

- Touch sensor panel with automatic shutoff timer (timer will shut off the fans only).
- 4 speeds with a remote-control sensor that receives infrared signals from the remote.
- Powerful Centrifugal Squirrel Cage Fan. Quieter and more powerful than a traditional blower.
- Internal oil collector.
- 2 of 3W twist lock removable energy saving cold bright LED Lights.
- Remote Control complies to ADA requirement.
- Stainless steel baffle filters (dishwasher safe), with new commercial style air filters.
- Internal oil collector.
- Clock shows 2:00 (standard time) instead of 14:00 (military time). Better than other models that show only military time.
- Power Rating: 120/60Hz 230W Min. - 242W Max. Duct work is not included.
- Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.
- 6” round duct vent exhaust.
- 1 air damper is included on the top.
- 1 year warranty.
- ETL Certified.
SHIPPING & RETURN
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
SPECIFICATIONS
| Mounting Type | Wall-Mount. |
| Venting | 6" Round TOP Vent Exhaust. |
| Power Rating | 120V~60Hz. |
| Lighting | 2x 1.5W LED. |
| Chimney Size | 12-3/4"W x 11-3/4"D. |
| Max CFM | 900 CFM. |
| Noise Level | 46dB / 58dB / 64dB / 69dB. |
| Model No. | Width | Depth | Height | # of Baffle Filters | Vent Size ("Duct") | Chimney Height | Wattage | ||
| Min | Max | Min | Max | ||||||
| RH-WT-30 | 29-1/2" | 22" | 9-1/2" | 2 | 6" Round | 20" | 39" | 230W | 242W |
| RH-WT-30XL | 3 | 28" | 47" | ||||||
| RH-WT-36 | 35-1/2" | 2 | 20" | 39" | |||||
| RH-WT-36XL | 3 | 28" | 47" | ||||||
USER-MANUAL DOWNLOAD
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
AWOCO SERVICE VIDEOS
SERVICE HELP: AWOCO 101 VIDEOS

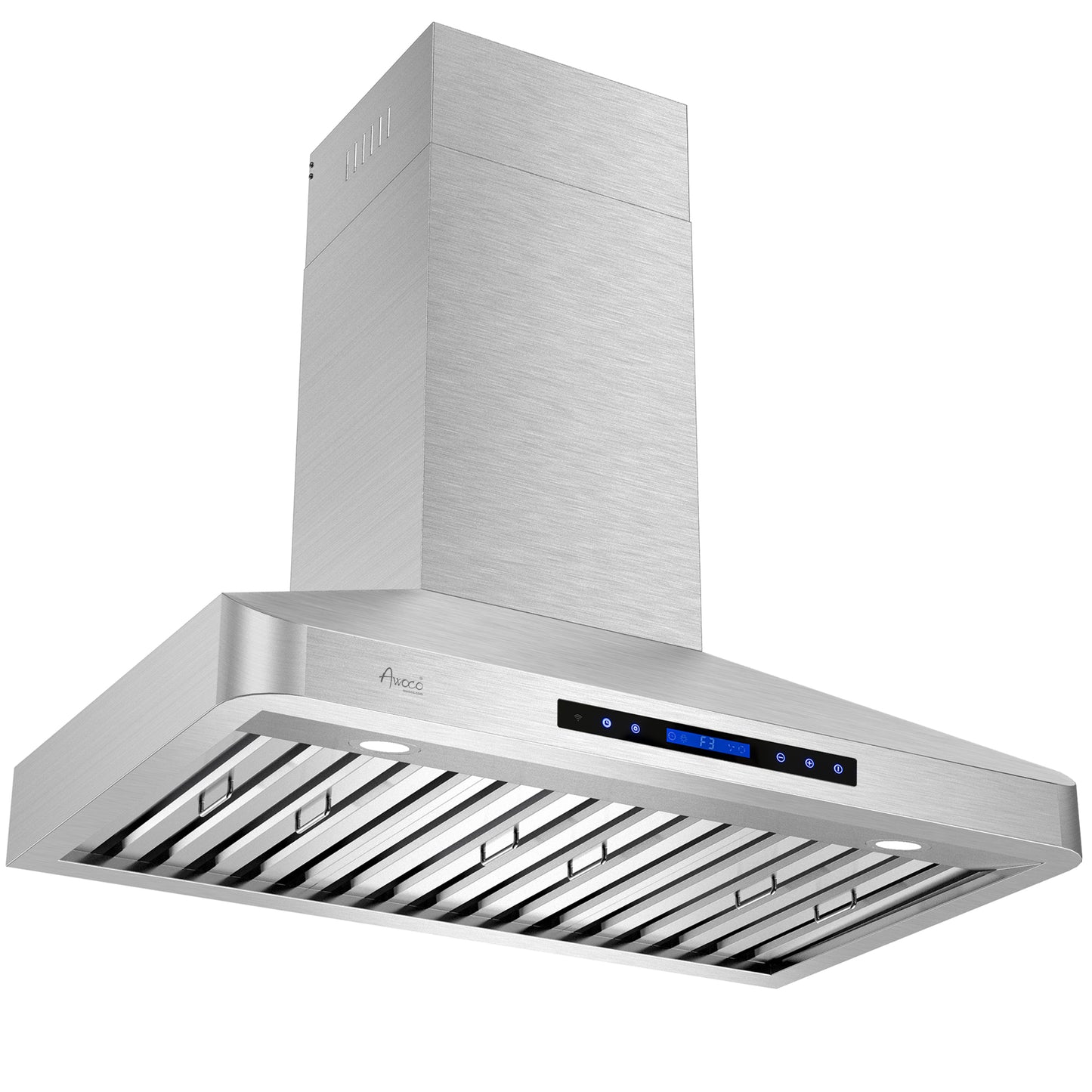

Awoco RH-WT Wall Mount Stainless Steel Range Hood, 4 Speeds, 6” Round Top Vent, 900CFM, 2 LED Lights, with Remote Control
