Super Power Air Curtain with Motion Sensor 120V Unheated by Awoco

SKU:
FM1506-MSD
$380.00
In stock
Add to wishlist Ask a question

Free Shipping on all Awoco Products.
Estimated Delivery: Tuesday, Nov 25 - Saturday, Nov 29. Varies per Carrier.
Pickup available at 9674 Telstar Ave Ste A, El Monte, CA 91731

Usually ready in 24 hours

Get Direction.

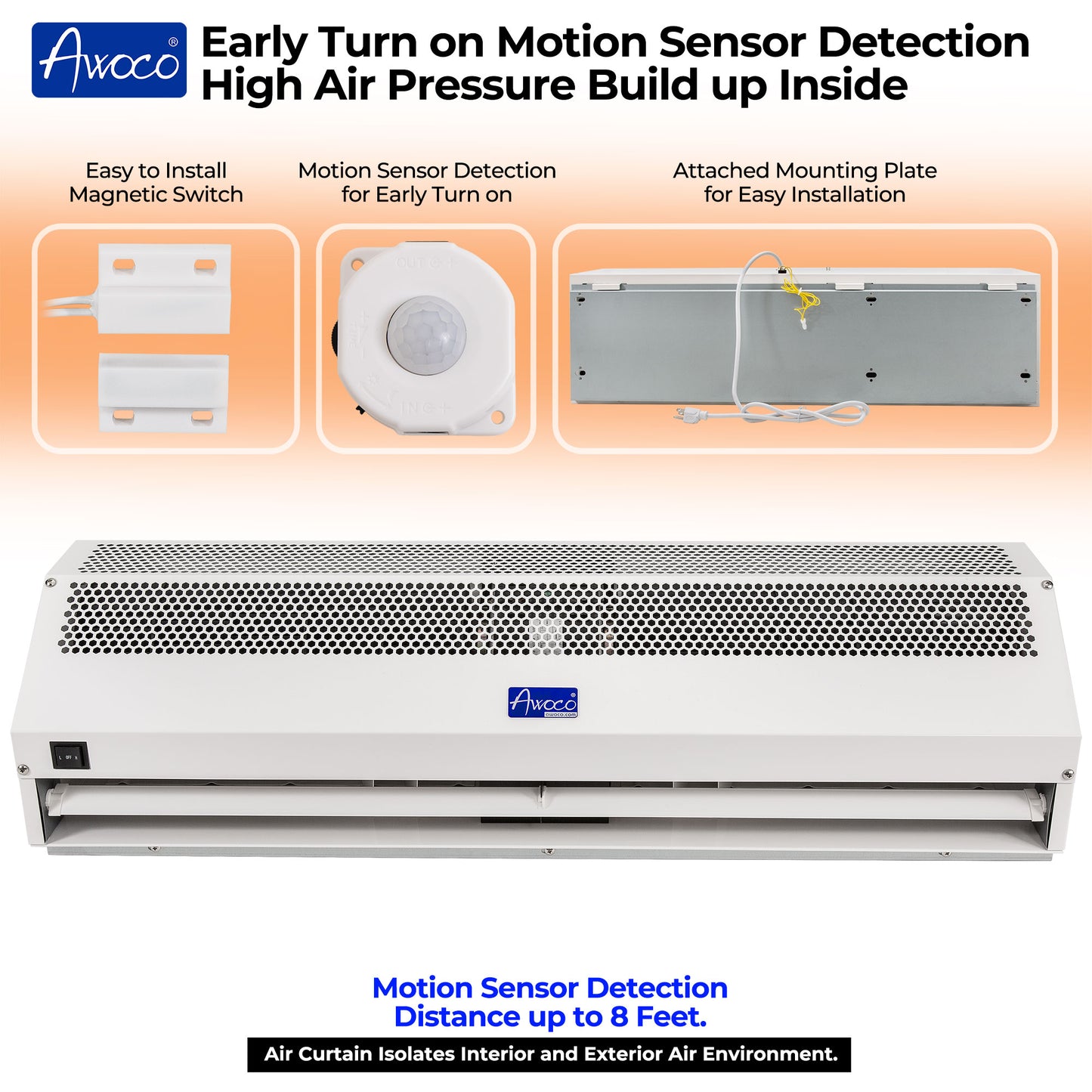

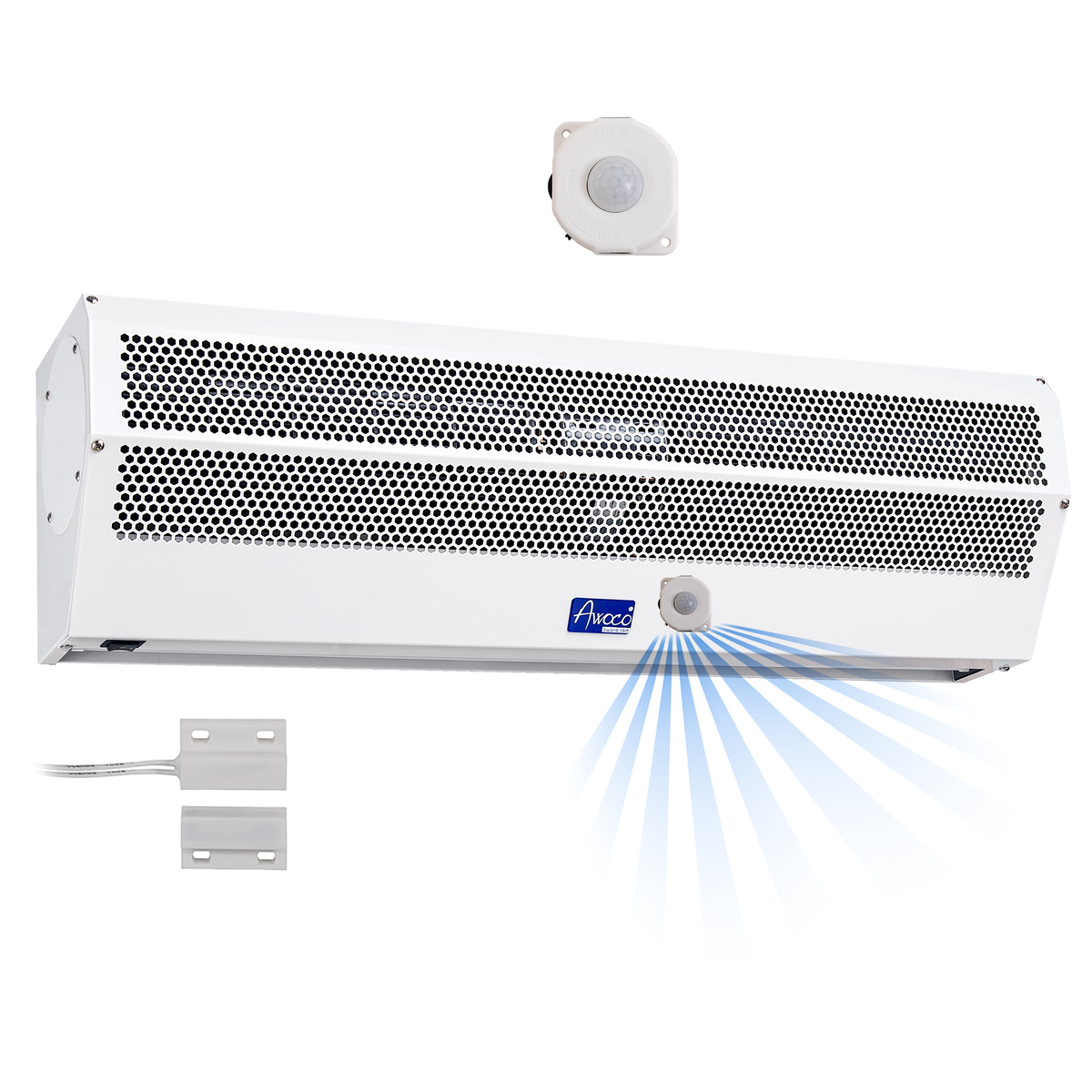

  • Super Power Air Curtain with Motion Sensor FM15 by Awoco - 120V Unheated Indoor Air Curtain featuring 2 Speeds, Motion Sensor Detection and Easy-Install Magnetic Switch for Doorways
  • [NOT an Air Conditioner]: DOES NOT GENERATE COLD OR HOT AIR. Do not purchase if you are looking for an A/C unit.

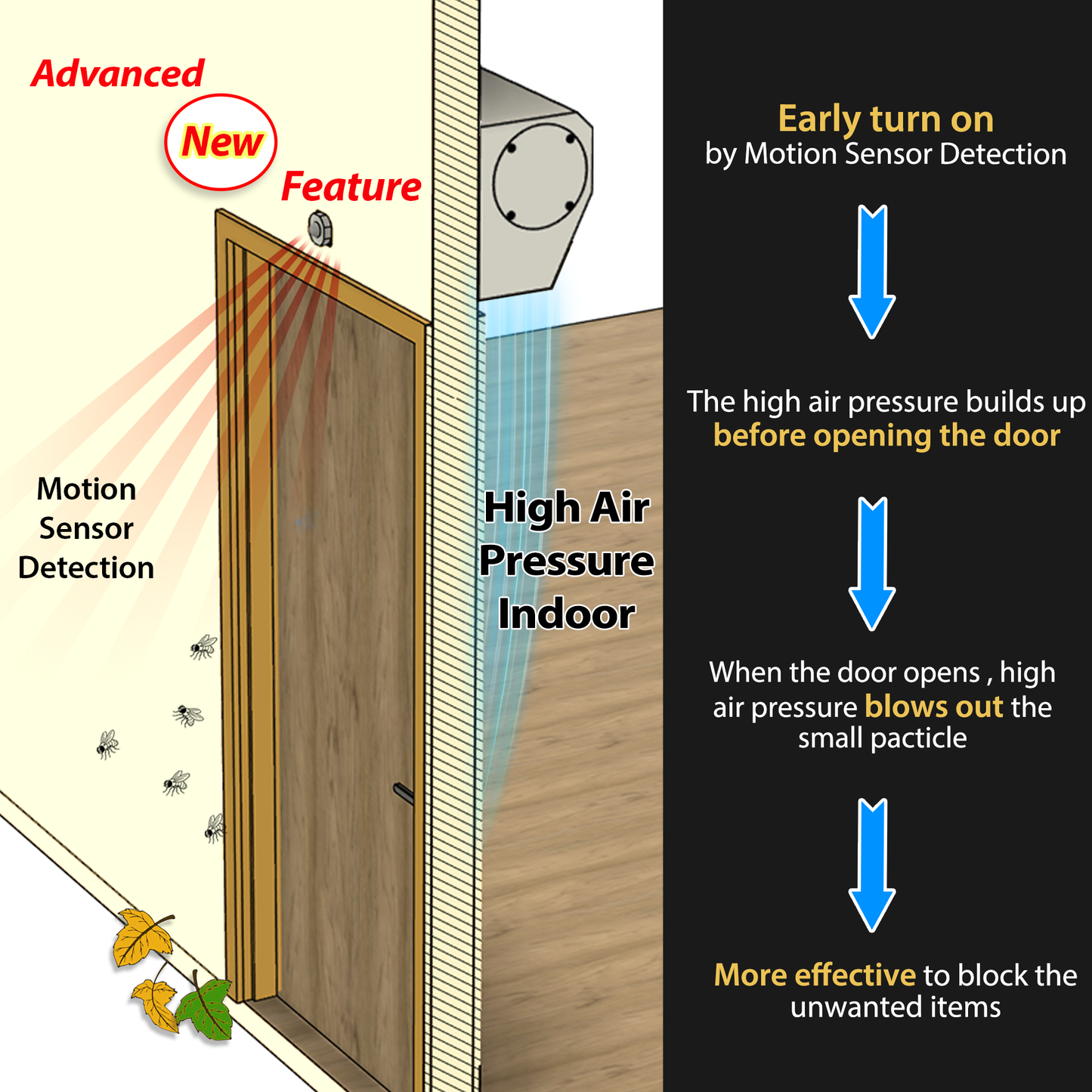

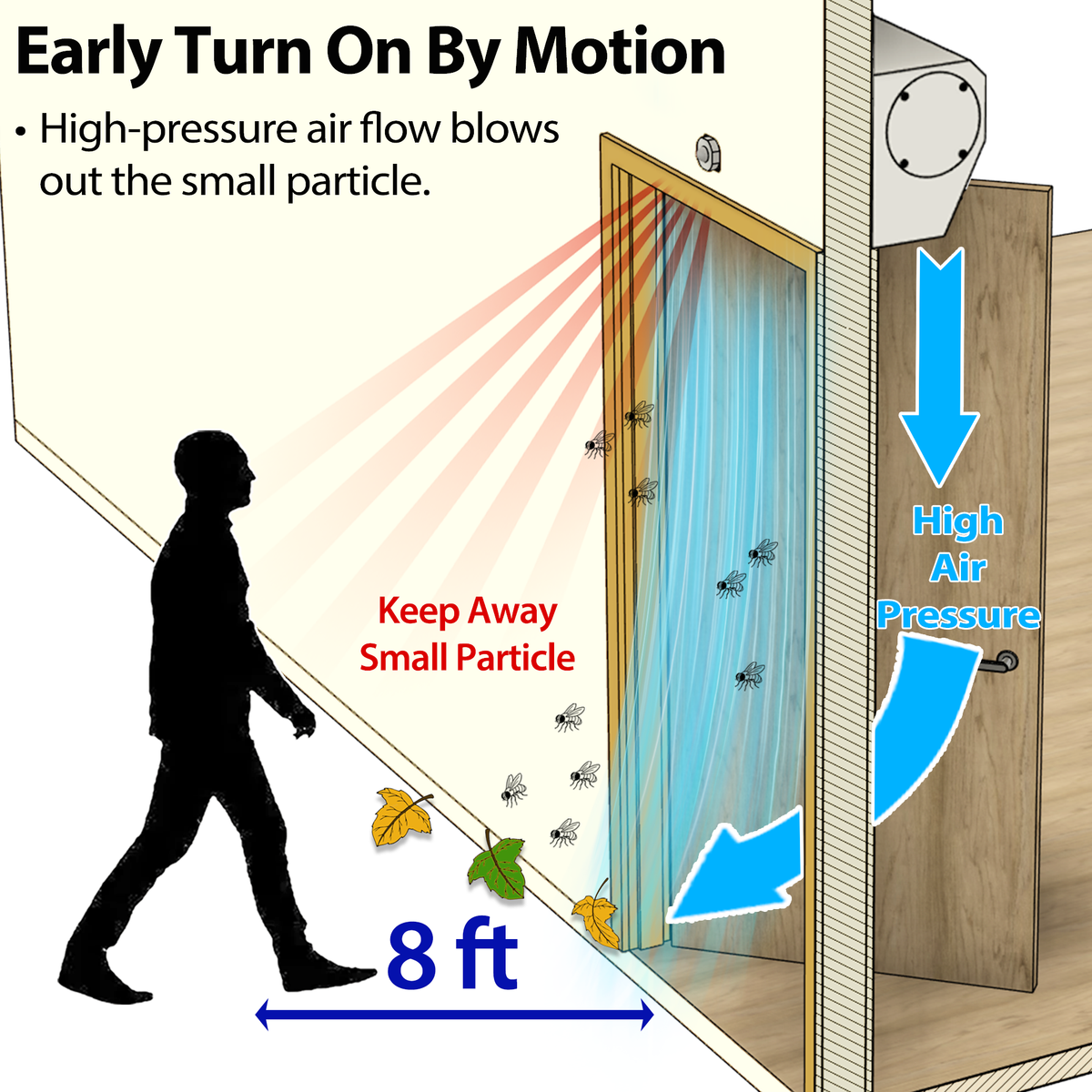

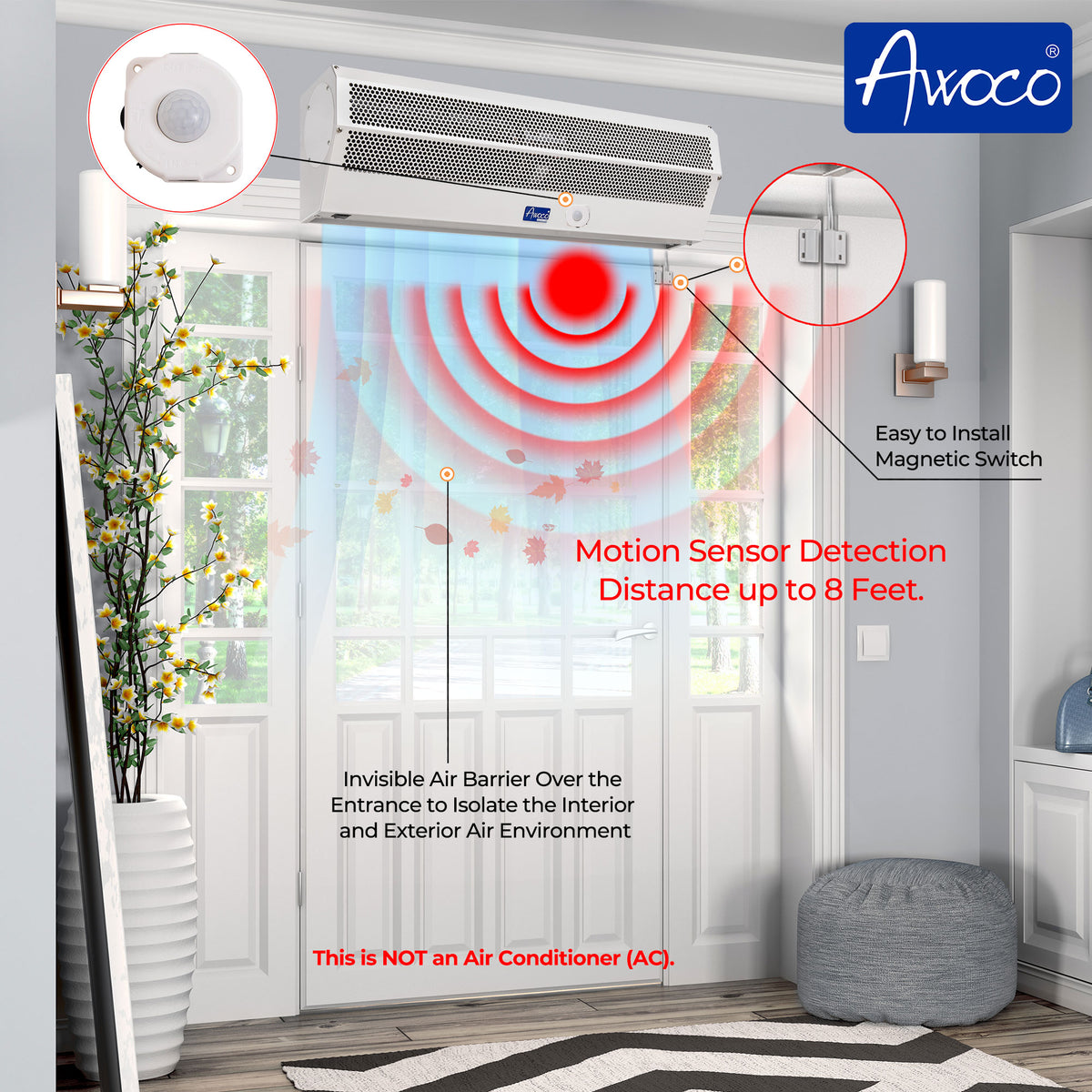

  • Motion Sensor Detection - Detects movement within a range of 7–9 feet. With its early activation feature, the air curtain quickly builds high indoor air pressure to prevent dust, debris, and small unwanted particles from entering when the door opens. As a result, the air curtain begins working before the door opens to block contaminants immediately, making it much more effective than a traditional door-triggered sensor. When motion is detected, the air curtain fan activates automatically and will shut off after 45 seconds (non-adjustable) when no motion is detected.
  • [Isolate Interior from Outside]: The Super Power Air Curtain with Motion Sensor can help save energy by preventing outdoor air from entering a space, while also helping to block the entry of bugs, dust, and debris. Built with a fireproof and anti-erosive coated metal case for long-lasting durability.

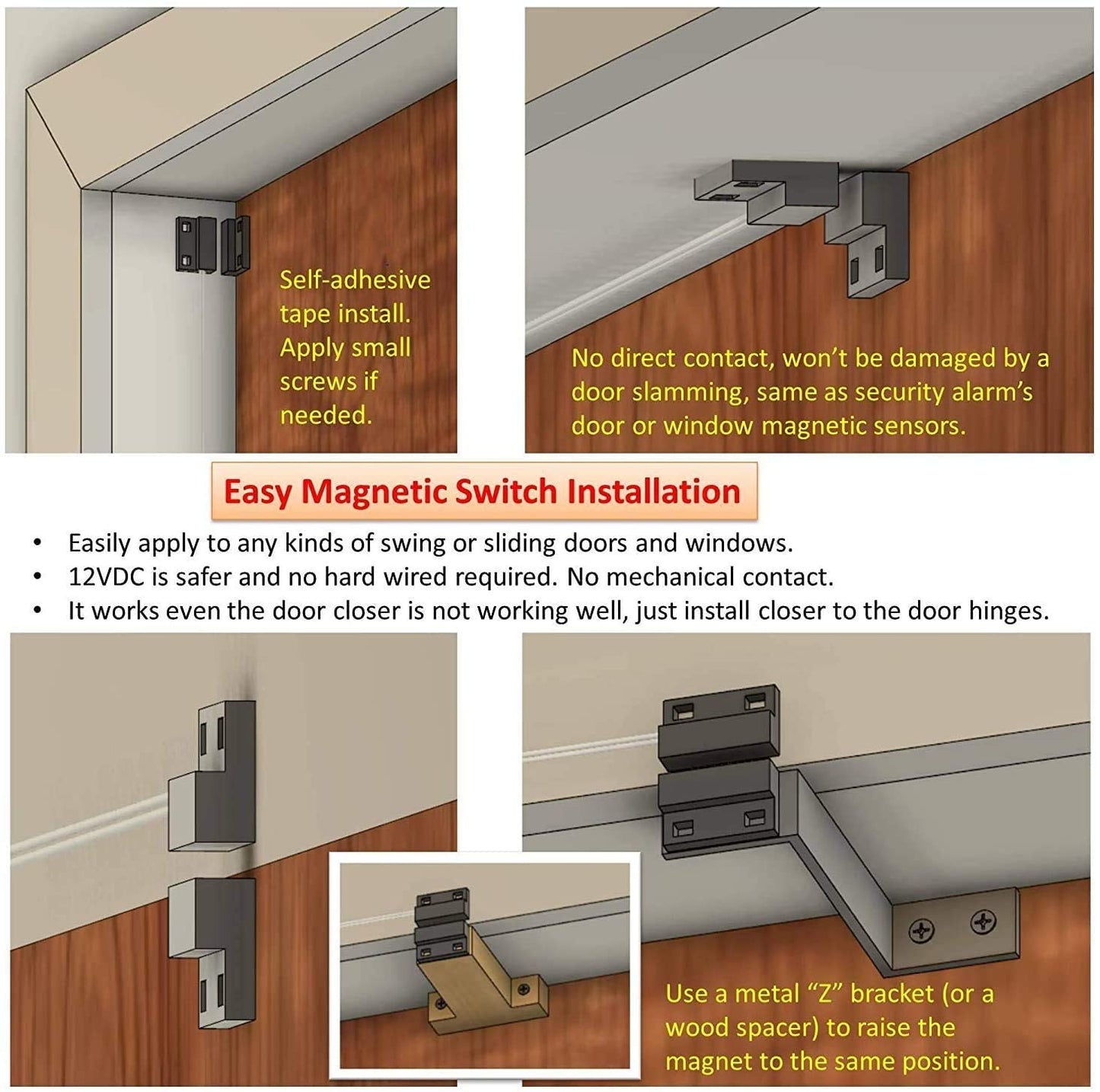

  • US Patented Magnetic Switch Controlled Circuit (Patent No. US10584889B2) - Uses two magnets to control fan operation without any physical contact, preventing wear or damage from door movement. Installs easily compared to traditional mechanical plunger switches and operates safely on 12VDC power—no hard wiring required.
  • [2 Speeds]: Toggle between high and low speeds. Consumes less power than most industrial air curtains. Can run continuously for an entire business day if needed.

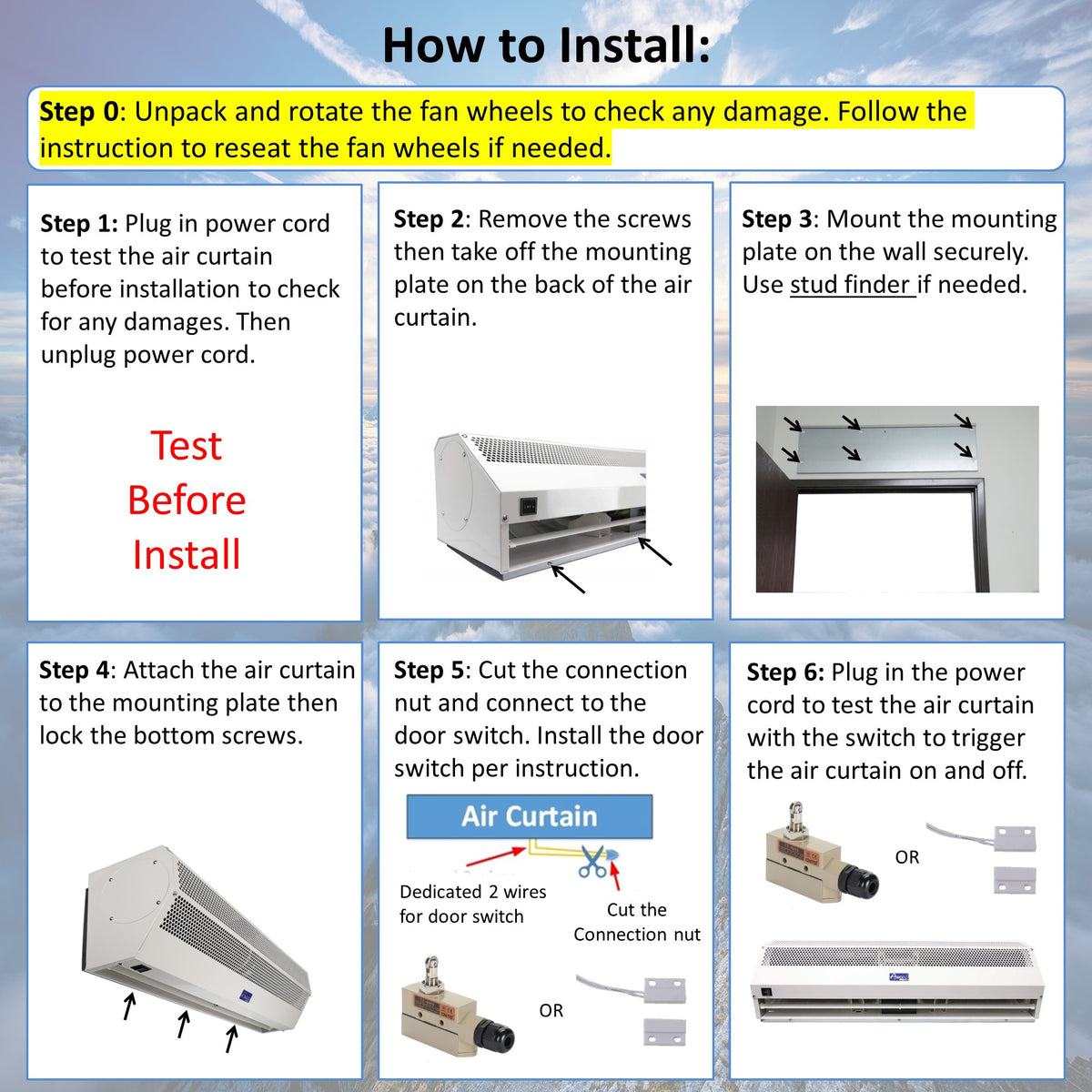

  • [Simple Installation]: Refer to the User Manual for full installation details
  • Indoor installation only, Not designed to withstand outdoor weather and elements
  • 1) Mount the solid metal mounting plate securely on wall above doorway
  • 2) Set air curtain onto the mounting plate, secure in place with screws
  • 3) Install the Motion Sensor Detection kit (see Additional Assembly and Wiring below)

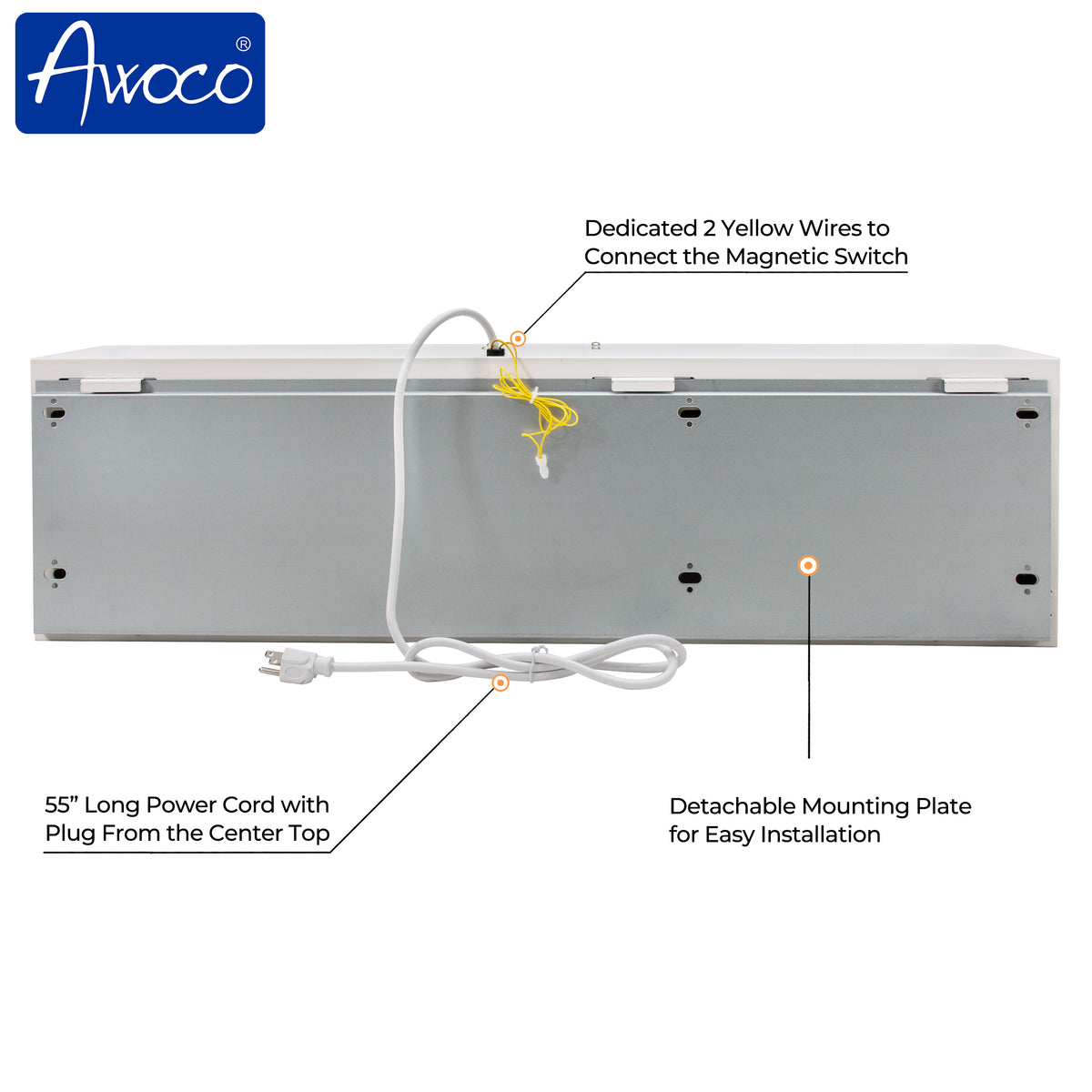

  • 4) Install the optional magnetic switch and connect to the two yellow wires from the air curtain
  • 5) Switch the air curtain on to desired speed. With magnetic switch installed, fan will turn on when door is open, and turn off when closed

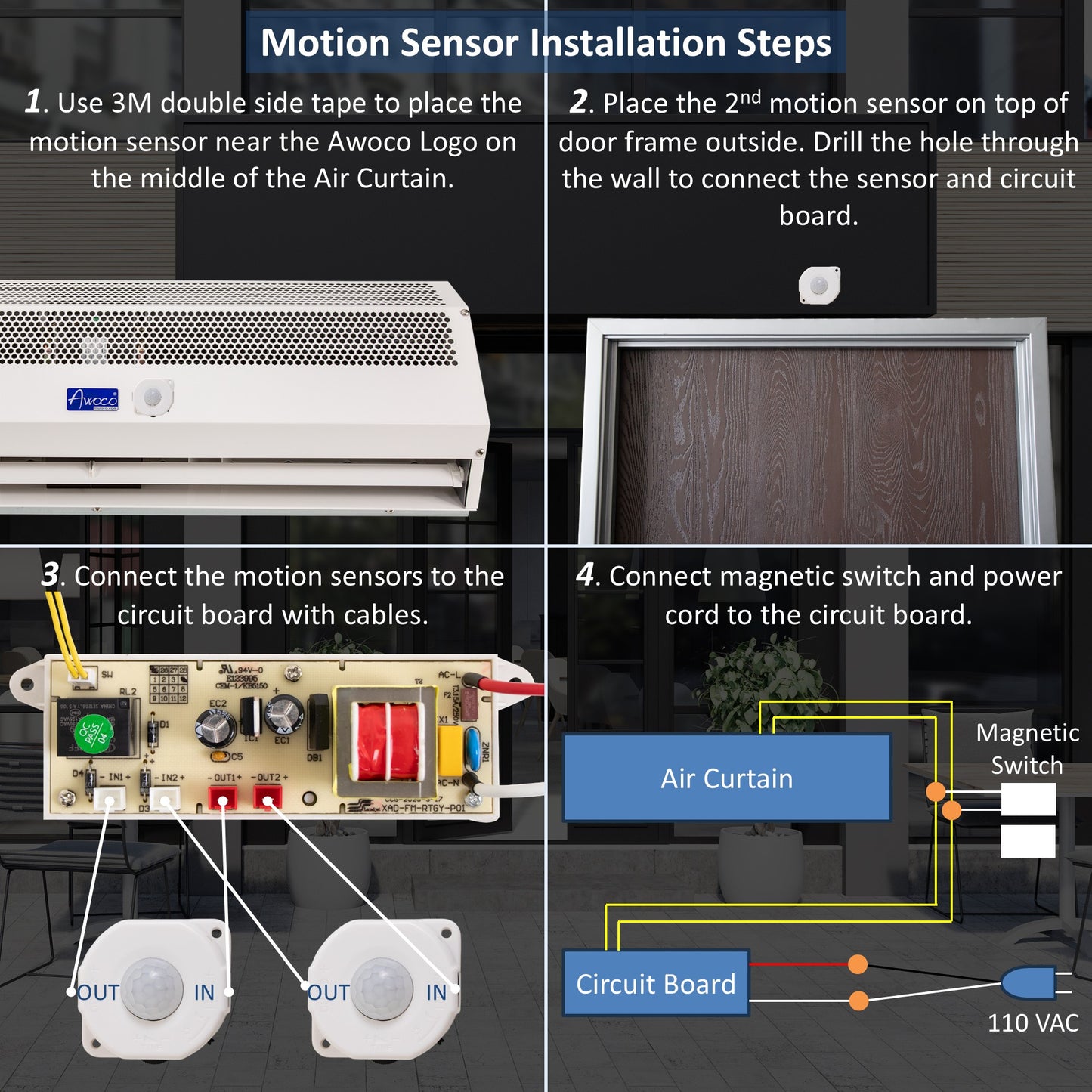

  • [Additional Assembly and Wiring Required]
  • For 36" and 42" units ONLY - Motion Sensor and Circuit Board are pre-assembled. Only required to install the remaining Motion Sensor device on the opposite side of the door.
  • For 24", 48", 60", and 72" - Mount one Motion Sensor device on the front of the air curtain and the other on the opposite side of the door. Connect wires to the Motion Sensor Circuit Board, and mount it inside the Air Curtain to conceal.
  • Package includes 1 air curtain, 1 magnetic switch, 2 motion sensor devices (for 36" and 42" units, one is already pre-installed), 1 motion detection circuit board with power cord for 110VAC (pre-installed for 36" and 42" units), motion sensor wiring cables, and 1 user manual. Mounting screws not included.
  • [1 Year Warranty, Professional Tech Support]: Includes a 1-Year Replacement Parts Warranty. Professional, dedicated tech support is available for the life of the product.
  • Specifications:
  • 24" - 2 Speeds of Operation - high speed at 785 CFM, 57dB, low speed at 628 CFM, 55dB. 120V 60Hz 230W (0.31HP, 2.40A). Overall size: 23-3/4” L x 8-5/8” D x 10-3/8” H. Weight: 26.5 LBS. 55” power cord with plug is included. UL listed.
  • 36" - 2 Speeds of Operation - high speed at 1177 CFM, 58dB, low speed at 942 CFM, 56dB. 120V 60Hz 300W (0.4HP, 3.13A). Overall size: 35-1/2” L x 8-5/8” D x 10-3/8” H. Weight: 33.1 LBS. 55” power cord with plug is included. UL listed.
  • 42" - 2 Speeds of Operation - high speed at 1354 CFM, 58dB, low speed at 1059 CFM, 56dB. 120V 60Hz 350W (0.47HP, 3.65A). Overall size: 41-3/4” L x 8-5/8” D x 10-3/8” H. Weight: 37.5 LBS. 55” power cord with plug is included. UL listed.
  • 48" - 2 Speeds of Operation - high speed at 1648 CFM, 59dB, low speed at 1295 CFM, 57dB. 120V 60Hz 350W (0.47HP, 3.65A). Overall size: 47-1/4” L x 8-5/8” D x 10-3/8” H. Weight: 43.0 LBS. 55” power cord with plug is included. UL listed.
  • 60" - 2 Speeds of Operation - high speed at 2119 CFM, 60dB, low speed at 1648 CFM, 58dB. 120V 60Hz 400W (0.54HP, 4.17A). Overall size: 59” L x 8-5/8” D x 10-3/8” H. Weight: 48.5 LBS. 55” power cord with plug is included. UL listed.
  • 72" - 2 Speeds of Operation - high speed at 2354 CFM, 61dB, low speed at 1884 CFM, 59dB. 120V 60Hz 600W (0.8HP, 6.25A). Overall size: 71-1/2” L x 8-5/8” D x 10-3/8” H. Weight: 61.7 LBS. 55” power cord with plug is included. UL listed.
FULFILLMENT / DELIVERY
  • Dispatch: Within 48 Hours
  • Free shipping across all products
  • Domestic delivery time - 4-10 business days (Mainland USA ONLY)
  • Easy 30 days returns and exchanges
  • Please look at our "Shipping Policy" section for further information.
RETURNS

  • • You can return new, unopened items within 30 days under our hassle-free return policy - no questions asked.
  • • For refurbished products please inquire at sales@awoco.com.
  • • Please look at our "Refund Policy" section for further information.

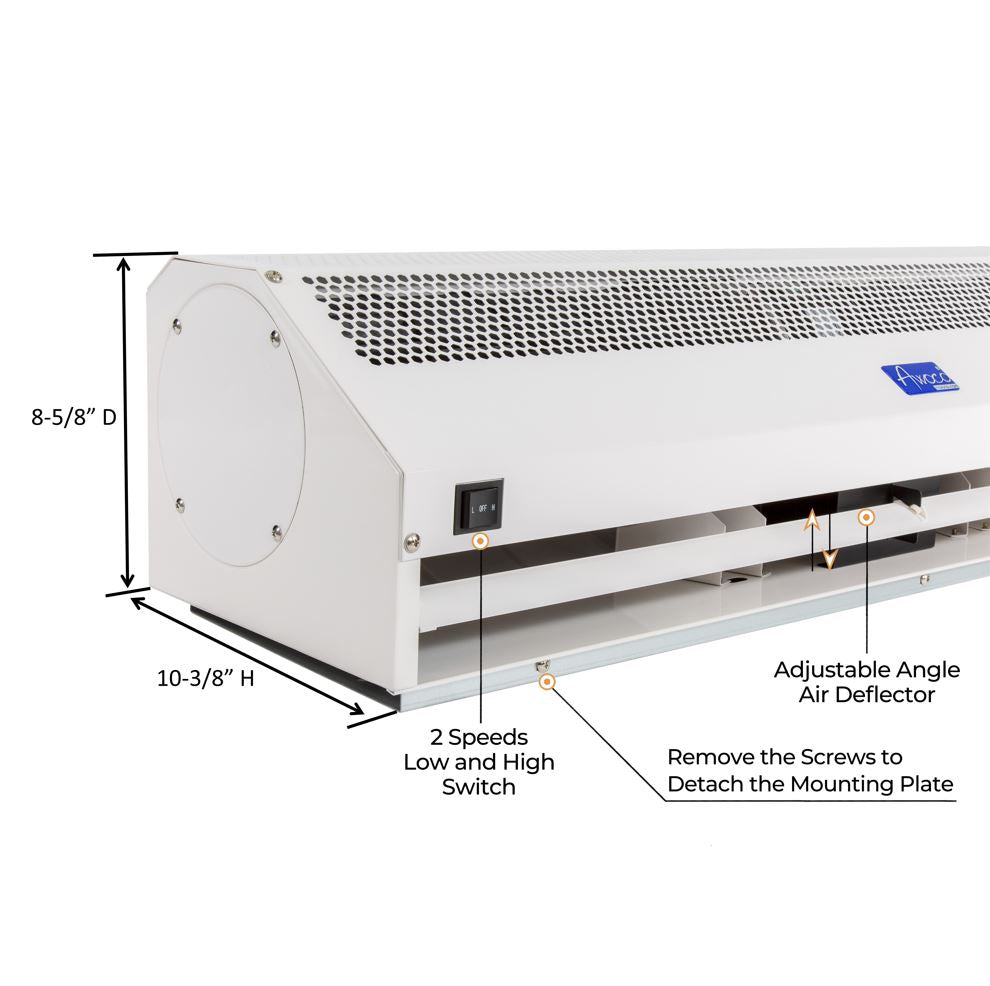

    • Voltage 120V, 60Hz. Depth 8-5/8 in. Height 10-3/8 in.
    Air Velocity 1968 FPM (Low) – 2559 FPM (High)
    Model No. For
    Door Size    		 Width Power
    (W/HP)    		 Net Weight
    (LB)    		 Current
    (A)    		 Air Volume
    (CFM)    		 Noise Level
    (dB)
    Lo Hi Lo Hi
    FM1506-** 24" 23-3/4" 230/0.31 27.5 2.4 628 785 55 57
    FM1509-** 36" 35-1/2" 300/0.4 33.1 3.13 942 1177 56 58
    FM1510-** 42" 41-3/4" 350/0.47 37.5 3.65 1059 1354 56 58
    FM1512-** 48" 47-1/4" 350/0.47 43 3.65 1295 1648 57 59
    FM1515-** 60" 59" 400/0.54 48.5 4.17 1648 2119 58 60
    FM1518-** 72" 71-1/2" 600/0.8 61.7 6.25 1884 2354 59 61
    • **:  Depending on the door switch used in the models, these symbols can mean the following:
      • M: Magnetic Switch.
        • Model No. example: FM1506-M, FM1509-M etc.
      • MSD: Magnetic Switch with Delayed Shutoff.
        • Model No. example: FM1506-MSD, FM1509-MSD etc.
