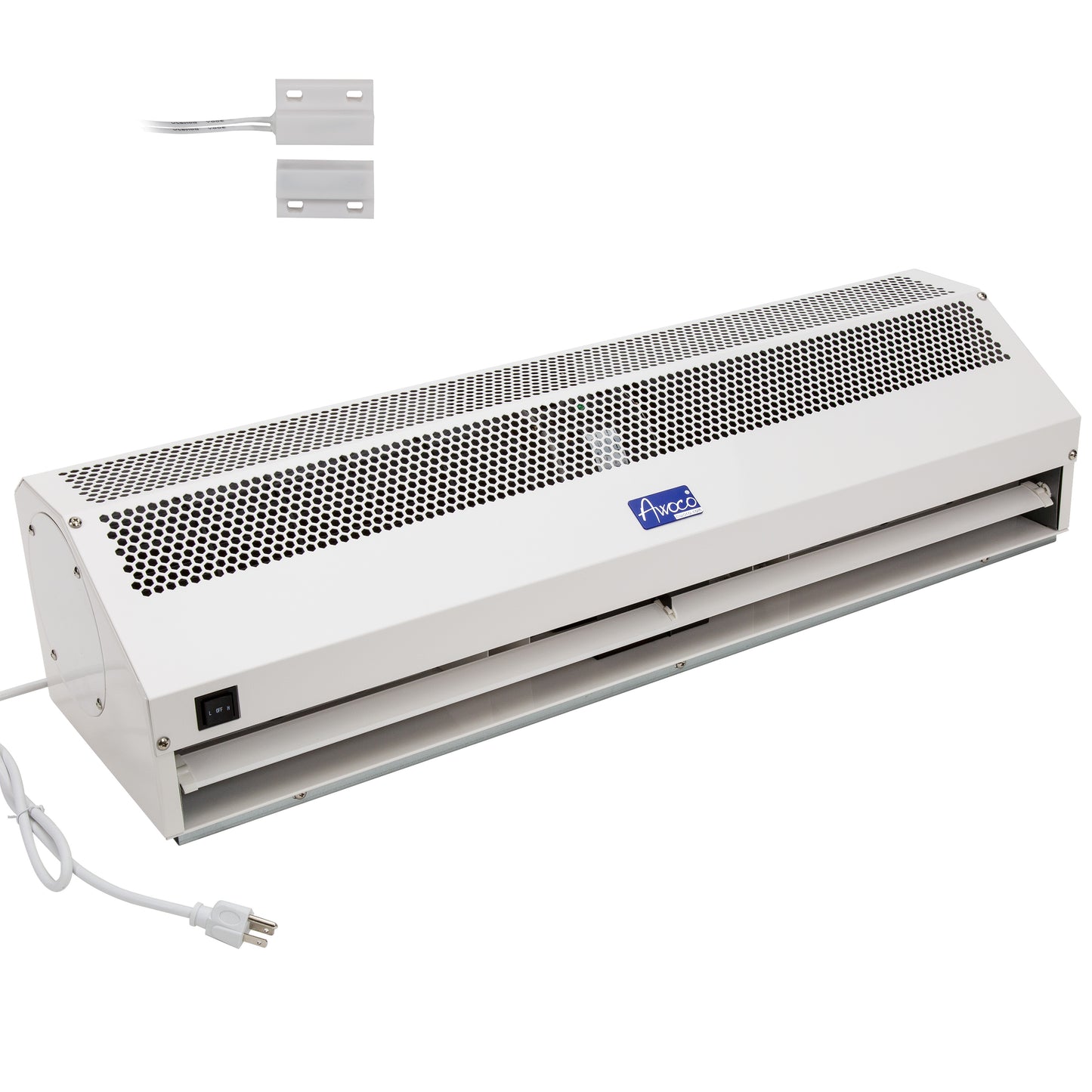

- Super Power Air Curtain Series FM15 by Awoco - 120V Unheated Indoor Air Curtain featuring 2 Speeds and Easy-Install Magnetic Switch for Doorways
- [NOT an Air Conditioner]: DOES NOT GENERATE COLD OR HOT AIR. Do not purchase if you are looking for an A/C unit.

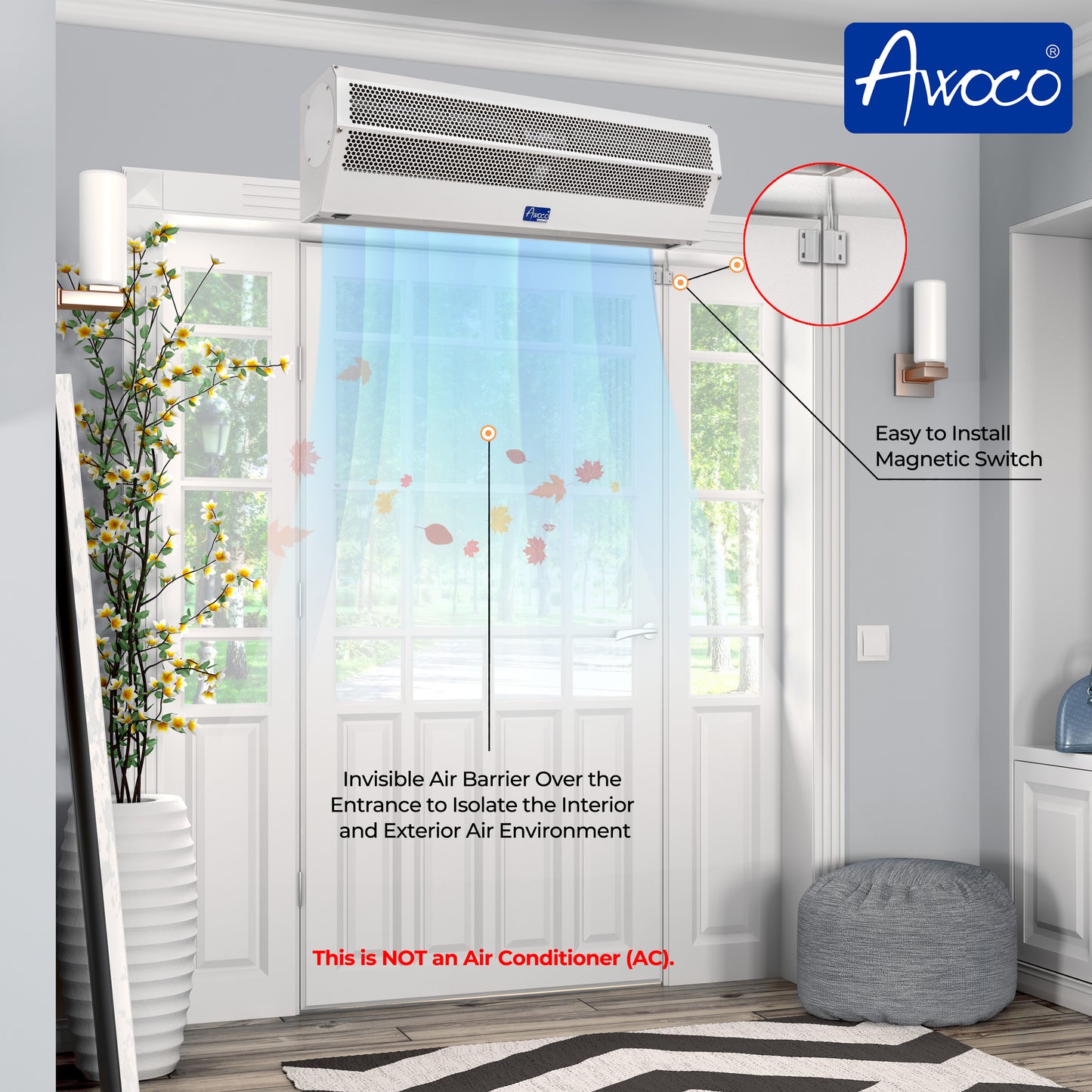

- [Isolate Interior from Outside]: The Super Power Air Curtain can help save energy by preventing outdoor air from entering a space, while also helping to block the entry of bugs, dust, and debris. Built with a fireproof and anti-erosive coated metal case for long-lasting durability.

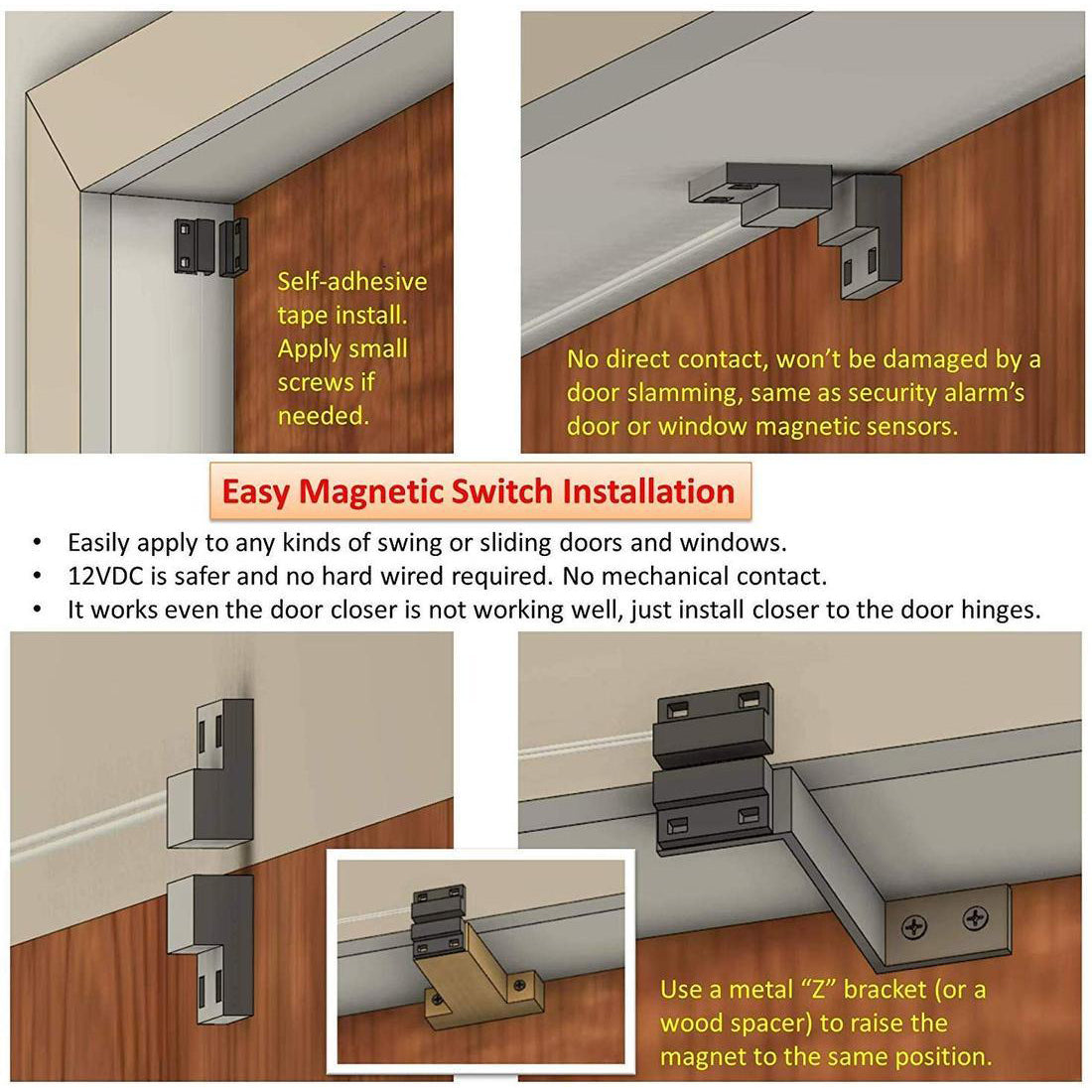

- [Magnetic Switch Controlled Circuit (US Patented)]: Uses two magnets to control fan operation without any physical contact, preventing wear or damage from door movement. Installs easily compared to traditional mechanical plunger switches and operates safely on 12VDC power—no hard wiring required.
- [2 Speeds]: Toggle between high and low speeds. Consumes less power than most industrial air curtains. Can run continuously for an entire business day if needed.
- [Certification]: UL certified for 36", 42", 48", and 60". CE certified for 24", 72".
- [Simple Installation]: Refer to the User Manual for full installation details
- Indoor installation only, Not designed to withstand outdoor weather and elements
- 1) Mount the solid metal mounting plate securely on wall above doorway
- 2) Set air curtain onto the mounting plate, secure in place with screws
- 3) Install the optional magnetic switch and connect to the two yellow wires from the air curtain

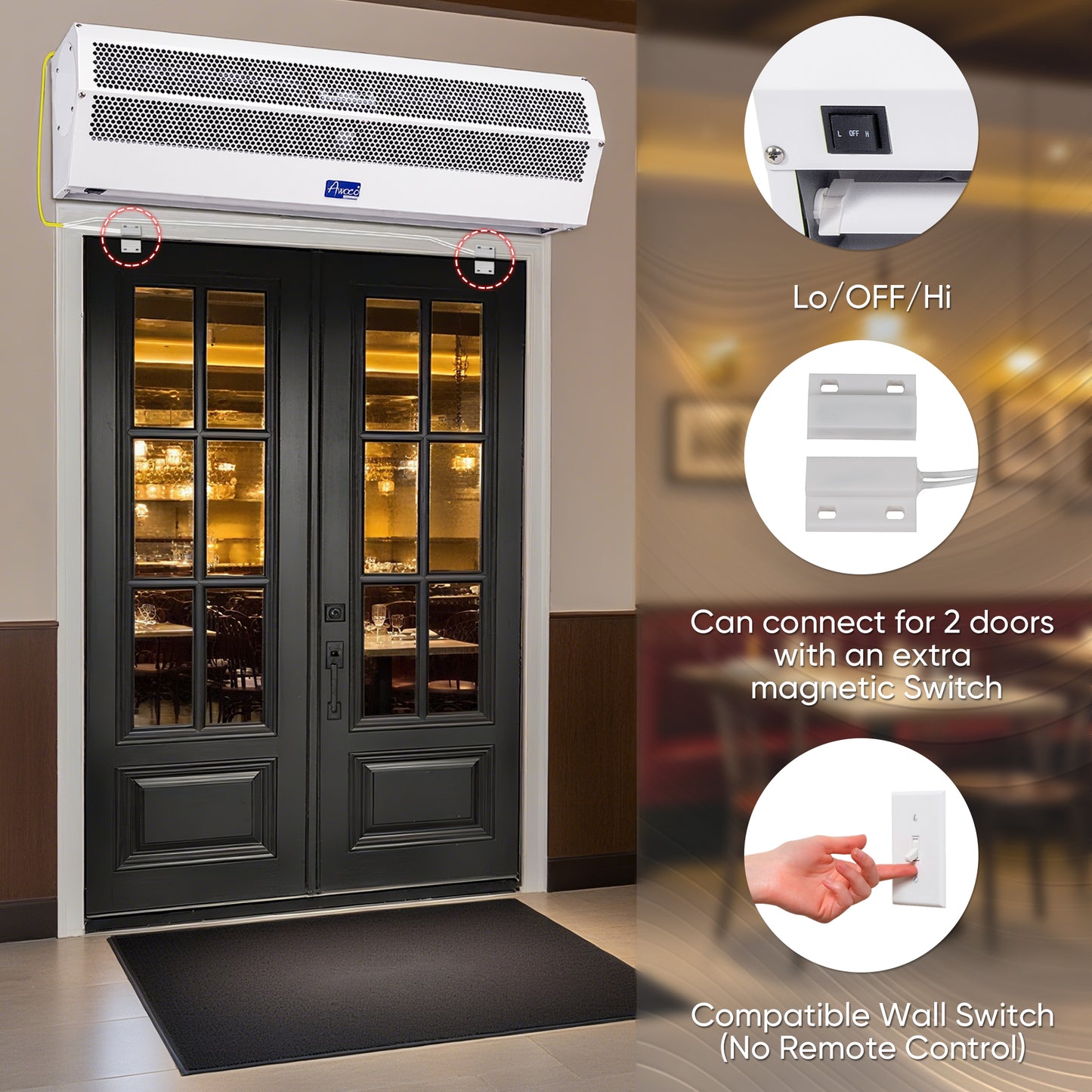

- 4) Switch the air curtain on to desired speed. With magnetic switch installed, fan will turn on when door is open, and turn off when closed
- [1 Year Warranty, Professional Tech Support]: Includes a 1-Year Replacement Parts Warranty. Professional, dedicated tech support is available for the life of the product.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS

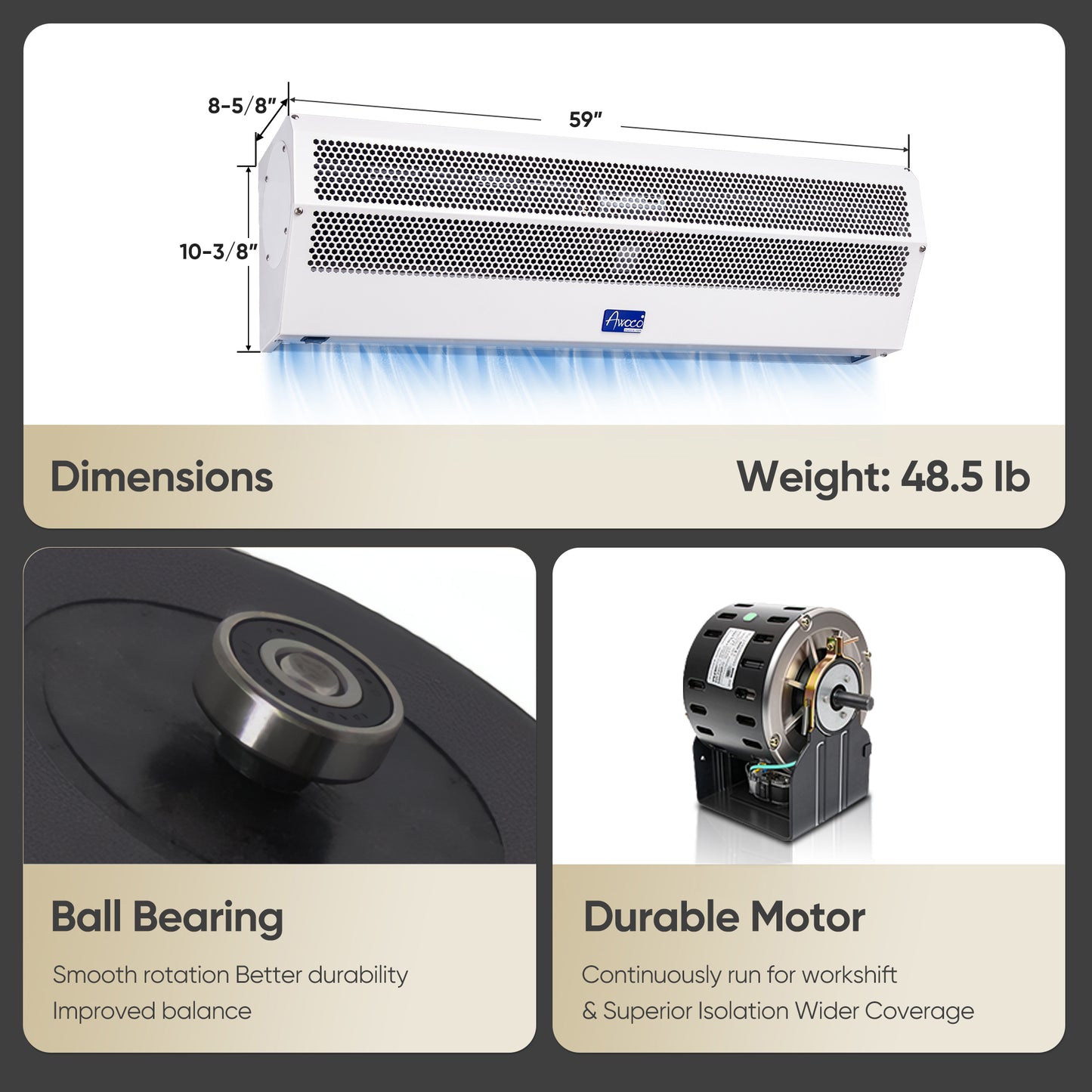

| Voltage | 120V, 60Hz. | Depth | 8-5/8 in. | Height | 10-3/8 in. | ||
| Air Velocity | 1968 FPM (Low) – 2559 FPM (High) | ||||||
| Model No. | For Door Size |
Width | Power (W/HP) |
Net Weight (LB) |
Current (A) |
Air Volume (CFM) |
Noise Level (dB) |
||
| Lo | Hi | Lo | Hi | ||||||
| FM1506-** | 24" | 23-3/4" | 230/0.31 | 27.5 | 2.4 | 628 | 785 | 55 | 57 |
| FM1509-** | 36" | 35-1/2" | 300/0.4 | 33.1 | 3.13 | 942 | 1177 | 56 | 58 |
| FM1510-** | 42" | 41-3/4" | 350/0.47 | 37.5 | 3.65 | 1059 | 1354 | 56 | 58 |

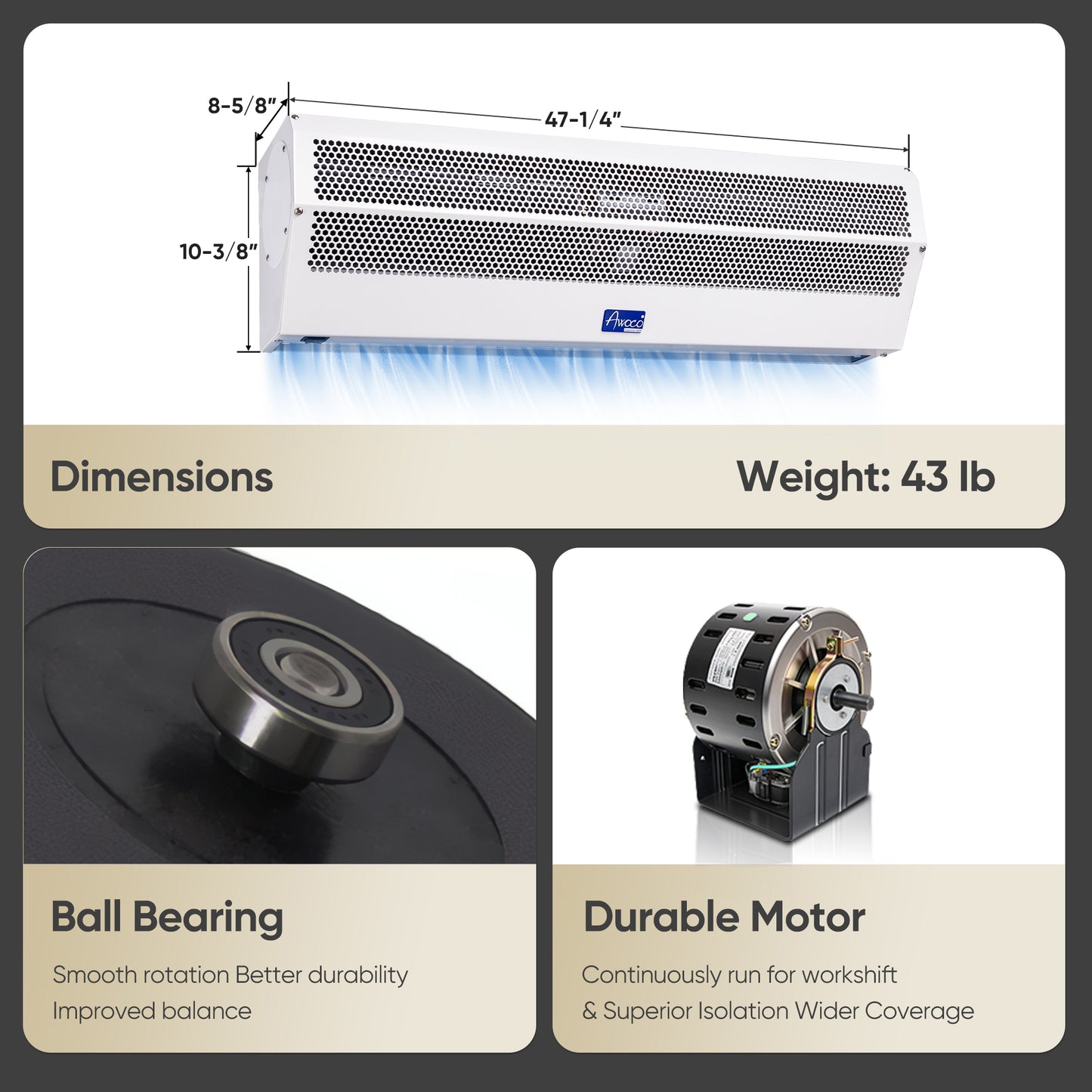

| FM1512-** | 48" | 47-1/4" | 350/0.47 | 43 | 3.65 | 1295 | 1648 | 57 | 59 |
| FM1515-** | 60" | 59" | 400/0.54 | 48.5 | 4.17 | 1648 | 2119 | 58 | 60 |
| FM1518-** | 72" | 71-1/2" | 600/0.8 | 61.7 | 6.25 | 1884 | 2354 | 59 | 61 |
- **: Depending on the door switch used in the models, these symbols can mean the following:
- M: Magnetic Switch.
- Model No. example: FM1506-M, FM1509-M etc.
- MSD: Magnetic Switch with Delayed Shutoff.
- Model No. example: FM1506-MSD, FM1509-MSD etc.
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
SERVICE HELP: AWOCO 101 VIDEOS
-
Aluminum Replacement Fan Wheel for Awoco Super Power FM1506 Air Curtain
$85.00 -

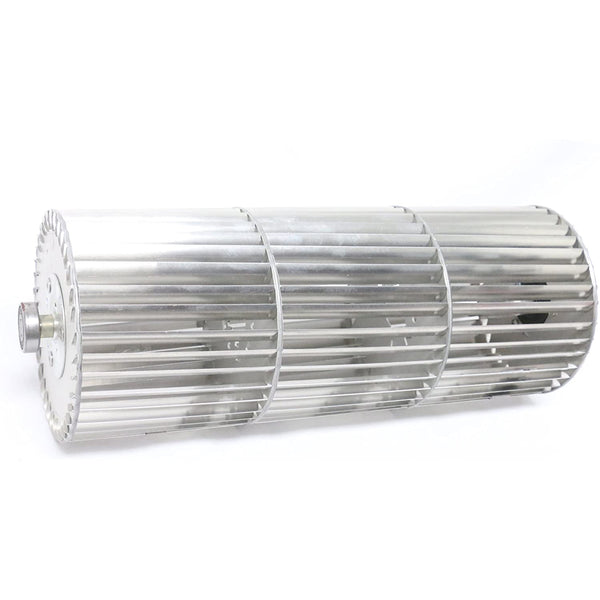

Aluminum Replacement Fan Wheel for Awoco Super Power FM1509 and FM1518 Air Curtain
$85.00 -
Plastic Replacement FAN-FM1506 Fan Wheel for Awoco Super Power FM-1506 Air Curtain
$65.00 -
Plastic Replacement FAN-FM1515 Fan Wheel for Awoco Super Power FM-1515 Air Curtain
$85.00 -

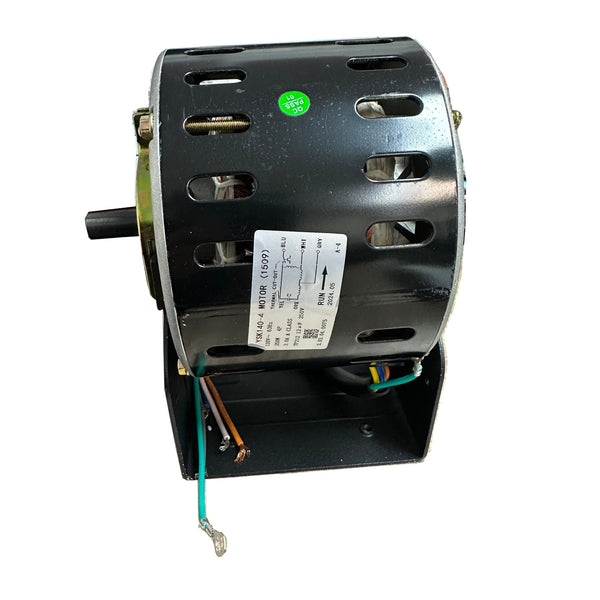

YSK140-4 Motor 1509 Replacement 2 Shafts Motor for Awoco Super Power 36" FM1509 and 72" FM1518 Air Curtains
$90.00 -
Awoco Magnetic Switch Controlled Circuit Board Replacement for Awoco Air Curtains
$75.00 -
Awoco 12VDC Easy-Install Magnetic Switch for Awoco Magnetic Switch Controlled Air Curtains (Magnetic Switch)
$20.00 -
ABS FAN-FM1512 Replacement Fan Wheel for 48" Awoco Super Power FM-1512SA1 Air Curtain
$75.00 -

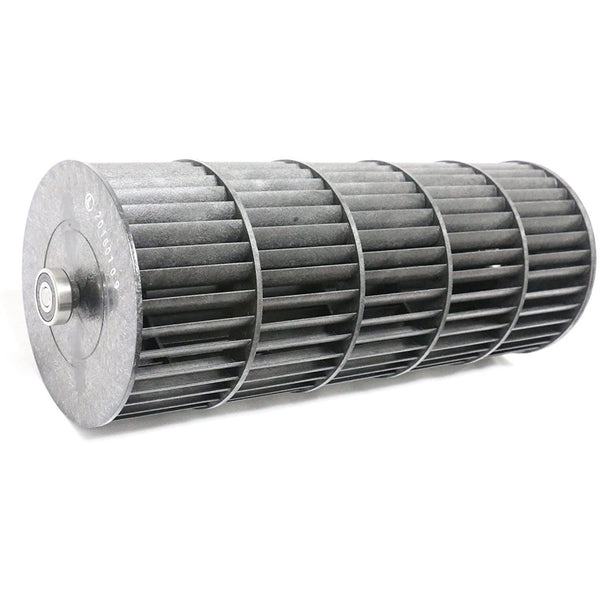

ABS Replacement Fan Wheel FAN-FM1510 for Awoco Super Power FM-1510SA1 Air Curtain
