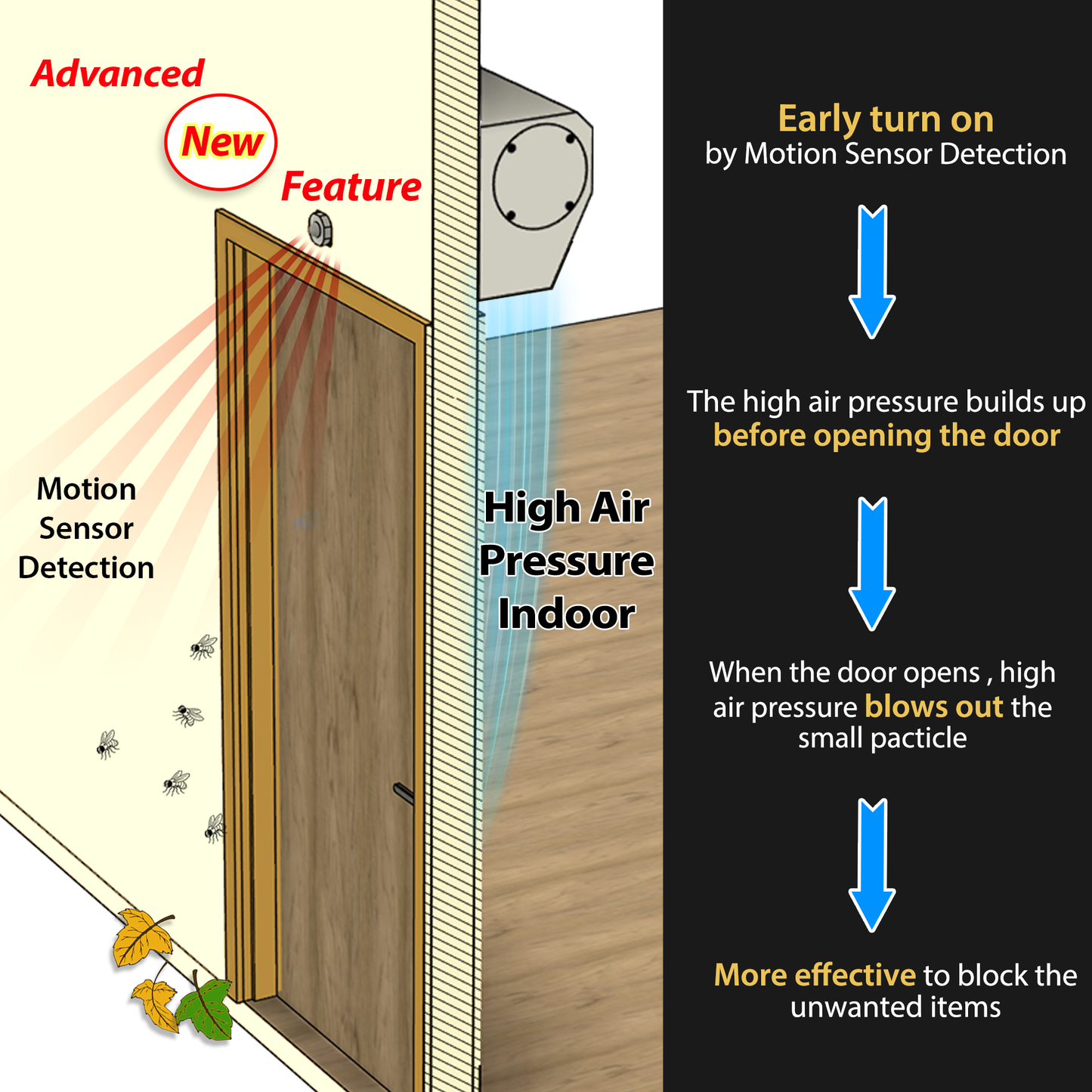

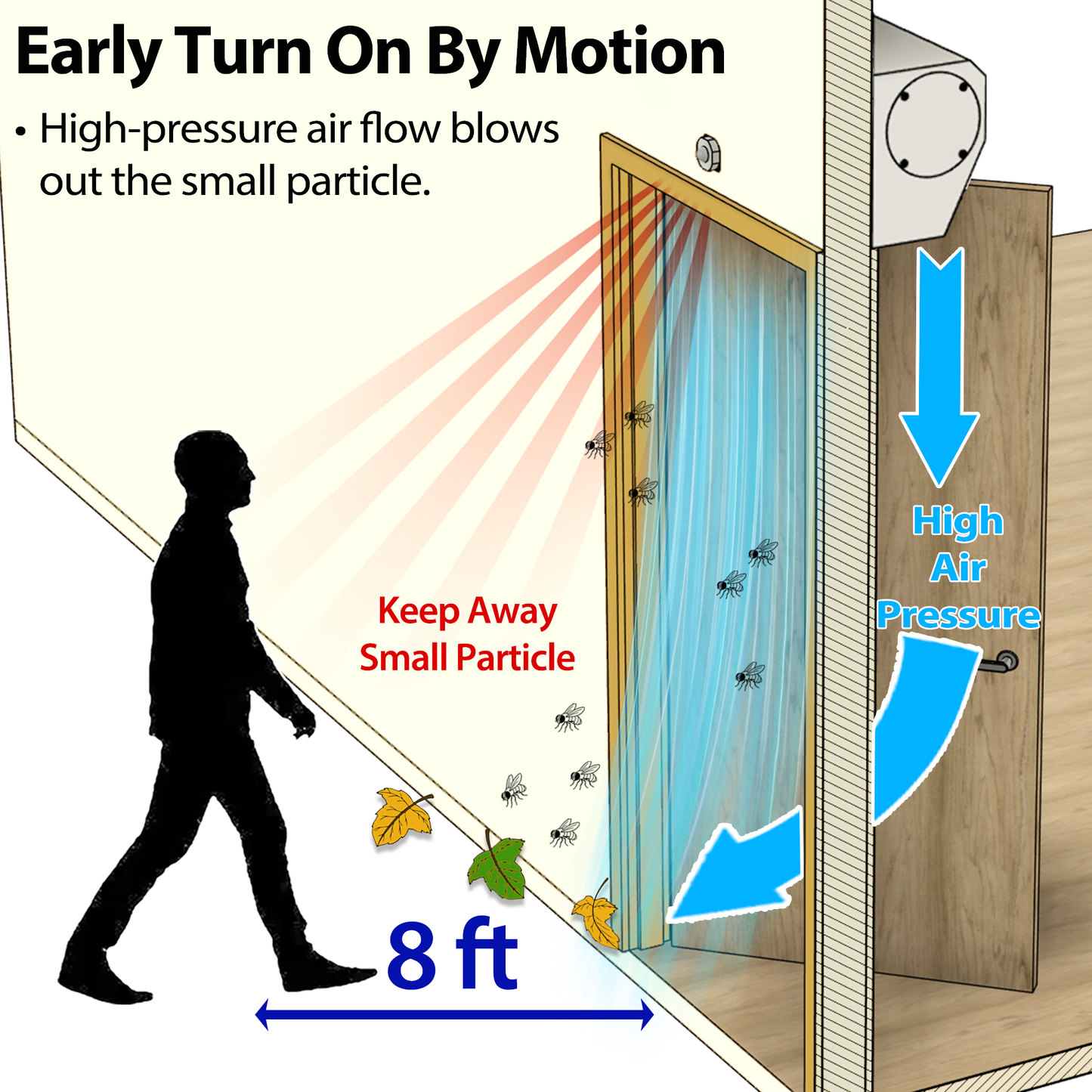

- Motion Sensor 7 to 9 feet Detection - The motion sensor detects walk-by people within 7-9 feet and activates the air curtain 1.5 seconds later. It runs for 40 seconds. With early turn on, the air curtain generates high air pressure indoor, it prevents the dust / heat / unwanted small particles to enter inside once open the door. This new special feature is more effective than the other door triggered air curtain to blow out the unwanted particles right at the moment opening the door.

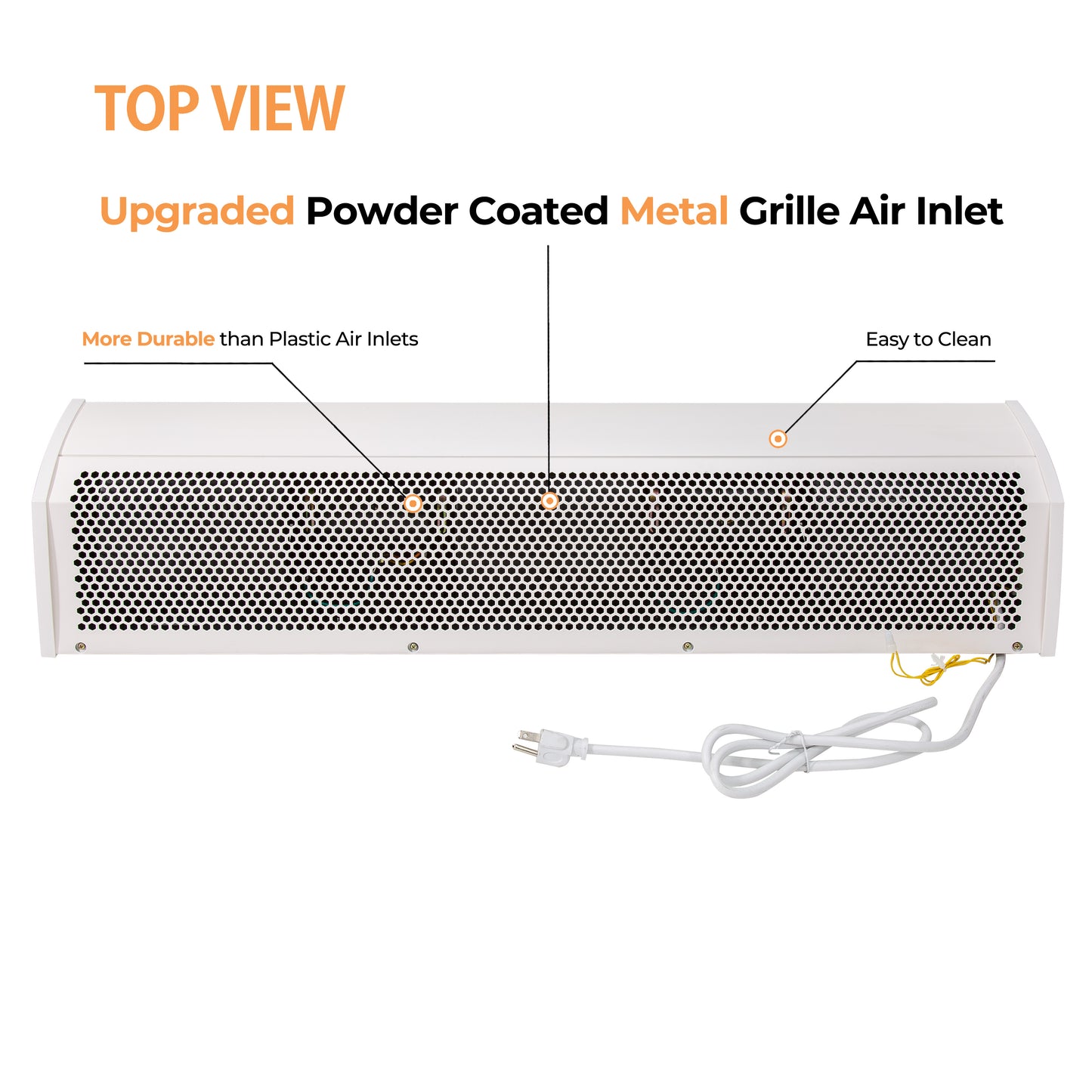

- Powerful Unheated Air Fan - It does not generate cold or hot air. Air curtain is a powerful fan that creates a high speed air stream over the entrance to isolate the interior and exterior air environment while blocking the entry of dust, heat, smoke, and small particles. Powder coated metal case, easy to clean slim body.

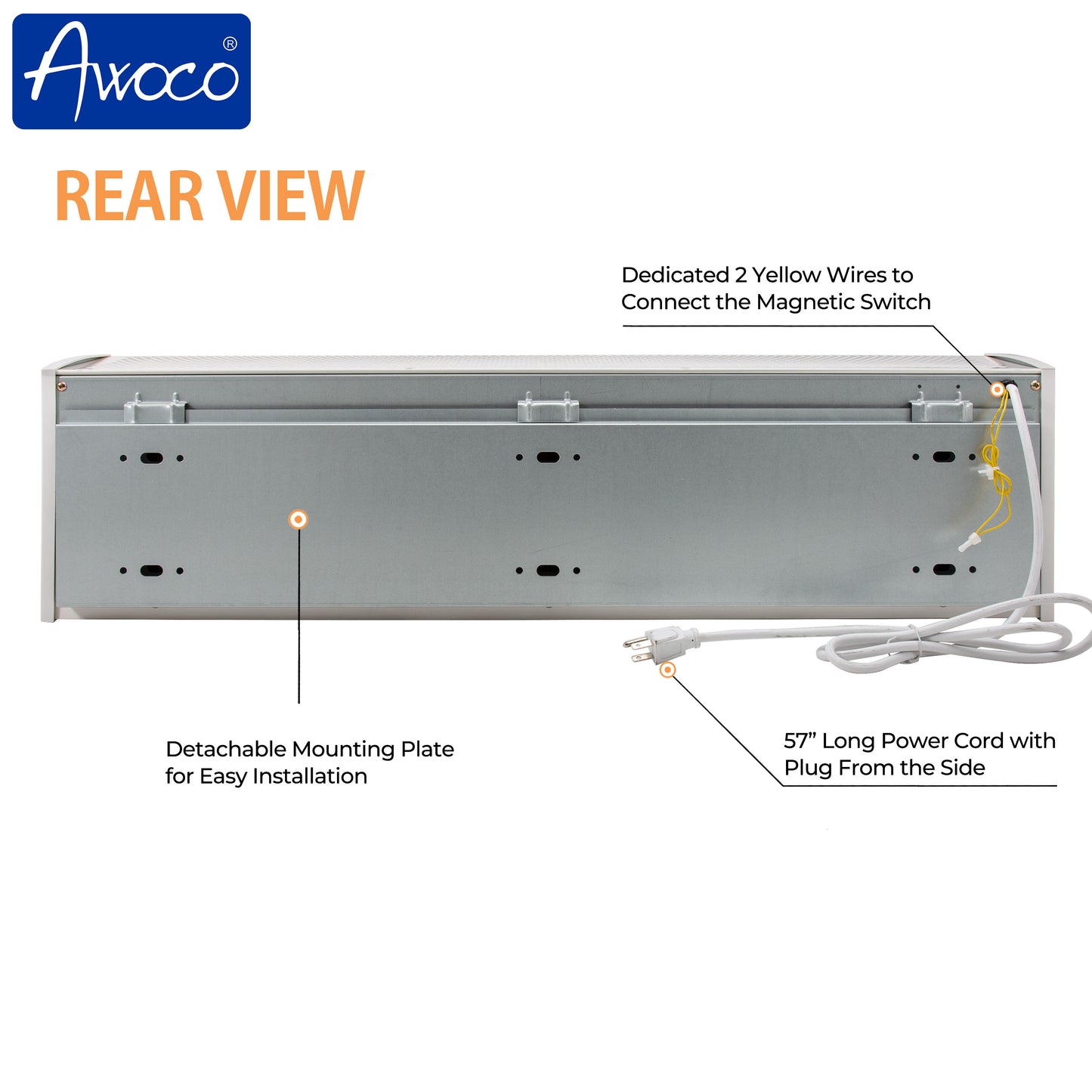

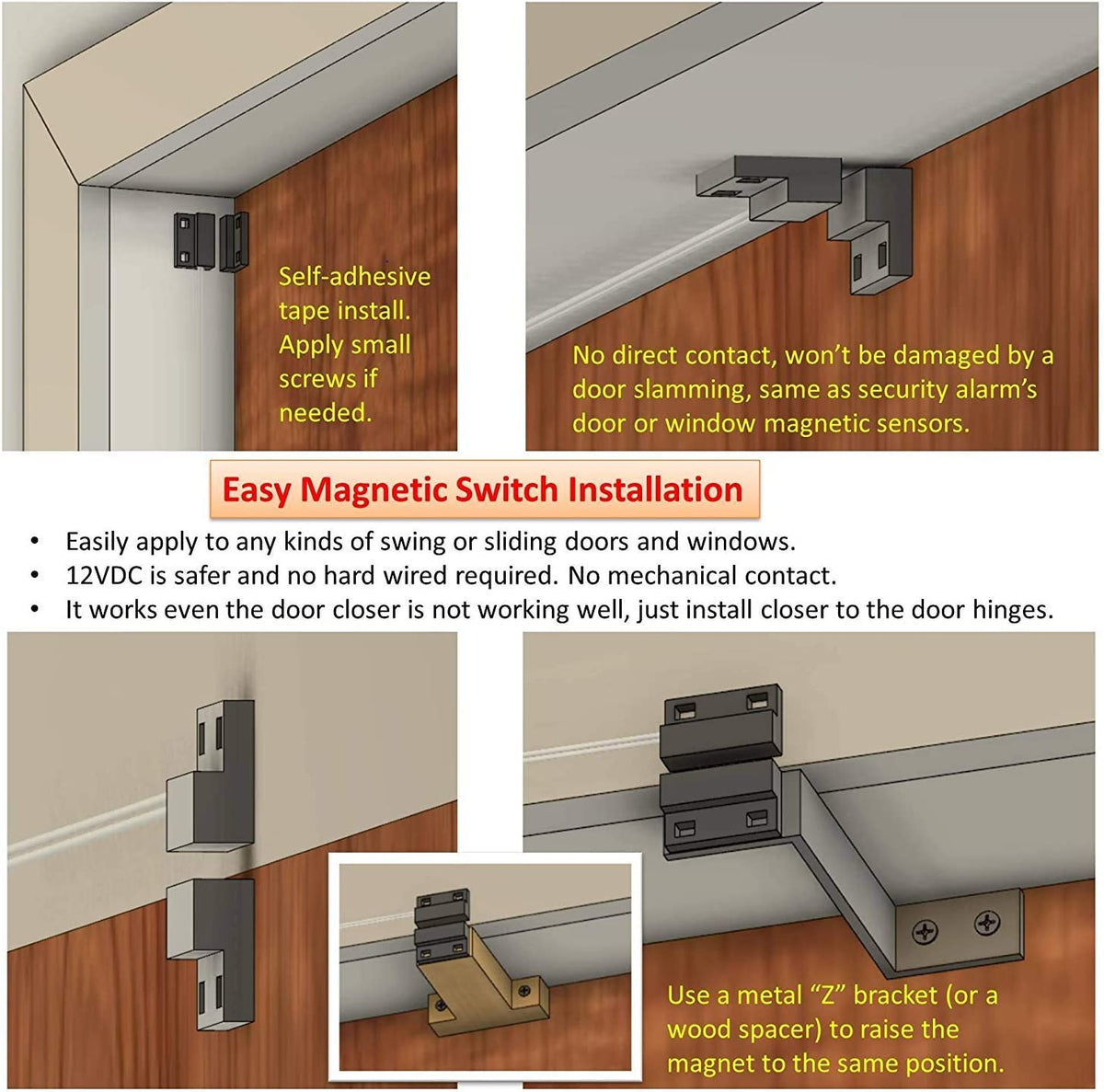

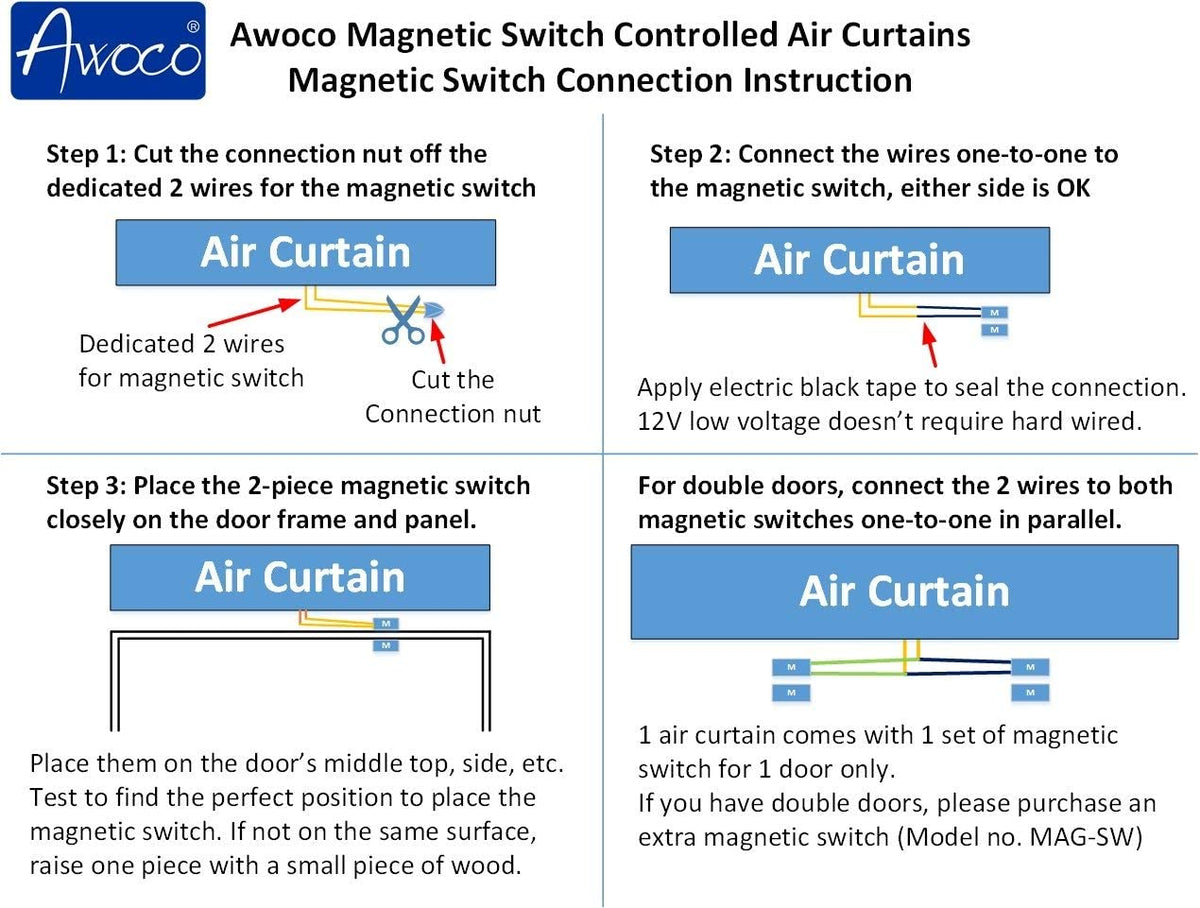

- US Patented Magnetic Switch Controlled Circuit (Patent No. US10584889B2) - The motion sensor detection turns on the air curtain for 30 seconds and it will shut off if no motion is detected. With the magnetic switch installed on the door, once the door is open, the air curtain stays on even no motion is detected.

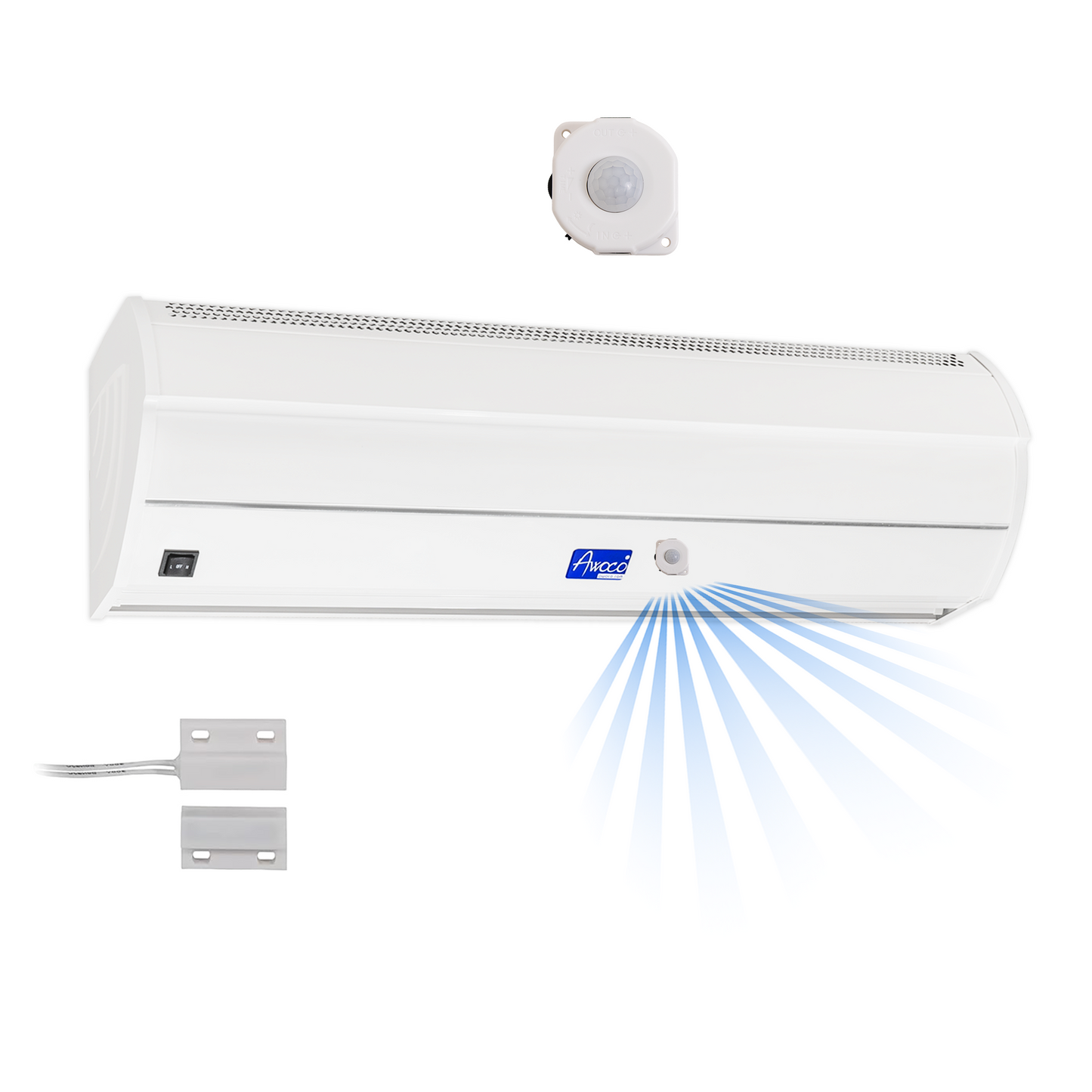

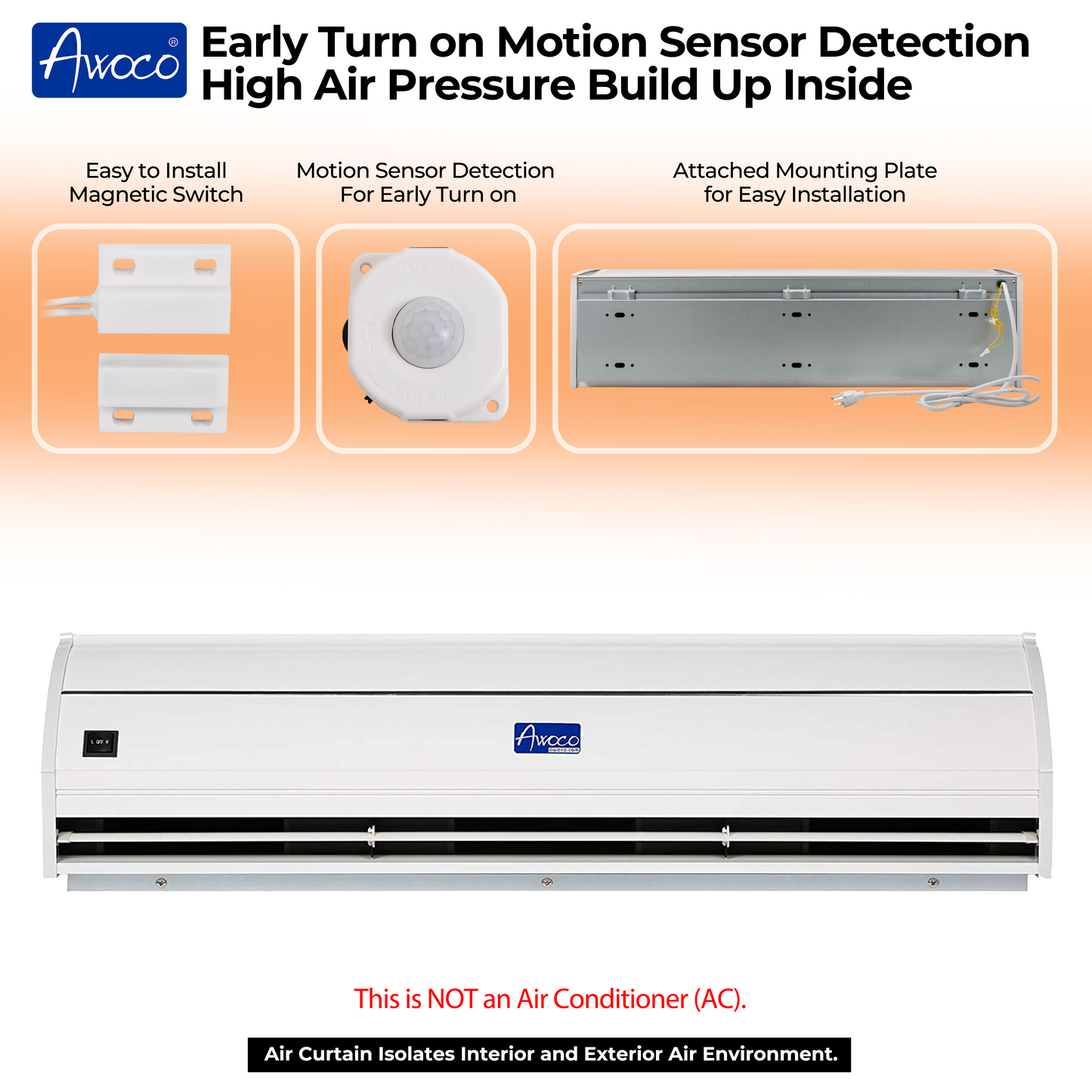

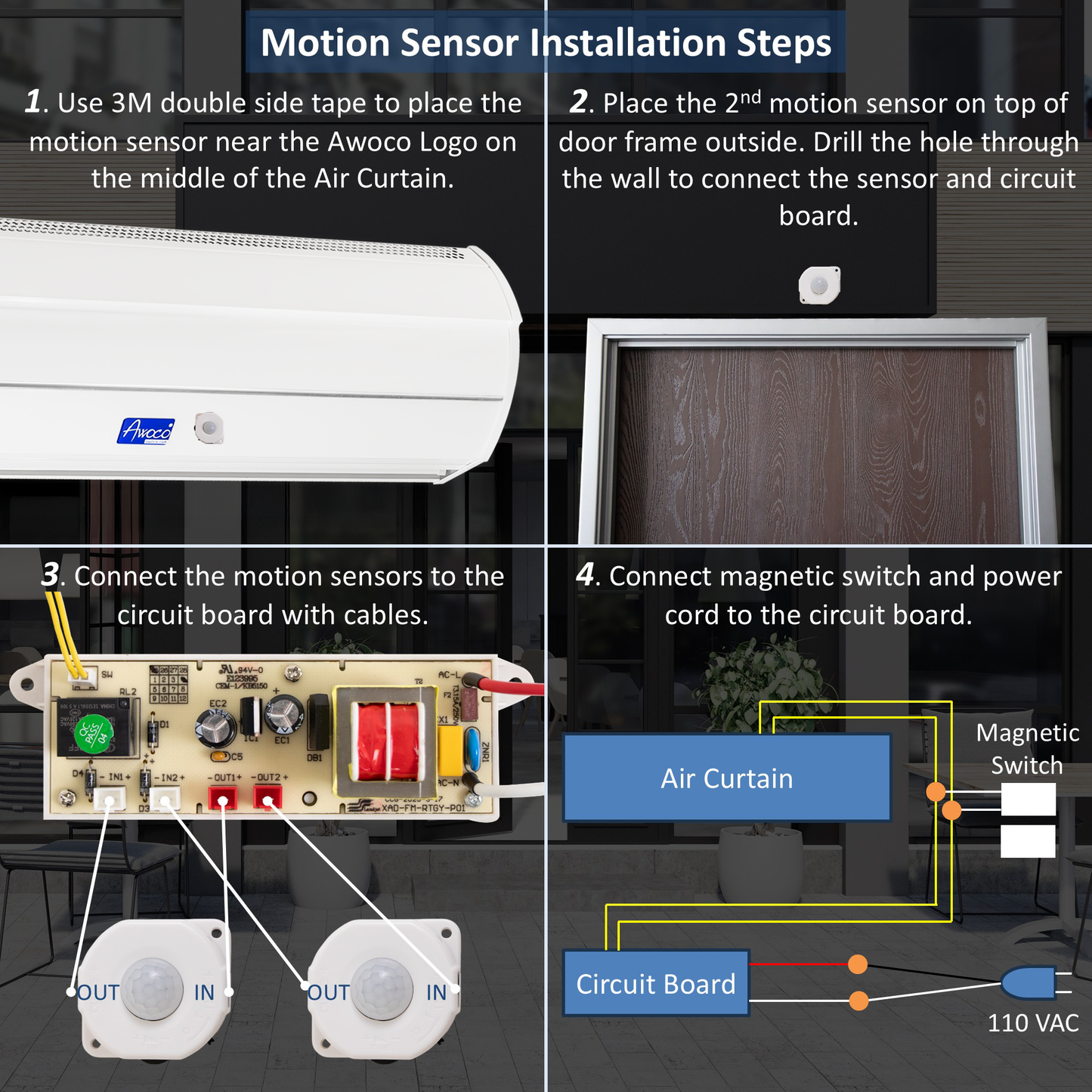

- Additional Assembly and Wiring are Required - Motion Sensors are required to mount on the air curtain and the top of the outside door. Package includes 1 air curtain, 1 magnetic switch, 2 motion sensors, 1 motion detection circuit board with power cord for 110VAC, motion sensor wiring cables, and 1 user manual. No mounting screws are included.

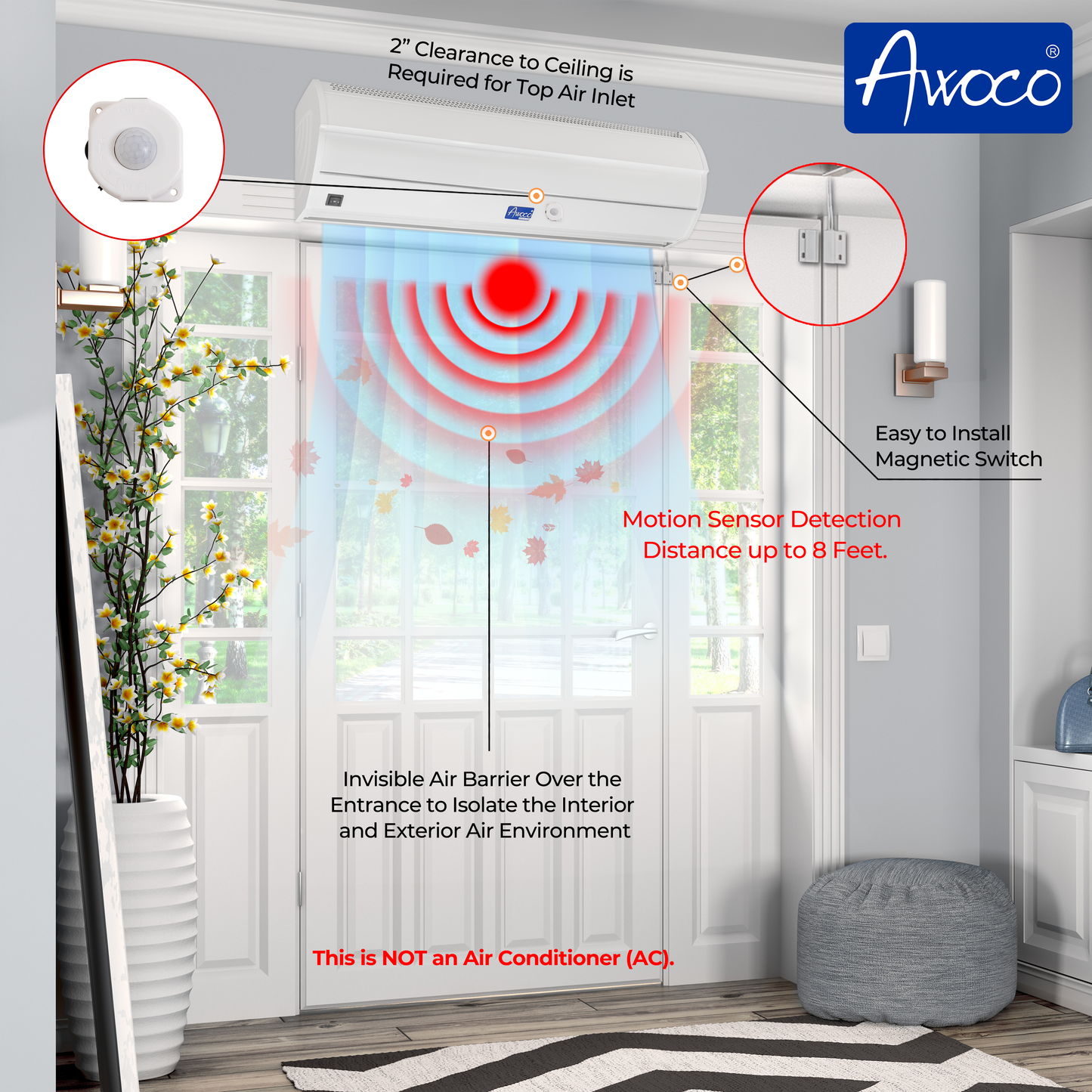

- 1 year manufacturer warranty - Stainless Alloy cover is fireproof and anti-erosive, easy to clean. Lightweight and elegant, but a high-quality build, perfect for restaurant front door and residential use. It is quiet but still powerful air flow. It is recommended to have an extra 2" of clearance from the ceiling for better circulation.

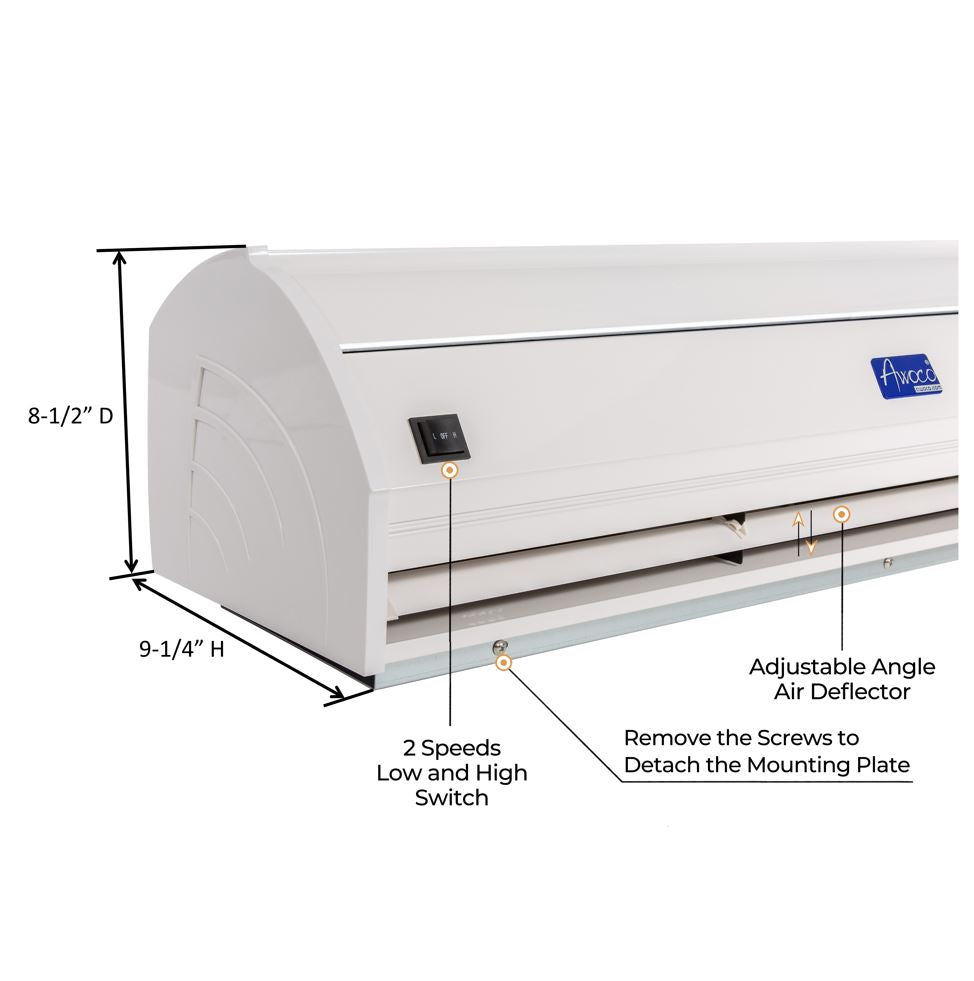

- 36" - 2 speeds, high speed at 907 CFM, 52dB, low speed at 742 CFM, 49dB. 120V 60Hz 300W (0.4HP, 3.13A). Overall size: 35-1/2” L x 8-1/2” D x 9-1/4” H. Weight: 28.7 LBS. 57” power cord with plug is included. UL listed.
- 42" - 2 speeds, high speed at 989 CFM, 52dB, low speed at 824 CFM, 49dB. 120V 60Hz 320W (0.43HP, 3.33A). Overall size: 42” L x 8-1/2” D x 9-1/4” H. Weight: 30.9 LBS. 57” power cord with plug is included. UL listed.
- 48“- 2 speeds, high speed at 1236 CFM, 53dB, low speed at 989 CFM, 50dB. 120V 60Hz 400W (0.54HP, 4.17A). Overall size: 47-1/4” L x 8-1/2” D x 9-1/4” H. Weight: 34.2 LBS. 57” power cord with plug is included. UL listed.
- 60“ - 2 speeds, high speed at 1566 CFM, 55dB, low speed at 1236 CFM, 52dB. 120V 60Hz 500W (0.67HP, 5.21A). Overall size: 59” L x 8-1/2” D x 9-1/4” H. Weight: 44.1 LBS. 57” power cord with plug is included. UL listed.
- 72" - 2 speeds, high speed at 1878 CFM, 55dB, low speed at 1482 CFM, 52dB. 120V 60Hz 600W (0.8HP, 6.25A). Overall size: 72” L x 8-1/2” D x 9-1/4” H. Weight: 51.8 LBS. 57” power cord with plug is included. CE listed.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
| Voltage | 120V, 60Hz. | Depth | 8-1/2 in. | Height | 9-1/4 in. | ||
| Air Velocity | 2559 FPM (Low) – 3150 FPM (High) | ||||||
| Model No. | For Door Size |
Width | Power (W/HP) |
Net Weight (LB) |
Current (A) |
Air Volume (CFM) |
Noise Level (dB) |
||
| Lo | Hi | Lo | Hi | ||||||
| FM3509-** | 36" | 35-1/2" | 300/0.4 | 28.7 | 3.13 | 742 | 907 | 49 | 52 |
| FM3510-** | 42" | 42" | 320/0.43 | 30.9 | 3.33 | 824 | 989 | 49 | 52 |
| FM3512-** | 48" | 47-1/4" | 400/0.54 | 34.2 | 4.17 | 989 | 1236 | 50 | 53 |
| FM3515-** | 60" | 59" | 500/0.67 | 44.1 | 5.21 | 1236 | 1566 | 52 | 55 |
| FM3518-** | 72" | 72" | 600/0.8 | 51.8 | 6.25 | 1482 | 1878 | 52 | 55 |
- **: Depending on the door switch used in the models, these symbols can mean the following:
- M: Magnetic Switch.
- Model No. example: FM3509-M, FM3510-M etc.
- MSD: Magnetic Switch with Delayed Shutoff.
- Model No. example: FM3509-MSD, FM3510-MSD etc.
