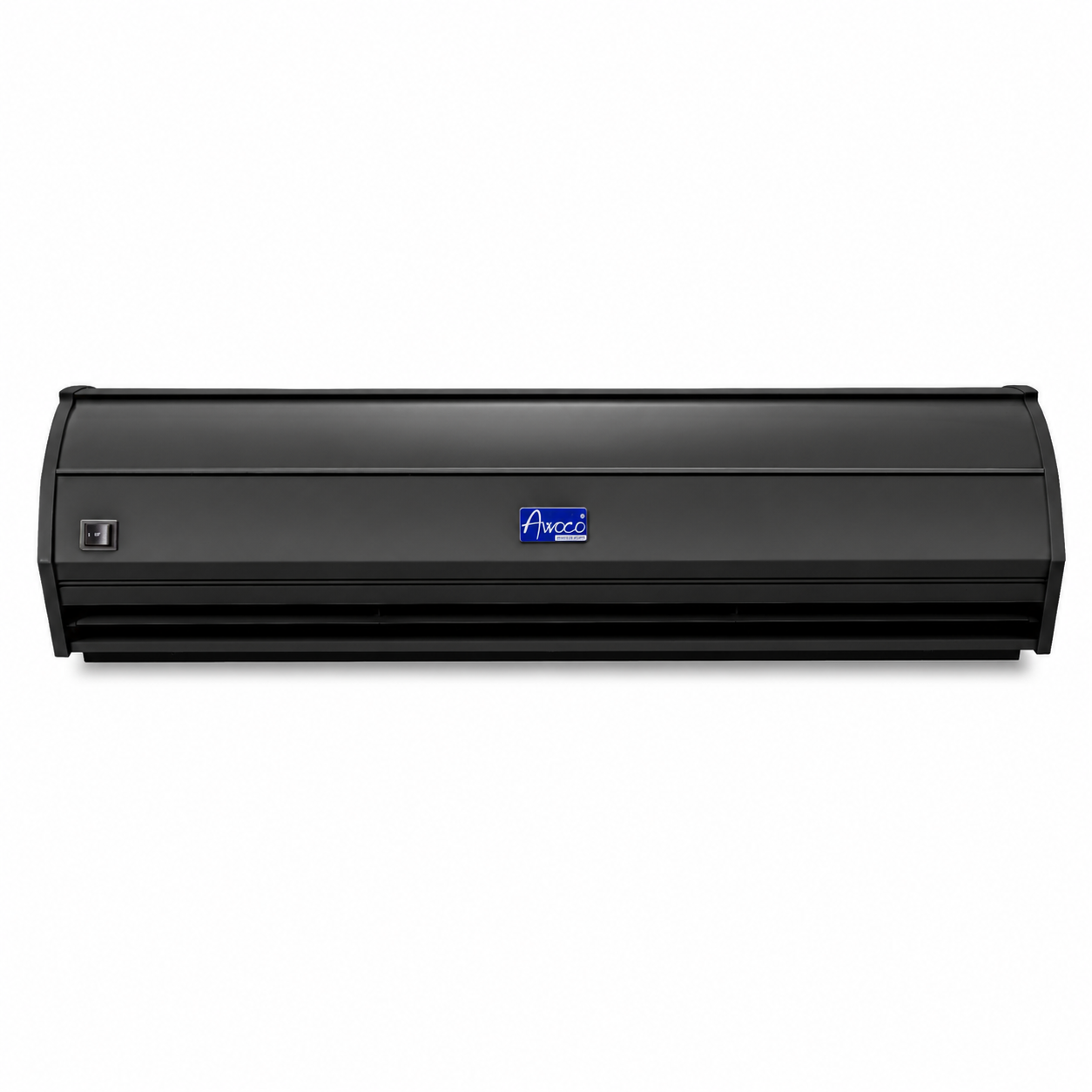

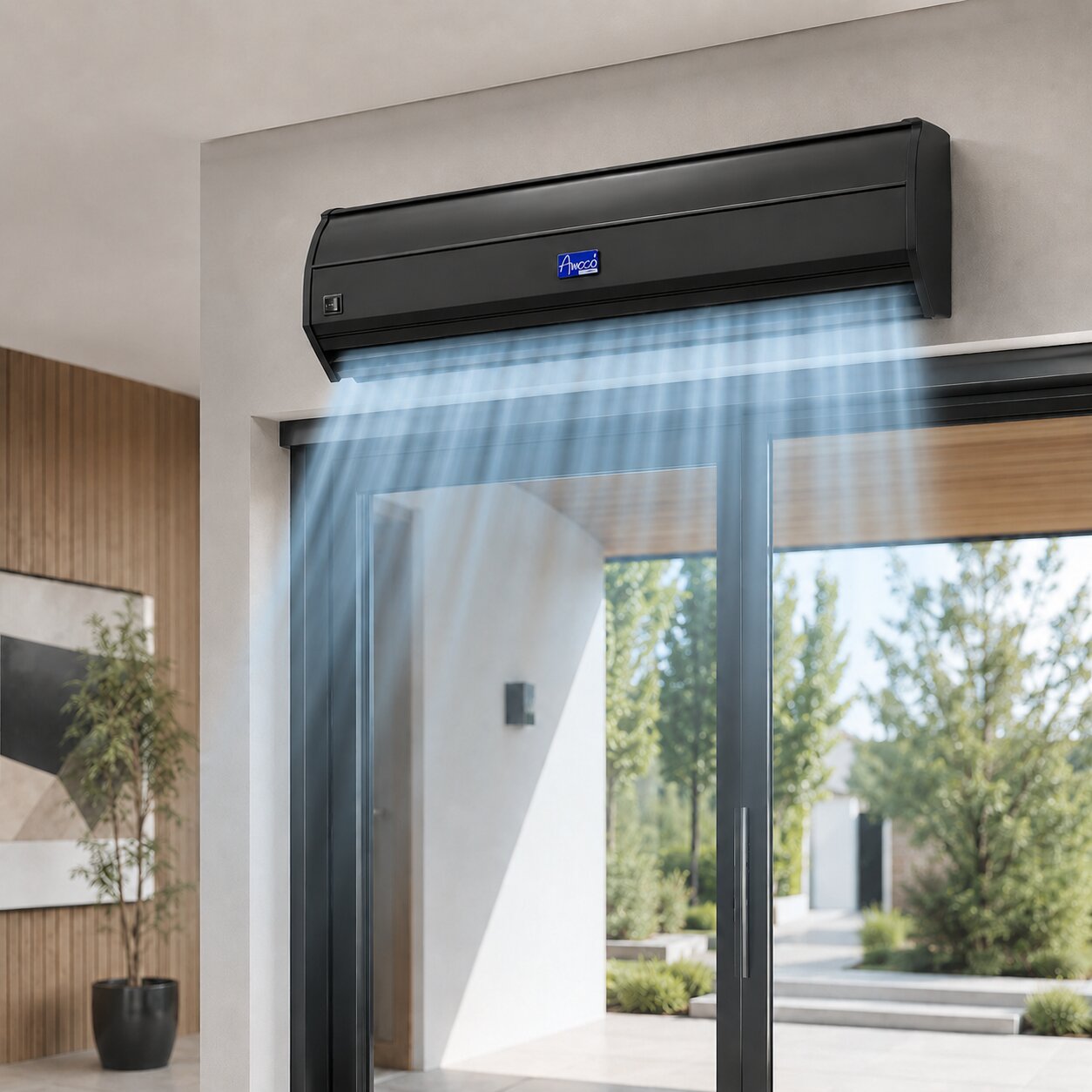

- [Black Air Curtain, Isolate Interior from Exterior Air] - This unit is an unheated Air Curtain, it does not generate cold or hot air. Air curtain is a powerful fan that creates a high speed air stream over the entrance to isolate the interior and exterior air environment while blocking the entry of dust and smoke. Black colored air curtain, easy to clean slim body.

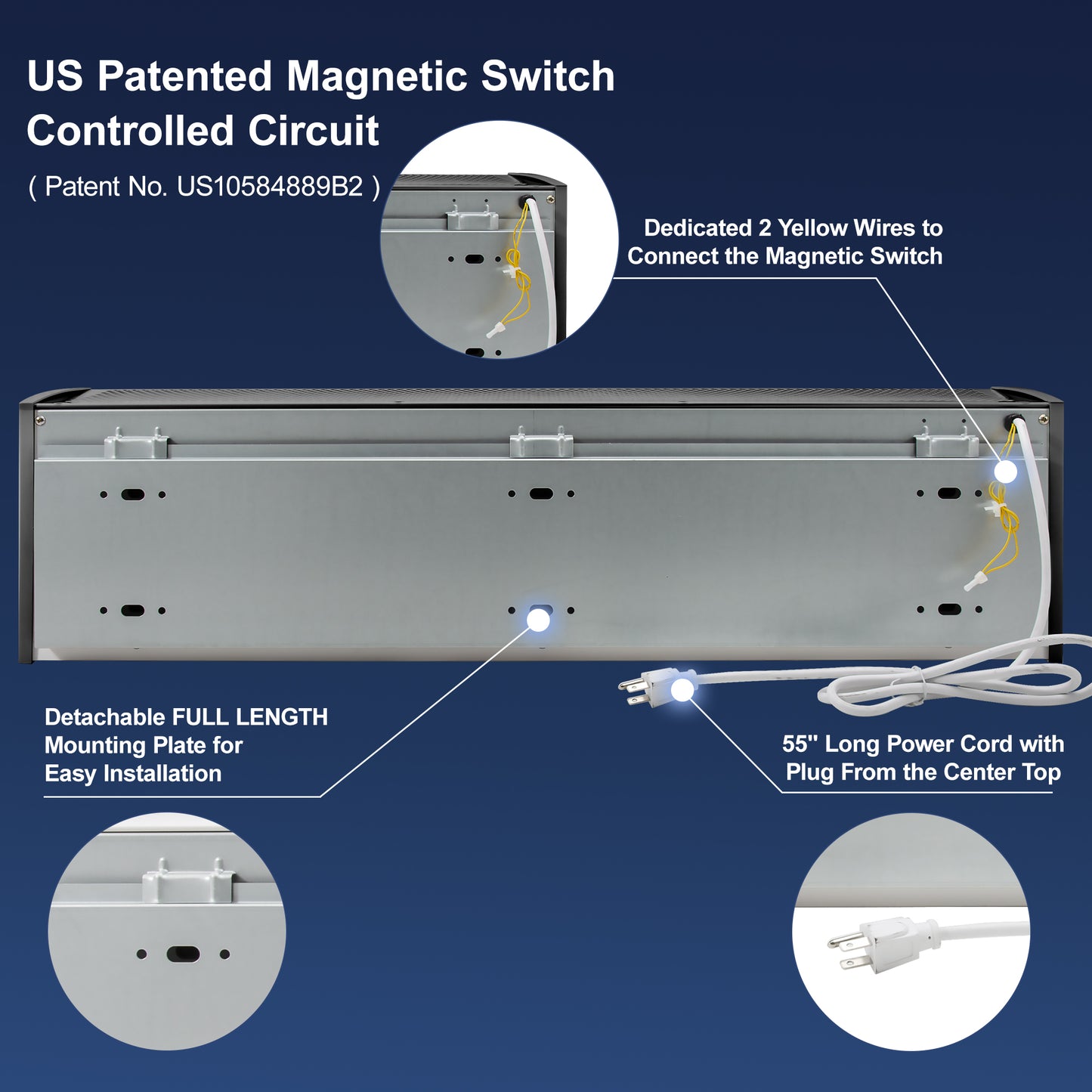

- [US Patented Magnetic Switch Controlled Circuit (Patent No. US10584889B2)] - With the door switch installed, automatically turn on the air curtain when the door is open; turn off when door is closed. The door switch is optional; if you do not install the door switch, press the Lo/Off/Hi speed switch to turn on for 8 hours continuously running.
- [2 Speeds at Lo/Off/Hi switch] - A HI/LO/OFF switch to select High/Low speed. 110V-120V 60Hz.

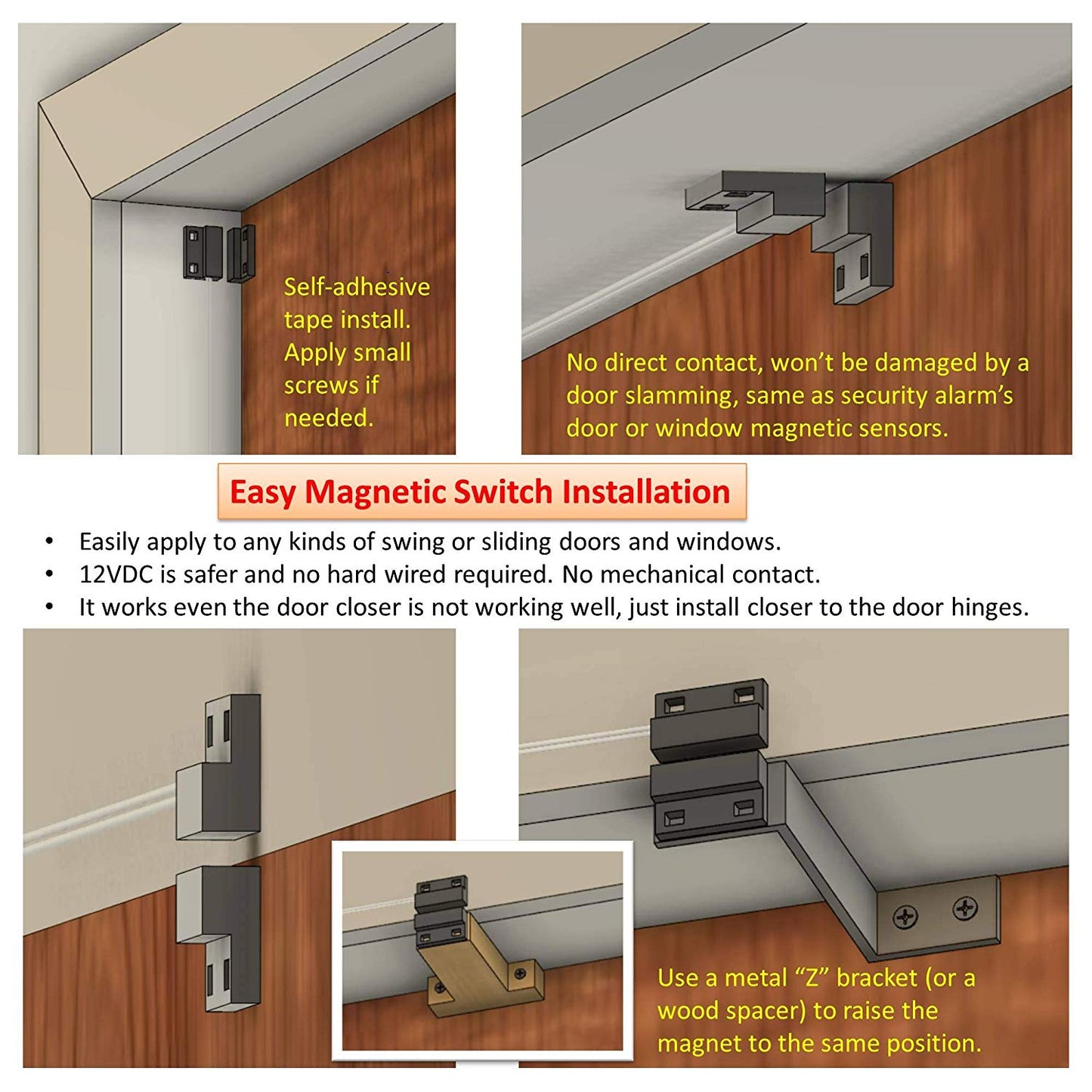

- [Easy Installation] - Refer to Technical Specification User Manual. 1) mount the detachable mounting plate securely. 2)hang the air curtain up. 3) install the optional magnetic switch and connect to the dedicated 2 wires.
- [Professional Tech Support] - Parts, repair or exchange within 1 year. Awoco high quality product reputation and customer service is a guarantee. 55” power cord with plug is included.

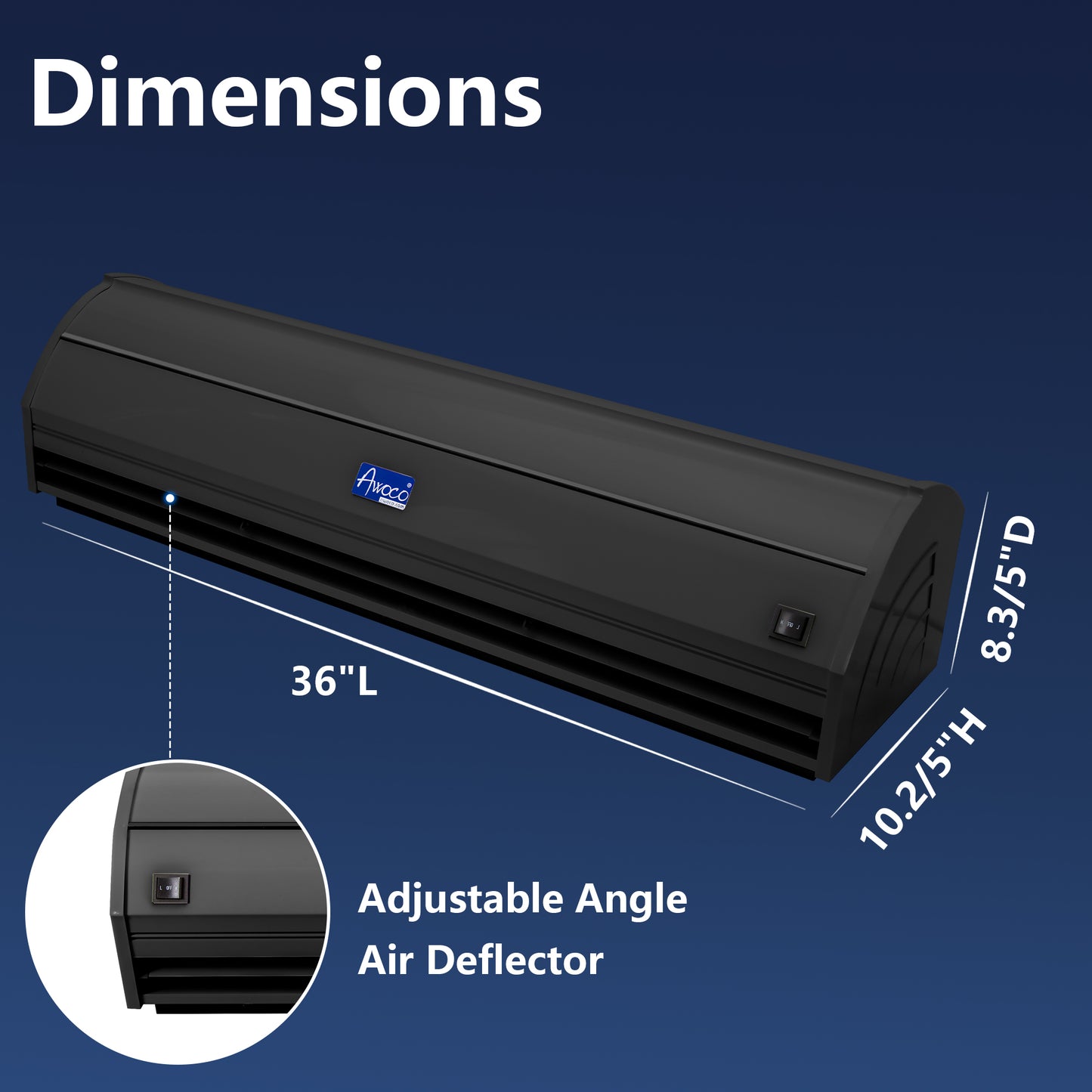

- [36" Dimensions] - 35-1/2” L x 8-1/2” D x 9-1/4” H. Weight: 28.7 LBS. UL listed. High speed at 907 CFM, low speed at 742 CFM, noise: 49 to 52 DB. 300W Max, 270W Min.
- [42" Dimensions] - 42” L x 8-1/2” D x 9-1/4” H. Weight: 30.9 LBS. UL listed. High speed at 989 CFM, low speed at 824 CFM, noise: 49 to 52 DB. 320W Max, 300W Min.
- [48" Dimensions] - 47-1/4” L x 8-1/2” D x 9-1/4” H. Weight: 34.2 LBS. UL listed. High speed at 1236 CFM, low speed at 989 CFM, noise: 50 to 53 DB. 400W Max, 360W Min.
- [60" Dimensions] - 59” L x 8-1/2” D x 9-1/4” H. Weight: 44.1 LBS. UL listed. High speed at 1566 CFM, low speed at 1236 CFM, noise: 52 to 55 DB. 500W Max, 470W Min.
- [72" Dimensions] - 72” L x 8-1/2” D x 9-1/4” H. Weight: 51.8 LBS. CE Certified. High speed at 1878 CFM, 55dB low speed at 1482 CFM, noise: 52 to 55 DB. 600W Max.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
| Voltage | 120V, 60Hz. | Depth | 8-1/2 in. | Height | 9-1/4 in. | ||
| Air Velocity | 2559 FPM (Low) – 3150 FPM (High) | ||||||
| Model No. | For Door Size |
Width | Power (W/HP) |
Net Weight (LB) |
Current (A) |
Air Volume (CFM) |
Noise Level (dB) |
||
| Lo | Hi | Lo | Hi | ||||||
| FM3509-** | 36" | 35-1/2" | 300/0.4 | 28.7 | 3.13 | 742 | 907 | 49 | 52 |
| FM3510-** | 42" | 42" | 320/0.43 | 30.9 | 3.33 | 824 | 989 | 49 | 52 |
| FM3512-** | 48" | 47-1/4" | 400/0.54 | 34.2 | 4.17 | 989 | 1236 | 50 | 53 |
| FM3515-** | 60" | 59" | 500/0.67 | 44.1 | 5.21 | 1236 | 1566 | 52 | 55 |
| FM3518-** | 72" | 72" | 600/0.8 | 51.8 | 6.25 | 1482 | 1878 | 52 | 55 |
- **: Depending on the door switch used in the models, these symbols can mean the following:
- M: Magnetic Switch.
- Model No. example: FM3509-M, FM3510-M etc.
- MSD: Magnetic Switch with Delayed Shutoff.
- Model No. example: FM3509-MSD, FM3510-MSD etc.
