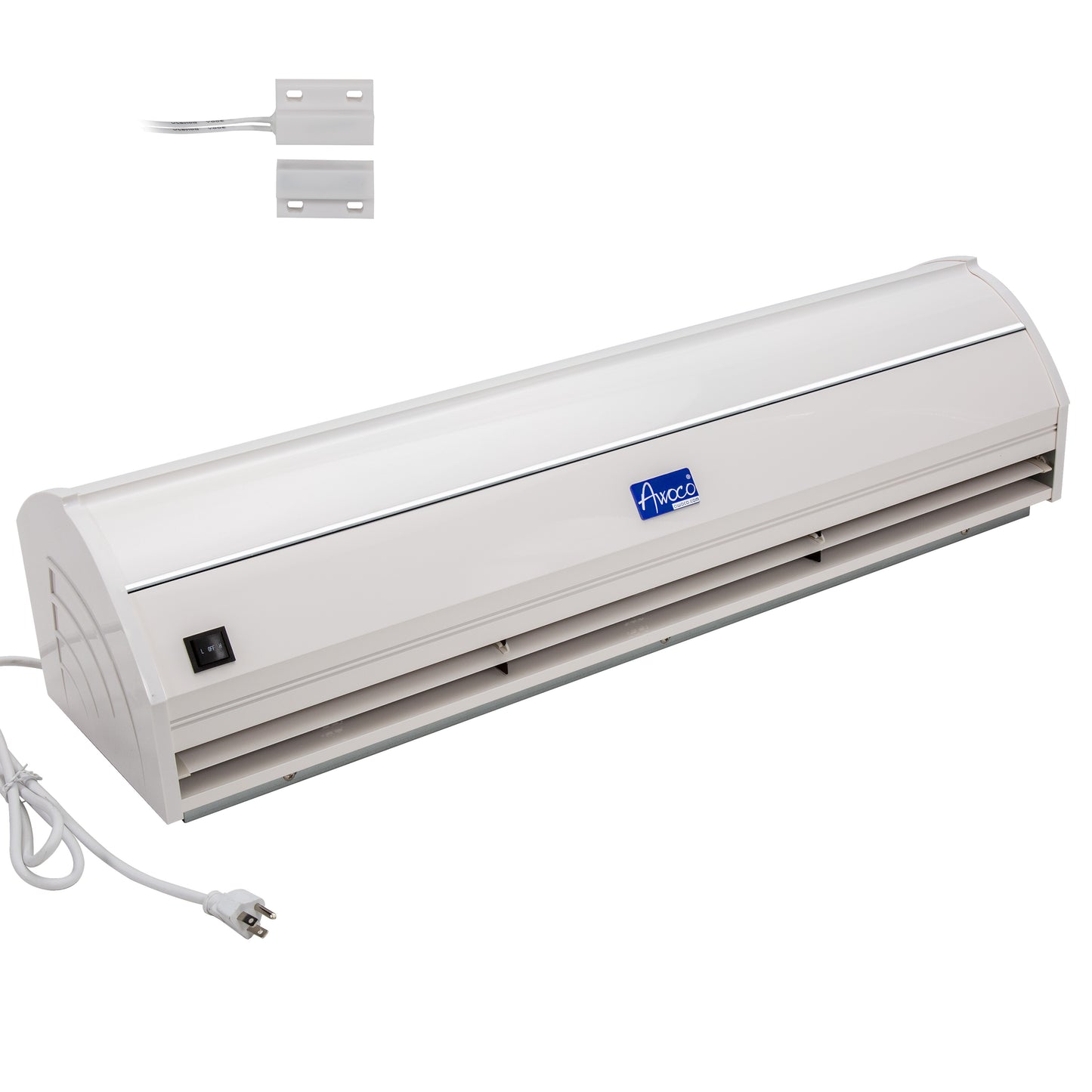

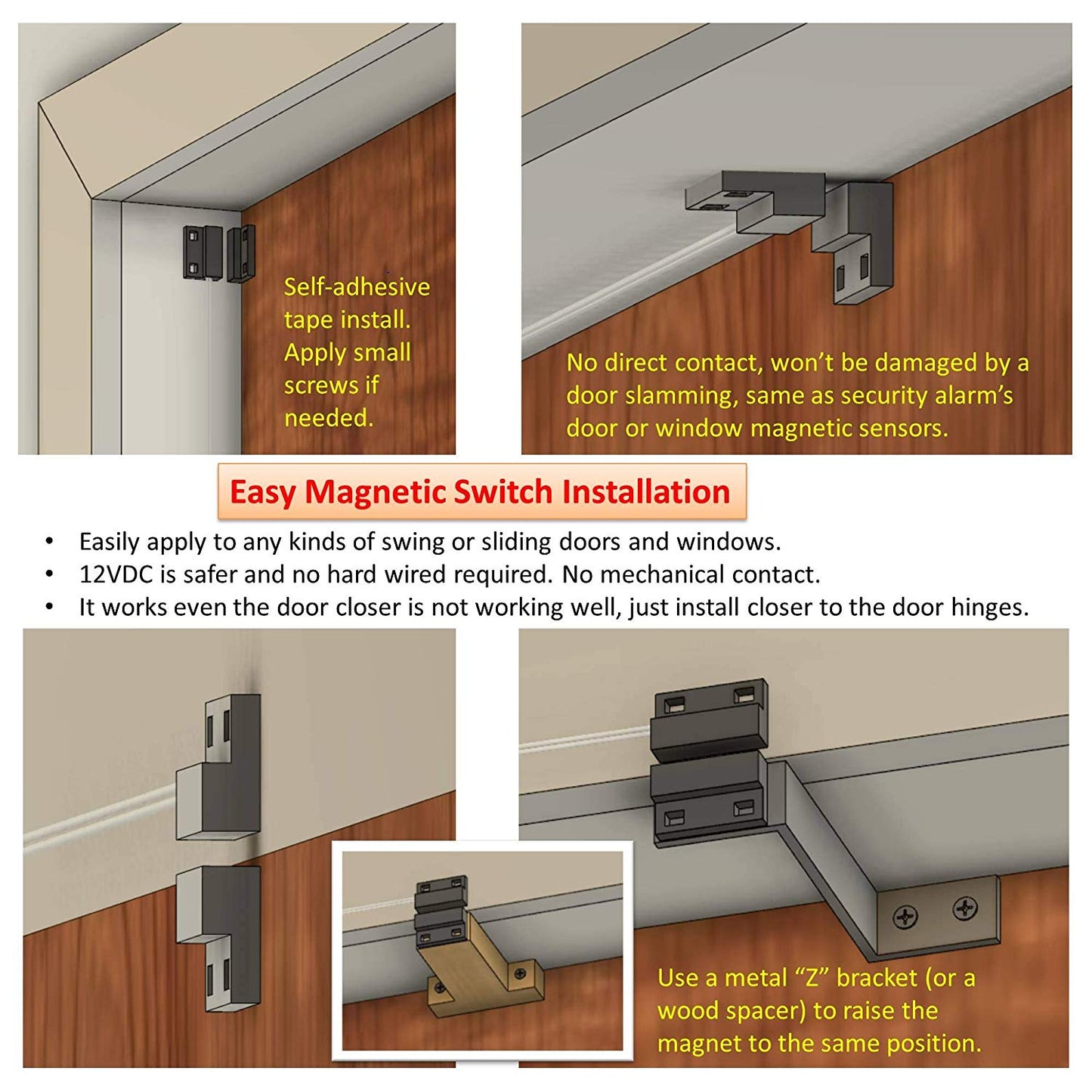

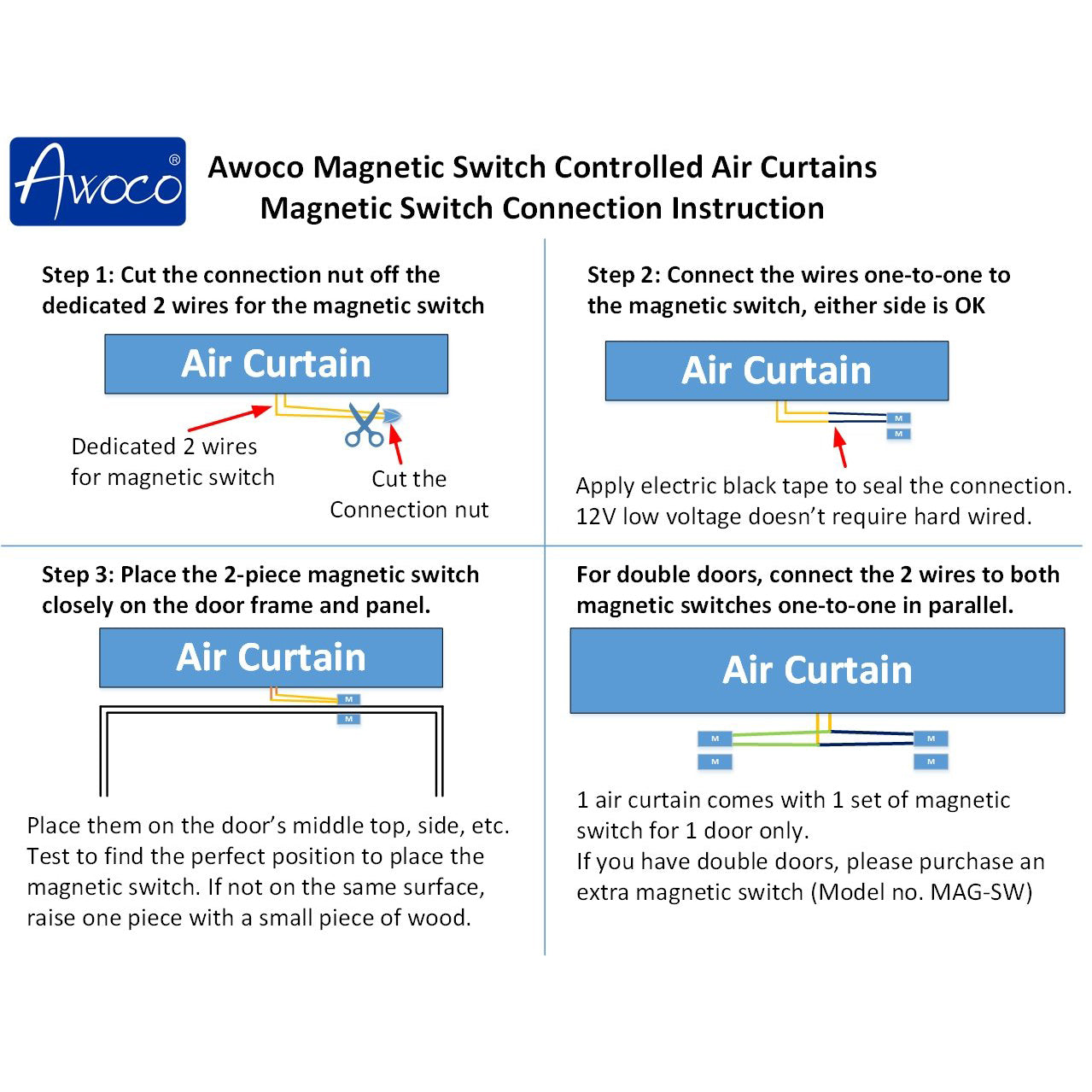

- Magnetic Switch Controlled Circuit (US Patented): THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. This air curtain has an electrical-magnetic circuit control with a magnetic switch. The magnetic door switch installation is much easier than the traditional mechanical micro switch. No hard wire needed on the 12VDC low voltage magnetic switch.

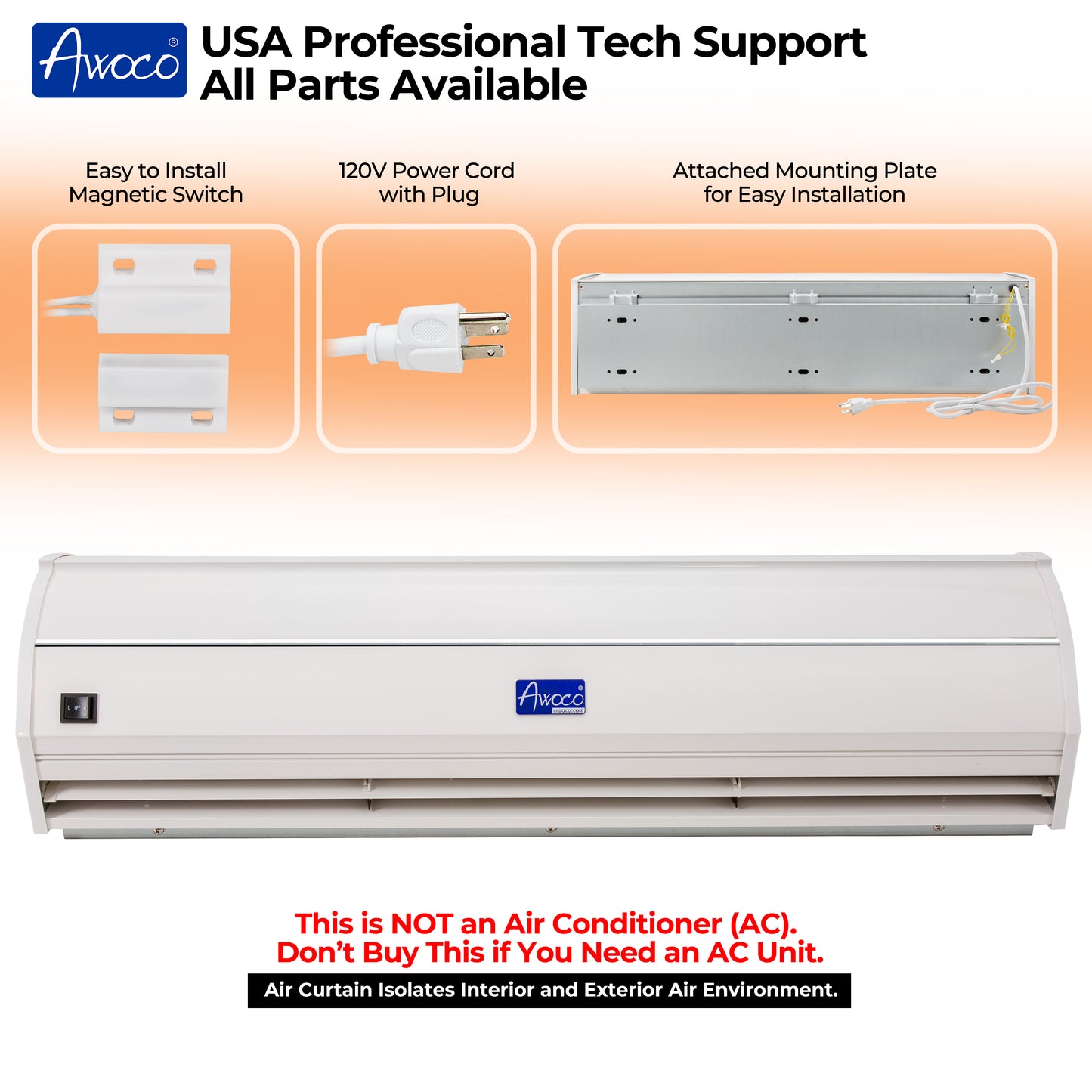

- Easy installation:

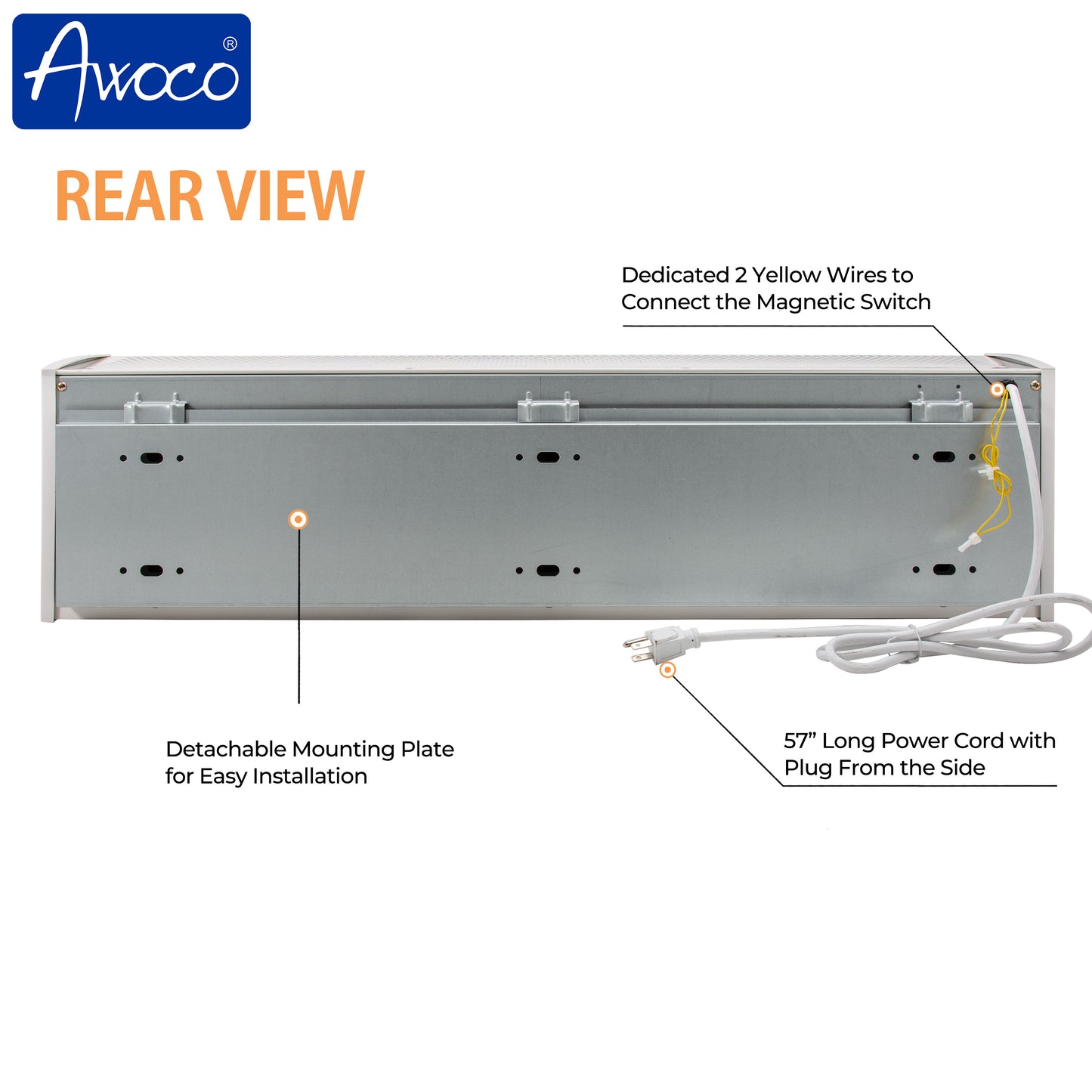

- 1) Mount the detachable mounting plate, then hang the air curtain up.
- 2) dedicated 2-wire for the magnetic switch connection. (Other brands might not have this.)
- 3) Detailed installation manual is included.
- 2 speeds of operation: A HI/LO/OFF switch to select High/Low speed. 110V-120V 60Hz. Less power consumption than other industrial air curtains.
- Motor: adopting the technology of German electrical machinery, it runs smoothly with reduced noise. Optimized electrical machinery, reliable and safe runs for 5,000 consecutive hours. Fan wheels are made of high-tech ABS, powerful wind-force.

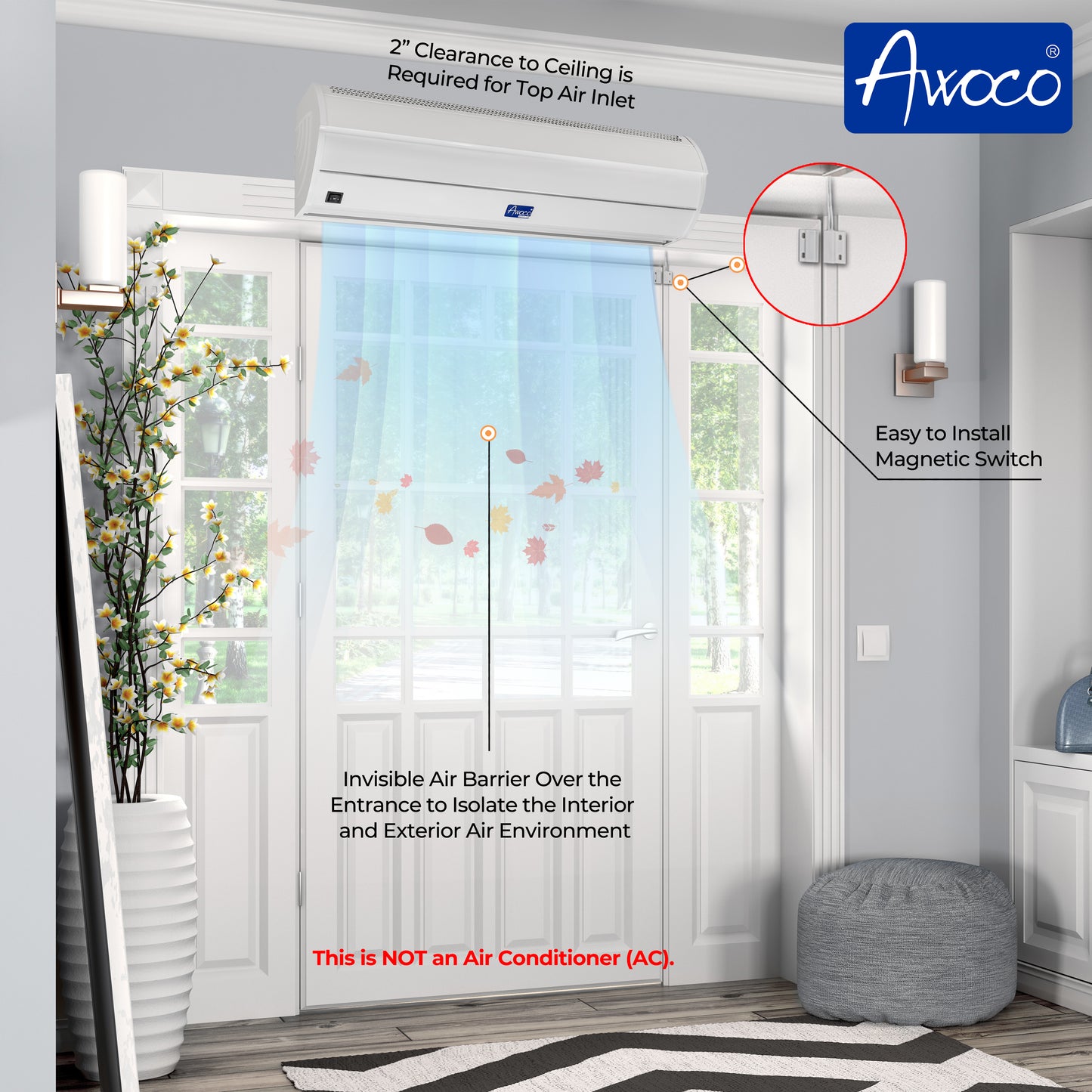

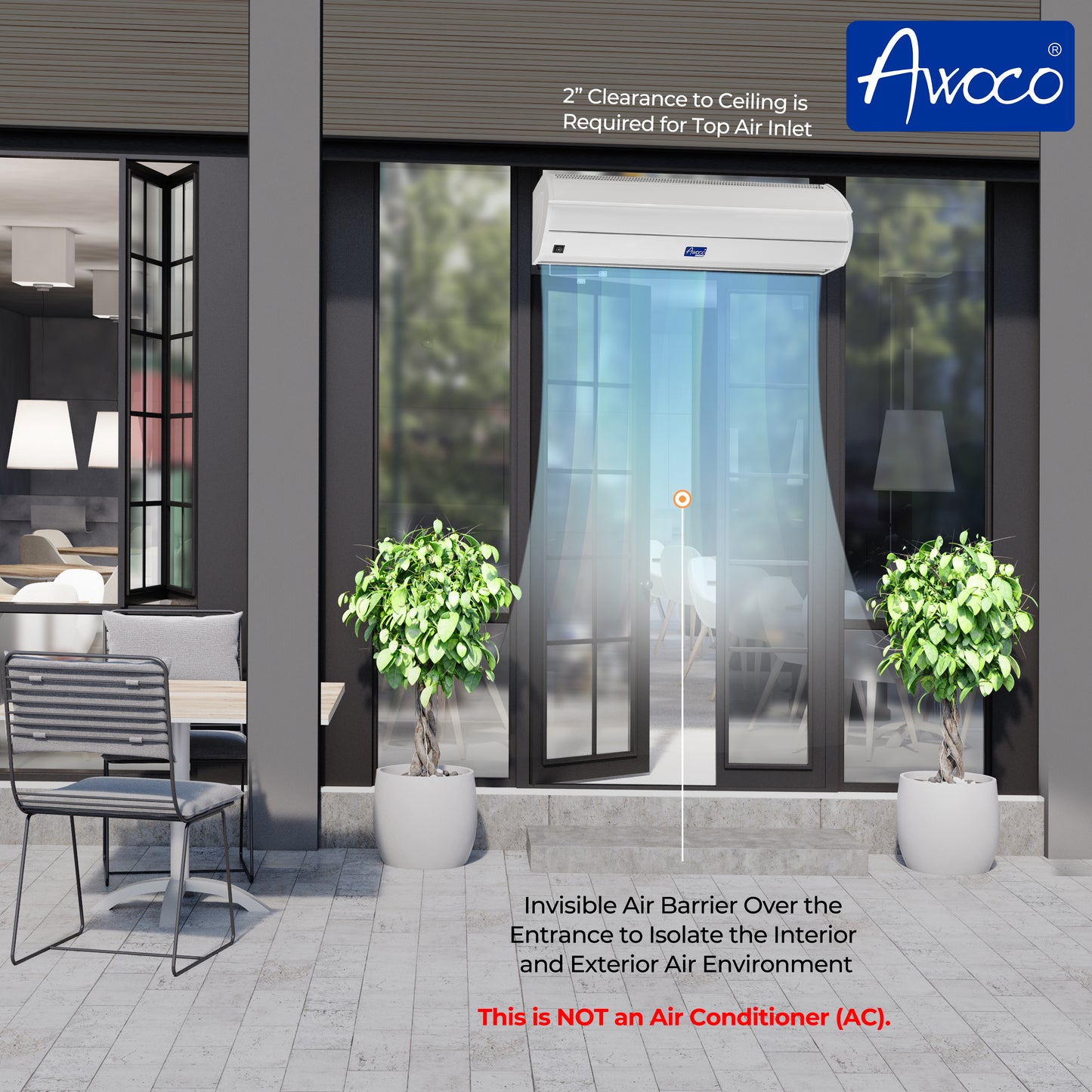

- UL listed. 1 year manufacturer warranty. Stainless Alloy cover is fireproof and anti-erosive, easy to clean. Lightweight and elegant, but high-quality build, perfect for restaurant front door and residential use. It is quiet but still powerful air flow. It is recommended to have an extra 2" of clearance from the ceiling for better circulation.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS

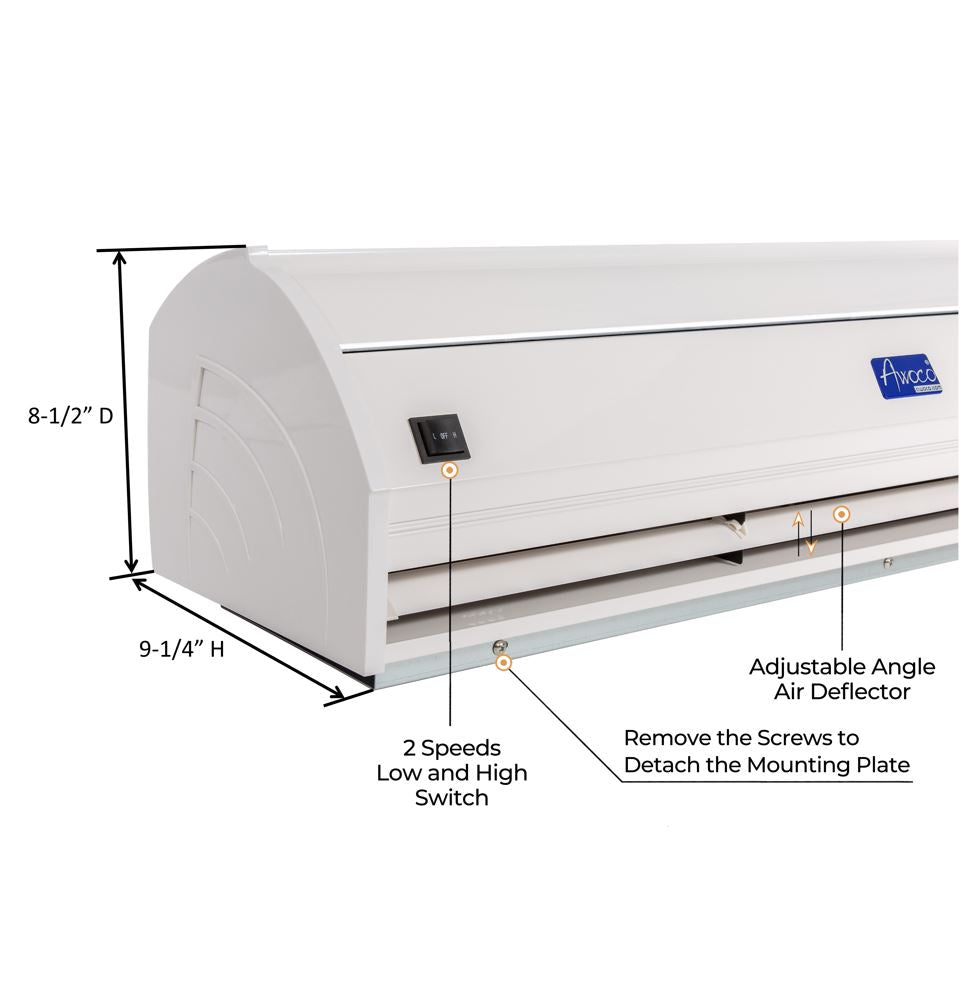

| Voltage | 120V, 60Hz. | Depth | 8-1/2 in. | Height | 9-1/4 in. | ||
| Air Velocity | 2559 FPM (Low) – 3150 FPM (High) | ||||||
| Model No. | For Door Size |
Width | Power (W/HP) |
Net Weight (LB) |
Current (A) |
Air Volume (CFM) |
Noise Level (dB) |
||
| Lo | Hi | Lo | Hi | ||||||
| FM3509-** | 36" | 35-1/2" | 300/0.4 | 28.7 | 3.13 | 742 | 907 | 49 | 52 |
| FM3510-** | 42" | 42" | 320/0.43 | 30.9 | 3.33 | 824 | 989 | 49 | 52 |
| FM3512-** | 48" | 47-1/4" | 400/0.54 | 34.2 | 4.17 | 989 | 1236 | 50 | 53 |
| FM3515-** | 60" | 59" | 500/0.67 | 44.1 | 5.21 | 1236 | 1566 | 52 | 55 |
| FM3518-** | 72" | 72" | 600/0.8 | 51.8 | 6.25 | 1482 | 1878 | 52 | 55 |
- **: Depending on the door switch used in the models, these symbols can mean the following:
- M: Magnetic Switch.
- Model No. example: FM3509-M, FM3510-M etc.
- MSD: Magnetic Switch with Delayed Shutoff.
- Model No. example: FM3509-MSD, FM3510-MSD etc.
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
SERVICE HELP: AWOCO 101 VIDEOS
-

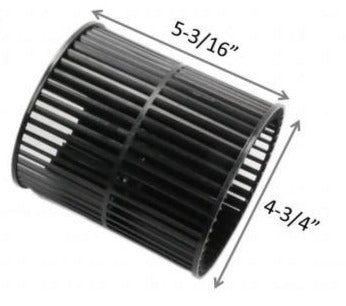

Replacement Fan Wheel for Awoco Elegant FM35 Series Air Curtains before year 2022
$35.00 -
Replacement Blower Set FAN-FM35-BLW for Awoco Elegant Air Curtains before year 2022
$45.00 -

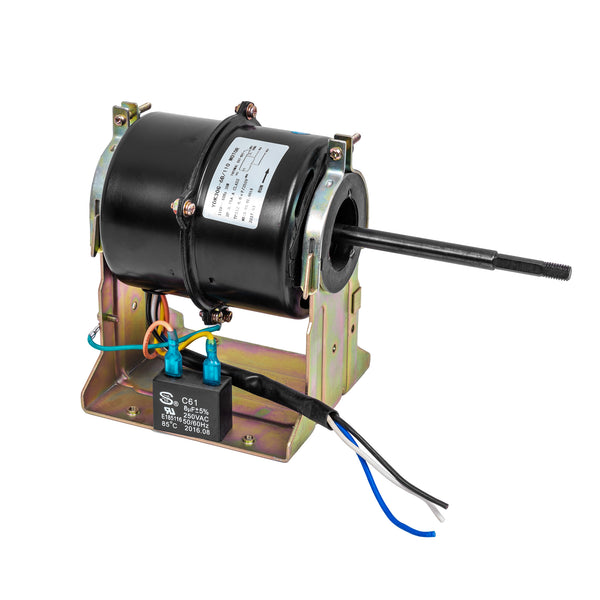

YDK30G-6B/110 Replacement 1 Shaft Motor with Capacitor for Awoco Elegant FM35 Air Curtains
$70.00 -

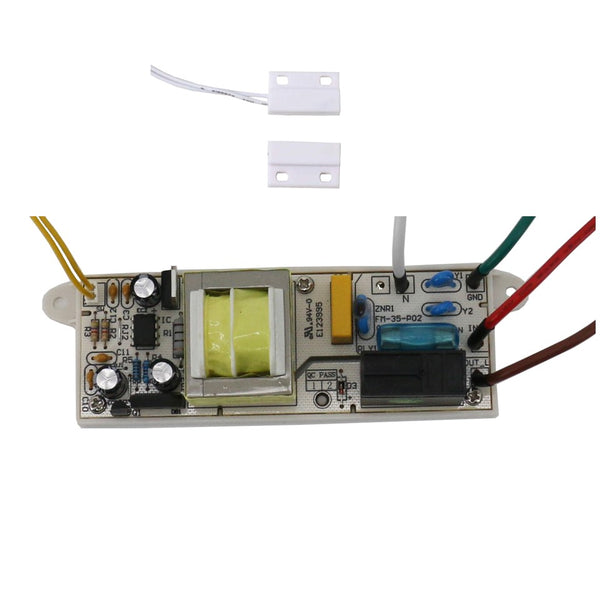

Awoco Magnetic Switch Controlled Circuit Board Replacement for Awoco Air Curtains
$75.00 -

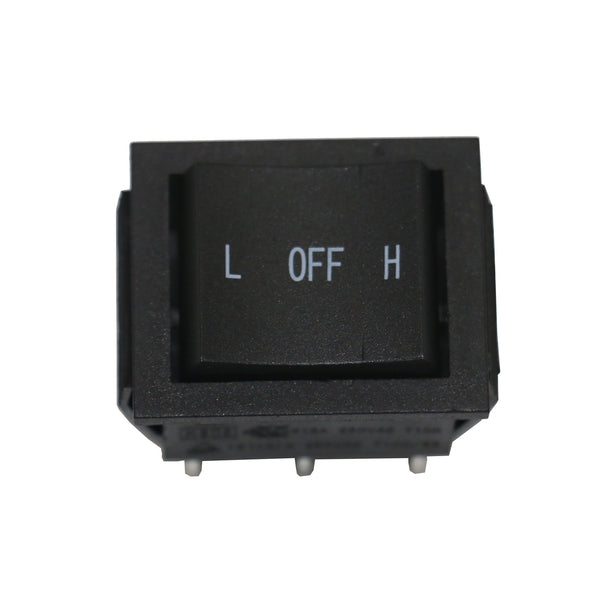

Awoco Soken RK1-01 Replacement Low/Off/High Rocker Switch for Air Curtains
$12.00 -

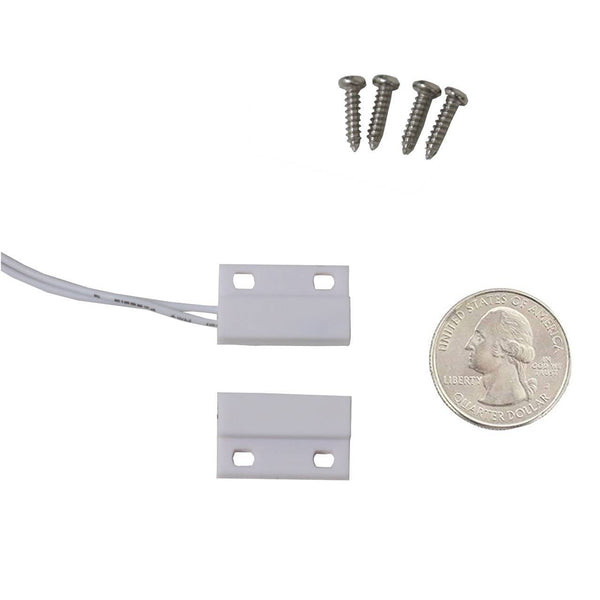

Awoco 12VDC Easy-Install Magnetic Switch for Awoco Magnetic Switch Controlled Air Curtains (Magnetic Switch)
