Awoco FM15-MSD Early Turn On Super Power Indoor Air Curtain, UL Certified 120V Unheated with Magnetic Switch and Motion Sensor Detection

Scroll to view more.

🔍 Hover to zoom

Awoco FM15-MSD Early Turn On Super Power Indoor Air Curtain, UL Certified 120V Unheated with Magnetic Switch and Motion Sensor Detection

SKU:

FM1506-MSD

$380.00

Size:

24"

36"

42"

48"

60"

72"

In stock

Add to wishlist Ask a question

Free Shipping on all Awoco Products.

Estimated Delivery: Friday, Jul 18 - Tuesday, Jul 22. Varies per Carrier.

Pickup available at 9674 Telstar Ave Ste A, El Monte, CA 91731

Usually ready in 24 hours

Get Direction.

DESCRIPTION
SHIPPING & RETURN
SPECIFICATIONS
USER-MANUAL DOWNLOAD
AWOCO SERVICE VIDEOS
PARTS & ACCESSORIES

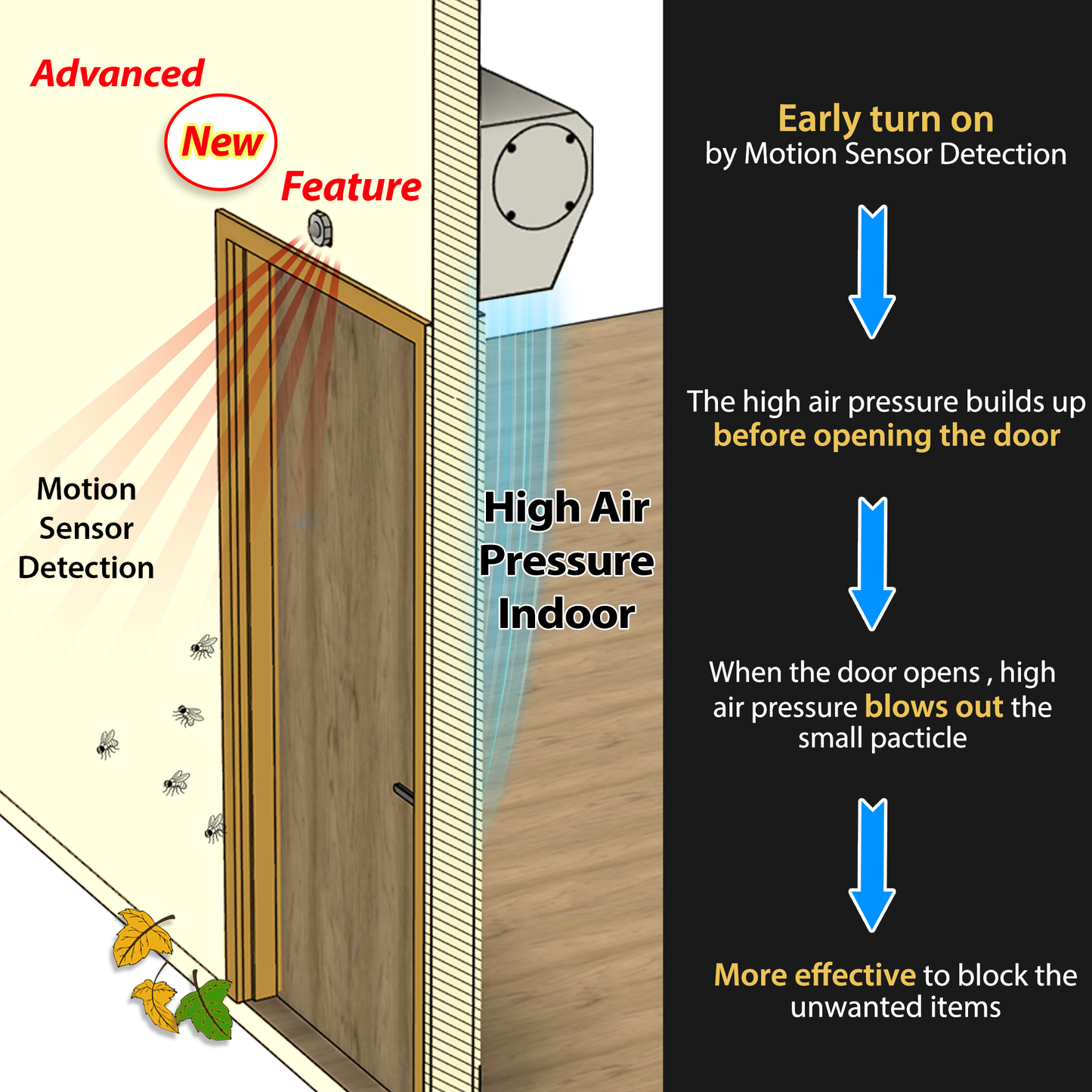

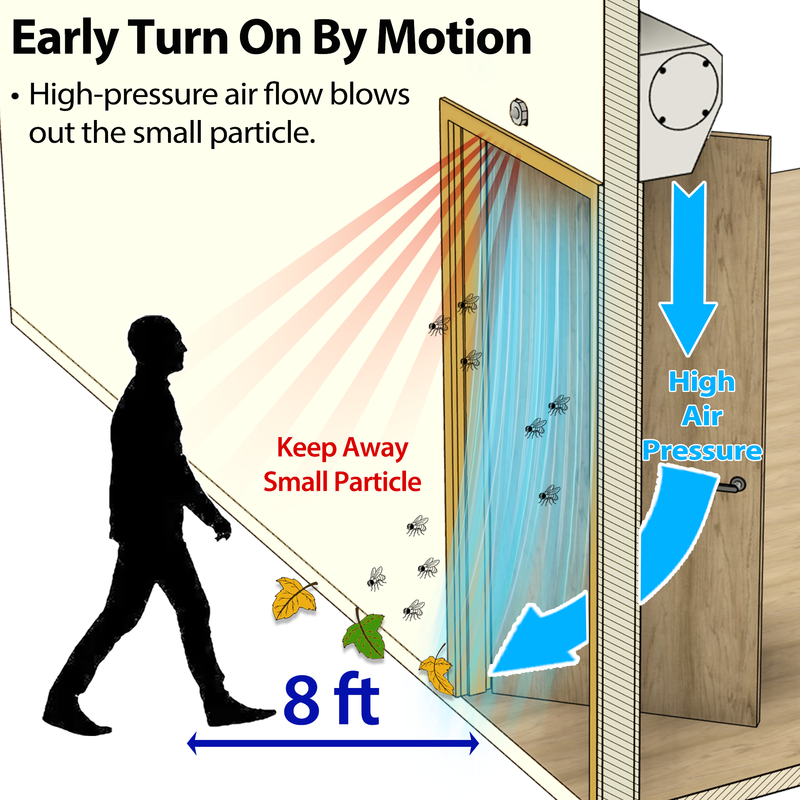

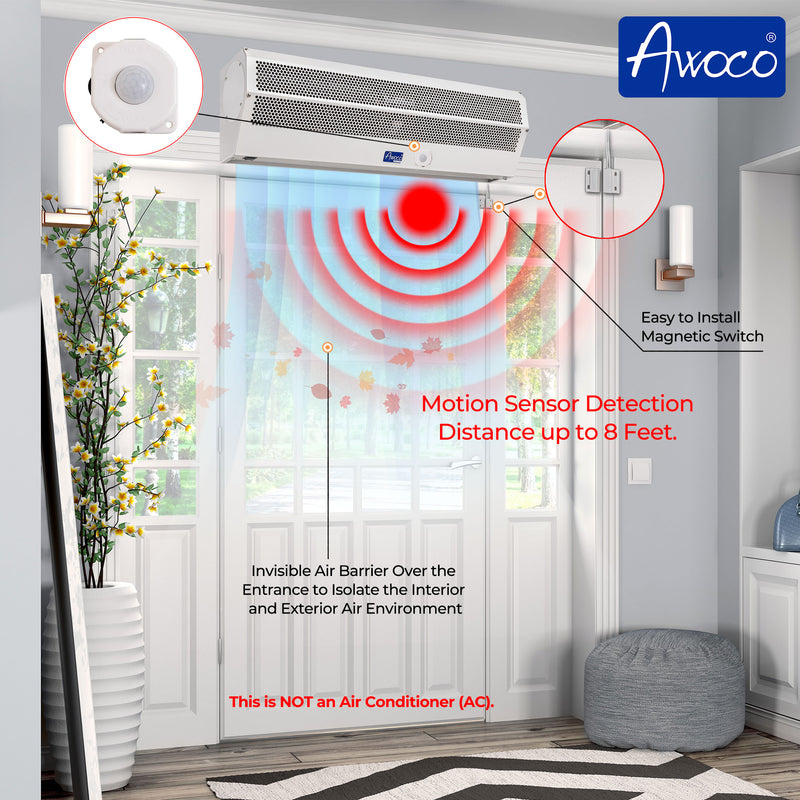

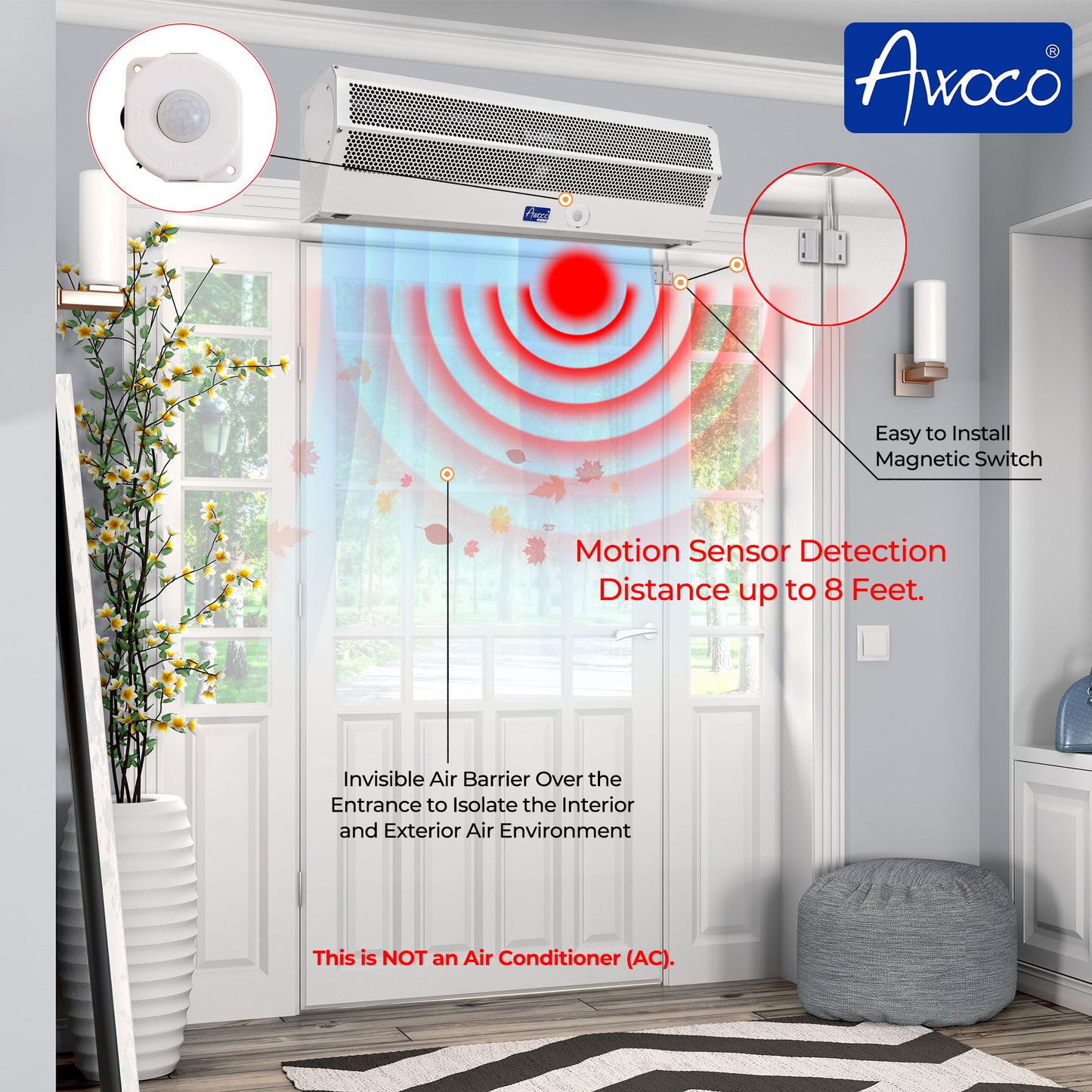

Motion Sensor 7 to 9 feet Detection - The motion sensor detects walk-by people within 7–9 feet and activates the air curtain 1.5 seconds later. It runs for 40 seconds. With early turn on, the air curtain generates high air pressure indoor, it prevents the dust / heat / unwanted small particles to enter inside once open the door. This new special feature is more effective than the other door triggered air curtain to blow out the unwanted particles right at the moment opening the door. (36"/42" with Front BUILT-IN Motion Sensor)
Powerful Unheated Air Fan - it does not generate cold or hot air. Air curtain is a powerful fan that creates a high speed air stream over the entrance to isolate the interior and exterior air environment while blocking the entry of dust, heat, smoke, and small particles. Powder coated metal case, easy to clean slim body.
US Patented Magnetic Switch Controlled Circuit (Patent No. US10584889B2) - The motion sensor detection turns on the air curtain for 30 seconds and it will shut off if no motion is detected. With the magnetic switch installed on the door, once the door is open, the air curtain stays on even no motion is detected.

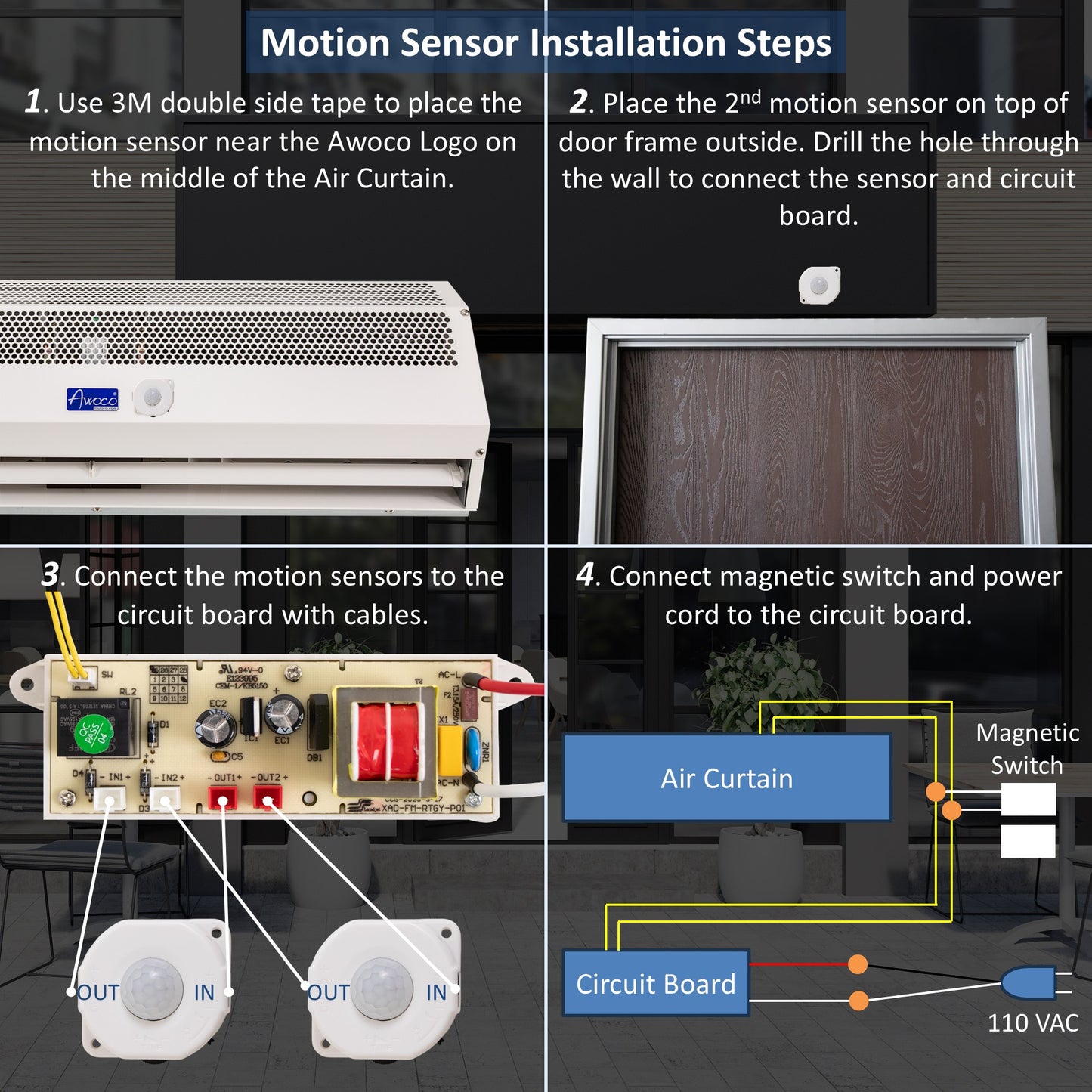

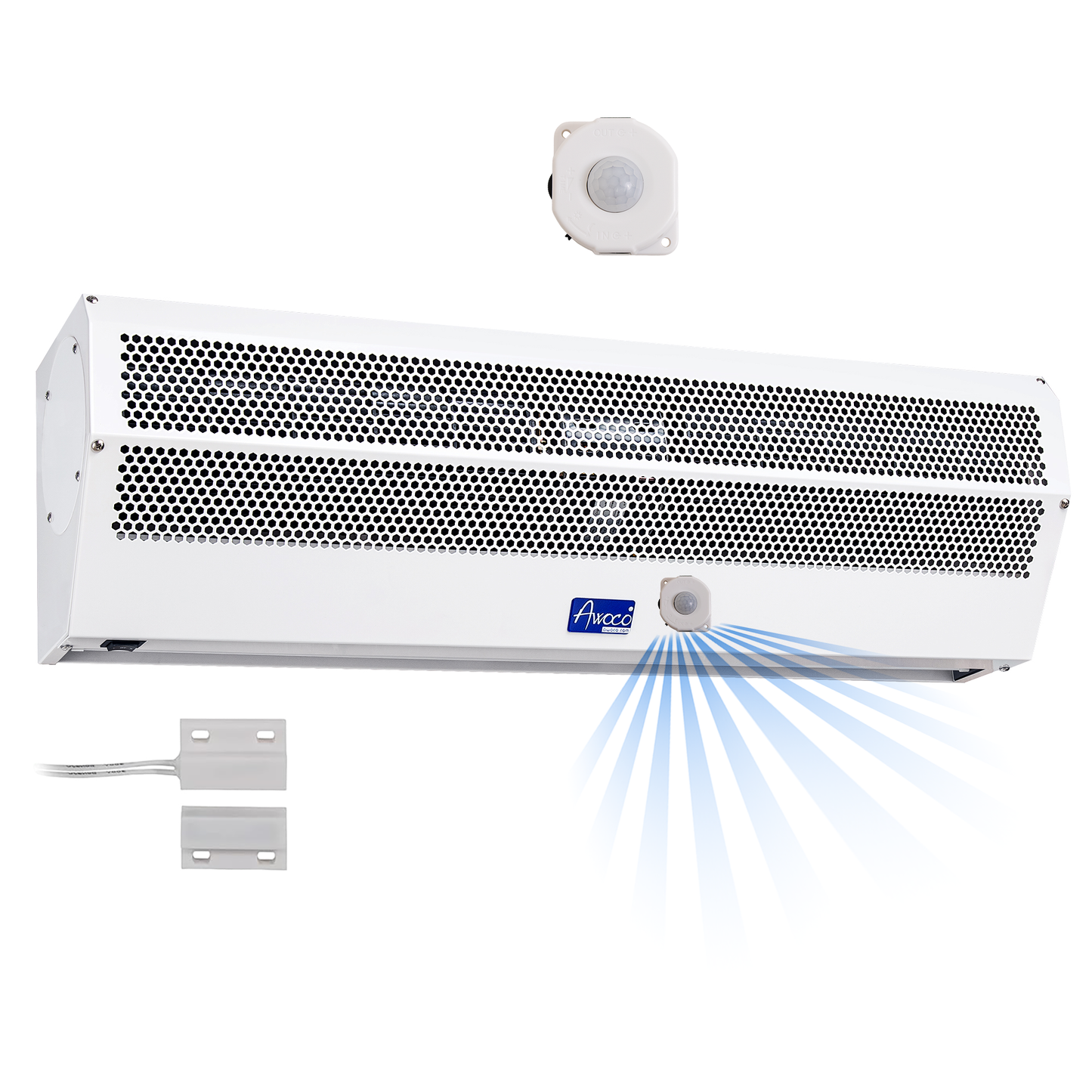

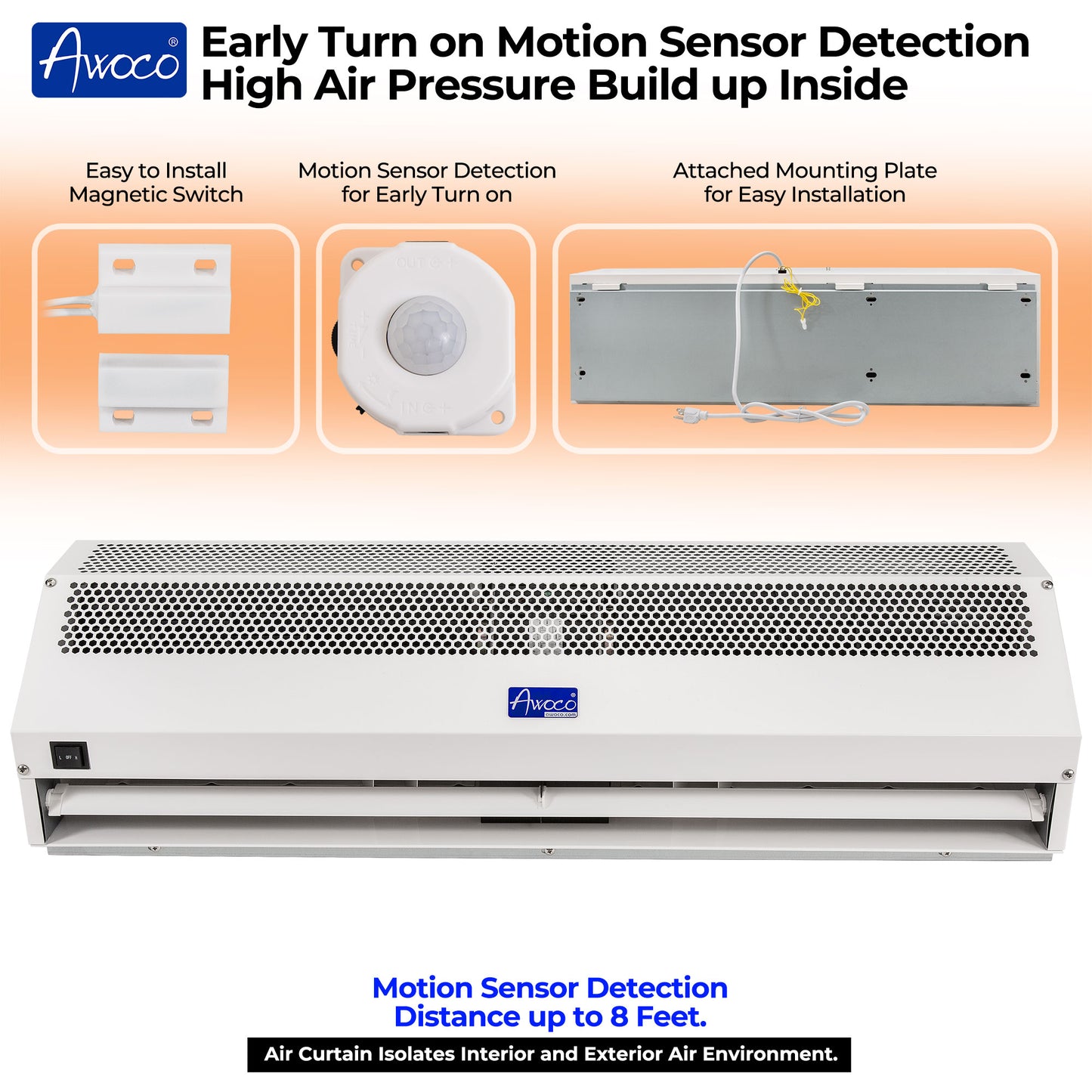

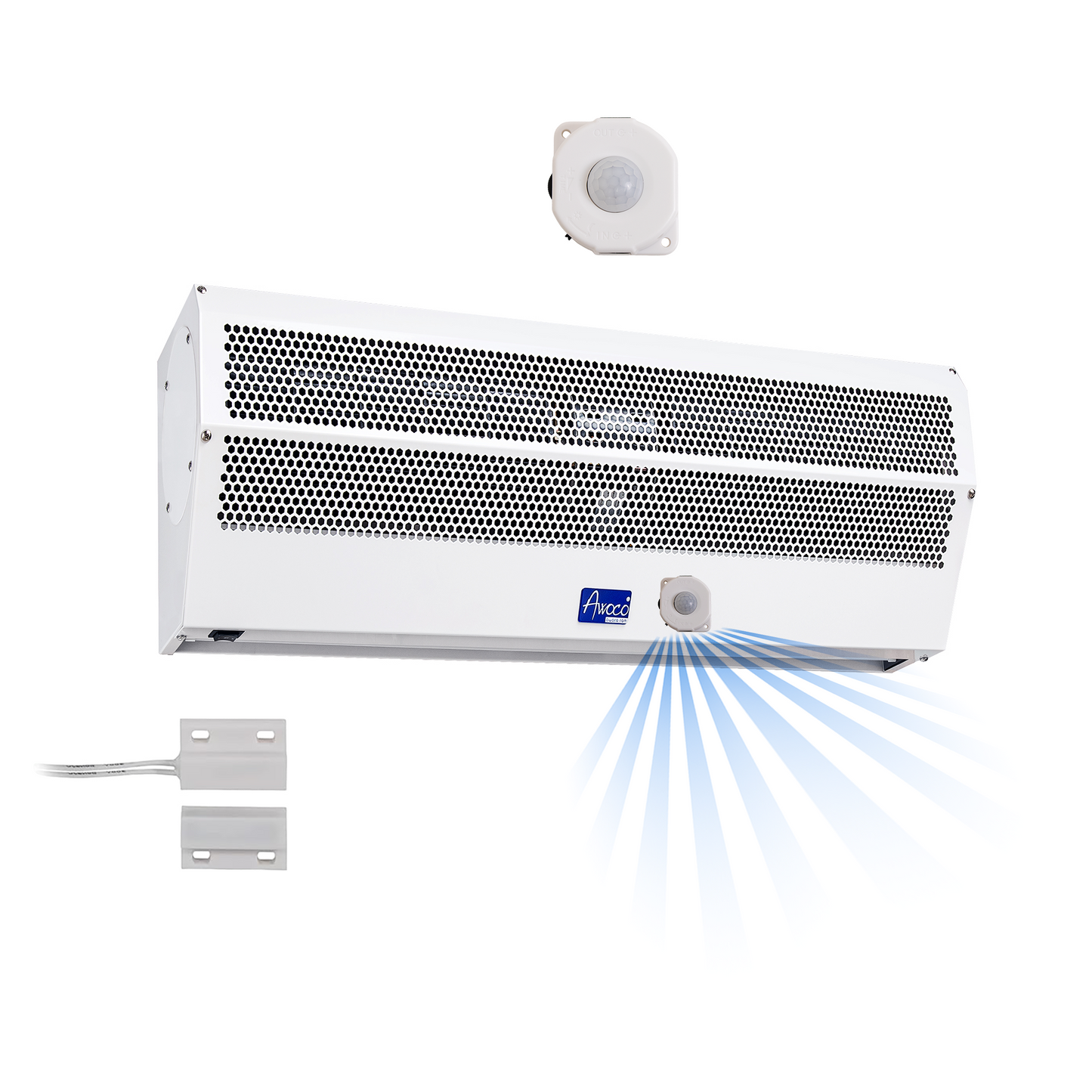

Additional Assembly and Wiring are Required - Motion Sensors are required to mount on the air curtain and the top of the outside door. Package includes 1 air curtain, 1 magnetic switch, 2 motion sensors, 1 motion detection circuit board with power cord for 110VAC, motion sensor wiring cables, and 1 user manual. No mounting screws are included.
24" - 2 Speeds of Operation - high speed at 785 CFM, 57dB, low speed at 628 CFM, 55dB. 120V 60Hz 230W (0.31HP, 2.40A). Overall size: 23-3/4” L x 8-5/8” D x 10-3/8” H. Weight: 26.5 LBS. 55” power cord with plug is included. UL listed.
36" - 2 Speeds of Operation - high speed at 1177 CFM, 58dB, low speed at 942 CFM, 56dB. 120V 60Hz 300W (0.4HP, 3.13A). Overall size: 35-1/2” L x 8-5/8” D x 10-3/8” H. Weight: 33.1 LBS. 55” power cord with plug is included. UL listed.
42" - 2 Speeds of Operation - high speed at 1354 CFM, 58dB, low speed at 1059 CFM, 56dB. 120V 60Hz 350W (0.47HP, 3.65A). Overall size: 41-3/4” L x 8-5/8” D x 10-3/8” H. Weight: 37.5 LBS. 55” power cord with plug is included. UL listed.
48" - 2 Speeds of Operation - high speed at 1648 CFM, 59dB, low speed at 1295 CFM, 57dB. 120V 60Hz 350W (0.47HP, 3.65A). Overall size: 47-1/4” L x 8-5/8” D x 10-3/8” H. Weight: 43.0 LBS. 55” power cord with plug is included. UL listed.
60" - 2 Speeds of Operation - high speed at 2119 CFM, 60dB, low speed at 1648 CFM, 58dB. 120V 60Hz 400W (0.54HP, 4.17A). Overall size: 59” L x 8-5/8” D x 10-3/8” H. Weight: 48.5 LBS. 55” power cord with plug is included. UL listed.
72" - 2 Speeds of Operation - high speed at 2354 CFM, 61dB, low speed at 1884 CFM, 59dB. 120V 60Hz 600W (0.8HP, 6.25A). Overall size: 71-1/2” L x 8-5/8” D x 10-3/8” H. Weight: 61.7 LBS. 55” power cord with plug is included. UL listed.

FULFILLMENT / DELIVERY

Dispatch: Within 48 Hours
Free shipping across all products
Domestic delivery time - 4-10 business days (Mainland USA ONLY)
Easy 30 days returns and exchanges
Please look at our "Shipping Policy" section for further information.

RETURNS

• You can return new, unopened items within 30 days under our hassle-free return policy - no questions asked.

• For refurbished products please inquire at sales@awoco.com.

• Please look at our "Refund Policy" section for further information.

Voltage	120V, 60Hz.	Depth	8-5/8 in.	Height	10-3/8 in.
Air Velocity		1968 FPM (Low) – 2559 FPM (High)

Model No.	For Door Size	Width	Power (W/HP)	Net Weight (LB)	Current (A)	Air Volume (CFM)		Noise Level (dB)
Model No.	For Door Size	Width	Power (W/HP)	Net Weight (LB)	Current (A)	Lo	Hi	Lo	Hi
FM1506-**	24"	23-3/4"	230/0.31	27.5	2.4	628	785	55	57
FM1509-**	36"	35-1/2"	300/0.4	33.1	3.13	942	1177	56	58
FM1510-**	42"	41-3/4"	350/0.47	37.5	3.65	1059	1354	56	58
FM1512-**	48"	47-1/4"	350/0.47	43	3.65	1295	1648	57	59
FM1515-**	60"	59"	400/0.54	48.5	4.17	1648	2119	58	60
FM1518-**	72"	71-1/2"	600/0.8	61.7	6.25	1884	2354	59	61

**: Depending on the door switch used in the models, these symbols can mean the following:

M: Magnetic Switch.

Model No. example: FM1506-M, FM1509-M etc.

MSD: Magnetic Switch with Delayed Shutoff.

Model No. example: FM1506-MSD, FM1509-MSD etc.
