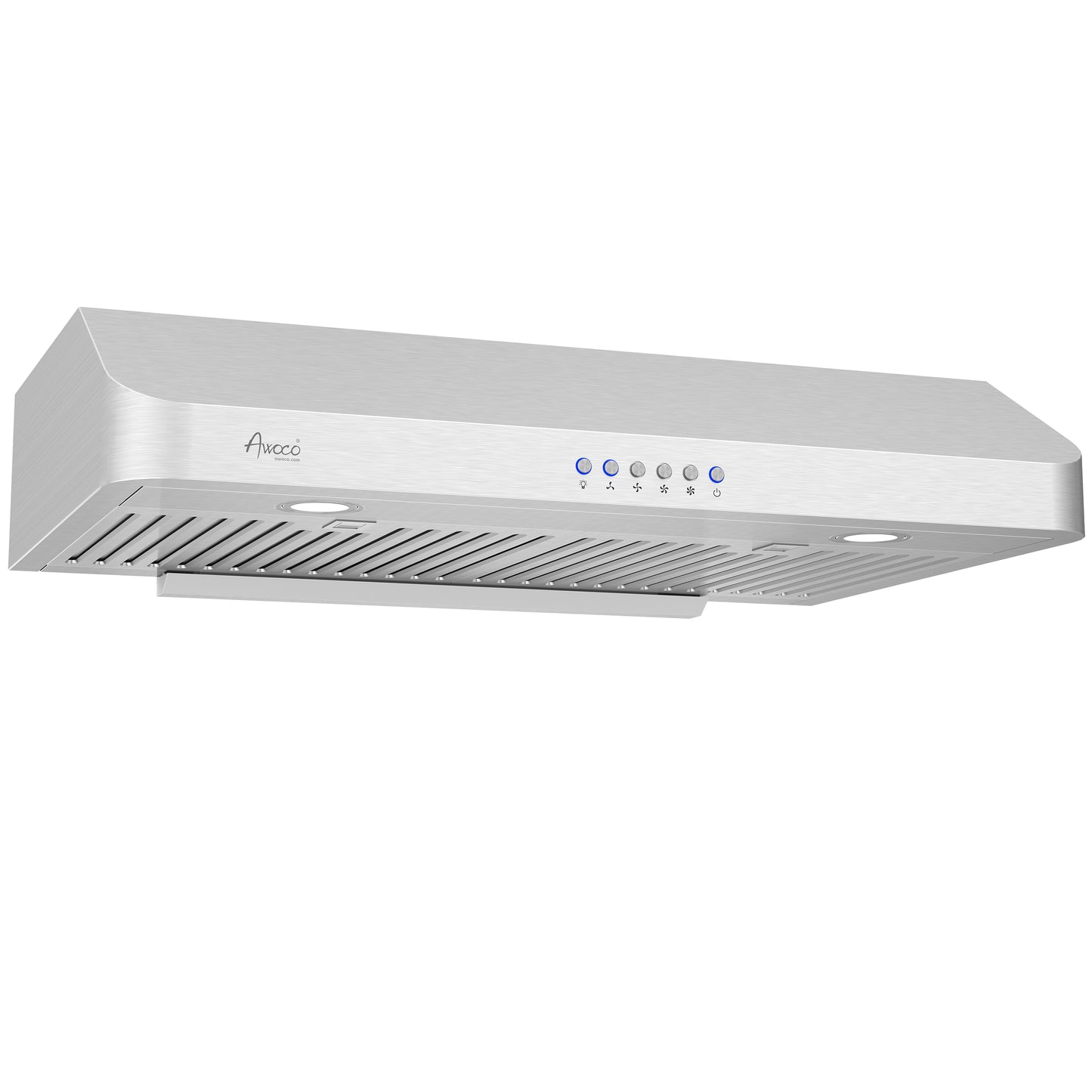

- SUPER SLIM 6” HIGH, 1 PRESS TO TURN ON: under cabinet range hood, high quality stainless steel with brush finishing. Perfectly fits under the 12” deep standard cabinet; provide slick style and powerful performance.

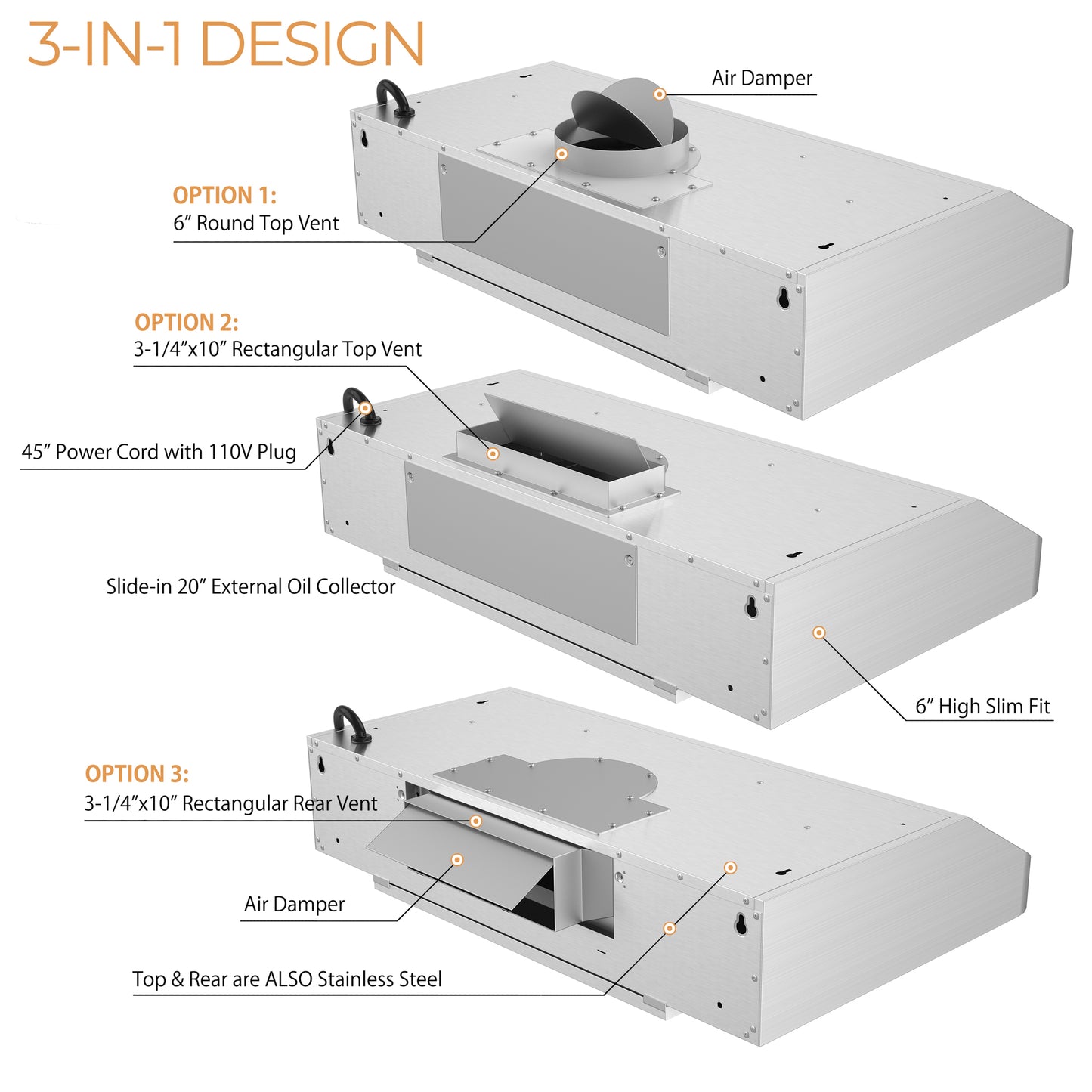

- DUCTED VENT OUTDOOR, TOP VENT: 6” round and 3-1/4"x10" rectangular TOP vent adapters are included. (NO rear vent). Air damper is included. CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes.

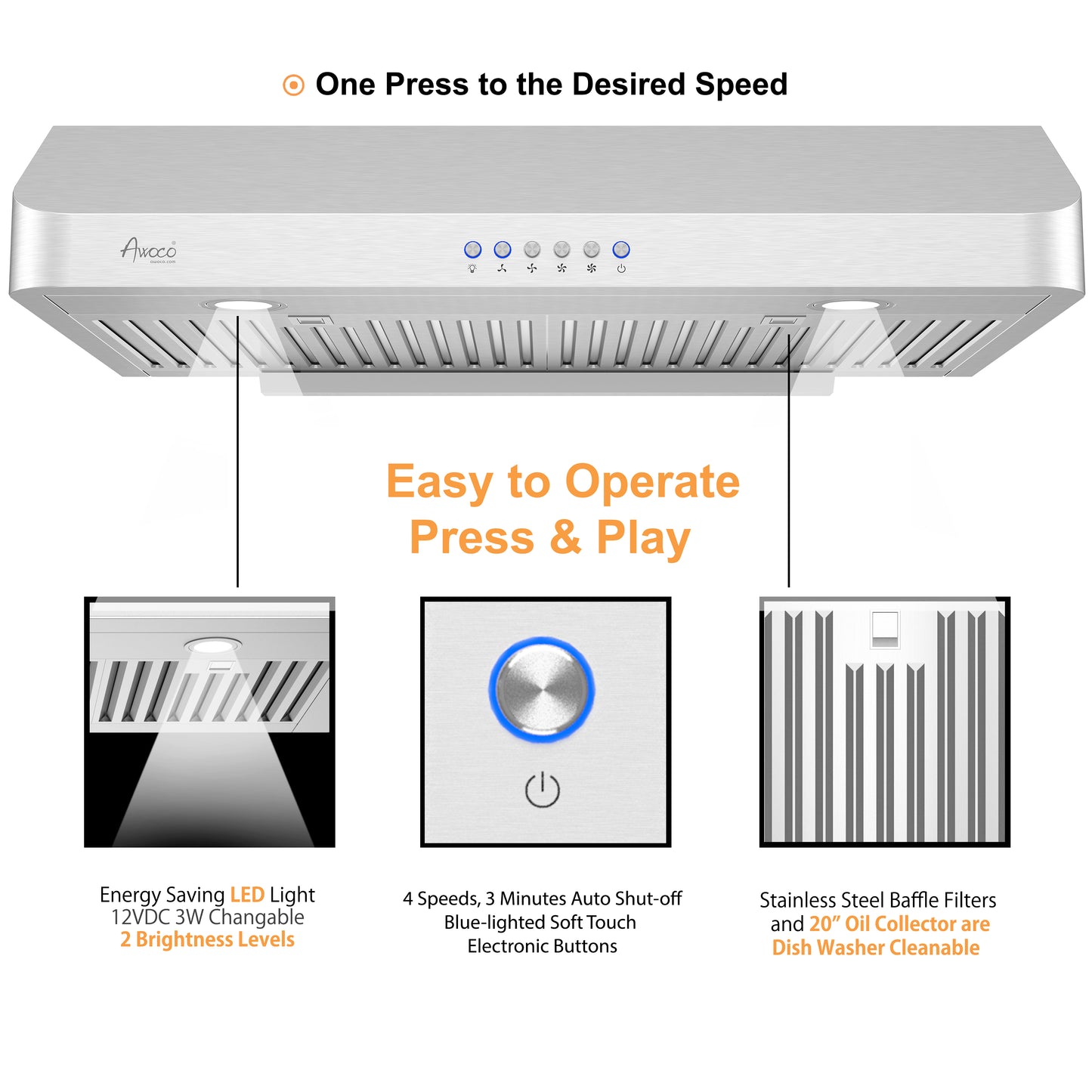

- 4 SPEEDS POWERFUL OPERATION WITH 2 BRIGHTNESS LEVELS LED LIGHTS: 4 speeds up to 900 CFM), blue-lighted soft touch electronic buttons with 2 of 2W energy saving cold dimmable brightness LED lights. 2 motors rotate oppositely. Power rating: 120V/60Hz, 70W/90W/120W/150W. 45" Power cord with plug is included. Noise level at low: 49 dB, 4.5 sones. Noise level at high: 62 dB, 11.0 sones.

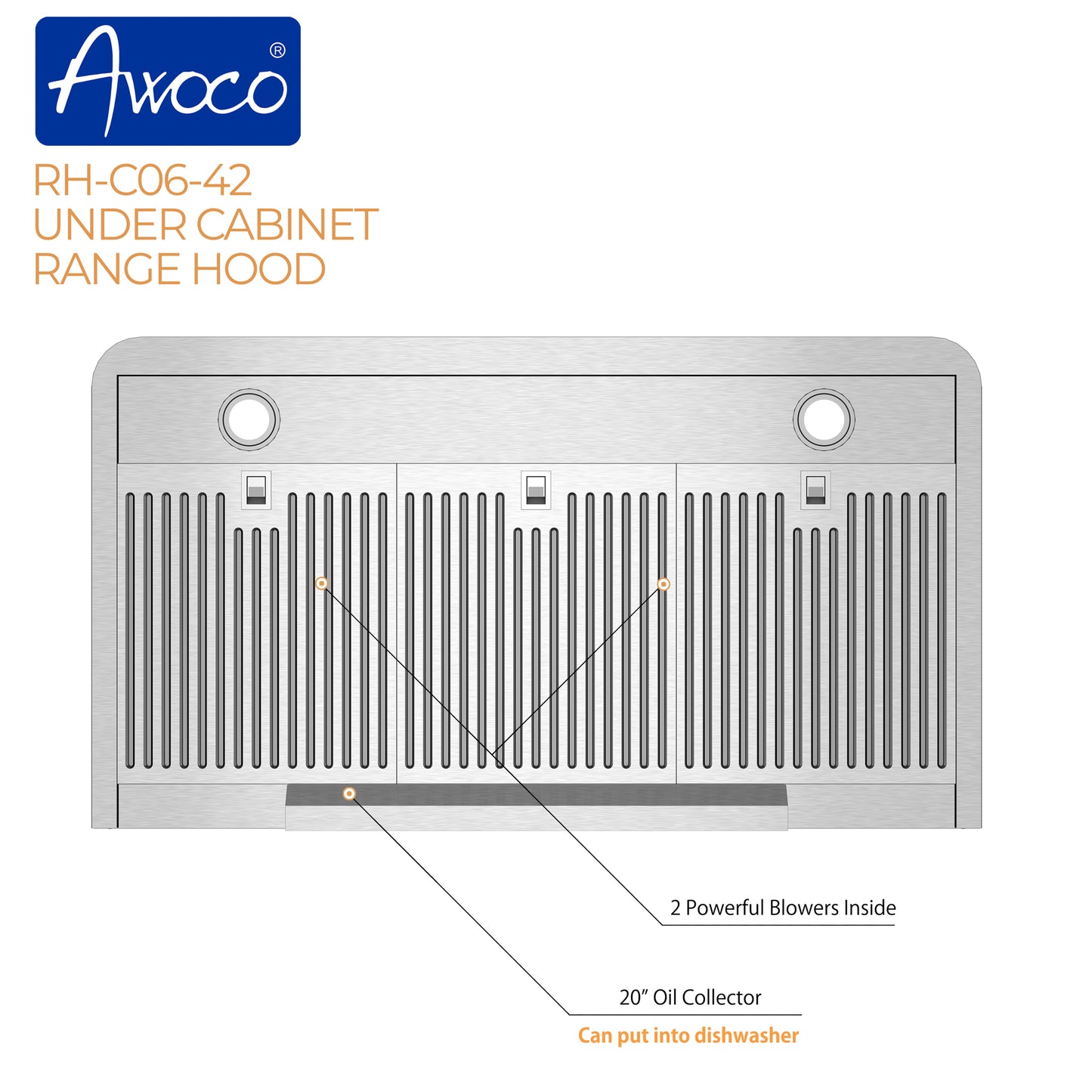

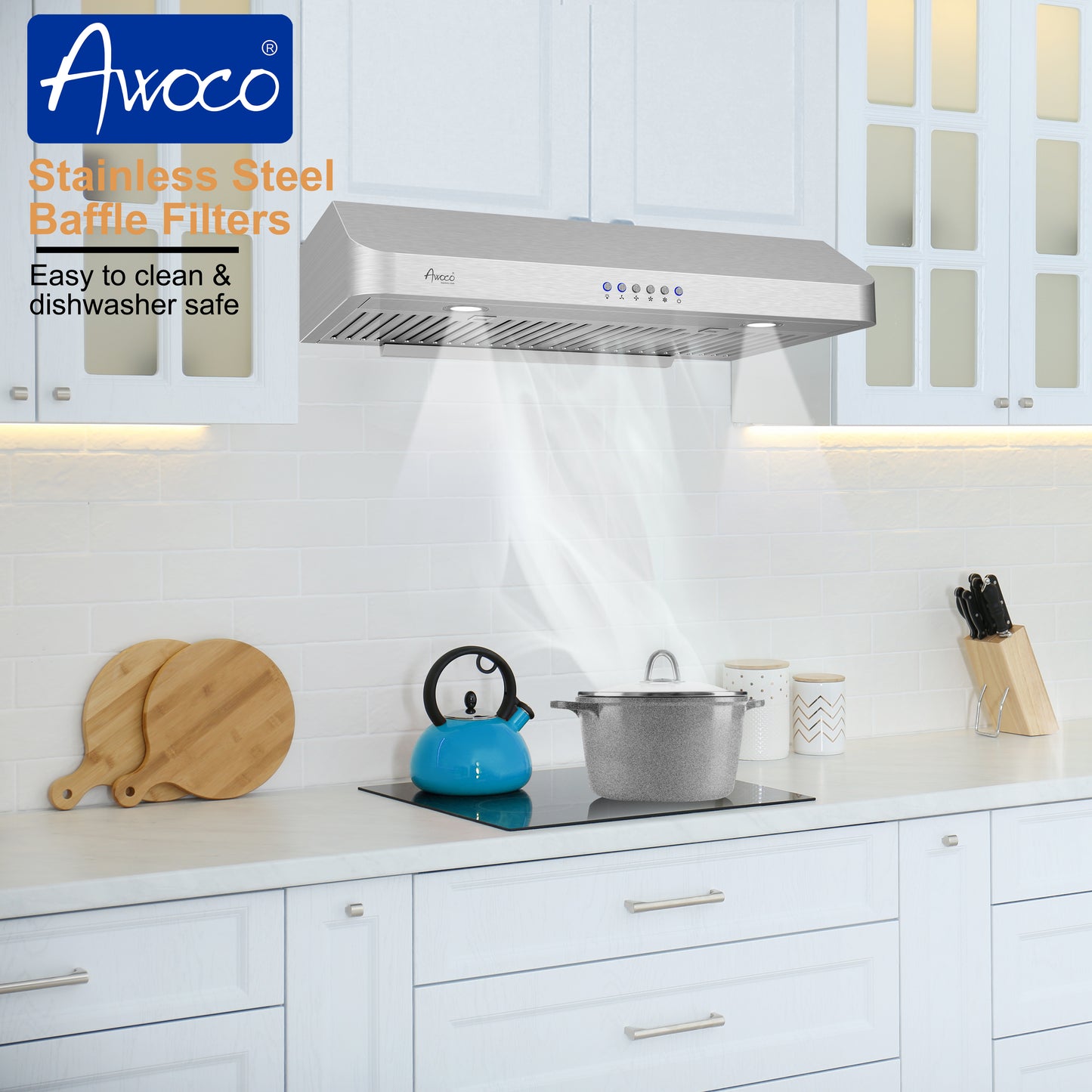

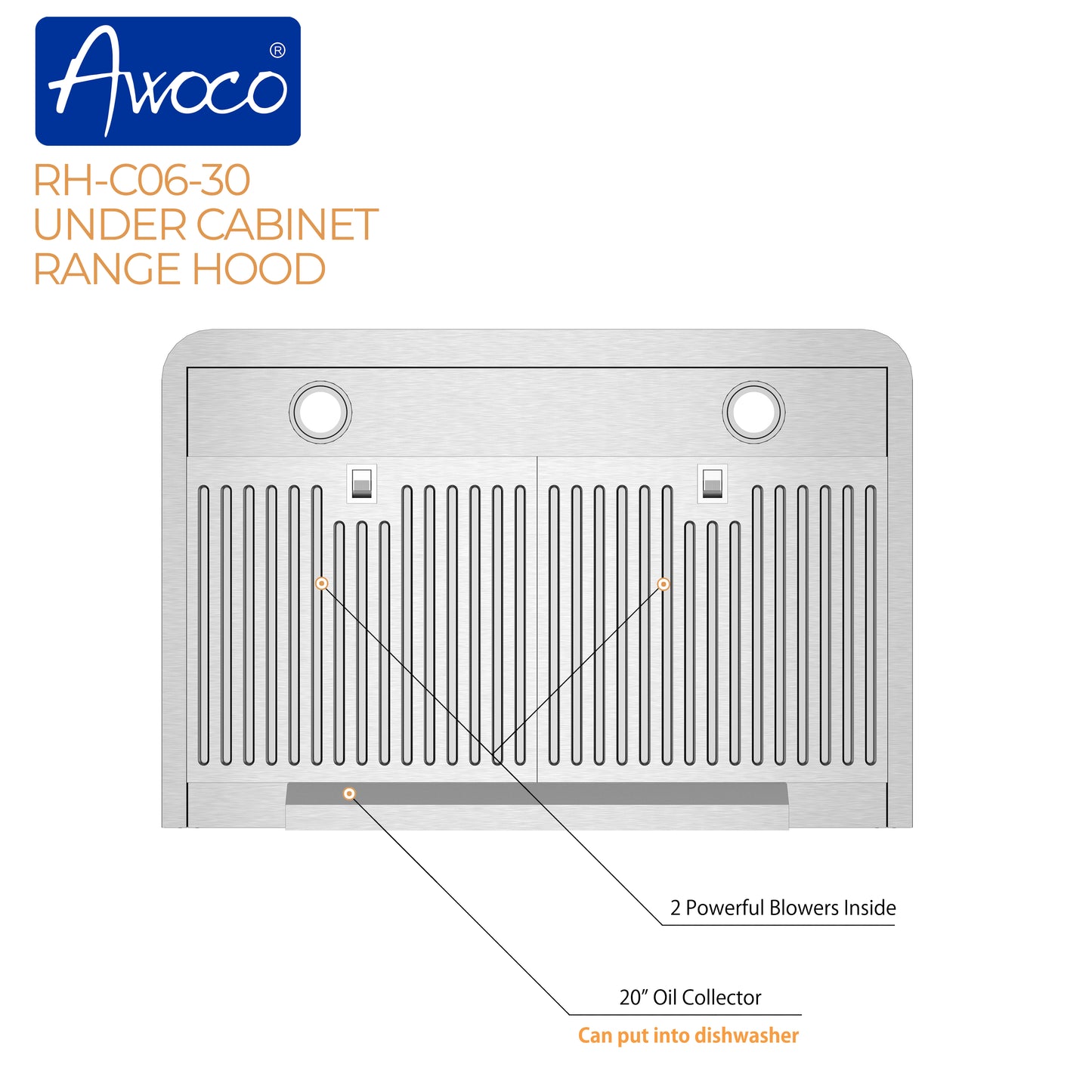

- DISHWASHER SAFE BAFFLE FILTERS, 3 MINUTE AUTO SHUT OFF: Dishwasher safe; commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and 20" oil collector. 3 minute timer delayed with auto shut off feature to vent the leftover smoke after cooking.
- 3 YEARS LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 3 years. Awoco high quality product reputation and supreme customer service is a guarantee.

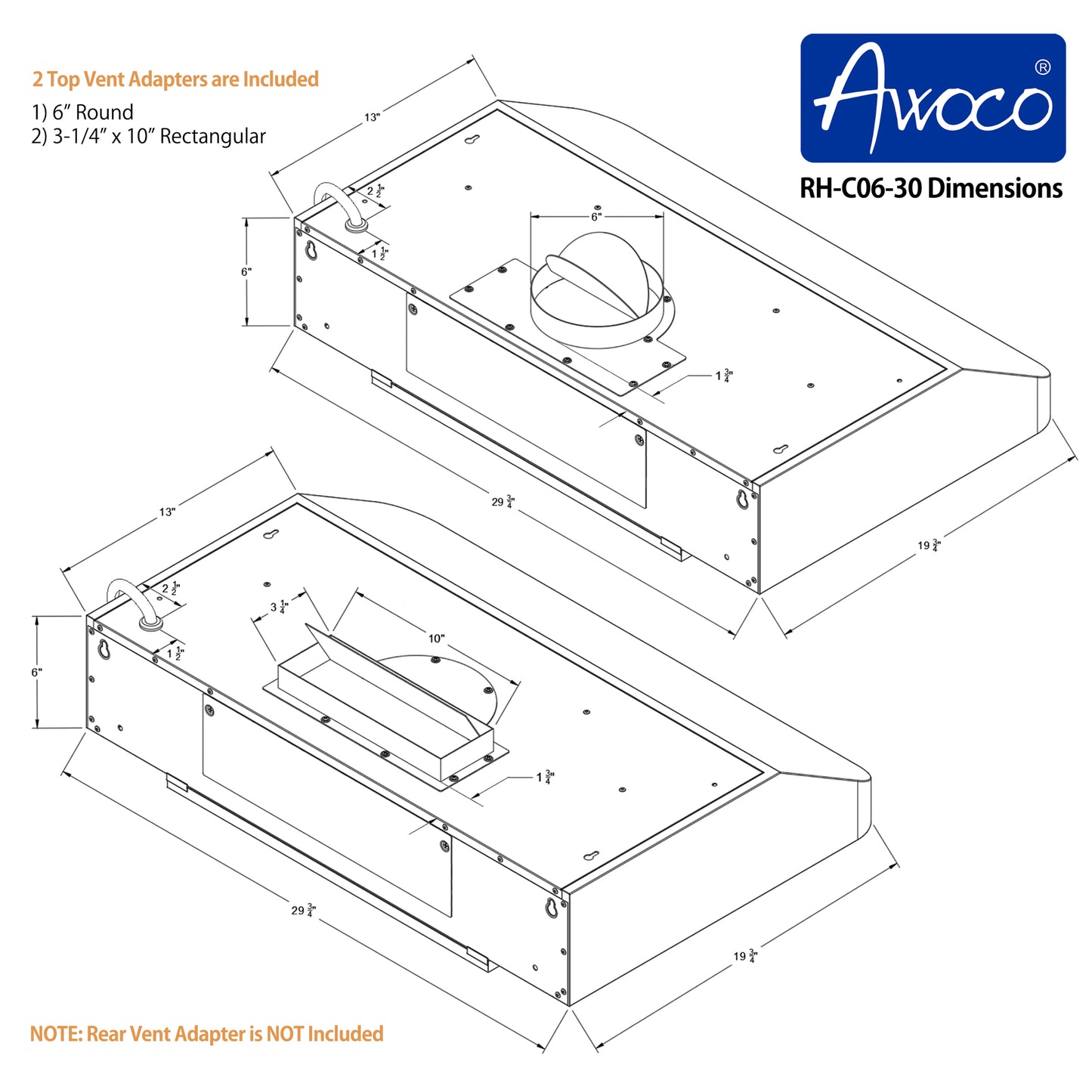

- under cabinet range hood 30" Hood Dimensions: 29-3/4"W x 19-3/4"D x 6"H. Hood weight: 33 lbs.
- under cabinet range hood 36" Hood Dimensions: 35-3/4"W x 19-3/4"D x 6"H. Hood weight: 35 lbs.
- under cabinet range hood 42" Hood Dimensions: 41-3/4"W x 19-3/4"D x 6"H. Hood weight: 39 lbs.
There are 6 Packages to Choose From Below Shows the Included Content for Each Package
- RH-C06-30-COLD - Package includes: RH-C06-30 & 6000K COLD LED Lights.
- RH-C06-30-WARM - Package includes: RH-C06-30 & 3000K WARM LED Lights.
- RH-C06-36-COLD - Package includes: RH-C06-36 & 6000K COLD LED Lights.
- RH-C06-36-WARM - Package includes: RH-C06-36 & 3000K WARM LED Lights.
- RH-C06-42-COLD - Package includes: RH-C06-42 & 6000K COLD LED Lights.
- RH-C06-42-WARM - Package includes: RH-C06-42 & 3000K WARM LED Lights.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
| Mounting Type | Under Cabinet or Wall-Mount. |
| Venting | 6" Round TOP / 3-1/4" x 10" Rectangular Top |
| Power Rating | 120V~60Hz. |
| Lighting | 2x 2W LED. |
| Noise Level | 49dB / 51dB / 57dB / 62dB. |
| Model No. | Width | Depth | Height | # of Baffle Filters |
Vent Size ("Duct") |
Max CFM | Wattage | |
| Min | Max | |||||||
| RH-C06-30 | 29-1/2" | 19-3/4" | 6" | 2 |
6" Round Top, 3-1/4" x 10" Rectangular Top |
900 | 110W | 150W |
| RH-C06-36 | 35-3/4" | 3 | ||||||
| RH-C06-42 | 41-3/4" | 3 | ||||||
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
SERVICE HELP: AWOCO 101 VIDEOS
-

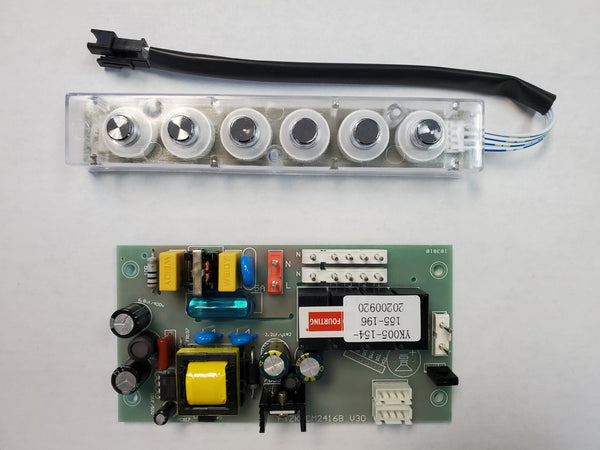

Fourting FT-P304B Control Panel and Circuit Board for Awoco Range Hoods RH-C06 and RH-R06, Lot # EK
$85.00 -

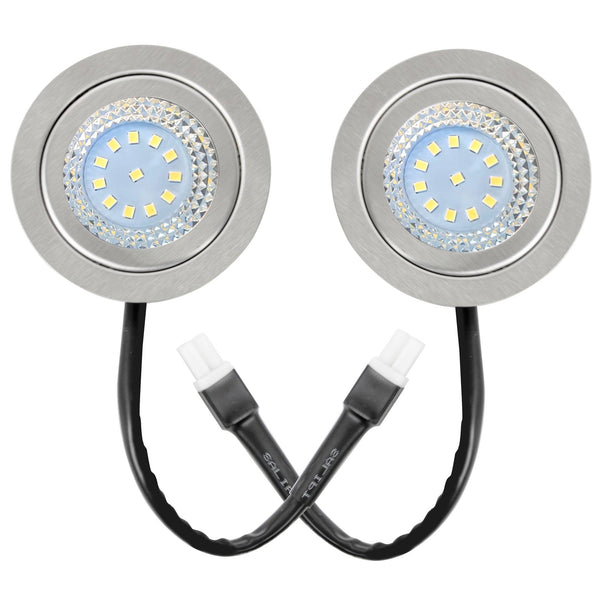

[2-3/4" Flat Edge] 2 Pcs of 12VDC LED Lights for 2023 Awoco RH-C06, RH-R06 and RH-SP06/08 Range Hoods
$30.00 -

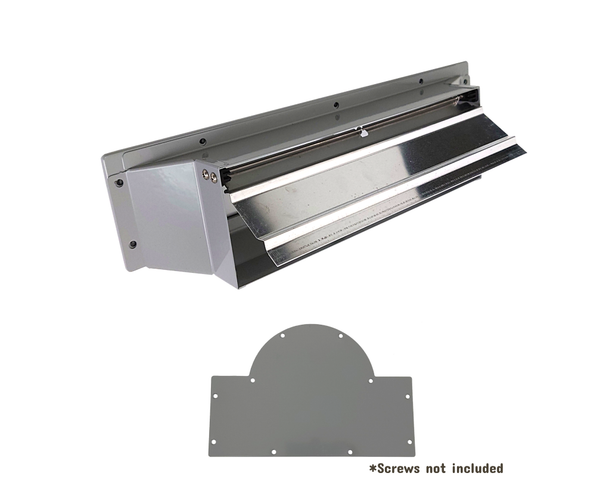

Rear Rectangular 3-1/4" x 10" Vent Adaptor with Top Cover for Awoco RH-C06 Range Hoods
$30.00 -

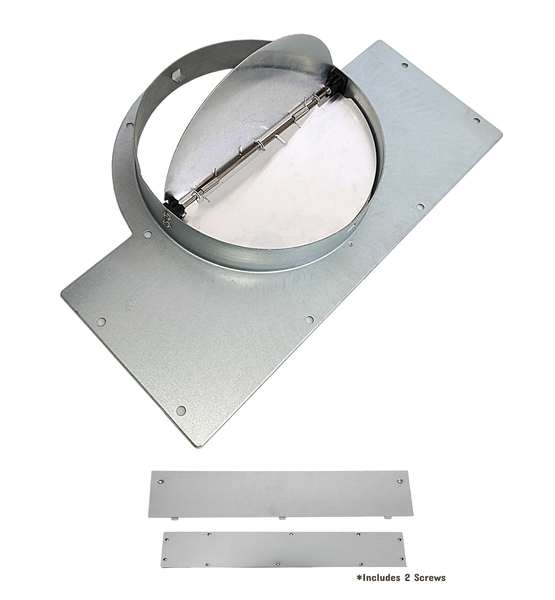

Top 6" Circular Vent Adaptor with Rear Covers for Awoco RH-R06 Range Hoods
$30.00 -

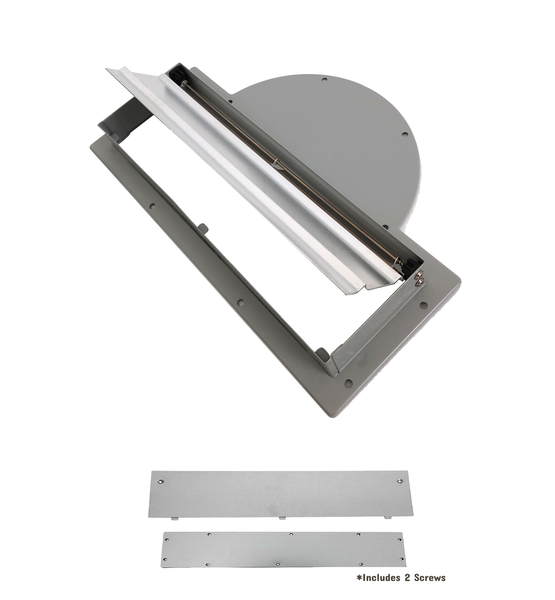

Top Rectangular 3-1/4" x 10" Vent Adaptor with Rear Covers for Awoco RH-R06 Range Hoods
