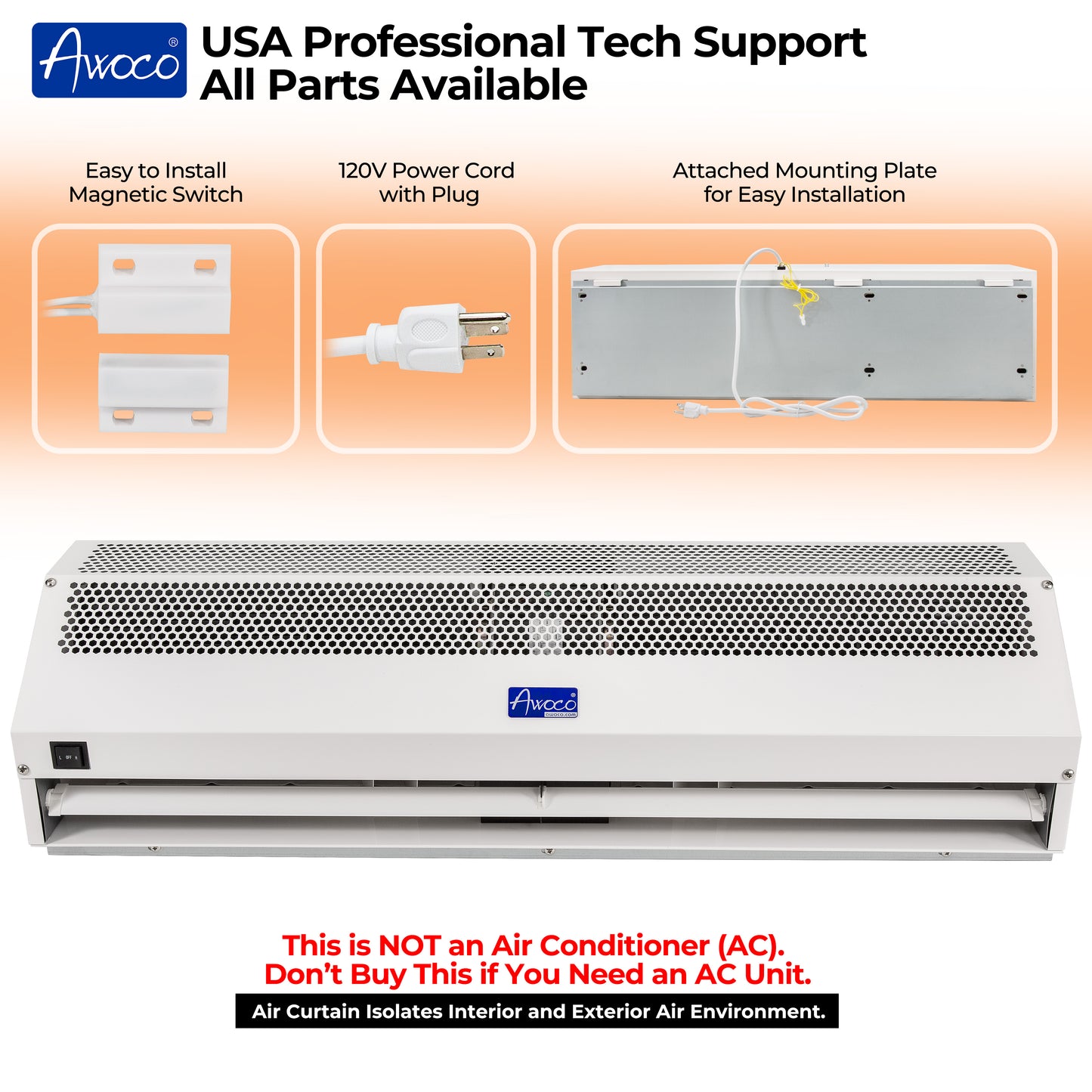

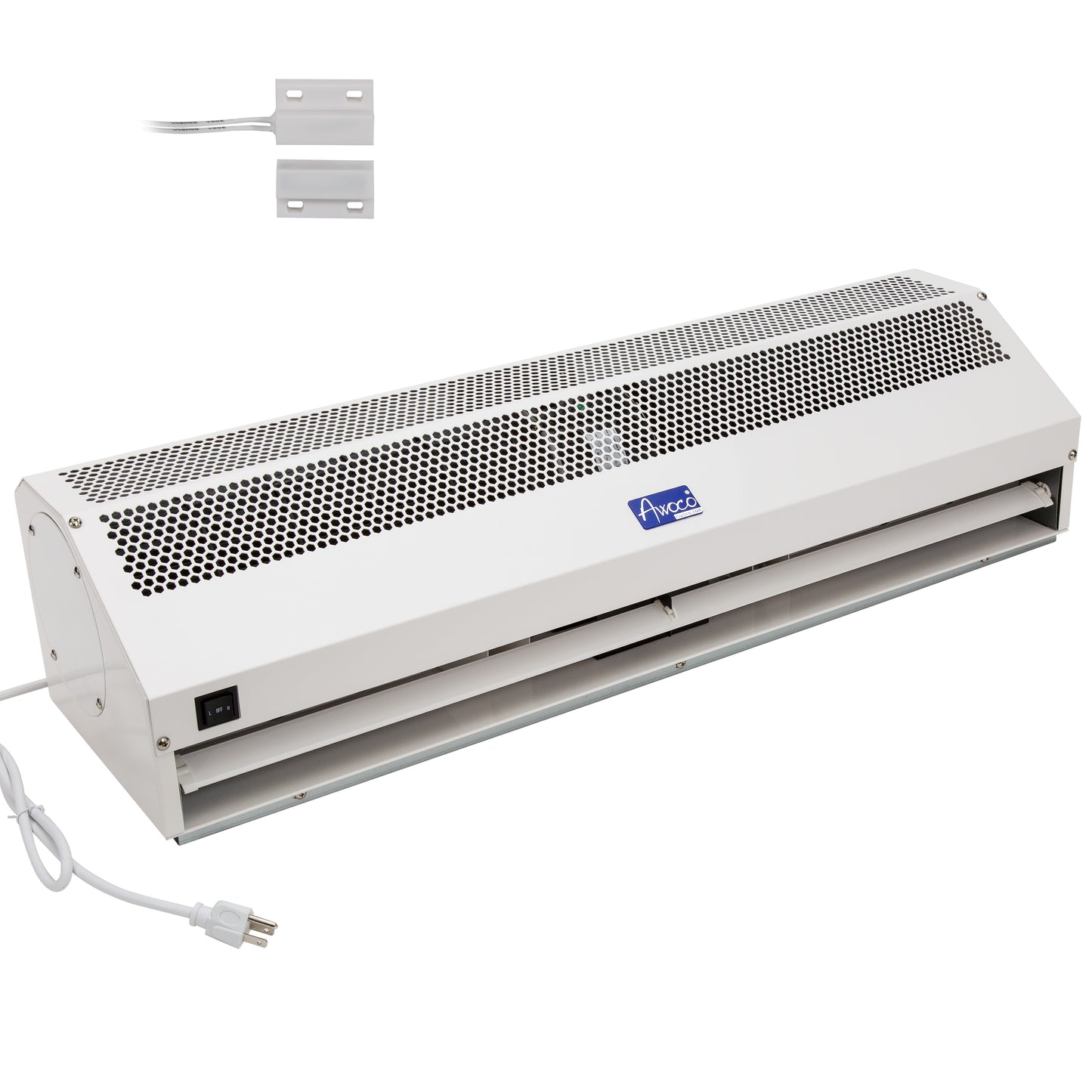

- Super Power Air Curtain ETL Series FM15 by Awoco - 120V Unheated Indoor Air Curtain featuring ETL Certified 1 Speed Operation and Easy-Install Magnetic Switch for Doorways
- [NOT an Air Conditioner]: DOES NOT GENERATE COLD OR HOT AIR. Do not purchase if you are looking for an A/C unit.

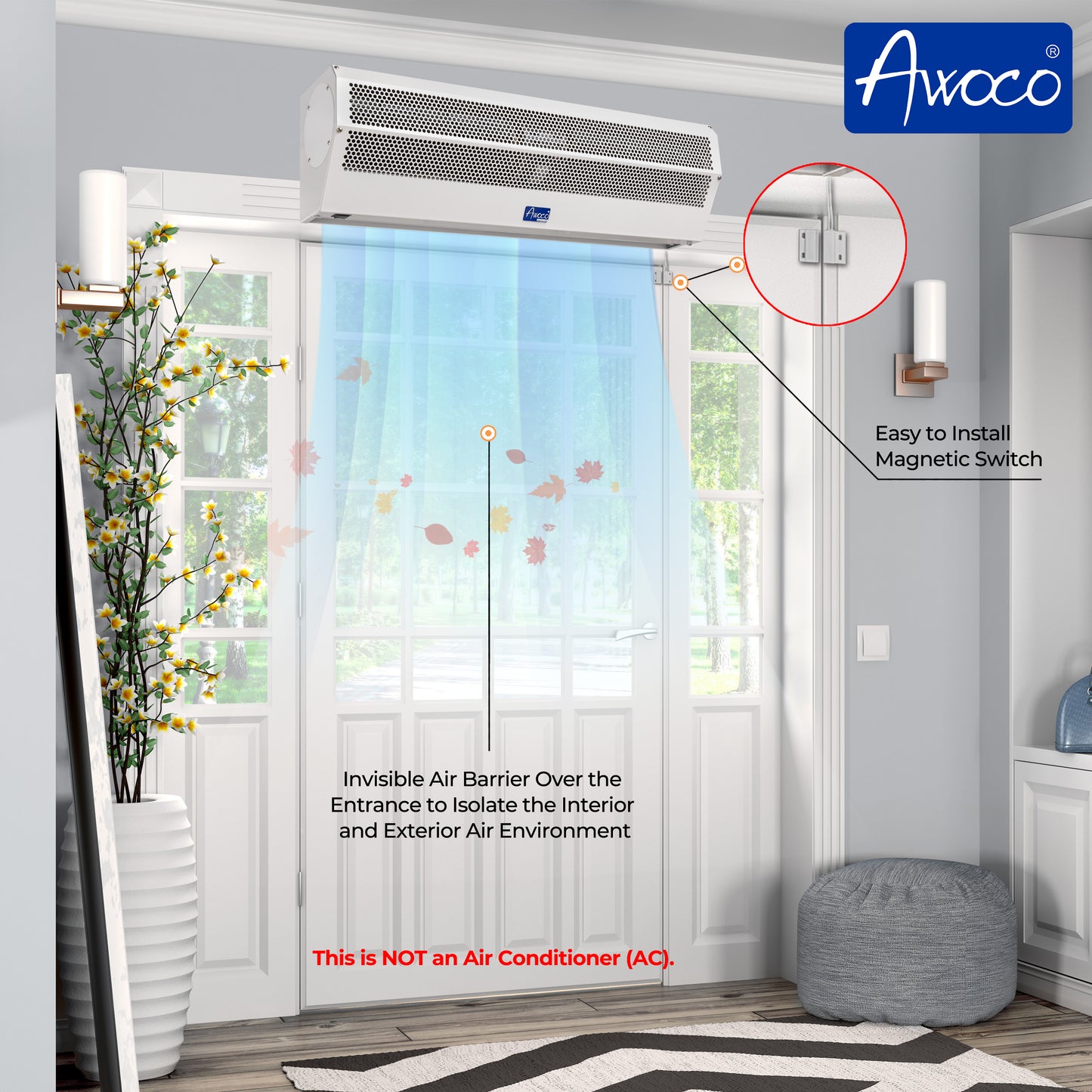

- [Isolate Interior from Outside]: The Super Power Air Curtain can help save energy by preventing outdoor air from entering a space, while also helping to block the entry of bugs, dust, and debris. Built with a fireproof and anti-erosive coated metal case for long-lasting durability.
- [Magnetic Switch Controlled Circuit (US Patented)]: Uses two magnets to control fan operation without any physical contact, preventing wear or damage from door movement. Installs easily compared to traditional mechanical plunger switches and operates safely on 12VDC power—no hard wiring required.
- [ETL Sanitation conforms to NSF Standard 37]: ETL Sanitation Listed, 1 speed operation conforms to NSF STD 37 for food service entranceways, and meets Health Department Requirements. 120V 60Hz. Consumes less power than most industrial air curtains. Can run continuously for an entire business day if needed.

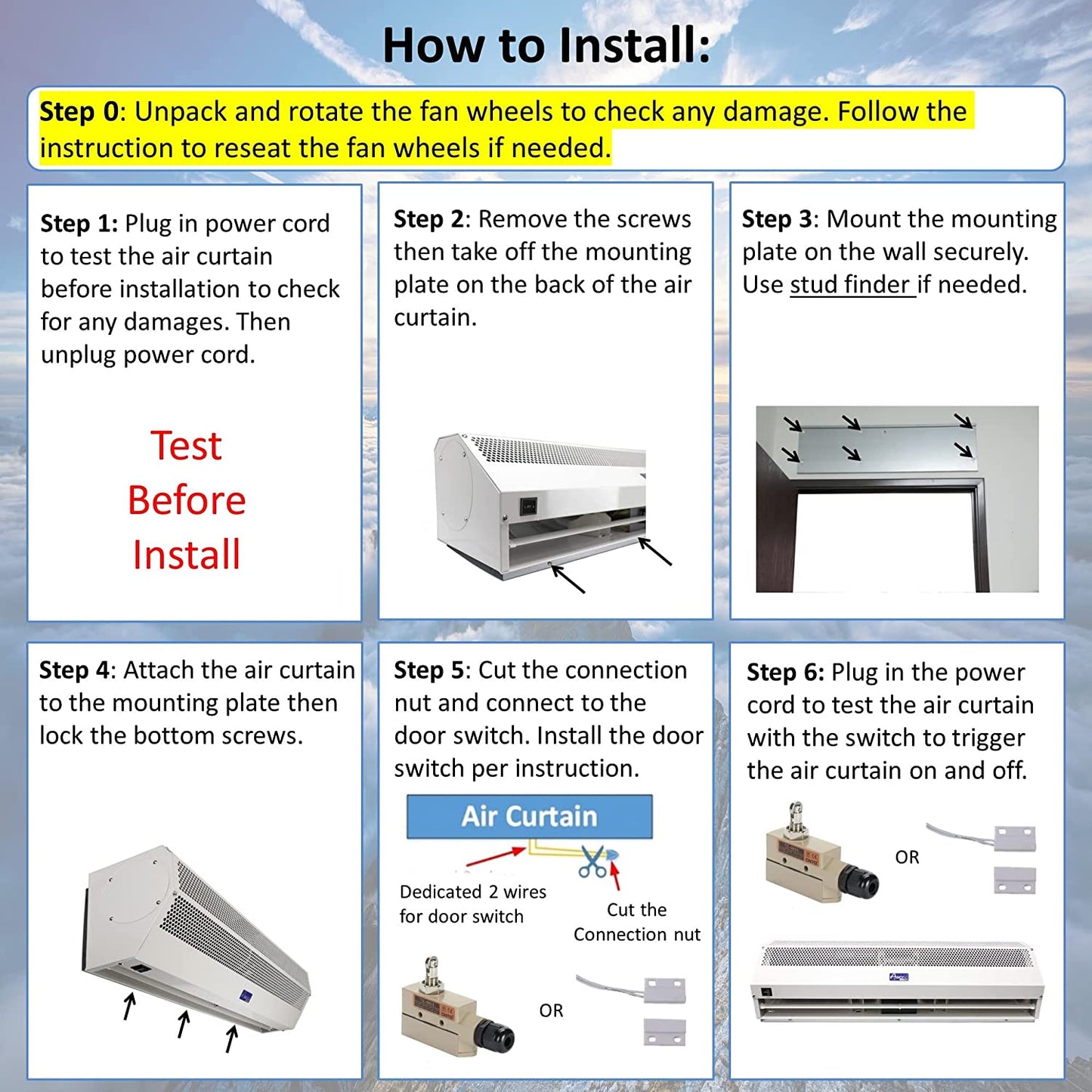

- [Simple Installation]: Refer to the User Manual for full installation details
- Indoor installation only, Not designed to withstand outdoor weather and elements
- 1) Mount the solid metal mounting plate securely on wall above doorway
- 2) Set air curtain onto the mounting plate, secure in place with screws

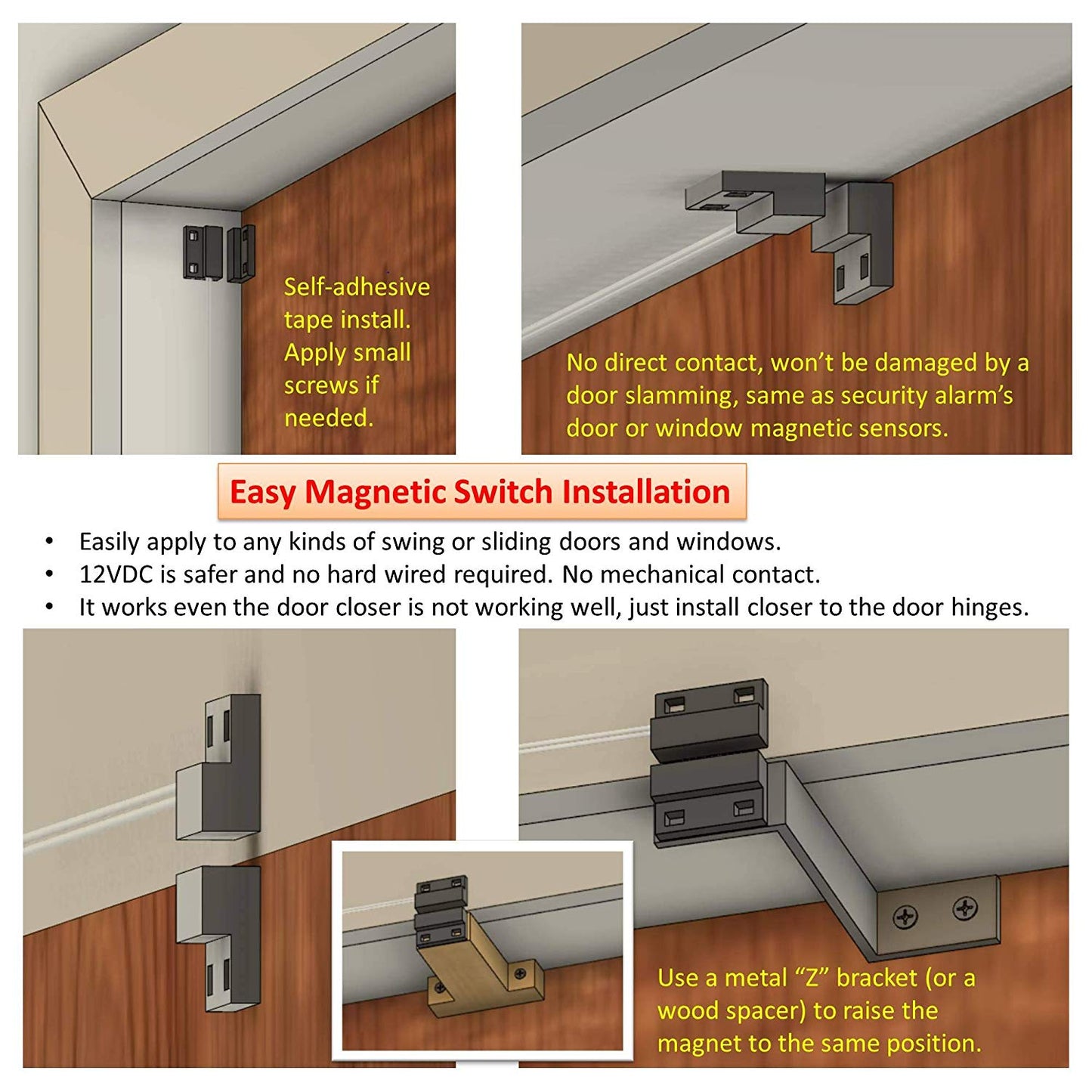

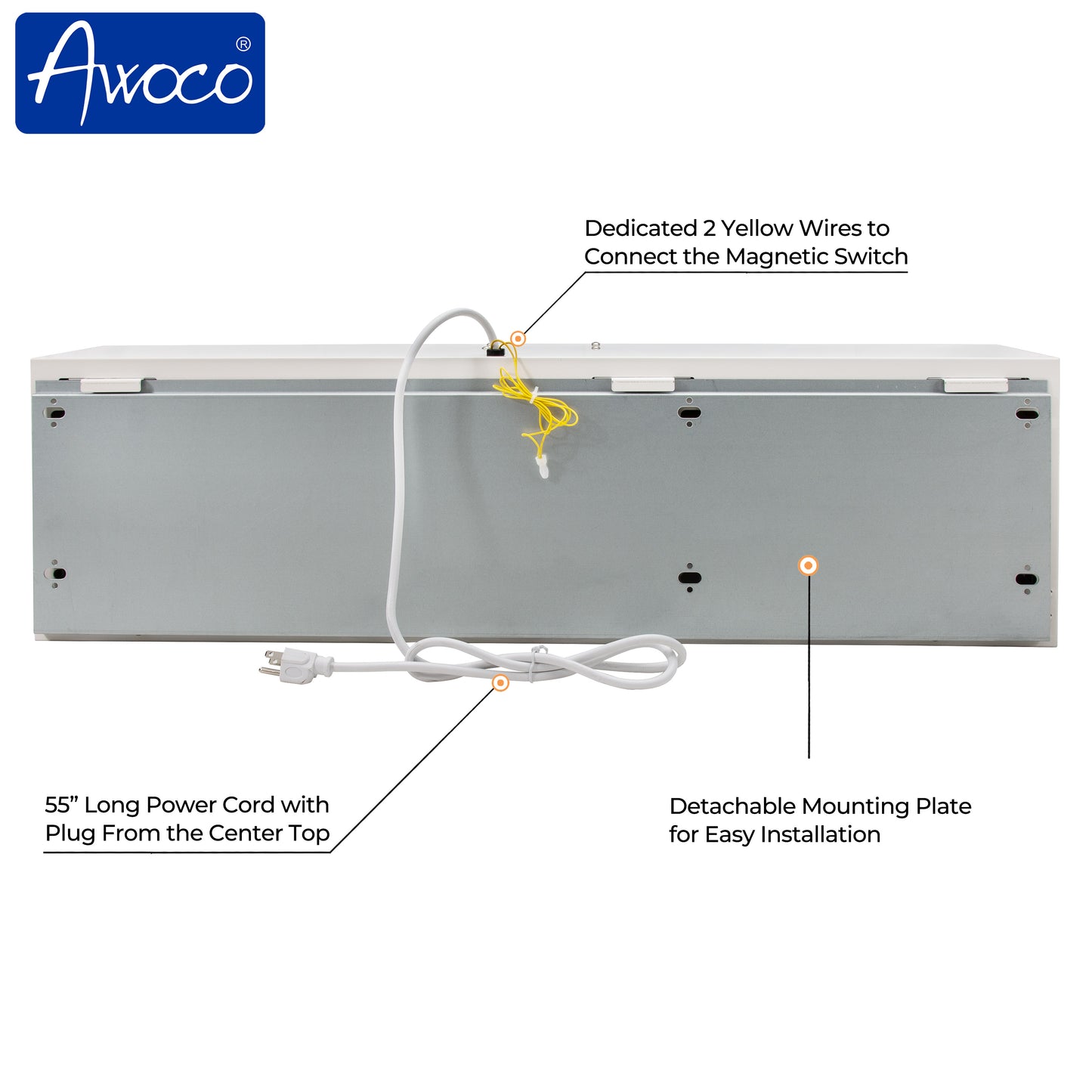

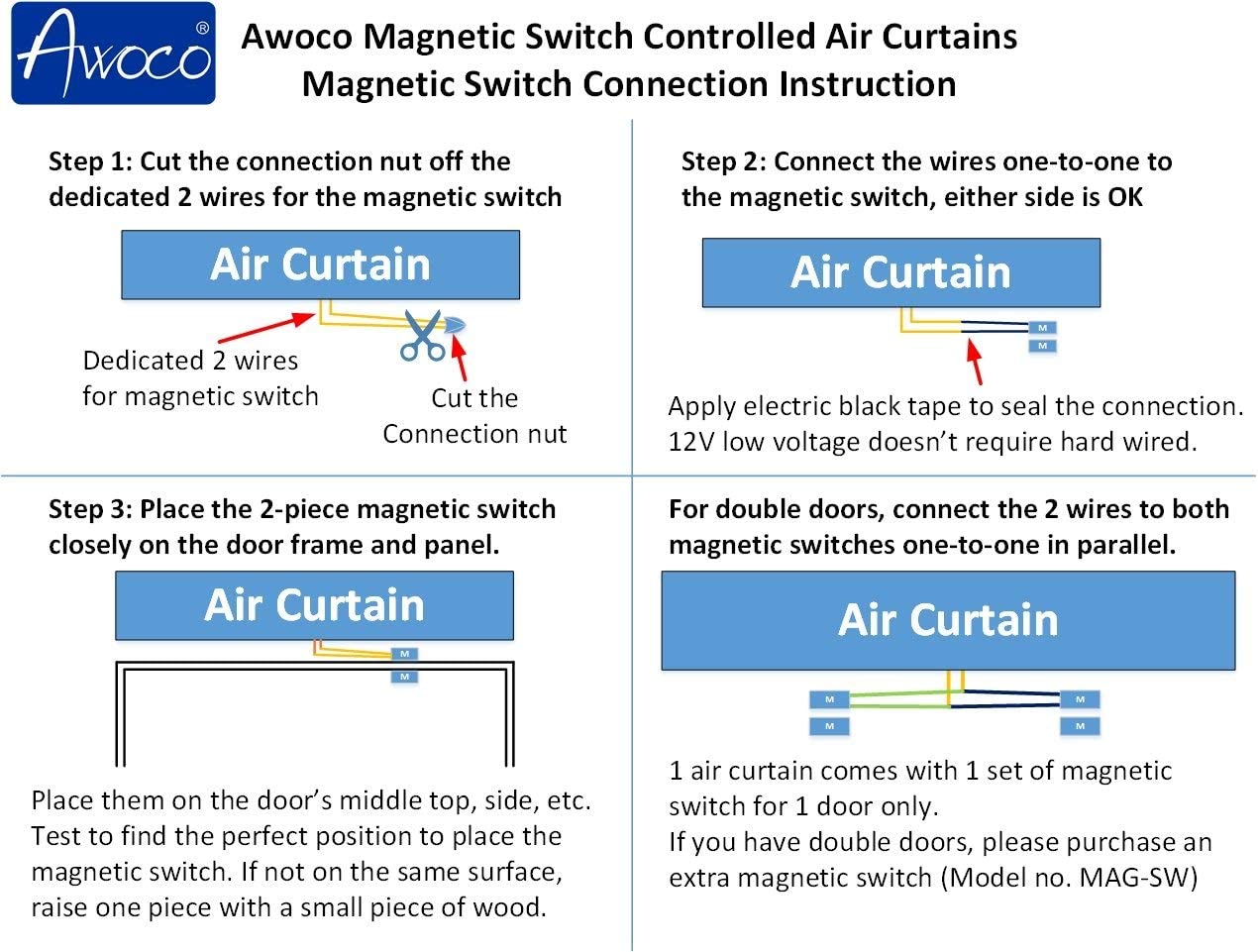

- 3) Install the optional magnetic switch and connect to the two yellow wires from the air curtain
- 4) Switch the air curtain on to desired speed. With magnetic switch installed, fan will turn on when door is open, and turn off when closed
- [1 Year Warranty, Professional Tech Support]: Includes a 1-Year Replacement Parts Warranty. Professional, dedicated tech support is available for the life of the product.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS

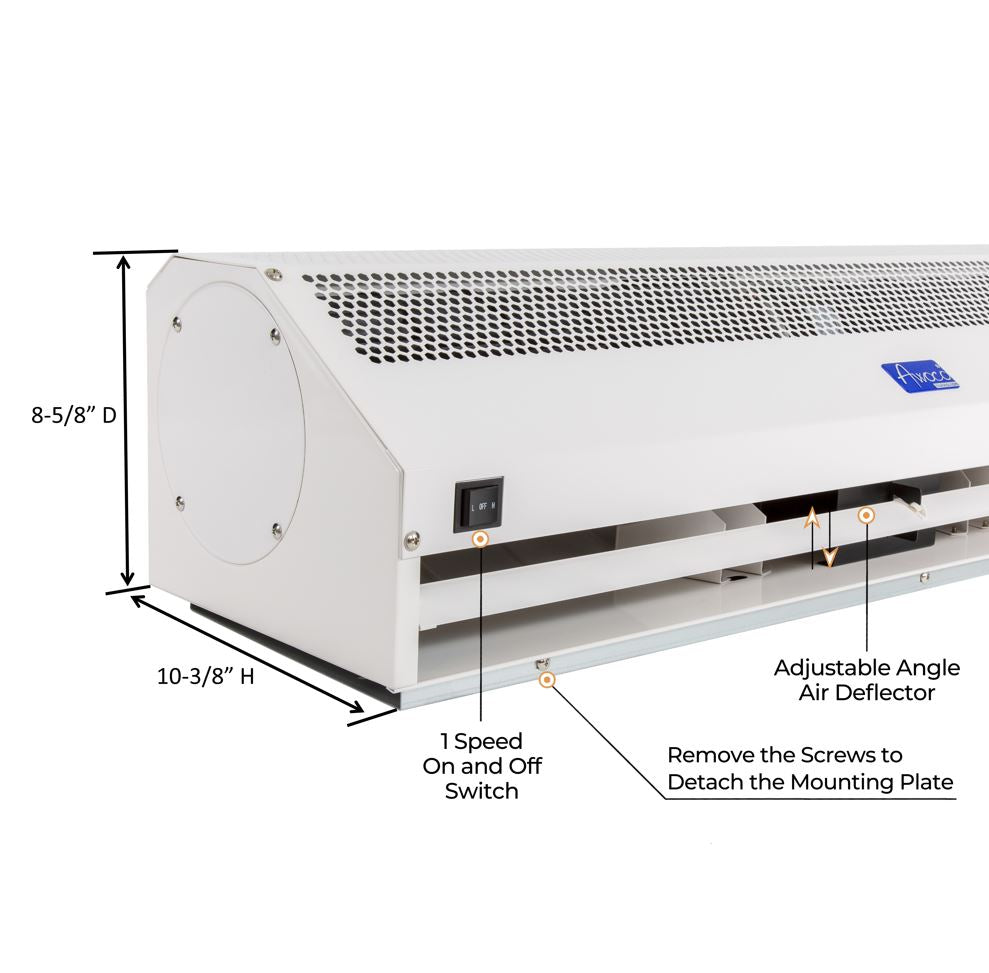

| Voltage | 120V, 60Hz. | Depth | 8-5/8 in. | Height | 10-3/8 in. | ||
| Air Velocity | 2559 FPM (Max.) | ||||||
| Model No. | For Door Size |
Width | Power (W/HP) |
Net Weight (LB) |
Current (A) |
Max. Air Volume (CFM) |
Max. Noise Level (dB) |
| FM1509-ETL | 36" | 35-1/2" | 300/0.4 | 33.1 | 3.13 | 1177 | 58 |
| FM1510-ETL | 42" | 41-3/4" | 350/0.47 | 37.5 | 3.65 | 1354 | 58 |
| FM1512-ETL | 48" | 47-1/4" | 350/0.47 | 43 | 3.65 | 1648 | 59 |
| FM1515-ETL | 60" | 59" | 400/0.54 | 48.5 | 4.17 | 2119 | 60 |
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
