Awoco TZ-6104-20A Heavy Duty Micro Switch w/Roller Plunger for Doors or Gates with Air Curtains

Roll over image to zoom in Click on image to zoom

Awoco TZ-6104-20A Heavy Duty Micro Switch w/Roller Plunger for Doors or Gates with Air Curtains

AwocoSKU: TZ-6104-20A

Share this product

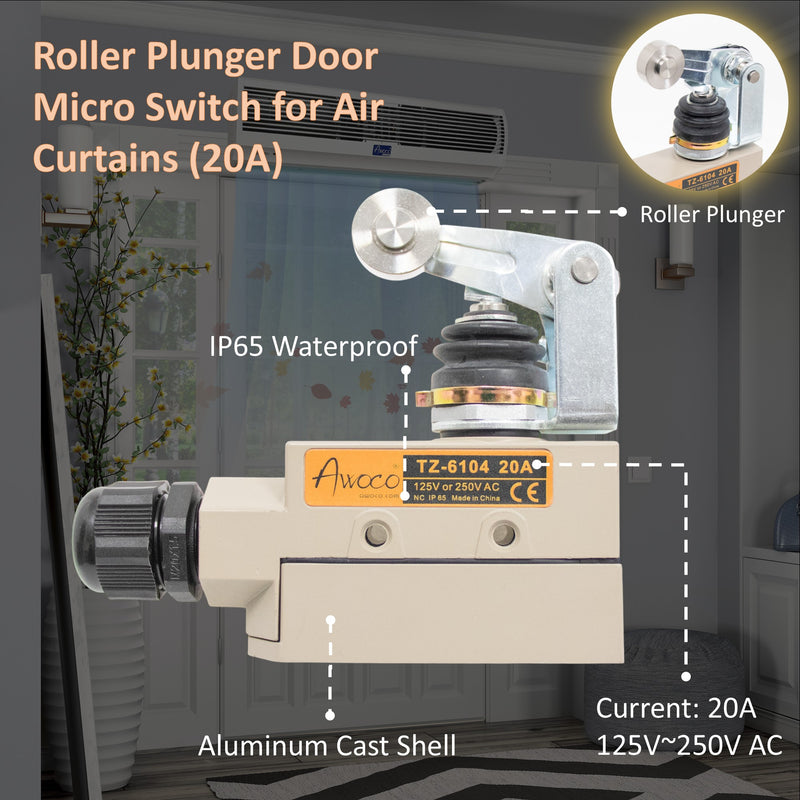

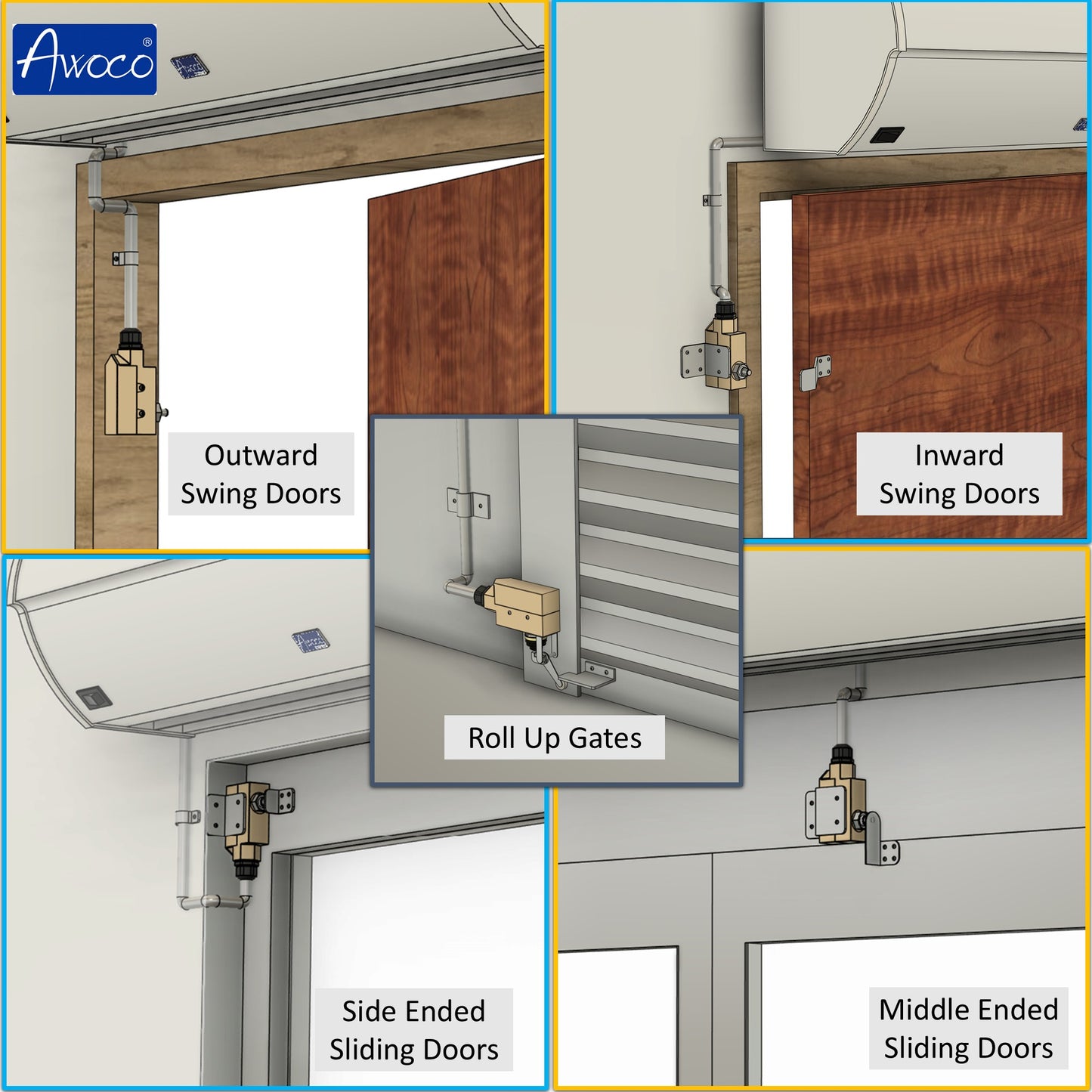

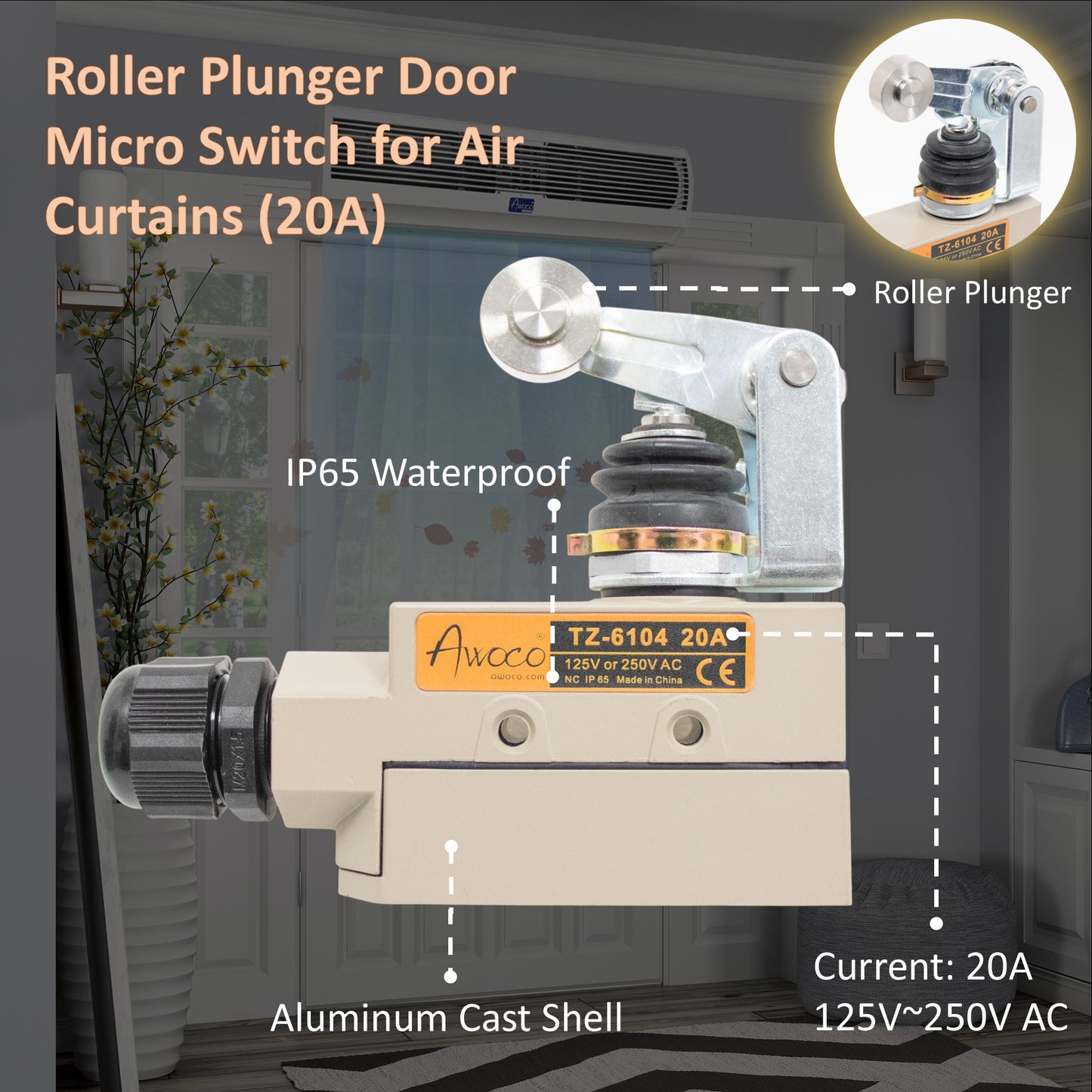

This is a special door micro switch for sliding doors or windows with horizontal roller plunger.
Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oiled proof.
Various of actuators that are taken convenience for using. 220V/110V @ 20A

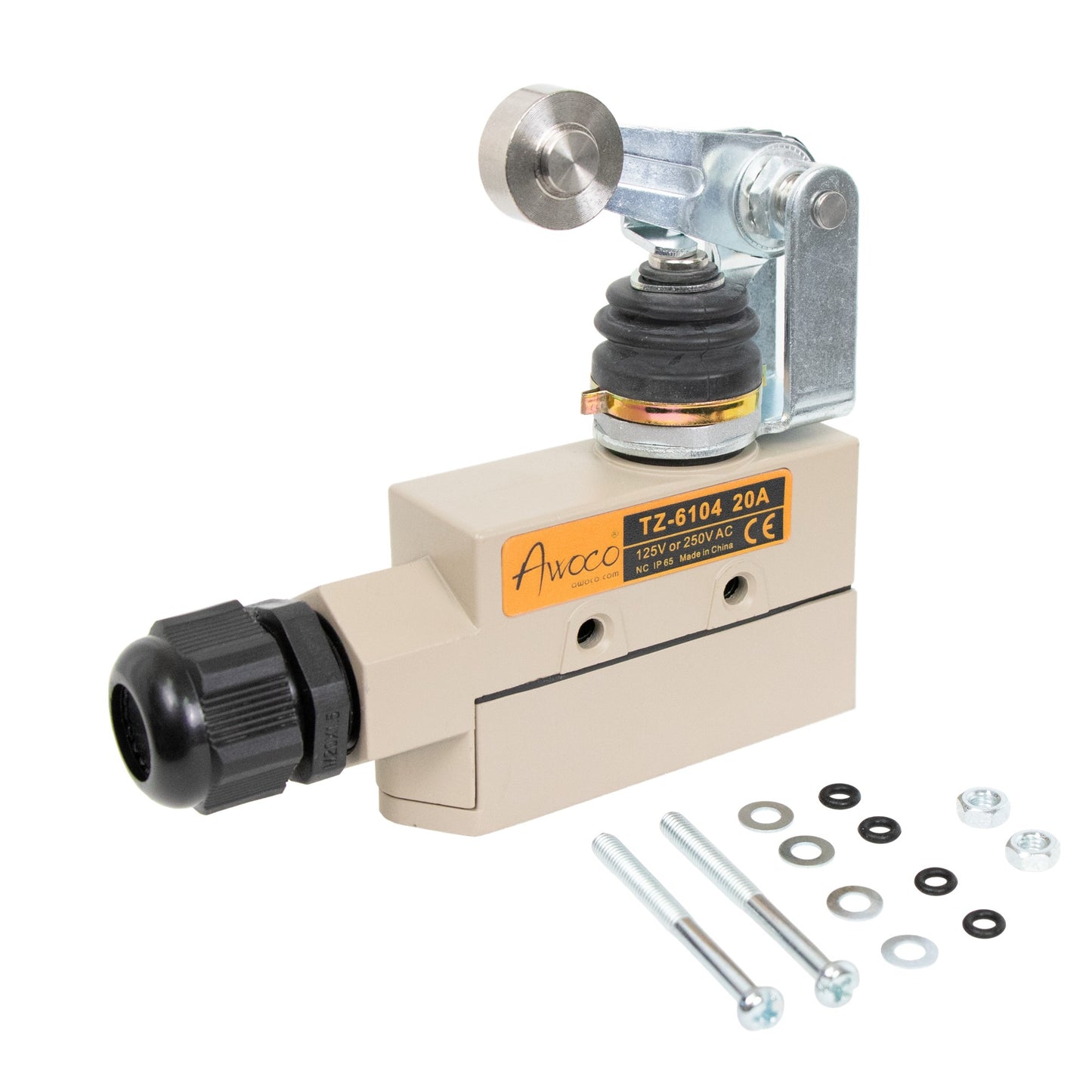

Each switch is equipped with cable fixator, including rubber boot, metallic waster, plastic screw nut.
Model: TZ-6104, Roller Plunger is easier than none roller plunger switch for Air Curtains Door Access.

Model No.	Voltage	Current	Plunger Style
TZ-6001	220V/110V	15A/20A	Plunger
TZ-6002	220V/110V	15A/20A	Horizontal Roller
TZ-6003	220V/110V	15A/20A	Vertical Roller
TZ-6104	220V/110V	20A	Multiple Functions
MAG-SW	12V	-	N/A
MAG-CIRCUIT*	120V	15A	N/A

*This kit is NOT compatible with remote or circuit controlled air curtains.
**Please check your air curtain specs and door switch requirements before purchasing.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Country

Province

Zip code

*Contact us for shipping quotes for AK, HI, PR, APO and Other Countries. We apologize for the inconvenience.

Recover password

Create my account

Awoco TZ-6104-20A Heavy Duty Micro Switch w/Roller Plunger for Doors or Gates with Air Curtains

Description

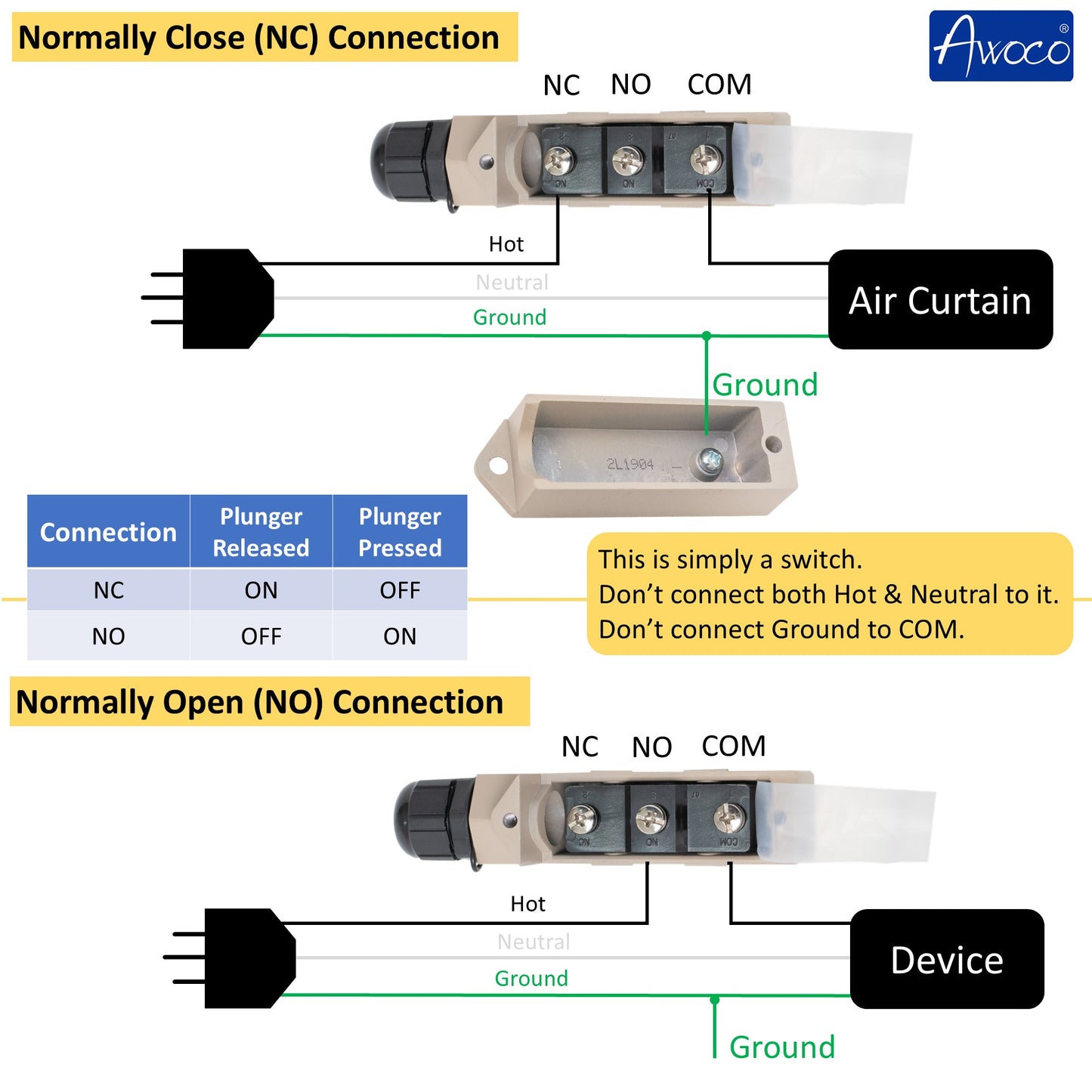

Air Curtain Door Switch Information
