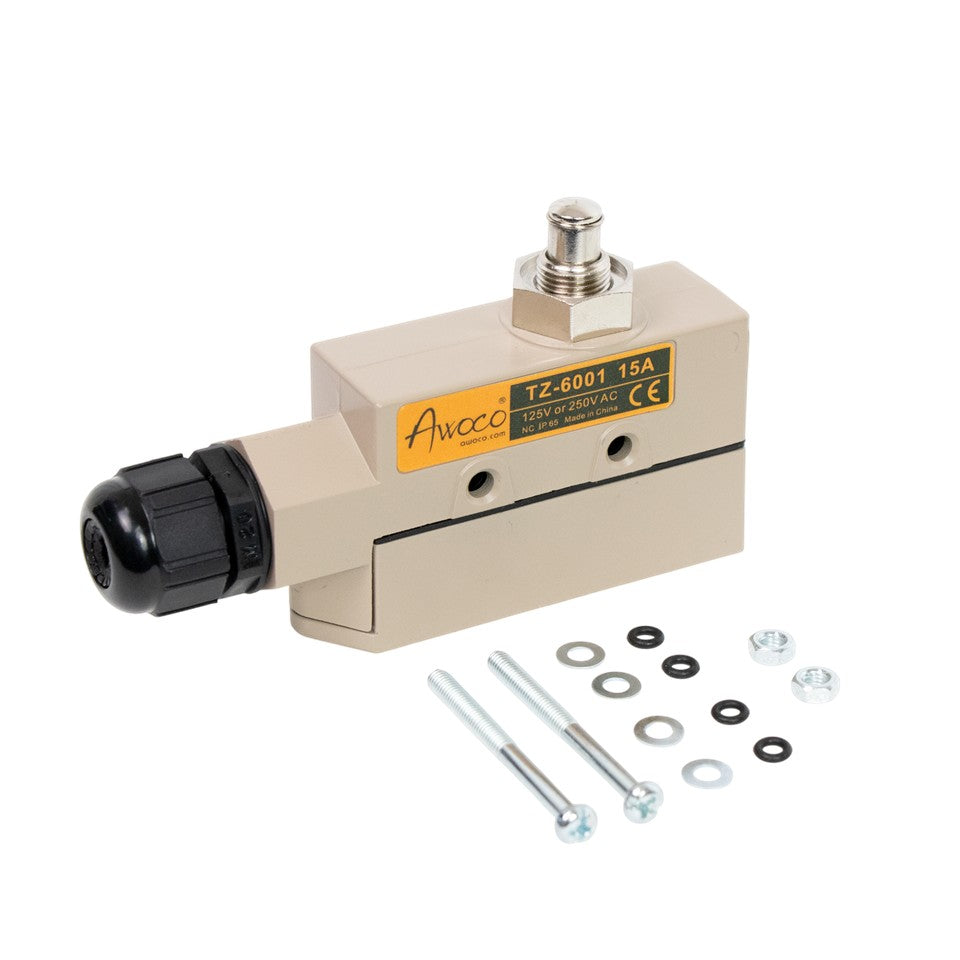

Awoco TZ-6001 Heavy Duty Micro Switch with Plunger for Doors or Windows with Air Curtains

Roll over image to zoom in Click on image to zoom

Awoco TZ-6001 Heavy Duty Micro Switch with Plunger for Doors or Windows with Air Curtains

Name: Awoco TZ-6001 Heavy Duty Micro Switch with Plunger for Doors or Windows with Air Curtains
Brand: Awoco
SKU: TZ-6001-15A
Price: 26.0 USD
Availability: InStock

AwocoSKU: TZ-6001-15A

Size: 15A

Variant

Price:

$26.00

Shipping included *

Quantity:

Share this product

Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oiled proof
It is the same as CM Micro Switch in the rated value and characteristics
Various of actuators that are taken convenience for using
Each switch is equipped with cable fixator, including rubber boot, metallic waster, plastic screw nut

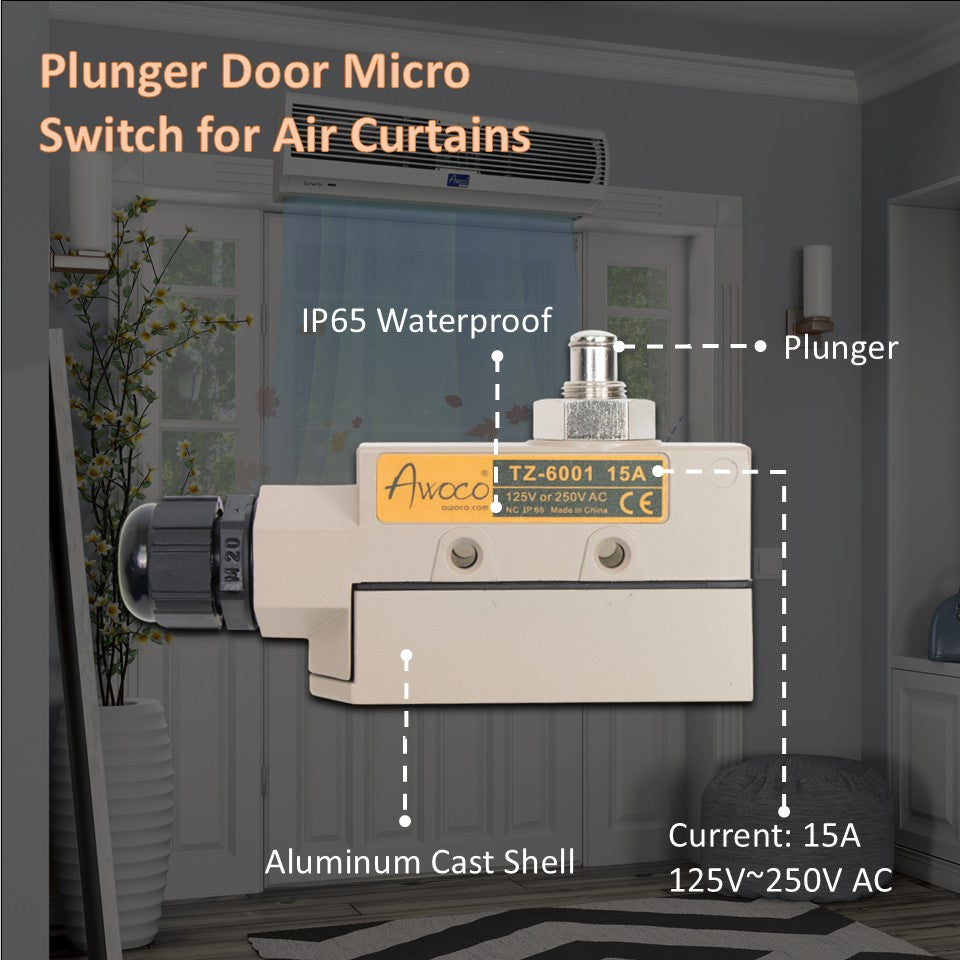

Model: TZ-6001-15A, for Air Curtains Door Access. 220V / 110V @ 15A

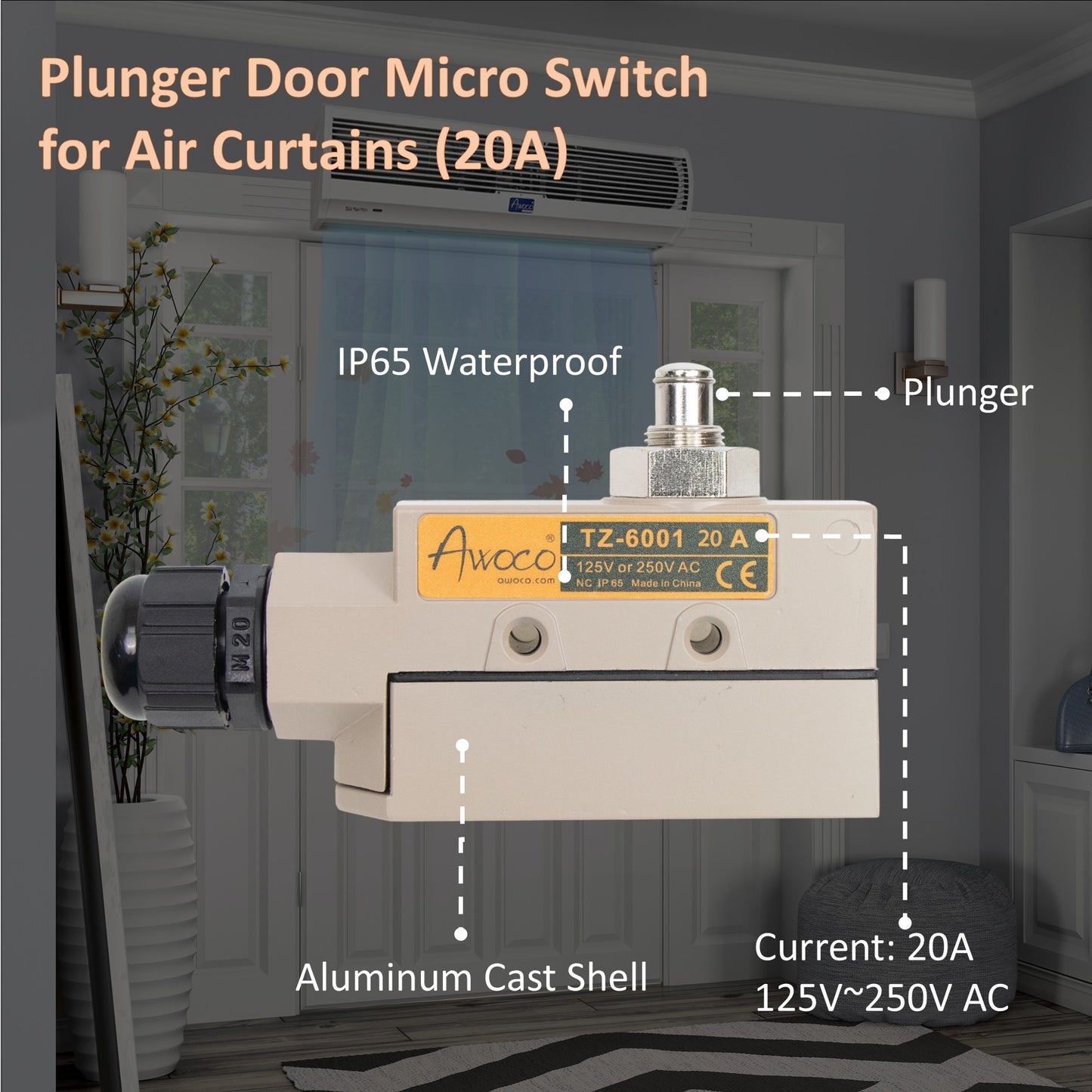

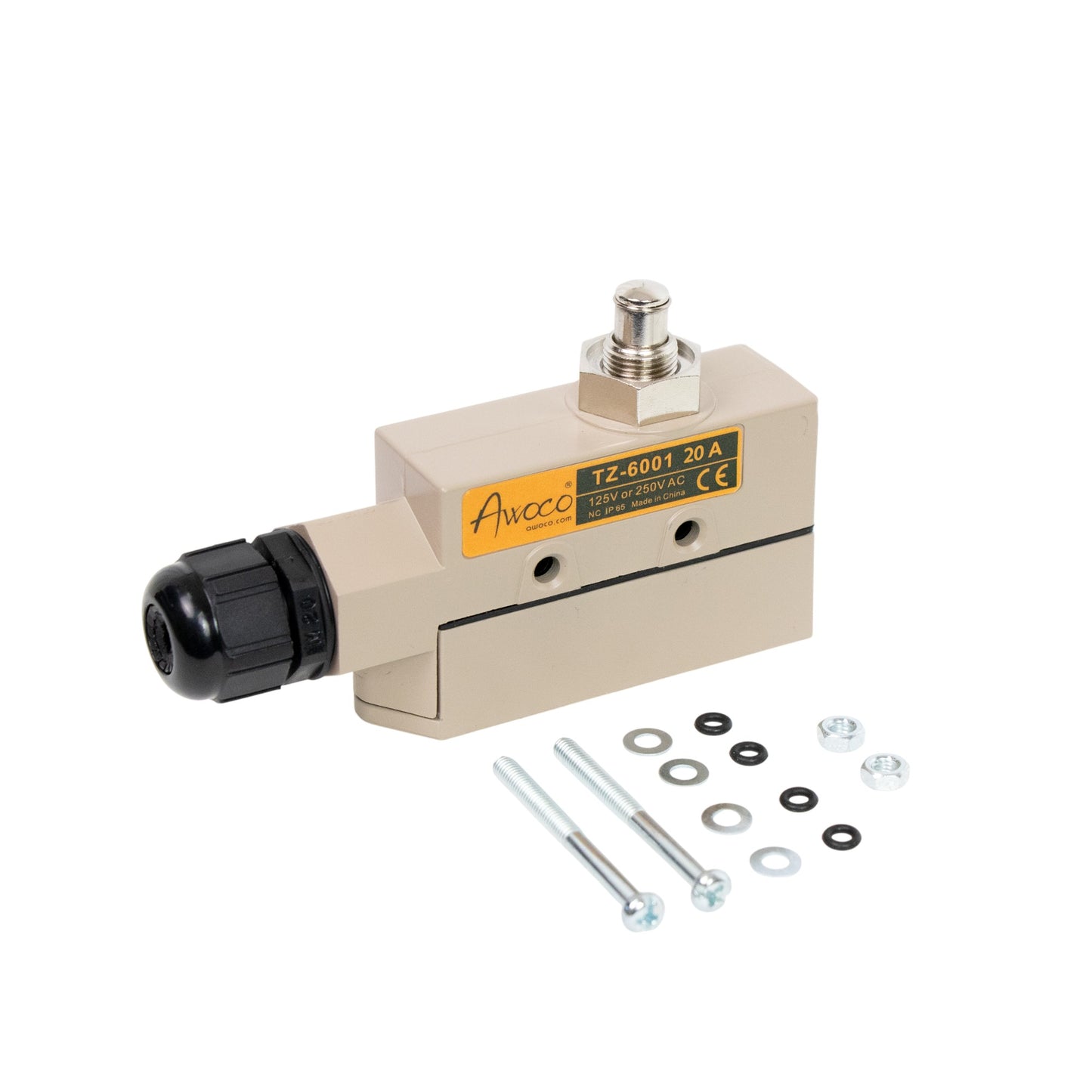

Model: TZ-6001-20A, for Air Curtains Door Access. 220V / 110V @ 20A

Model No.	Voltage	Current	Plunger Style
TZ-6001	220V/110V	15A/20A	Plunger
TZ-6002	220V/110V	15A/20A	Horizontal Roller
TZ-6003	220V/110V	15A/20A	Vertical Roller
TZ-6104	220V/110V	20A	Multiple Functions
MAG-SW	12V	-	N/A
MAG-CIRCUIT*	120V	15A	N/A

*This kit is NOT compatible with remote or circuit controlled air curtains.
**Please check your air curtain specs and door switch requirements before purchasing.
