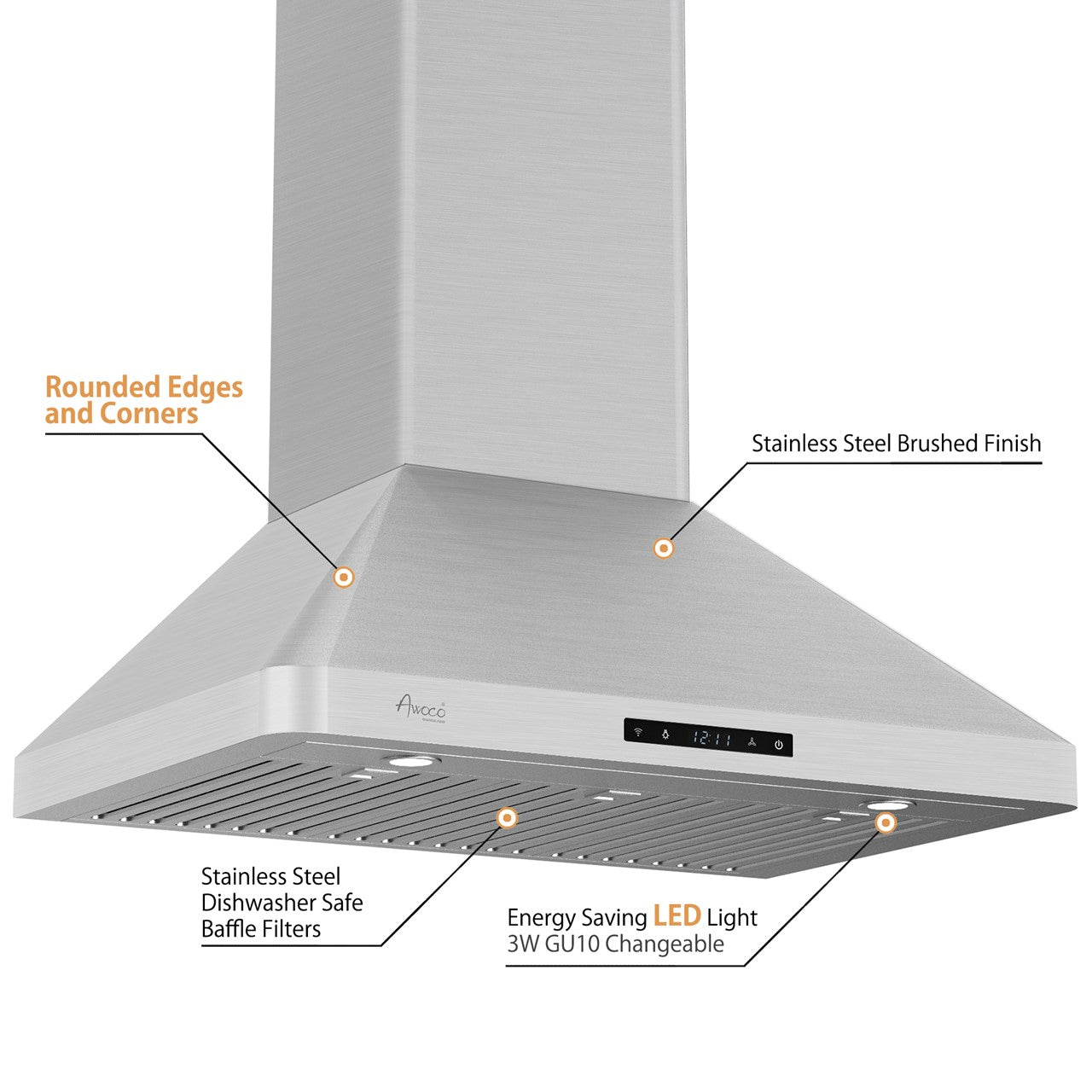

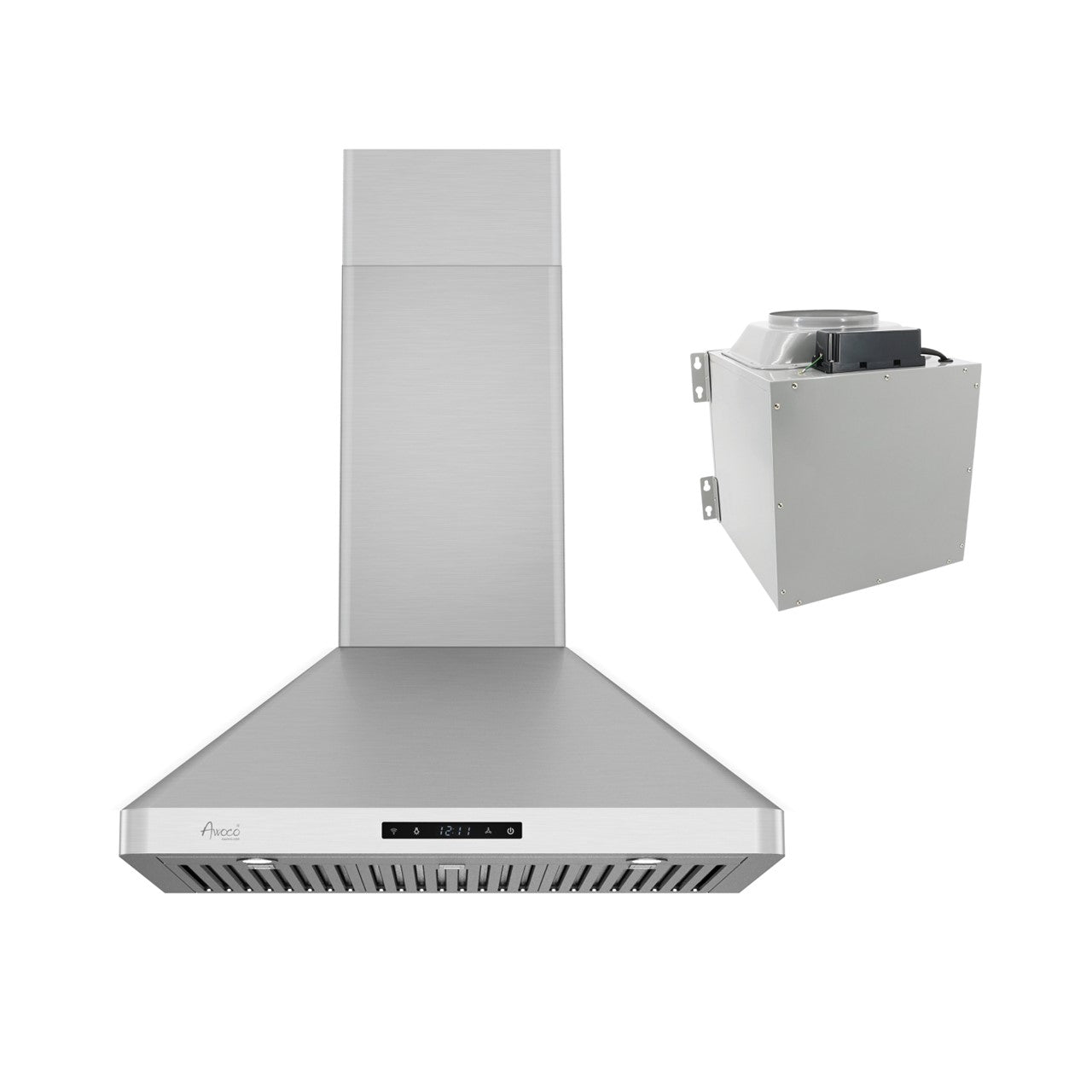

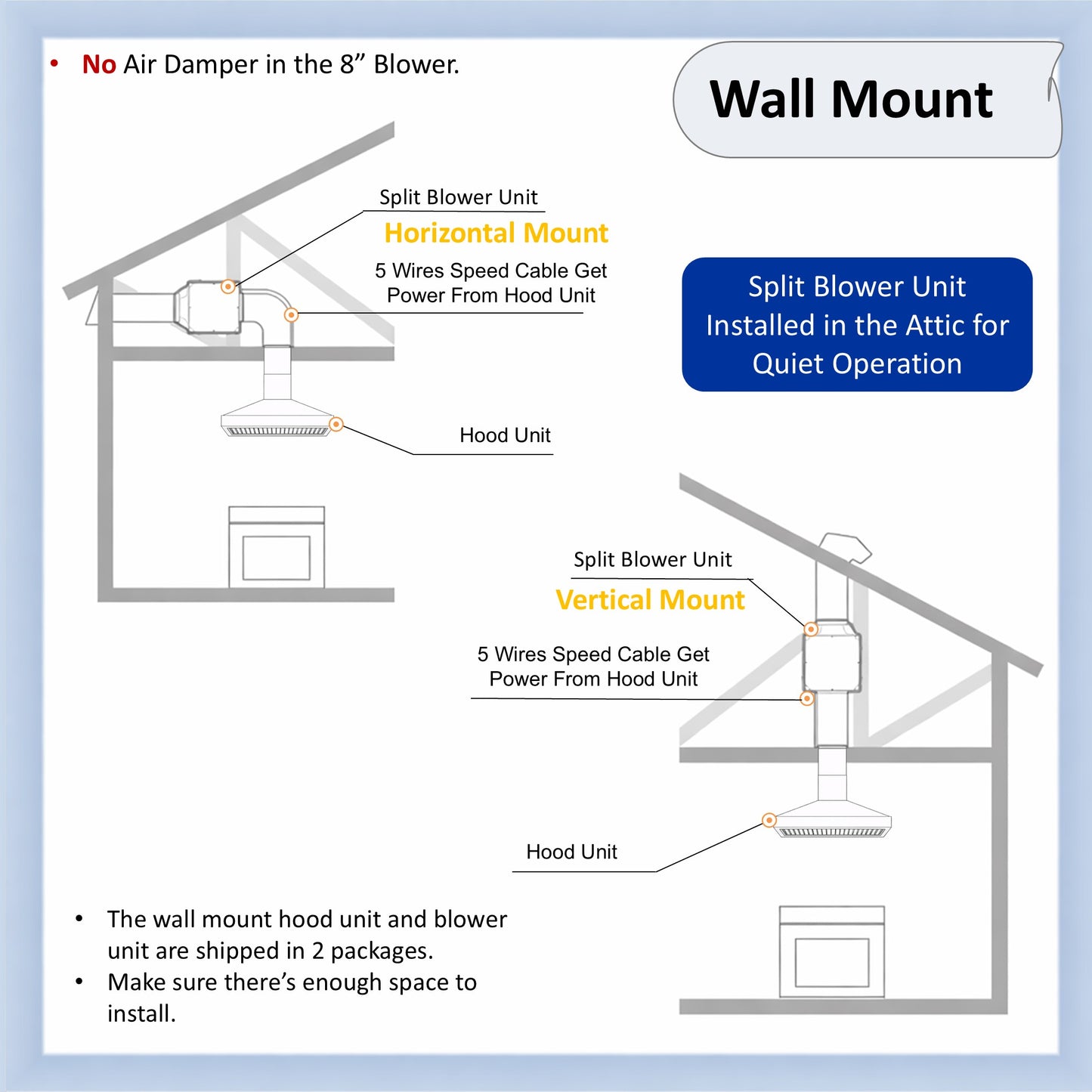

- WALL MOUNT, CHIMNEY, DUCTED VENT OUTSIDE, 8” ROUND TOP VENT, 1mm THICK: Wall mounted, high quality 1 mm thick stainless steel with brushed finishing with rounded edges and corners. We’ll remove the blower inside the hood and add 11 ft wire and a 8” blower unit.
- CLOCK DISPLAY, 120V GU10 LED LIGHTS: 24 hours clock display. 2 of 3W twist lock energy saving cold bright LED lights are easy to replace. Light button operates independently from the power button. 120V GU10 LED Lights are available in any hardware store.

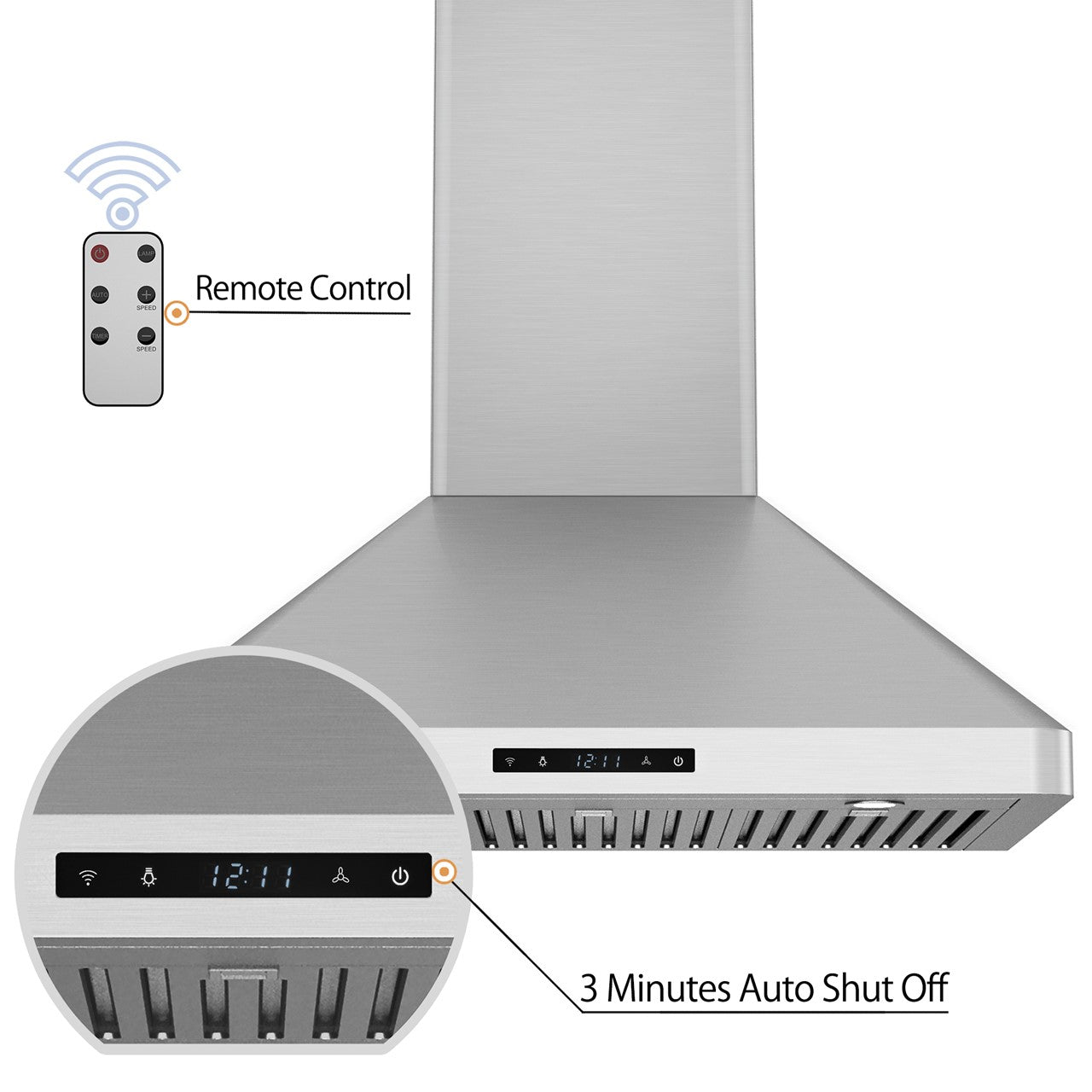

- 3-SPEED SETTING WITH POWERFUL OPERATION WITH REMOTE CONTROL: 3 speeds (385/620/1000 CFM), touch sensor panel with remote control receives through infrared signal. Powerful centrifugal squirrel cage fan. Power rating: 120V/60Hz. 38” Power cord with a plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.

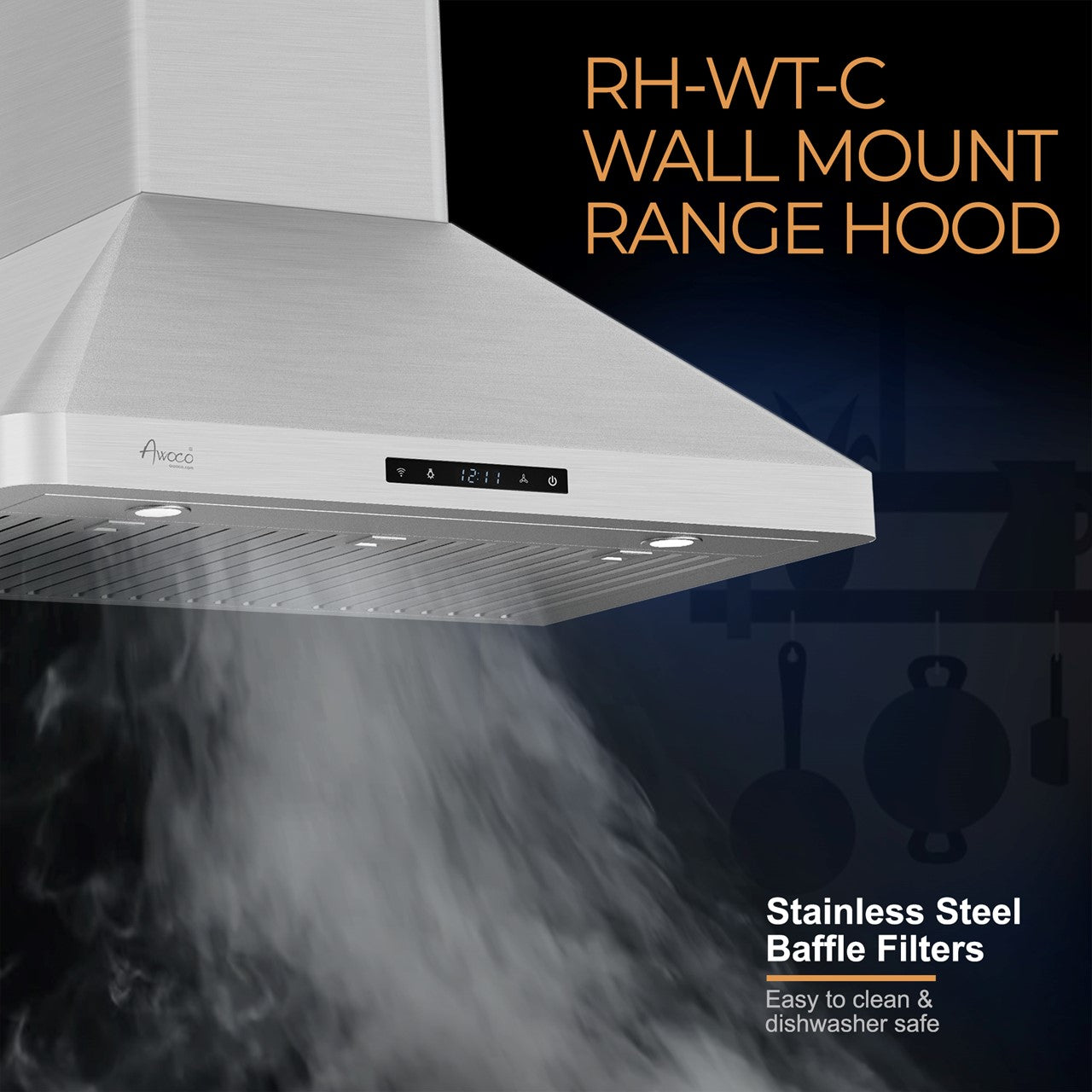

- 3 DISHWASHER SAFE BAFFLE FILTERS, INCLUDING A 3 MINUTE AUTO SHUT OFF FEATURE: Dishwasher safe easily latch removable commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and NO oil collector needed. 3 minutes timer delayed auto shut off to vent the leftover smoke after cooking, lights are shut off too.
- 1 YEAR USA LIMITED PARTS WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.
- 30" HOOD DIMENSIONS: 29-½” W x 19-3/4” D x 11-3/4” H. Hood body weight: 26.5 lbs. Chimney cover weight: 8.5 lbs.

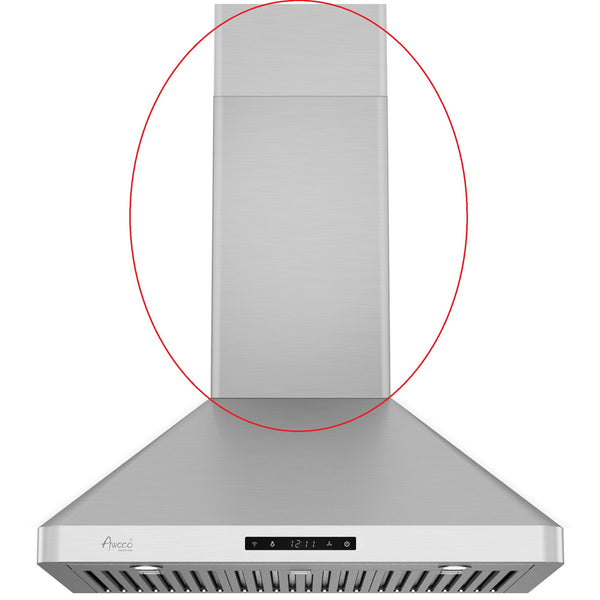

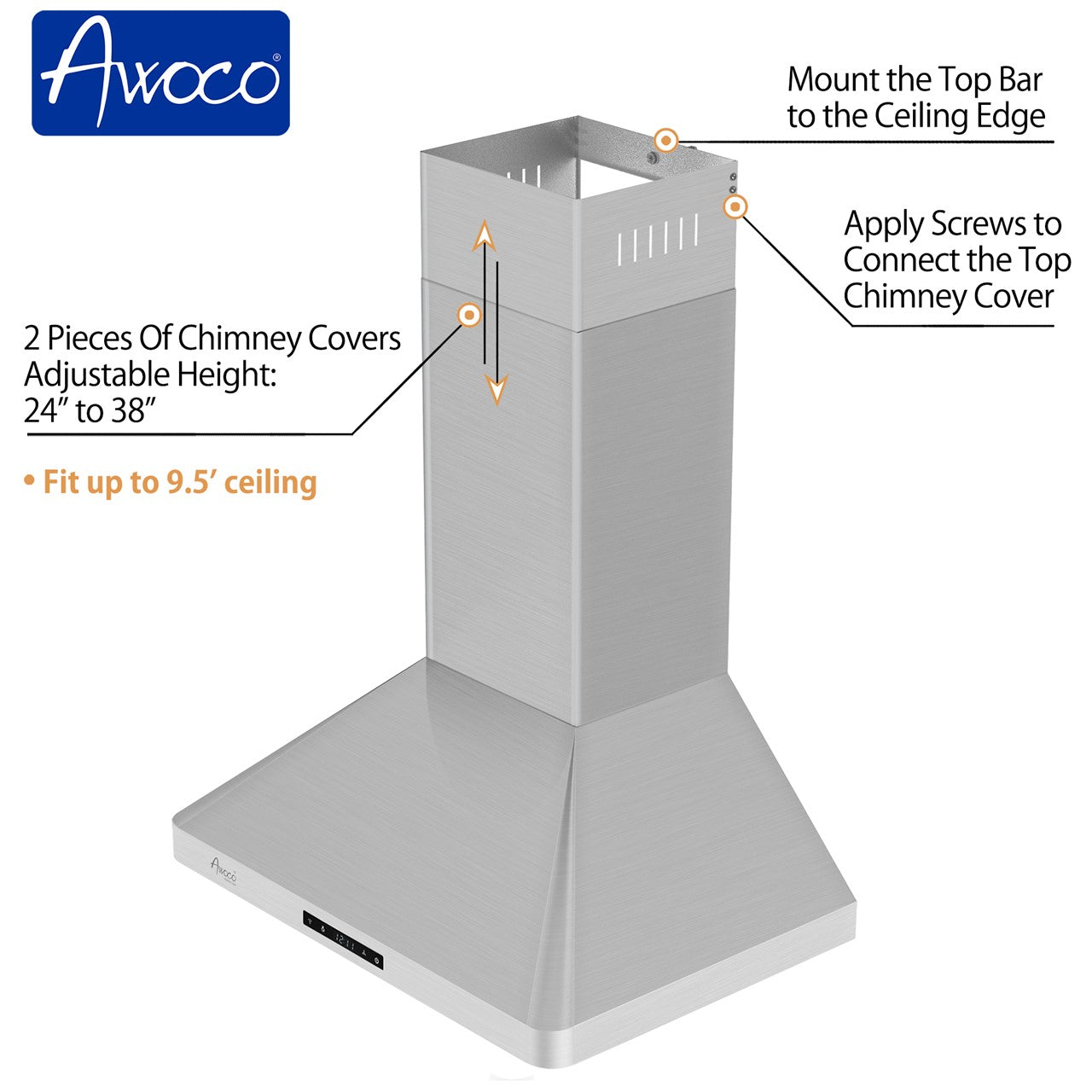

- Adjustable Chimney Height: 24” - 38”.
- Overall Max Height: 49-1/2".
- Suitable for maximum 9.5 feet (115 inches) tall ceiling.

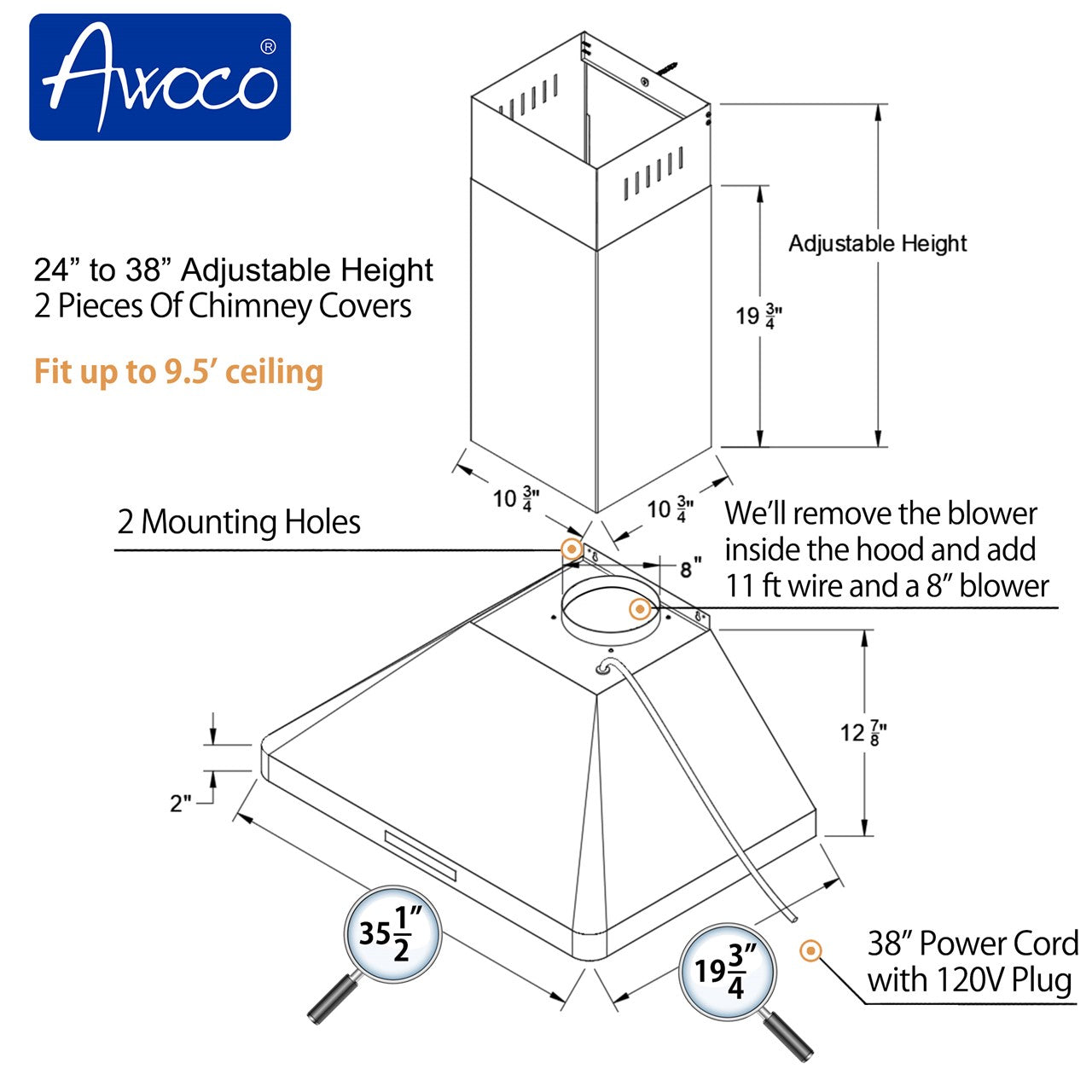

- 36" HOOD DIMENSIONS: 35-½” W x 19-3/4” D x 11-3/4” H. Hood body weight: 40 lbs. Chimney cover weight: 8.5 lbs.

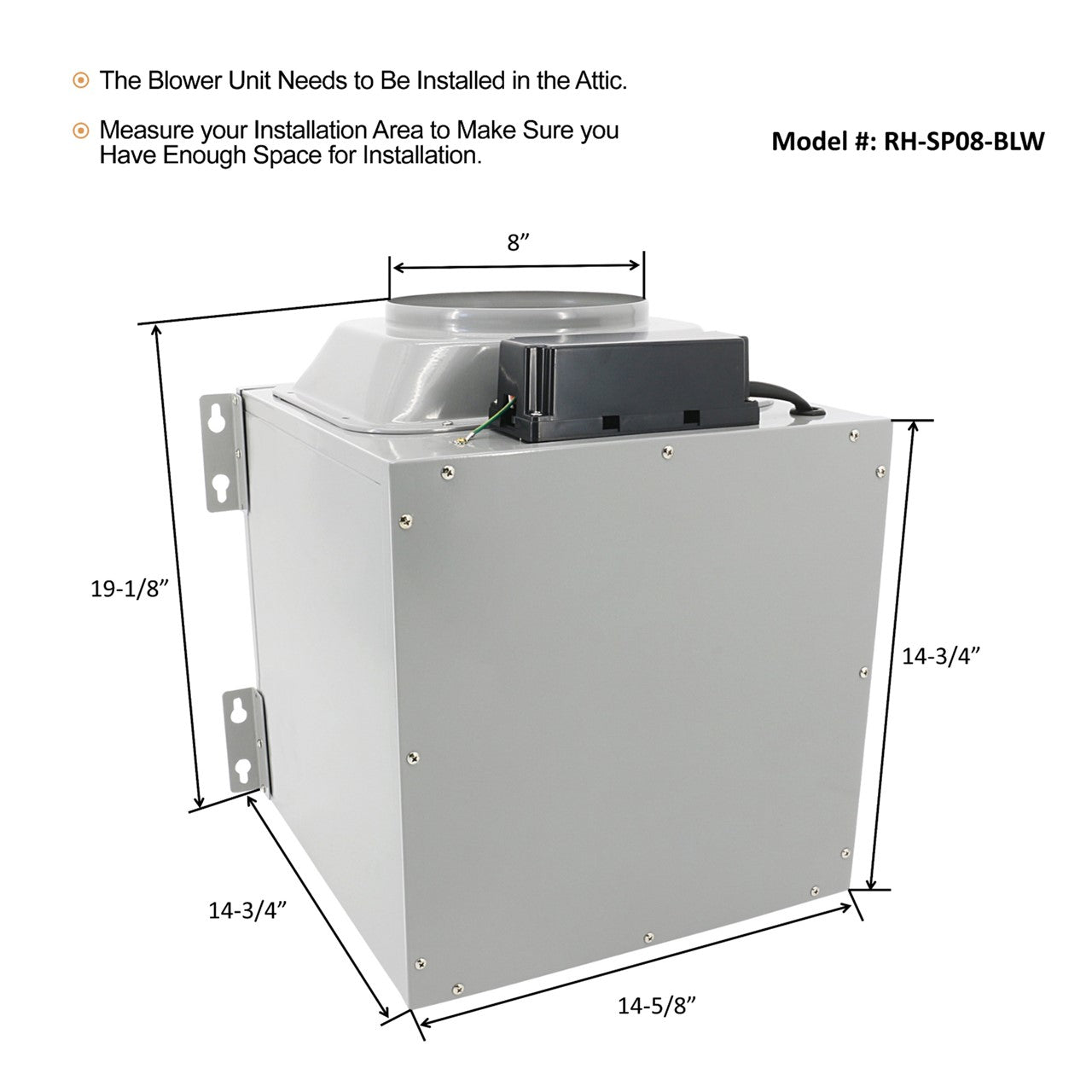

- 8” BLOWER UNIT DIMENSIONS: 14-5/8"W x 14-3/4"D x 14-3/4"H. Blower weight: 27.5 lbs.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
| Mounting Type | Wall-Mount. | ||
| Venting | 6" Round TOP Vent Exhaust. | ||
| Power Rating | 120V~60Hz. | ||
| Lighting | 2x 3W LED. | ||
| Chimney Size | 10-3/4"W x 10-3/4"D. | ||
| Max CFM | 800 CFM. | ||
| Noise Level | 38 dB at low. 60 dB at high. | ||
| Model No. | Width | Depth | Height | # of Baffle Filters | Vent Size ("Duct") | Wattage | ||
| Min | Med | Max | ||||||
| RH-WT-C30 | 29-1/2" | 19-3/4" | 11-3/4" | 3 | 6" Round | 120W | 165W | 245W |
| RH-WT-C30XL | 134W | 147W | 164W | |||||
| RH-WT-C36 | 35-1/2" | 11-3/4" | ||||||
| RH-WT-C36XL | ||||||||
