Ultra-Premium Specifications
Awoco products are engineered with performance in mind. Each one can go toe-to-toe with quality, big names brands.- DESCRIPTION
- SHIPPING & RETURN
- SPECIFICATIONS
- USER-MANUAL DOWNLOAD
- AWOCO SERVICE VIDEOS
- PARTS & ACCESSORIES
DESCRIPTION
- WALL MOUNT, CHIMNEY, DUCTED VENT OUTSIDE, 6” ROUND TOP VENT, 1mm THICK: Wall mounted, high quality 1 mm thick stainless steel with brushed finishing with rounded edges and corners. The air damper is integrated on the 6” top vent.
- CLOCK DISPLAY, 120V GU10 LED LIGHTS: 24 hours clock display. 2 of 3W twist lock energy saving cold bright LED lights are easy to replace. Light button operates independently from the power button. 120V GU10 LED Lights are available in any hardware store.
- 3-SPEED SETTING WITH POWERFUL OPERATION WITH REMOTE CONTROL: 3 speeds (385/620/800 CFM), touch sensor panel with remote control receives through infrared signal. Powerful centrifugal squirrel cage fan. Power rating: 120V/60Hz. 38” Power cord with a plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.
- 3 DISHWASHER SAFE BAFFLE FILTERS, INCLUDING A 3 MINUTE AUTO SHUT OFF FEATURE: Dishwasher safe easily latch removable commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and NO oil collector needed. 3 minutes timer delayed auto shut off to vent the leftover smoke after cooking, lights are shut off too.
- 1 YEAR USA LIMITED PARTS WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

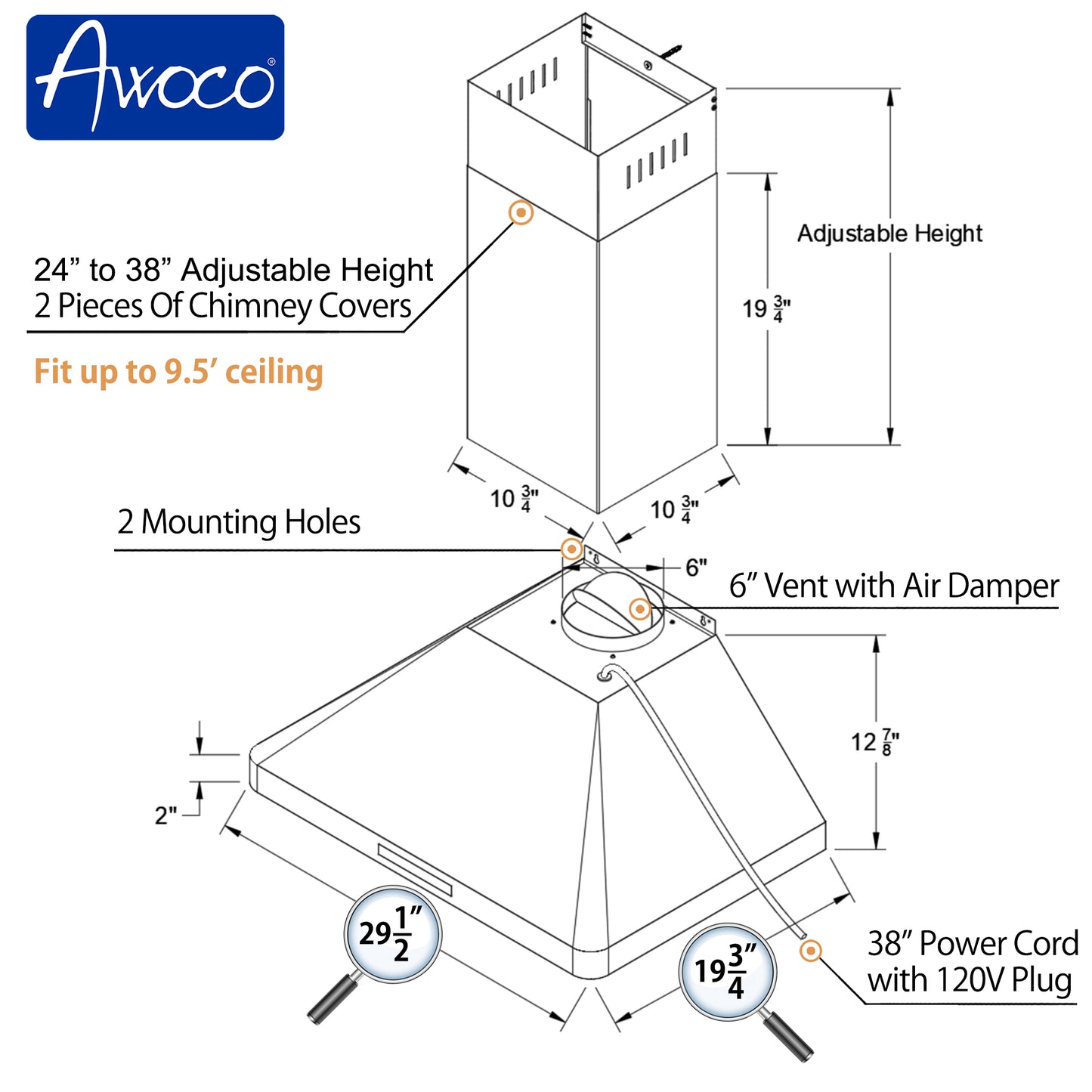

- 30" HOOD DIMENSIONS: 29-½” W x 19-3/4” D x 11-3/4” H. Hood body weight: 26.5 lbs. Chimney cover weight: 8.5 lbs.

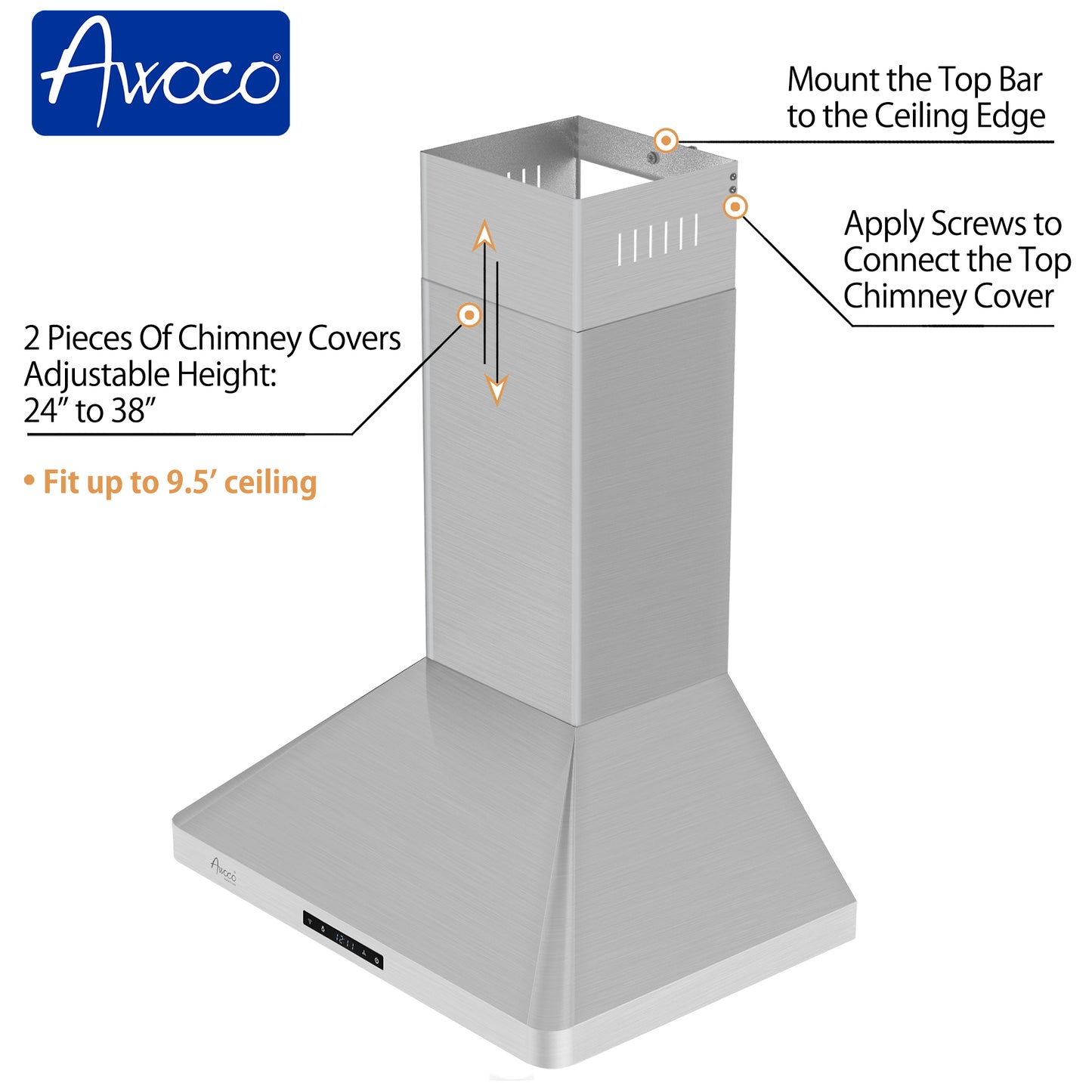

- Adjustable Chimney Height: 24” - 38”.
- Overall Max Height: 49-1/2".
- Suitable for maximum 9.5 feet (115 inches) tall ceiling.

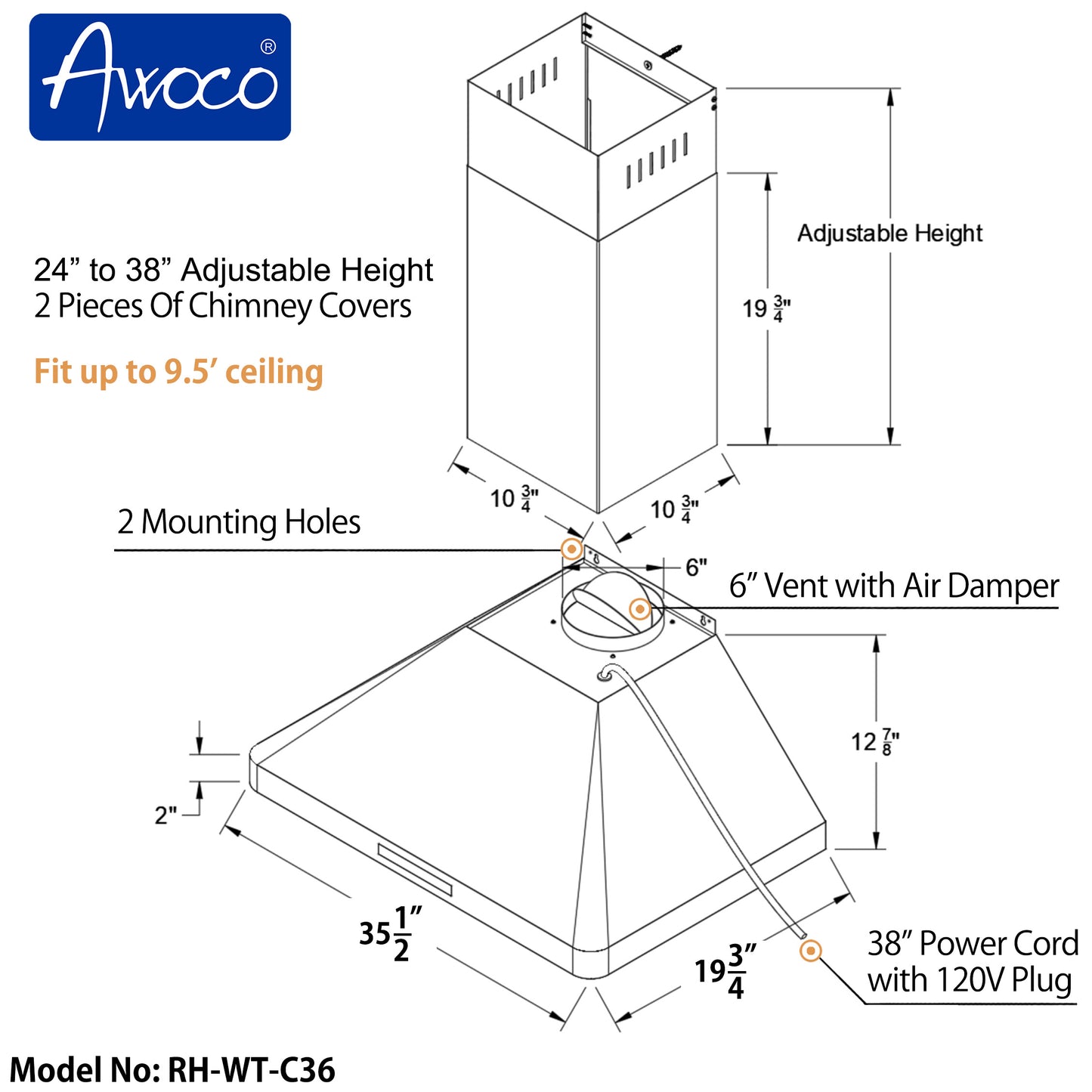

- 36" HOOD DIMENSIONS: 35-½” W x 19-3/4” D x 11-3/4” H. Hood body weight: 40 lbs. Chimney cover weight: 8.5 lbs.
- Adjustable Chimney Height: 24” - 38”.
- Overall Max Height: 49-1/2".
- Suitable for maximum 9.5 feet (115 inches) tall ceiling.
Outstanding Features:

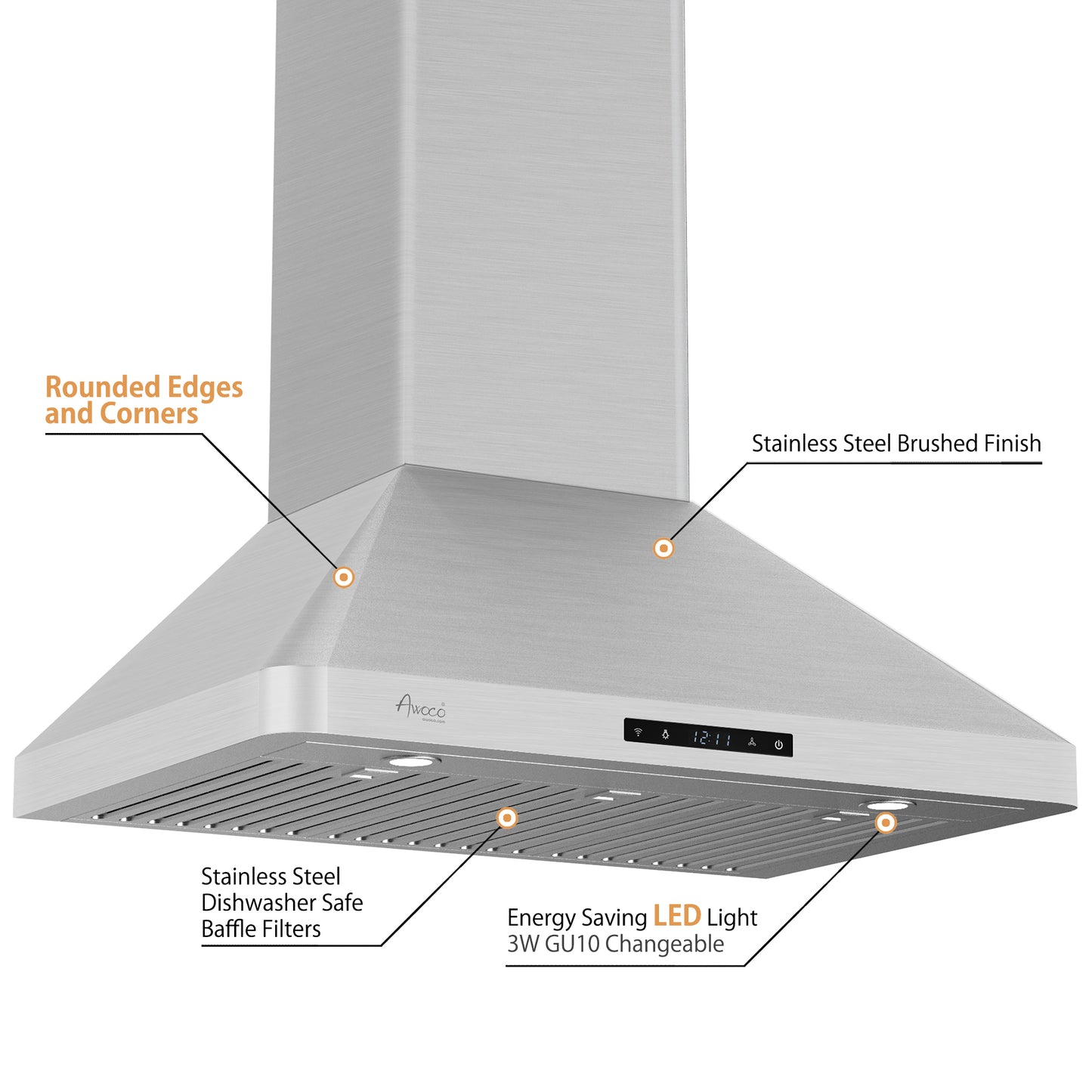

1mm Thick High Quality Brushed Finish Stainless Steel.
High-Quality Stainless-Steel Baffle FiltersStainless steel baffle filters are adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.Other Features & Specifications:
High-Quality Stainless-Steel Baffle FiltersStainless steel baffle filters are adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.Other Features & Specifications:
- Mounting Version: Wall Mounted.
- 1mm Thick, High-Quality Stainless-Steel Construction.
- Stainless steel chimney.

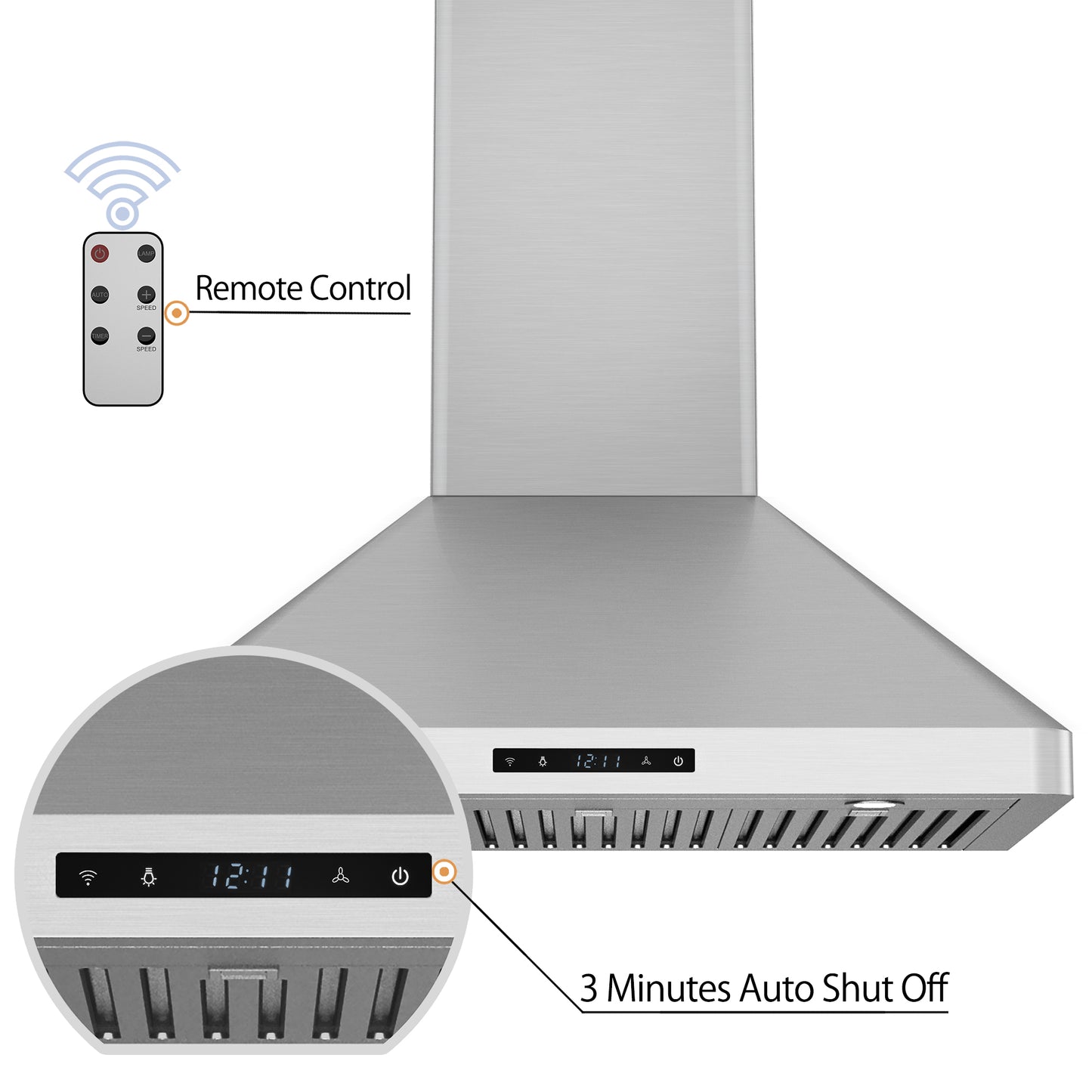

- Touch sensor panel with automatic shutoff timer (timer will shut off the fans only).
- 3 speeds remote control sensor receives infrared signal from the remote.
- 2 of 3W twist lock removable energy saving cold bright LED Lights.
- Remote Control comply to ADA requirement.
- Stainless steel baffle filters (dishwasher safe), new commercial style air filter.
- Internal oil collector.
- Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.
- 6” round duct vent exhaust.
- 1 air damper is integrated on the 6" top vent.
- 1 year warranty.
- ETL Certified.
SHIPPING & RETURN
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
SPECIFICATIONS
Mounting Type | Wall-Mount. | ||
Venting | 6" Round TOP Vent Exhaust. | ||
Power Rating | 120V~60Hz. | ||
Lighting | 2x 3W LED. | ||
Chimney Size | 10-3/4"W x 10-3/4"D. | ||
Max CFM | 800 CFM. | ||
Noise Level | 38 dB at low. 60 dB at high. |
Model No. | Width | Depth | Height | # of Baffle Filters | Vent Size ("Duct") | Wattage | ||
Min | Med | Max | ||||||
RH-WT-C30 | 29-1/2" | 19-3/4" | 11-3/4" | 3 | 6" Round | 120W | 165W | 245W |
RH-WT-C30XL | 134W | 147W | 164W | |||||
RH-WT-C36 | 35-1/2" | 11-3/4" | ||||||
RH-WT-C36XL |
USER-MANUAL DOWNLOAD
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
AWOCO SERVICE VIDEOS
SERVICE HELP: AWOCO 101 VIDEOS
PARTS & ACCESSORIES
Awoco RH-WT-C Wall Mount Stainless Steel Range Hood, 3 Speeds, 6” Round Top Vent, 800CFM, 2 LED Lights, with Remote Control
