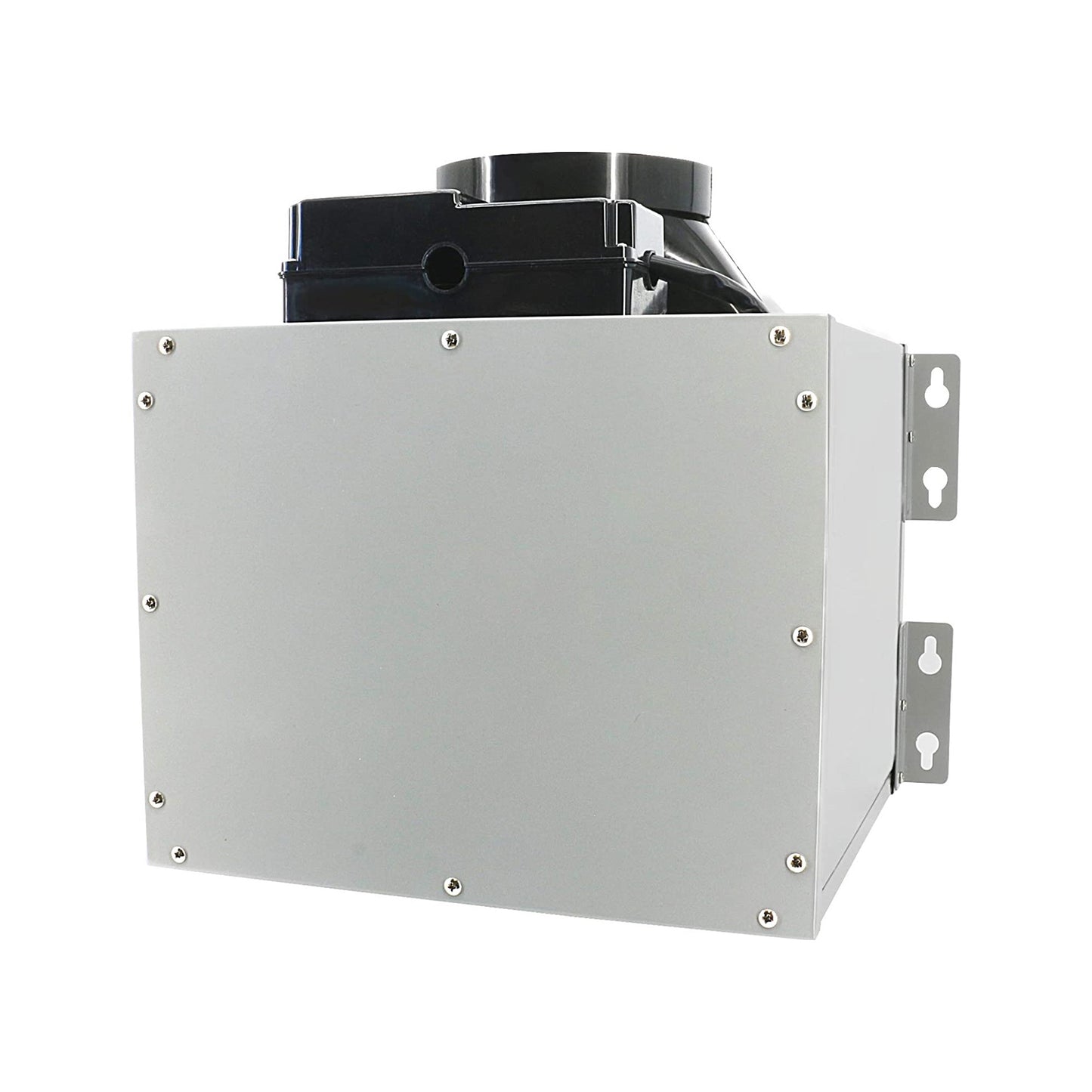

- Inline Blower Unit: The Blower unit is mounted in in the attic (above the ceiling). Use this set up with your existing hood (the blowers inside the existing hood should be removed) or use it for air circulation purposes.
- 6” Round Vent: 6” round top air outlet and bottom air inlet. Again, NO hood unit, no control, no ducts are included. Use your own hood unit. CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts with different sizes.
- Powerful and Quiet 4 Speeds Powerful Operation: 4 speeds (Quiet, I, II, III up to 800 CFM), choose either one of the 4 speeds for your application. Refer to the 5 wires connection instructions, consult with your electrical technician before buying. NOTE: this motor speed is NOT changing by Frequency or Voltage! It is NOT compatible with Broan control system. Don't connect to the highest speed and various the speed.
- Installation Steps: 2 Mounting brackets are included. Mount the Blower Unit in the attic, connect the 6” flexible round ducts (not provided) to the exhaust vent and the current hood vent. Connect the 120V power cord to the Blower unit.

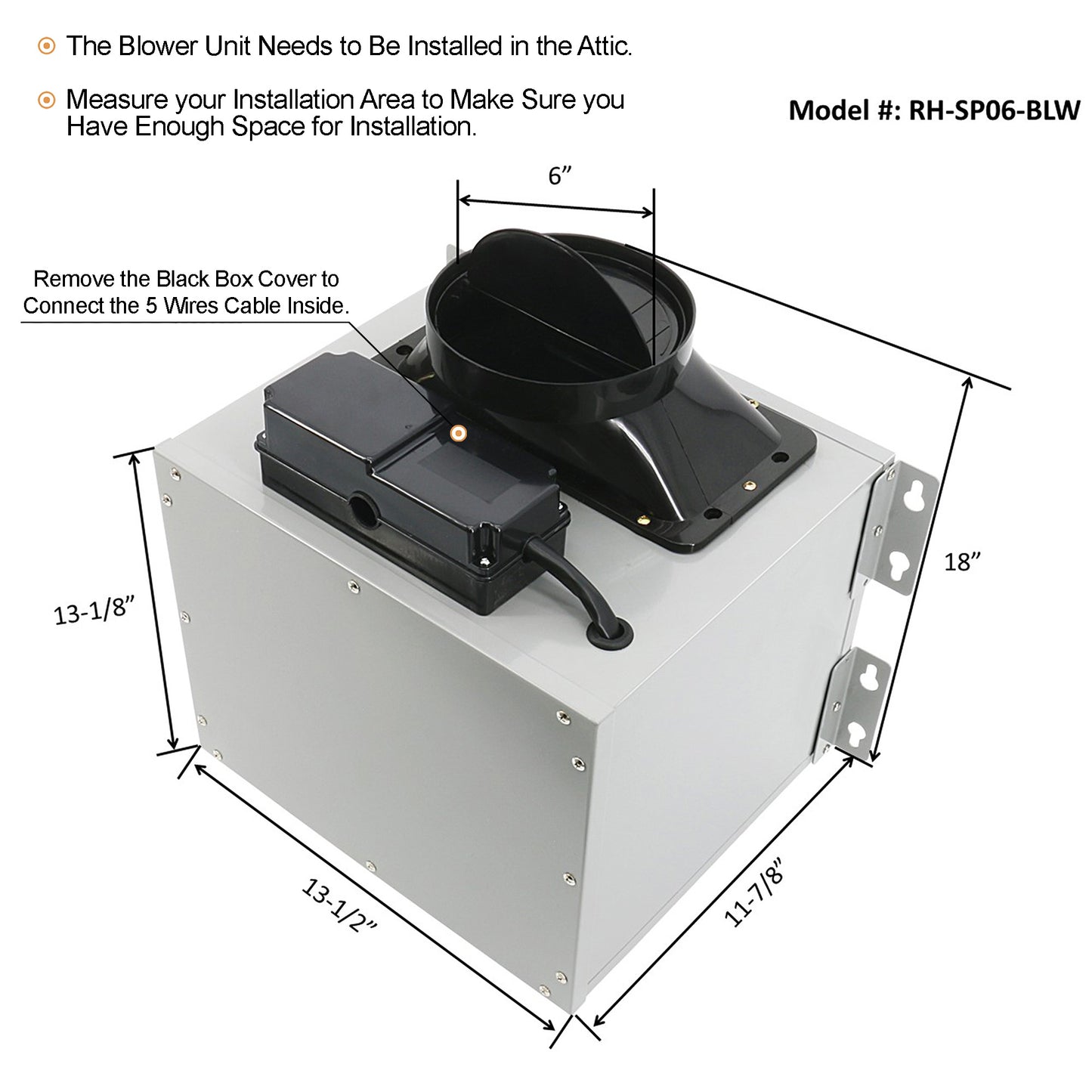

- 1 Year Limited Warranty: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Blower unit overall dimensions: 15-3/4"W (with 2 mounting brackets) x 11-7/8"D x 18"H. For 30" or 36” kitchen ranges with 6” vent.
Why It Is Quiet?
Most of the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood noise.
What if we move the air collision from the kitchen area to above the ceiling?

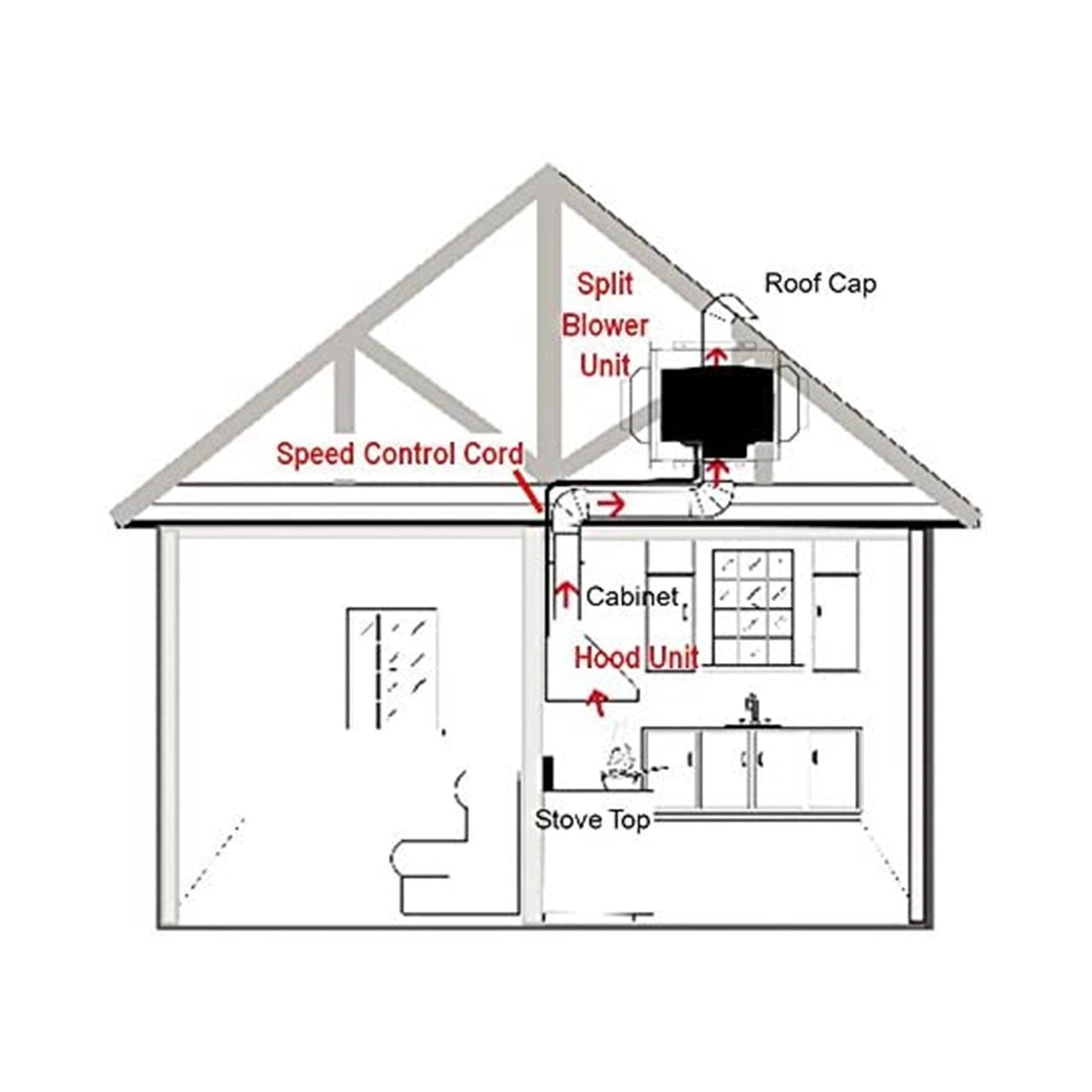

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential installments to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Super Quiet, Still Using Your Own Hood
Keep your own hood unit but improve the exhausting performance and quiet operation. Mount the Blower unit in the attic and keep the kitchen quiet.

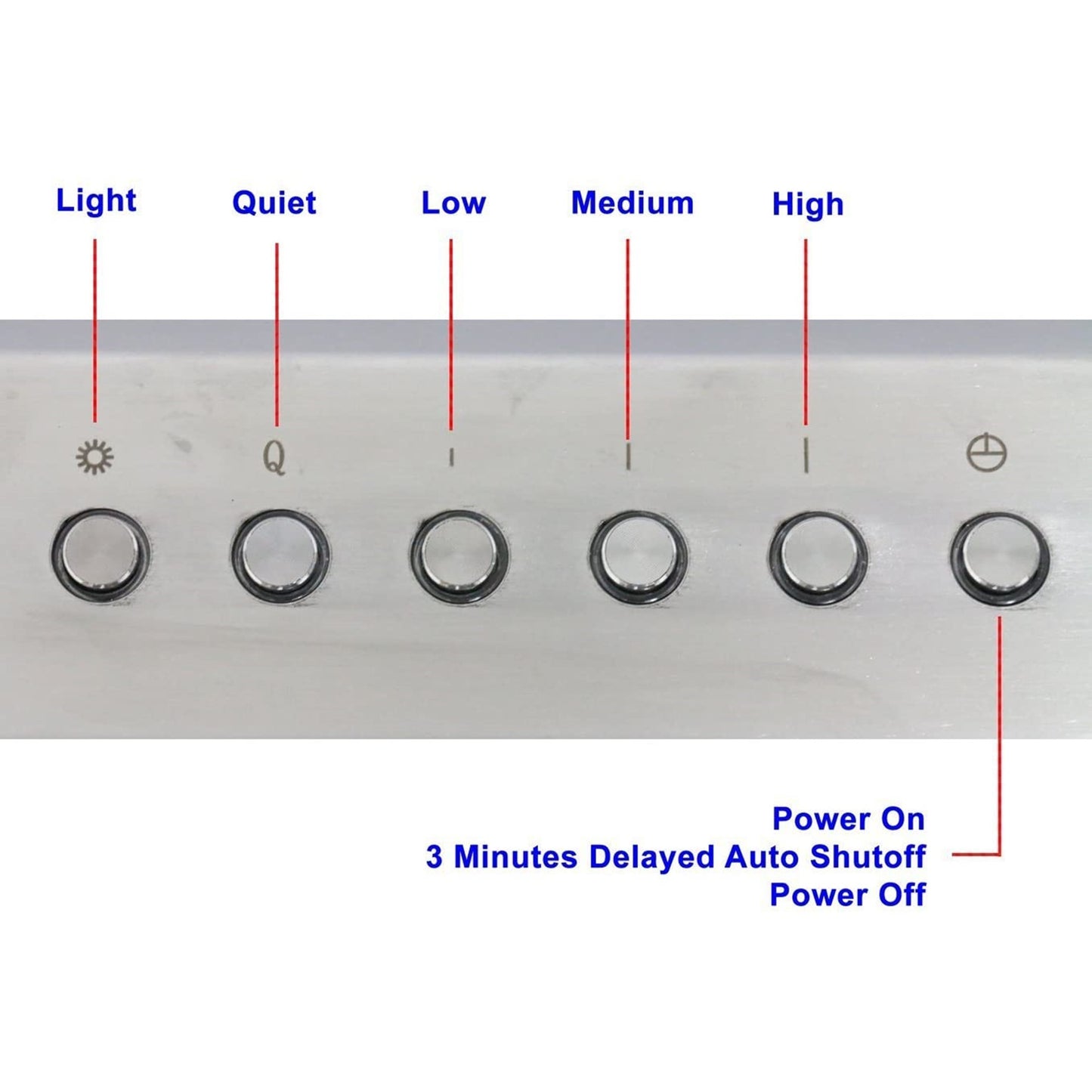

Choose any of the 4 speeds

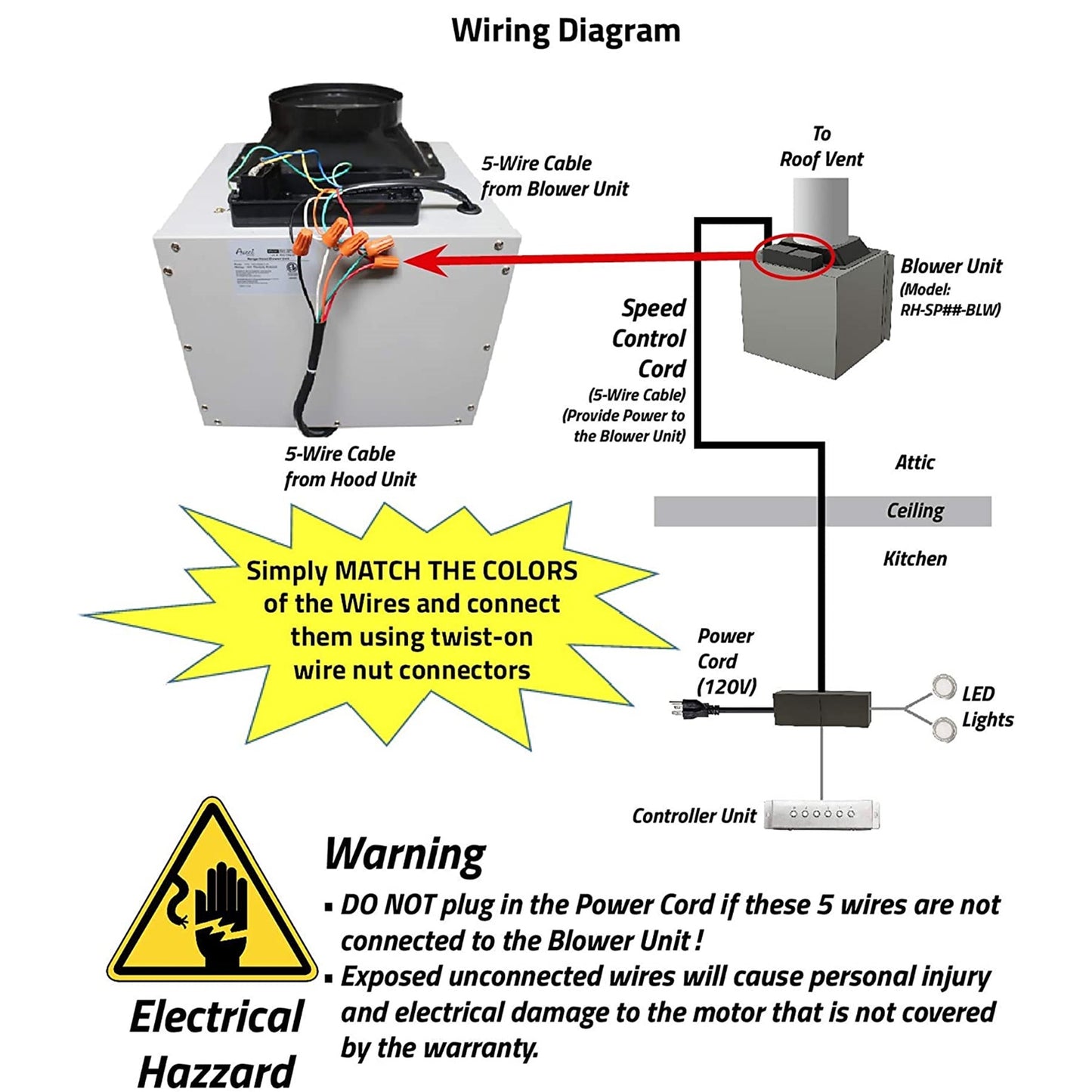

No control unit included. Please consult with your electrical technician before buying. Connect either one of 4 speeds wire to 120V Hot wire, then connect the Black wire to the Neutral wire from the power cord as shown in the 5 wires connection instruction.
Other Features & Specifications:

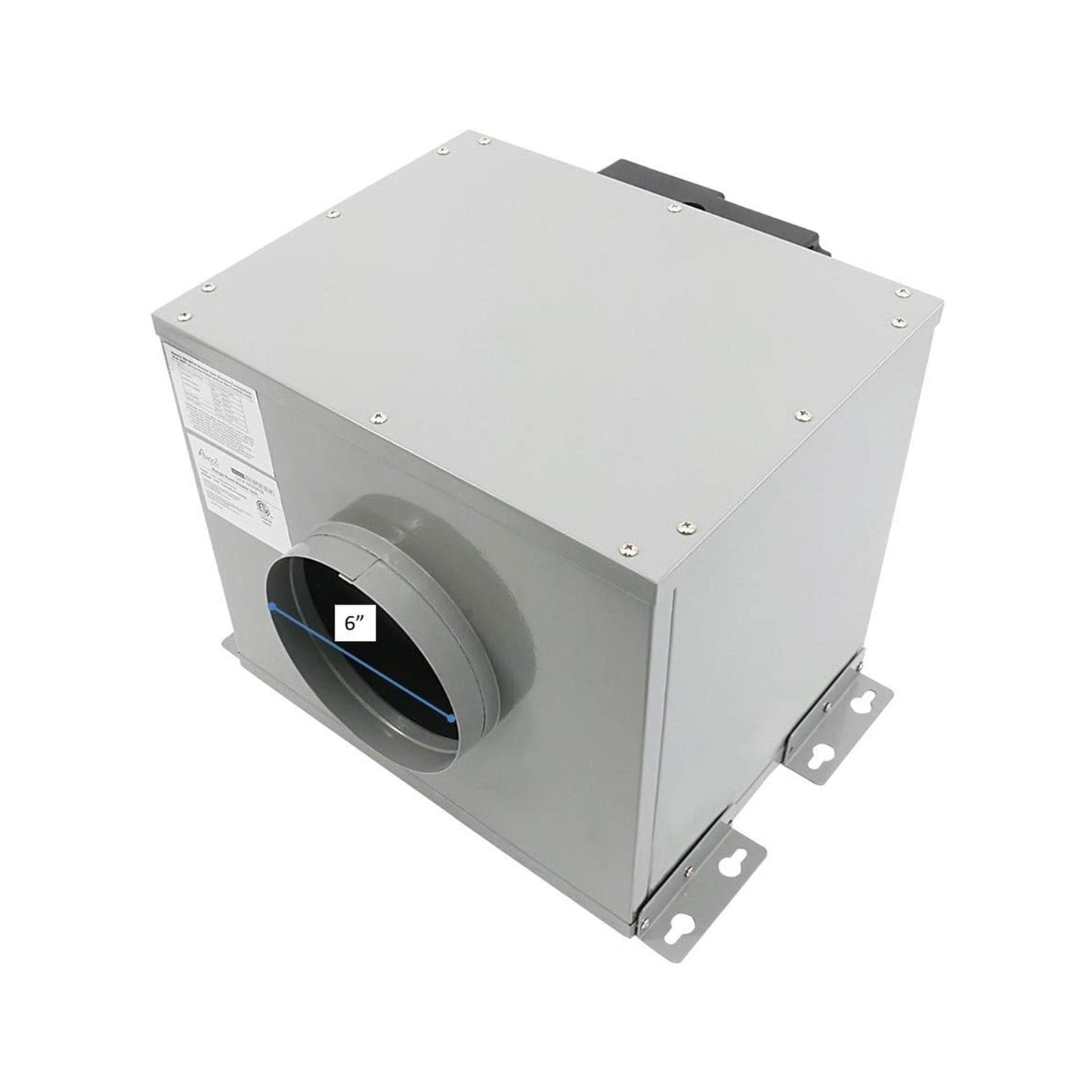

Venting Type: 6” round vent for air inlet and outlet.
1 Motor and 1 of 7” Centrifugal Squirrel Cage Fan Wheel
Power rating: 120V/60Hz, 110W Min /160W Max
Noise level at low: 38 dB, 2.0 sones. Noise level at high: 56 dB, 7.0 sones.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
| Mounting Type | • Blower Unit: Attic Lumber-Mount. |
| Venting | • Blower Unit: 6" round vent in and out. |
| Power Rating | 120V~60Hz. 1.3 AMP |
| Noise Level | Low: 38 dB, 2.0 sones. High: 56 dB, 7.0 sones. |
|
Model No.
|
Width
|
Depth
|
Height
|
Vent Size
|
Max CFM
|
Wattage
|
|
|
("Duct")
|
Min
|
Max
|
|||||
|
RH-SP06-BLW
|
15-3/4"
|
11-7/8"
|
15-3/4"
|
6" Round
|
800
|
110W
|
160W
|
|

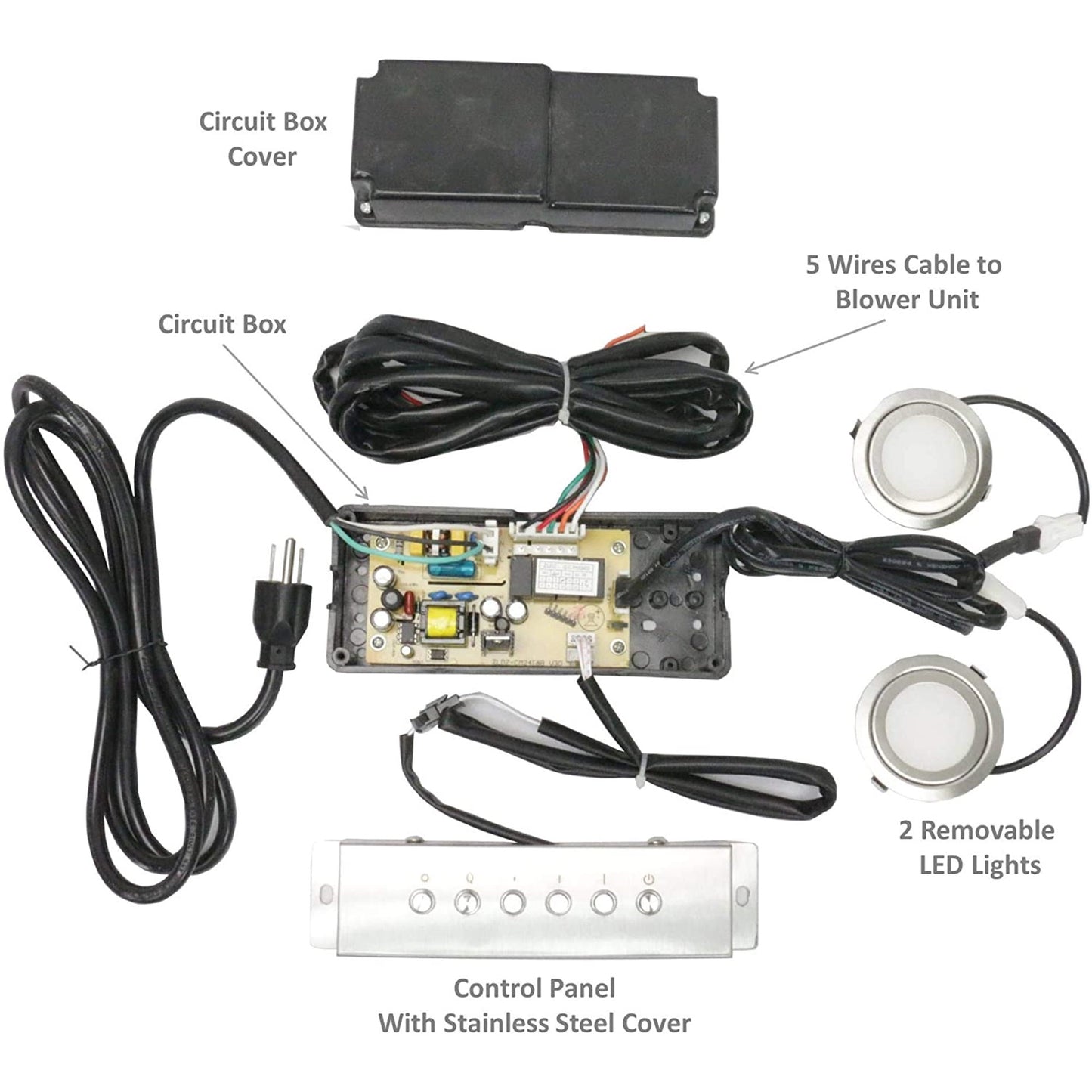

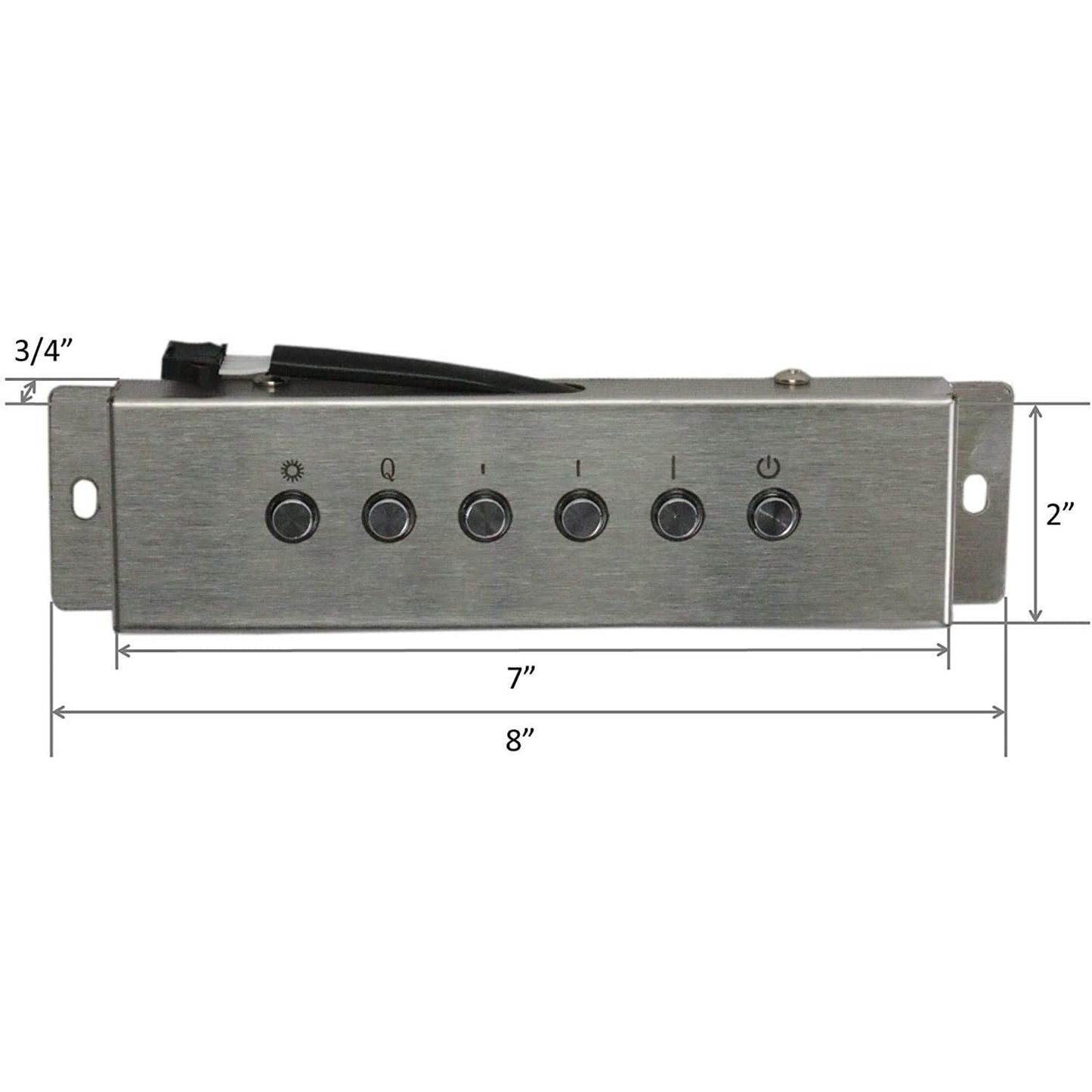

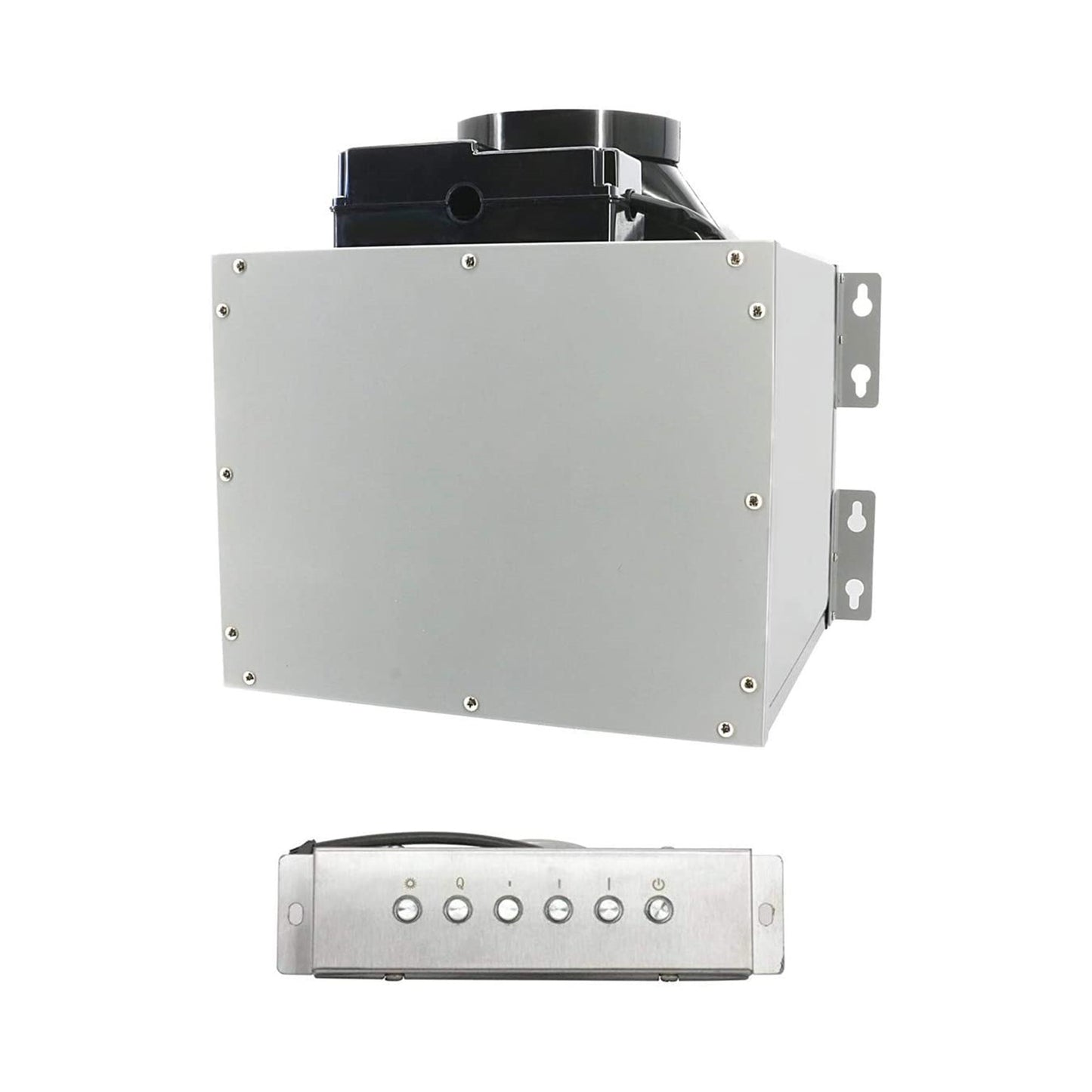

RH-SP06-BLW+CTRL
|
|||||||
