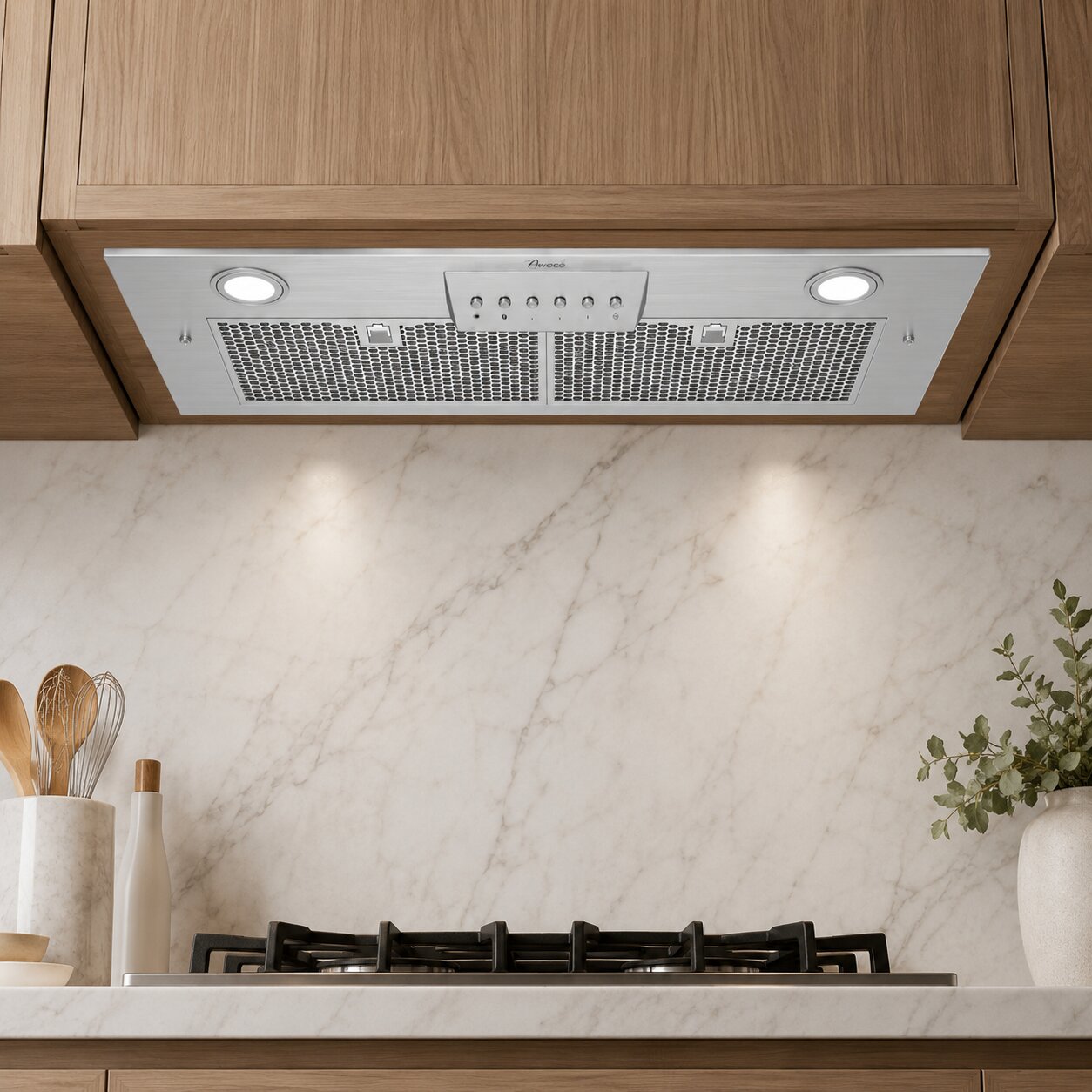

• SUPER QUIET INNOVATIVE SPLIT INSERT: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove. Built with high quality 1mm thick stainless steel with brush finishing. No remote control.

• DUCTED VENT OUTSIDE, 8” ROUND TOP VENT: 8” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.

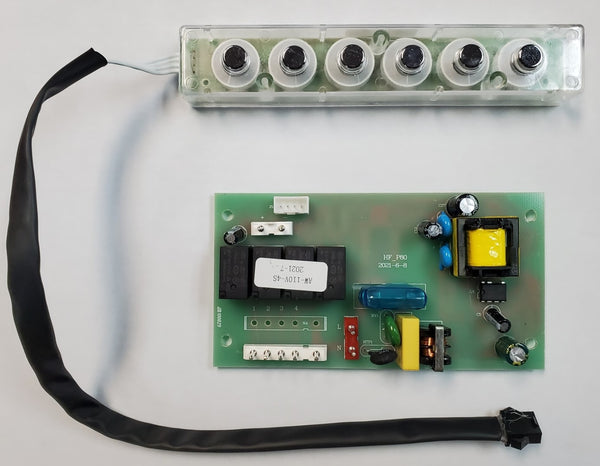

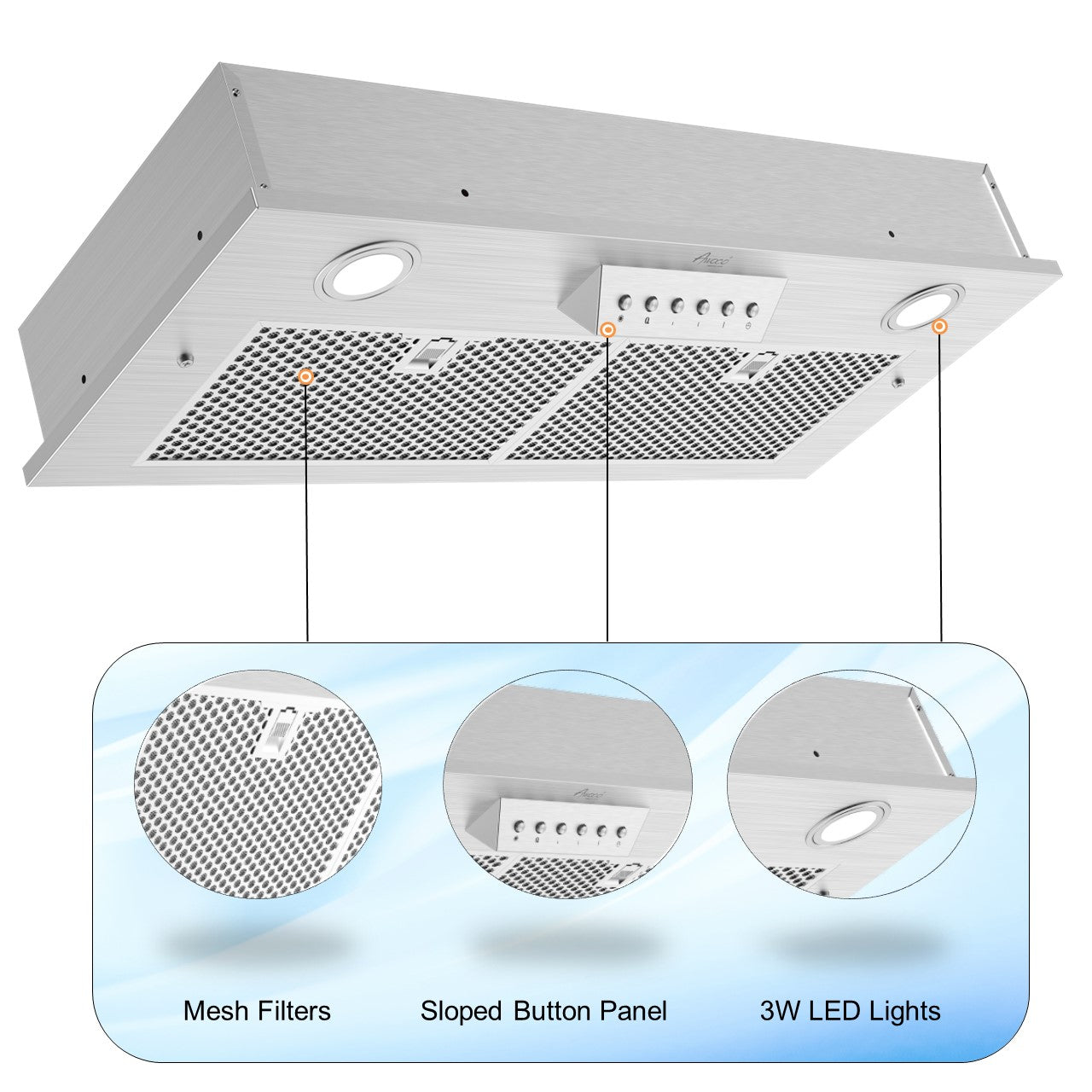

• 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds approximately (250, 500, 750, up to 1000 CFM), sloped view blue highlighted electronic buttons with 2 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 150W Min /230W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 4.5 sones. NOT compatible with wall switch controls & remote controls.

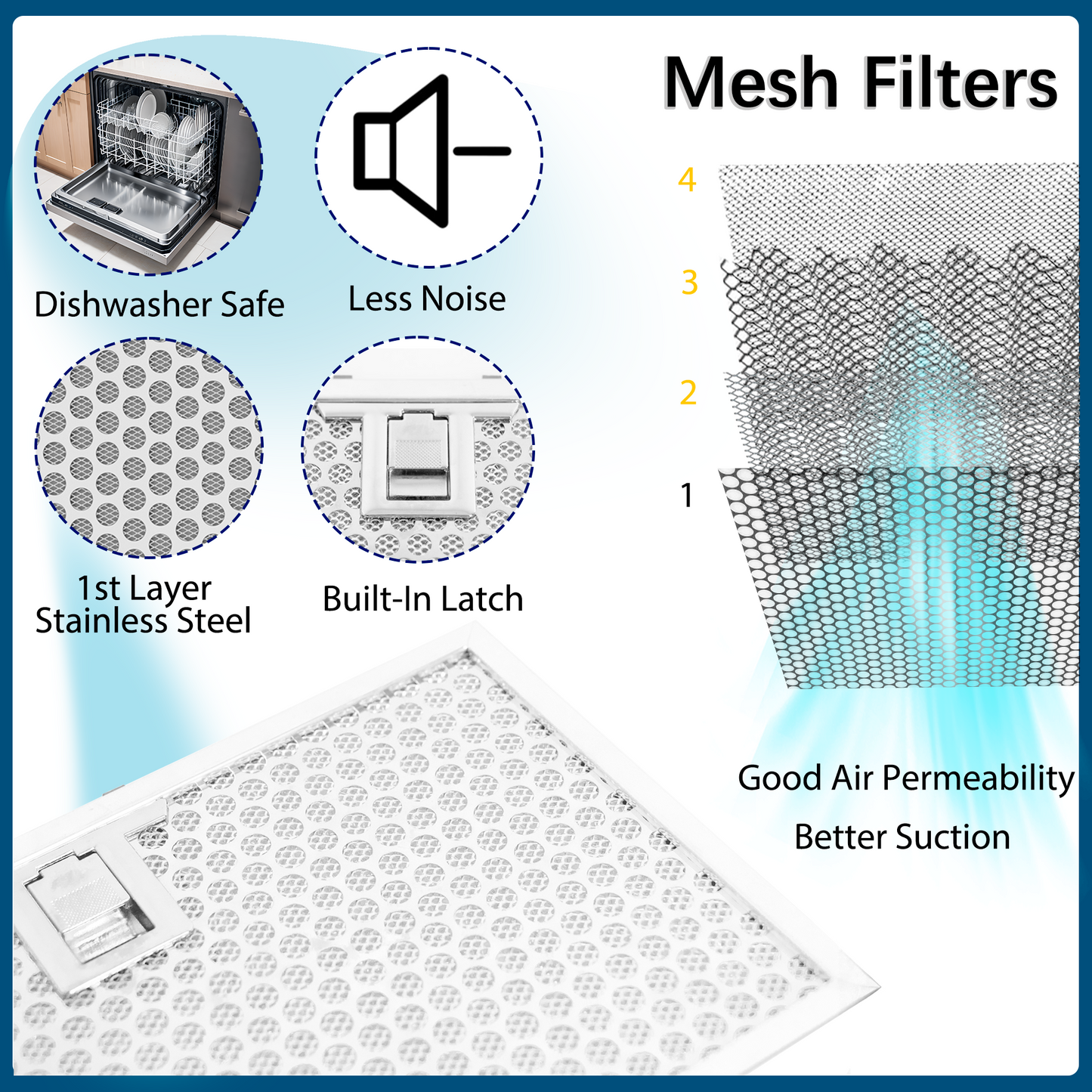

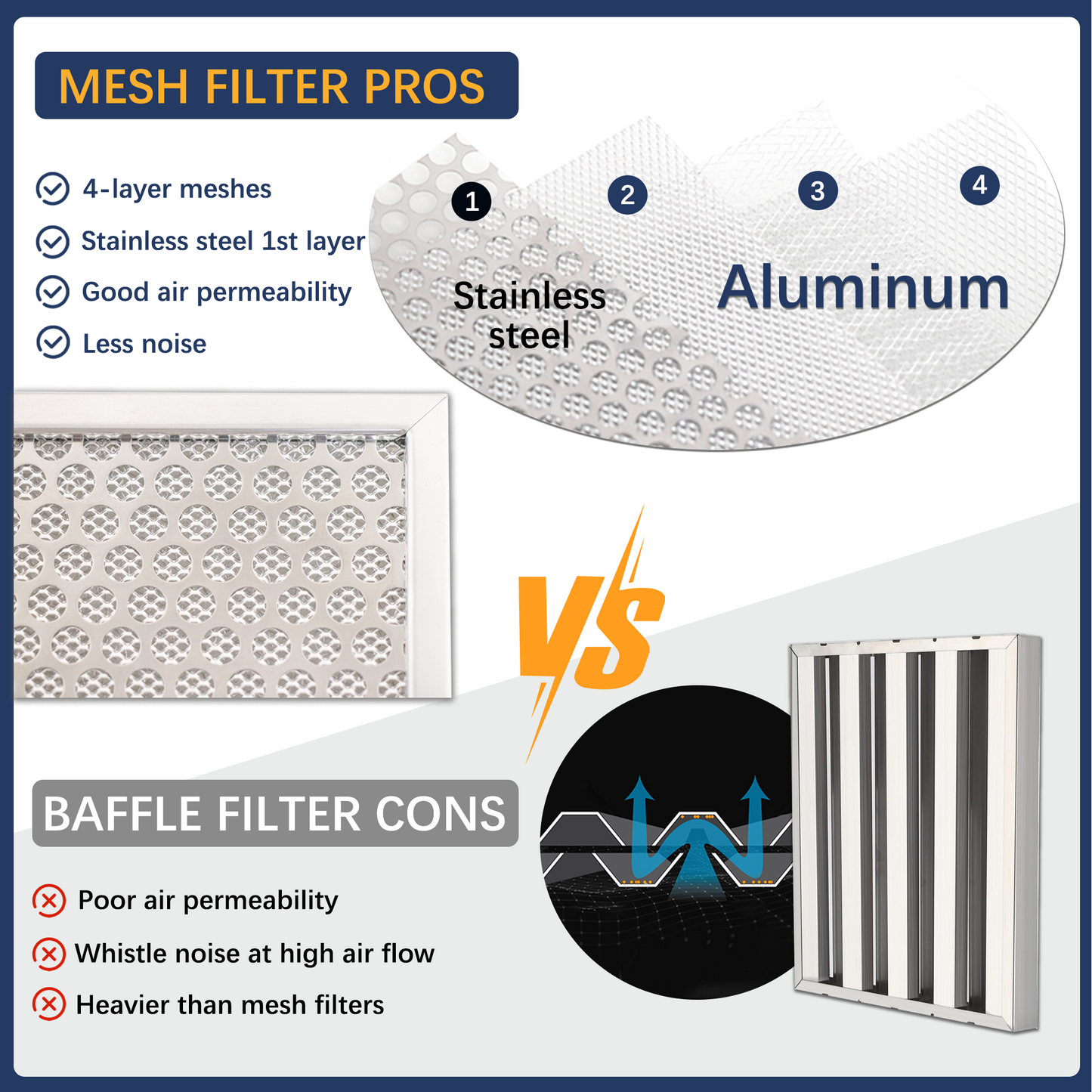

• DISHWASHER SAFE MESH FILTERS: 4 layers dishwasher safe commercial style stainless steel/aluminum mesh filters with built-in latch. Stainless steel for the 1st layer and aluminum for the remaining 3 layers, which provide good air permeability, better suction, and less noise compared to baffle filters. The oil is contained in the mesh filters; no oil holders are needed.


• 1 YEAR LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

• 30" Hood Dimensions: 27-3/4"W x 11-3/4"D x 4-1/8"H. Hood weight: 12.5 lbs.

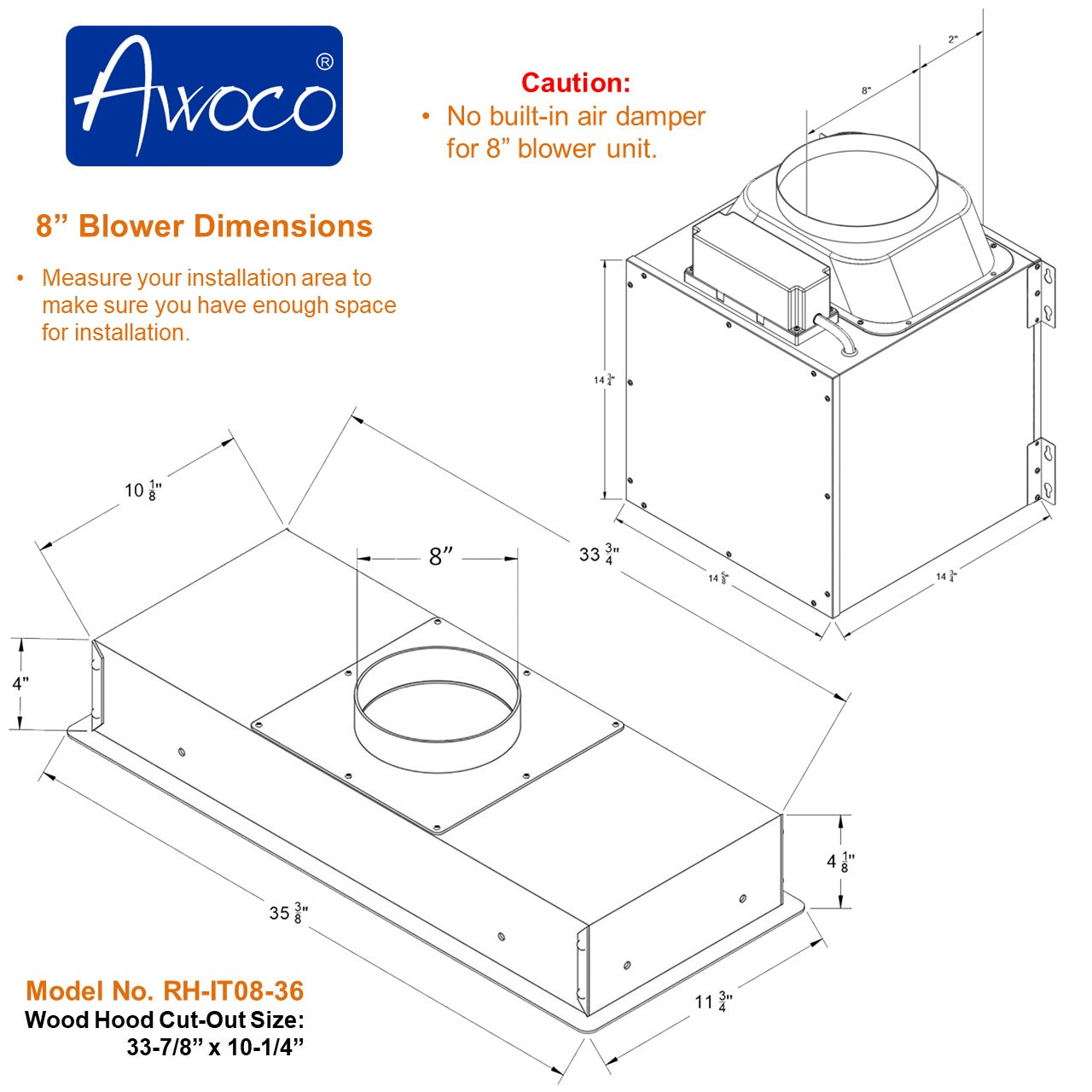

• 36" Hood Dimensions: 35-3/8"W x 11-3/4"D x 4-1/8"H. Hood weight: 14.5 lbs.

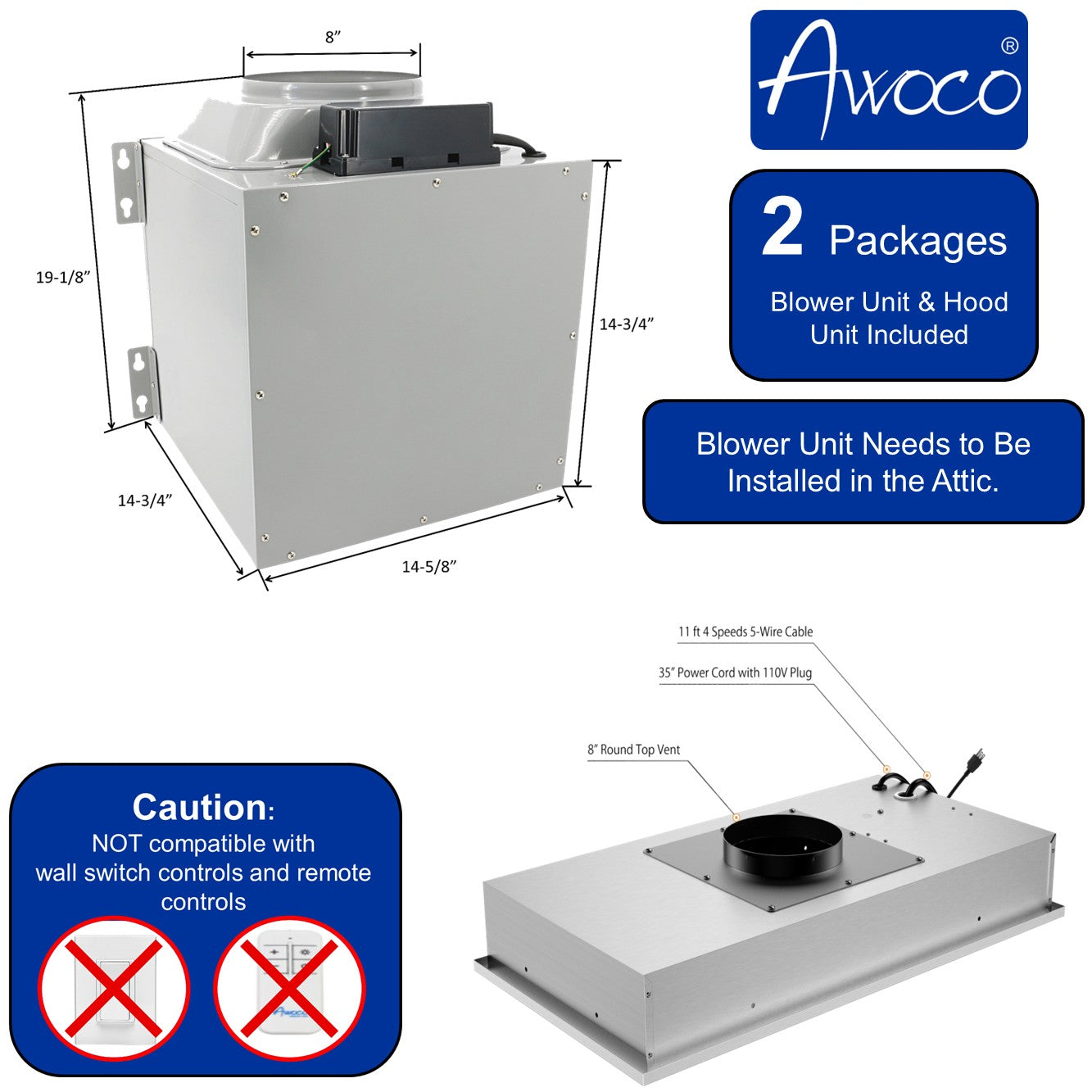

• Blower Dimensions: 14-5/8"W x 14-3/4"D x 14-3/4"H.  Blower weight: 27.5 lbs.

Package Contents

• RH-IT08-30-COLD - Package includes: RH-IT08-30 with 6000K COLD LED Lights.
• RH-IT08-30-WARM - Package includes: RH-IT08-30 with 3000K WARM YELLOW LED Lights.
• RH-IT08-36-COLD - Package includes: RH-IT08-36 with 6000K COLD LED Lights.
• RH-IT08-36-WARM - Package includes: RH-IT08-36 with 3000K WARM YELLOW LED Lights.

Why Is It Quiet?

Range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has a bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.

What if we move the air collision from the kitchen area to above the ceiling?

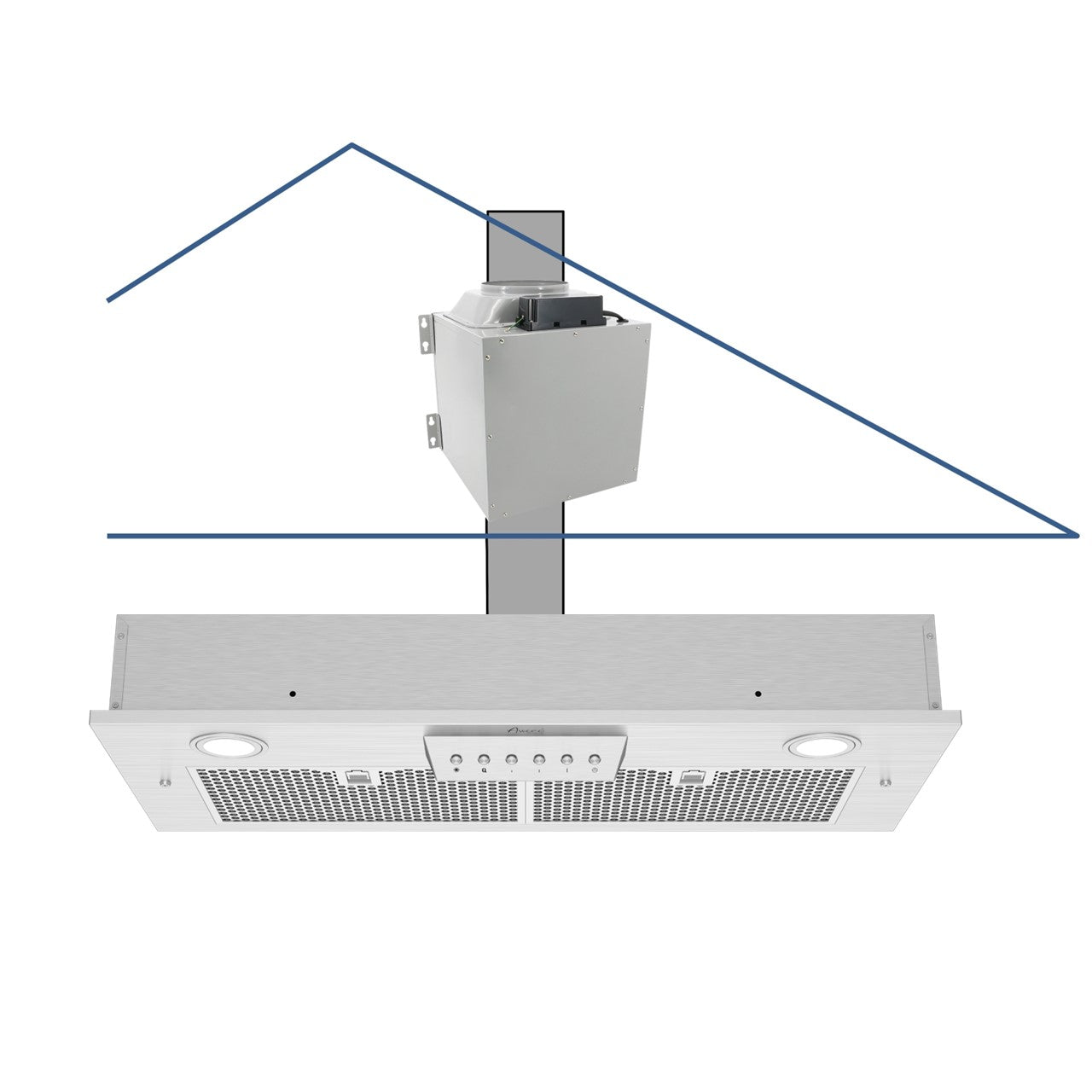

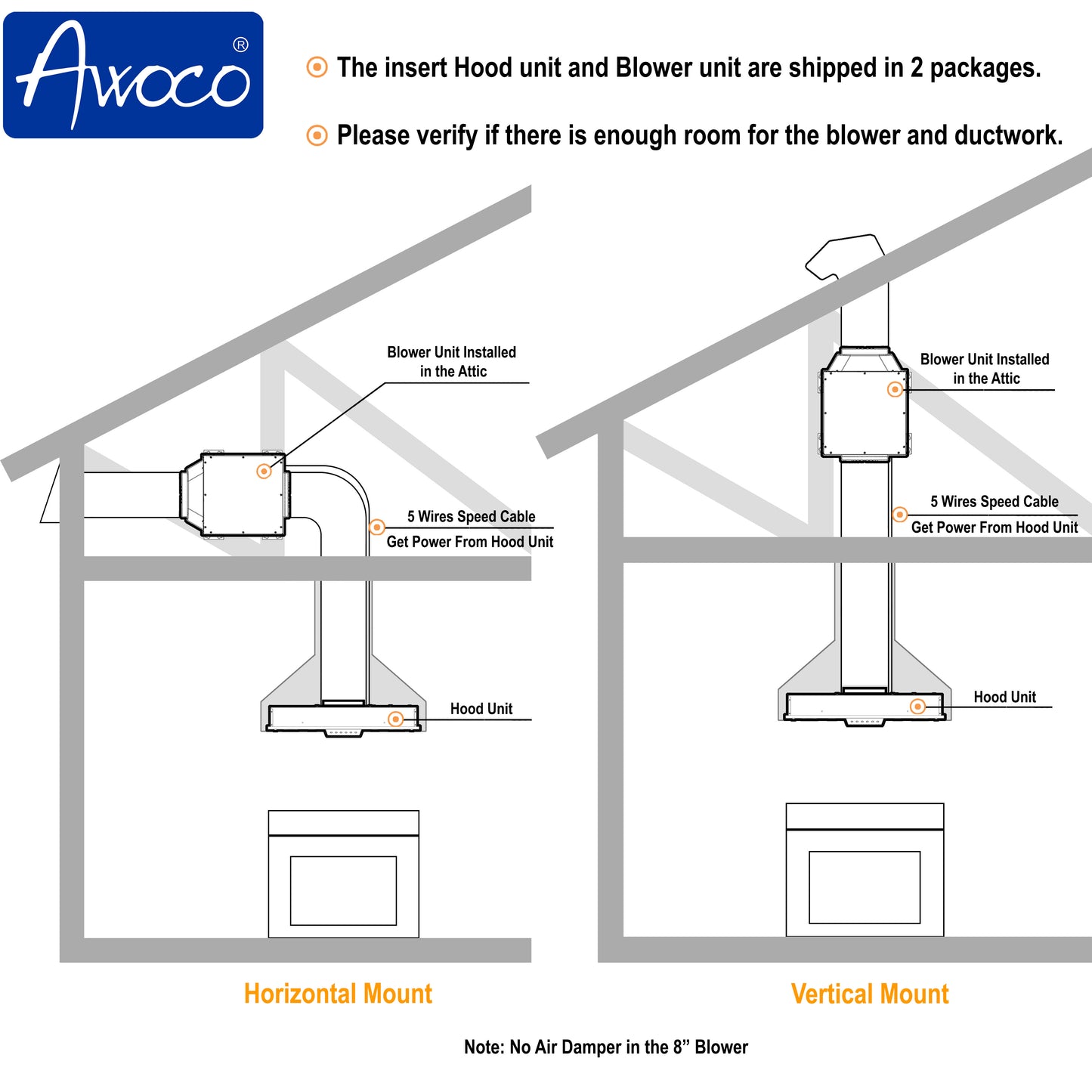

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.

 Other Features & Specifications:

• Mounting Type: Insert unit; Attic lumber mounted for Blower unit.
• Venting Type: 8” round TOP vent for Hood unit; 8” round vent in and out for Blower unit.

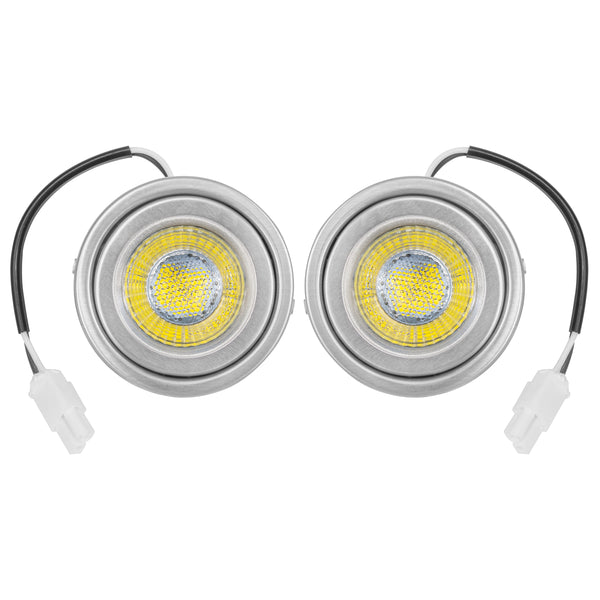

• Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.
• Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel.
• Power rating: 120V/60Hz, 135W Min /250W Max.
• Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 4.5 sones.
