Ultra-Premium Specifications
Awoco products are engineered with performance in mind. Each one can go toe-to-toe with quality, big names brands.- DESCRIPTION
- SHIPPING & RETURN
- SPECIFICATIONS
- USER-MANUAL DOWNLOAD
- AWOCO SERVICE VIDEOS
- PARTS & ACCESSORIES
DESCRIPTION
- Temporarily out of stock, will be available by Feb 5th 2023.

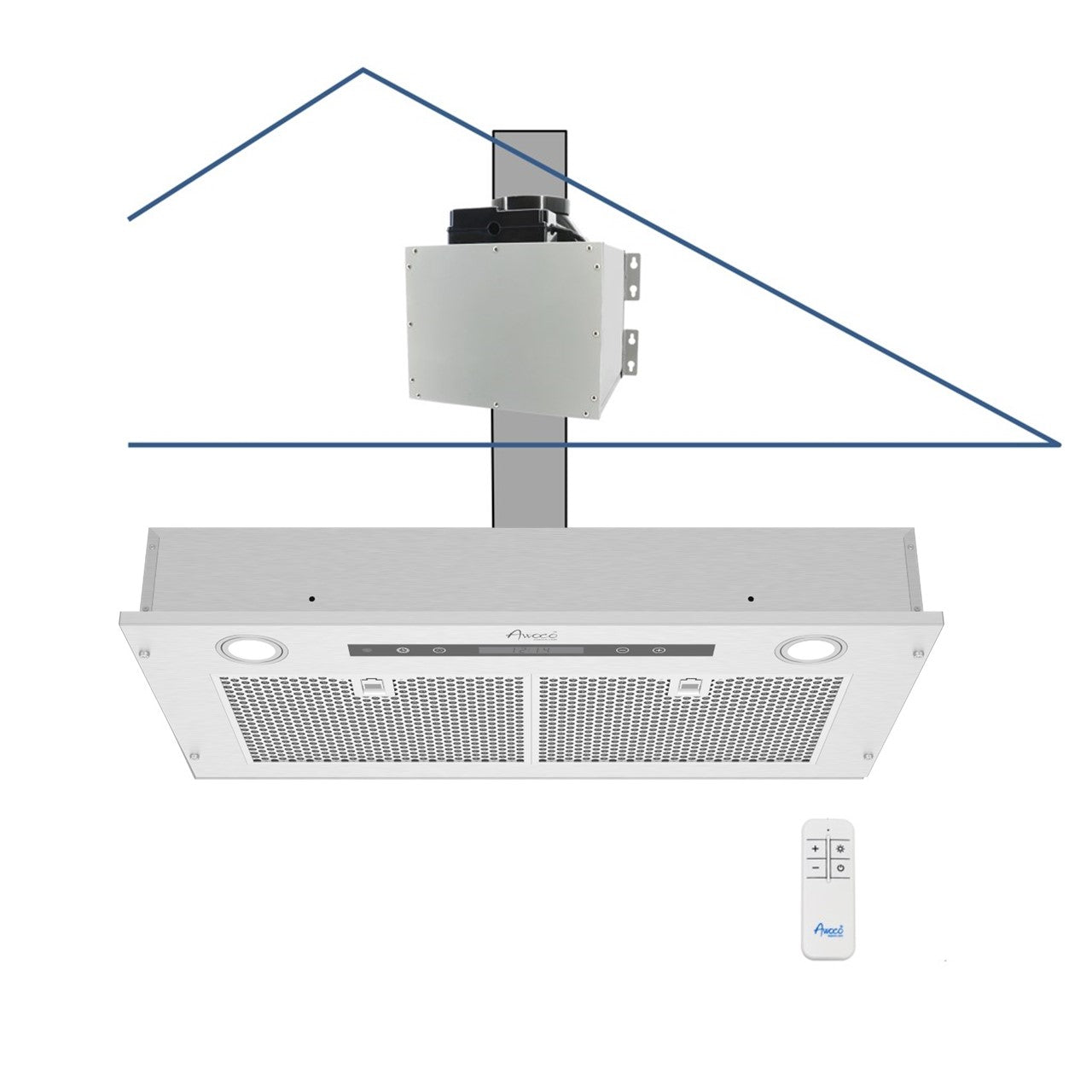

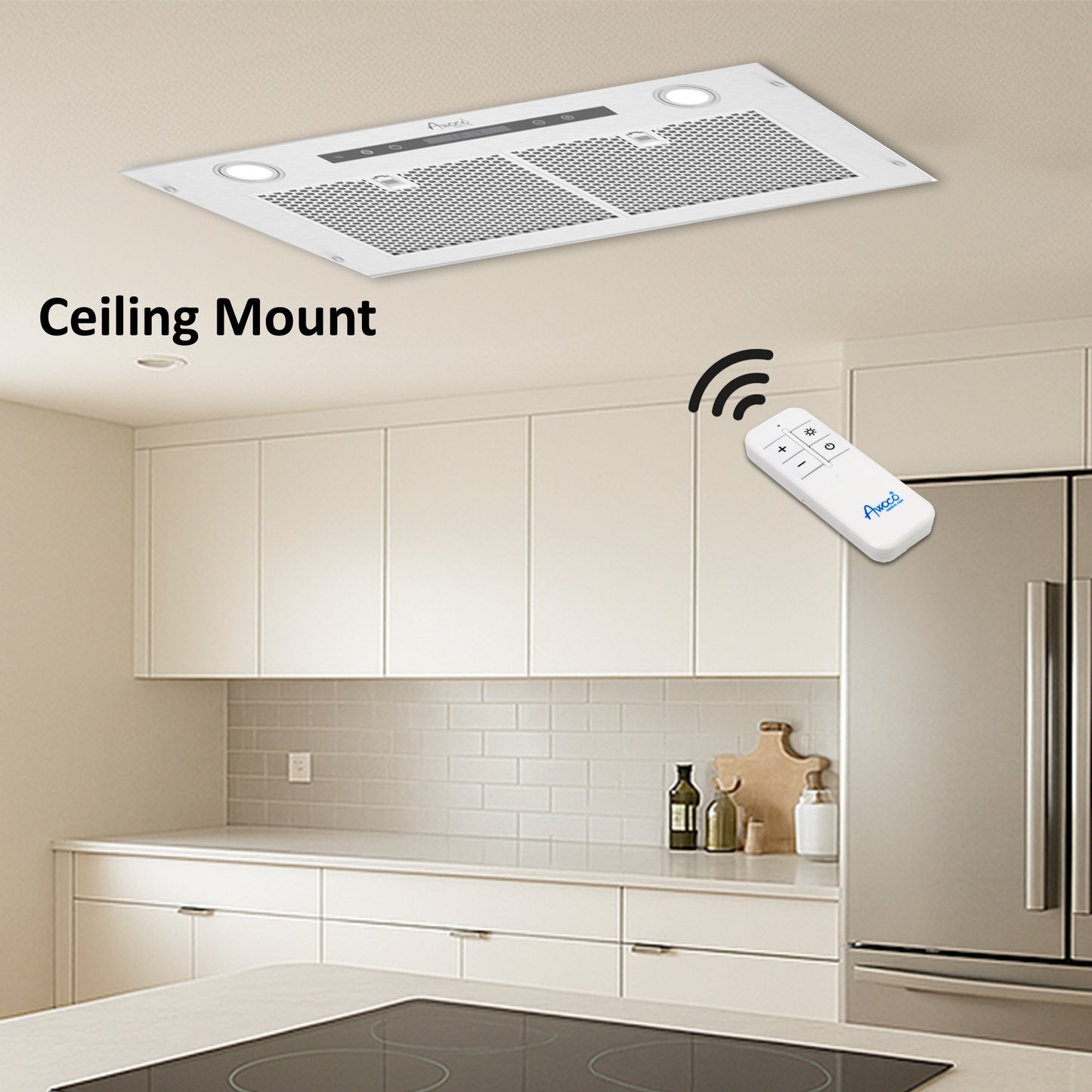

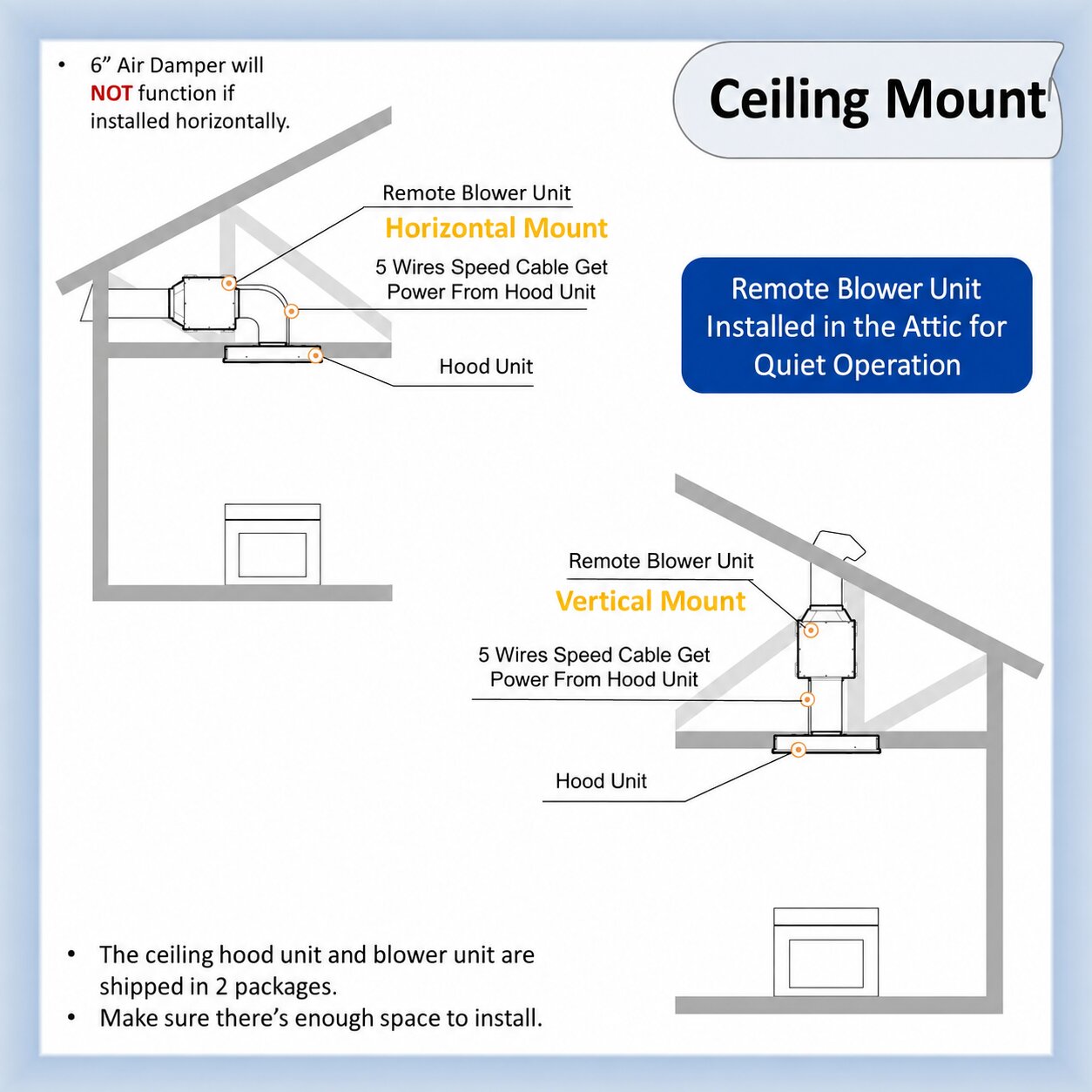

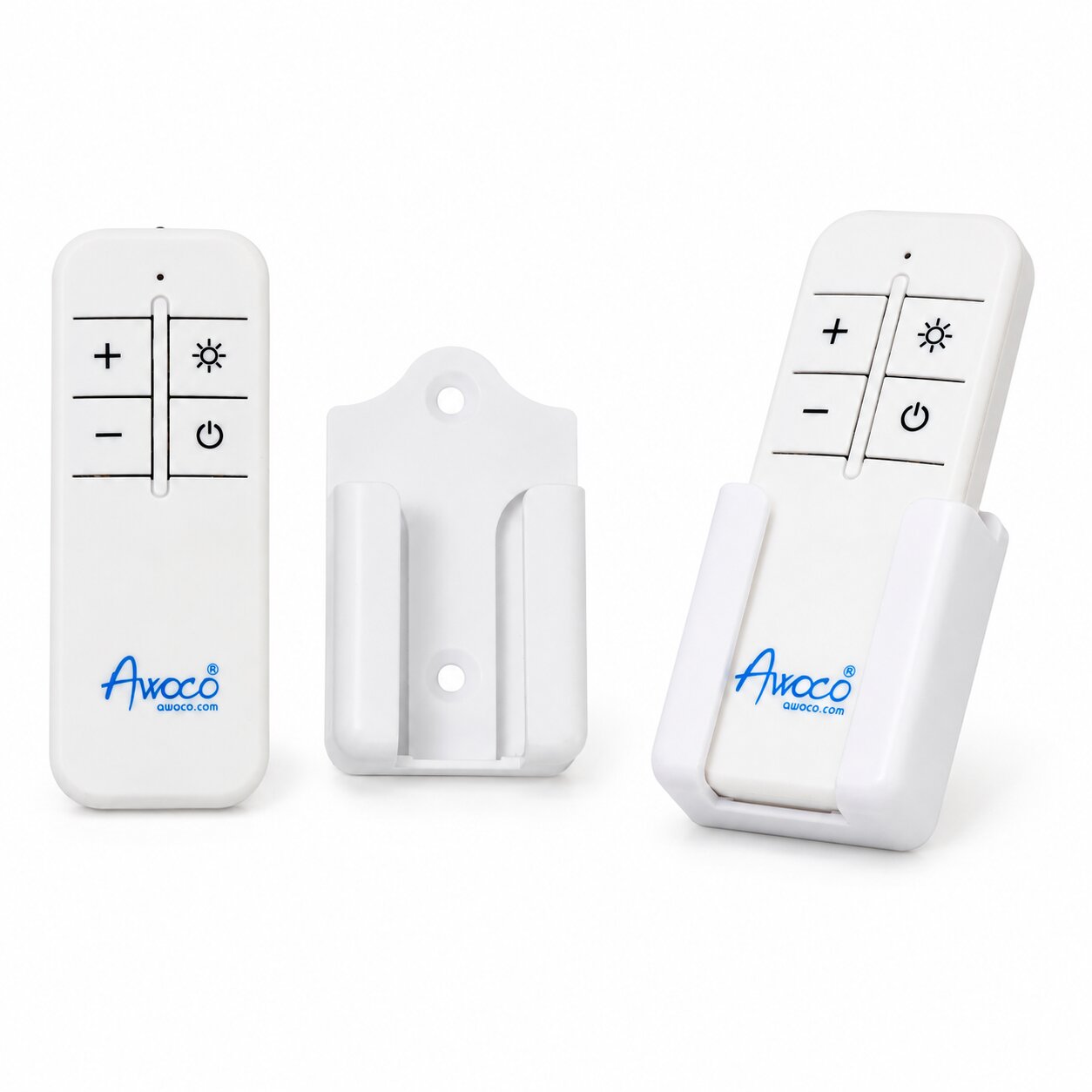

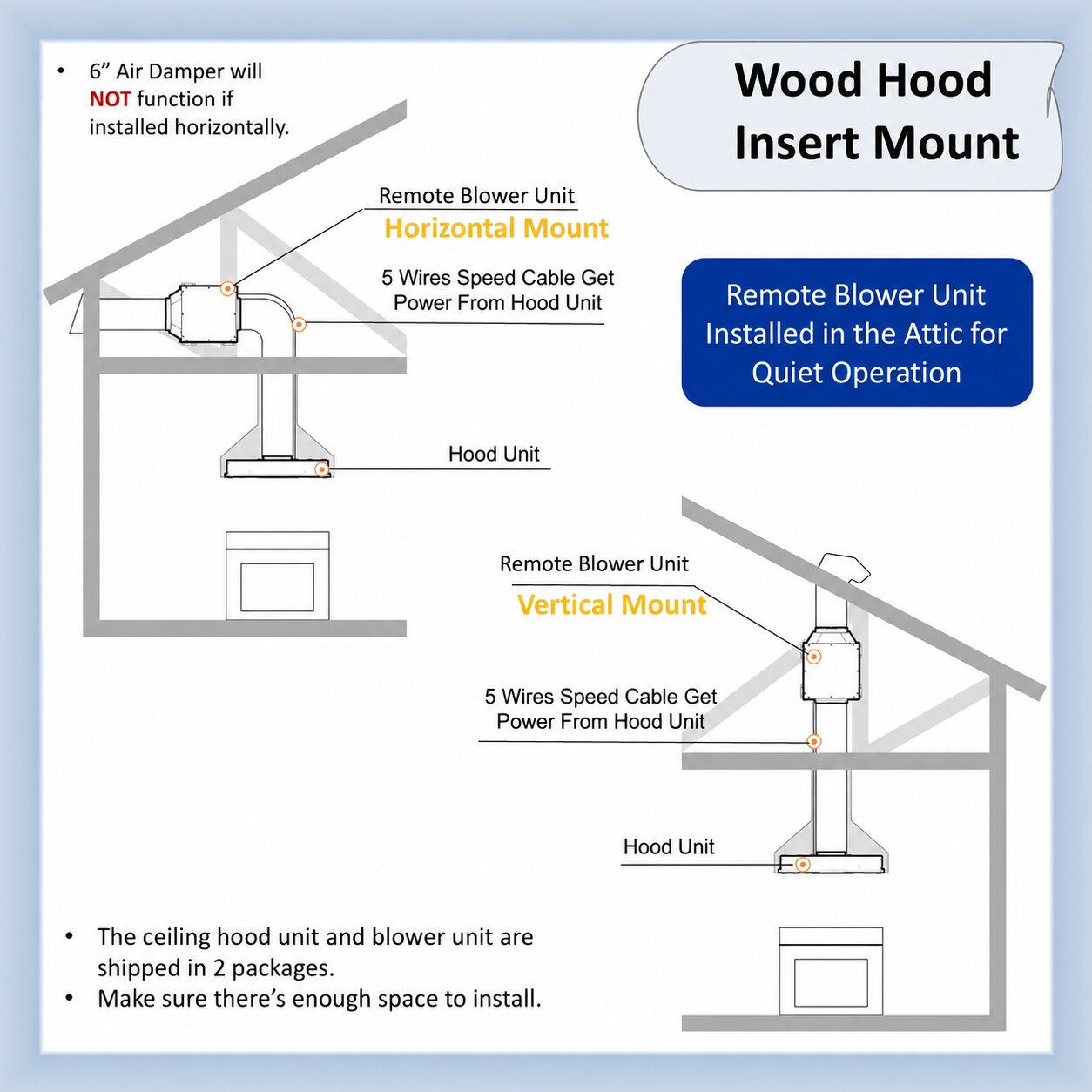

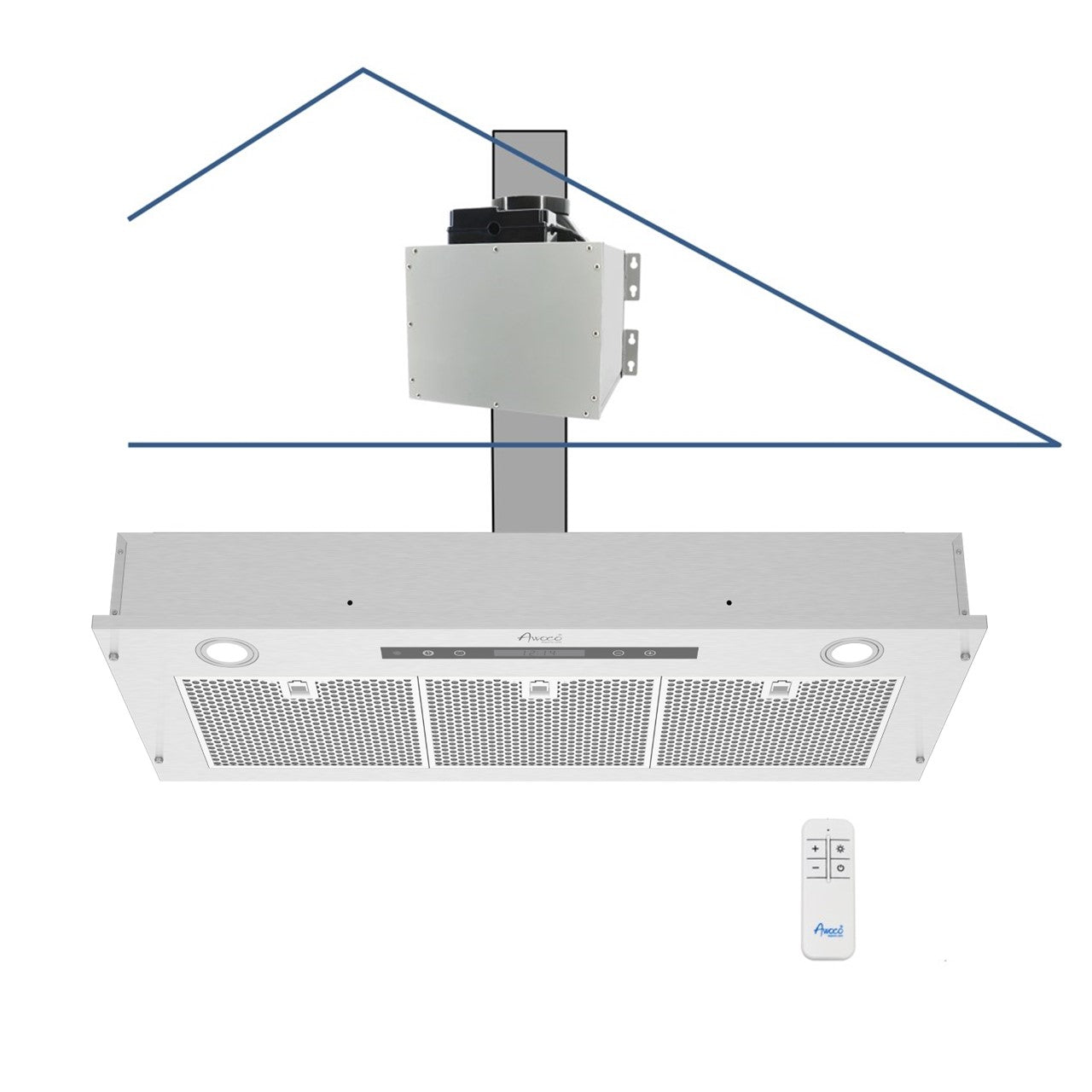

- CEILING MOUNT WITH REMOTE CONTROL: The blower unit is mounted in the attic and the hood unit is mounted in the ceiling. The ceiling mount improves ventilation and lighting over your kitchen while there is a limitation to install range hood's right above the stove. Wireless remote control to turn on and adjust speeds. Built with high quality 1mm thick stainless steel with brush finishing.

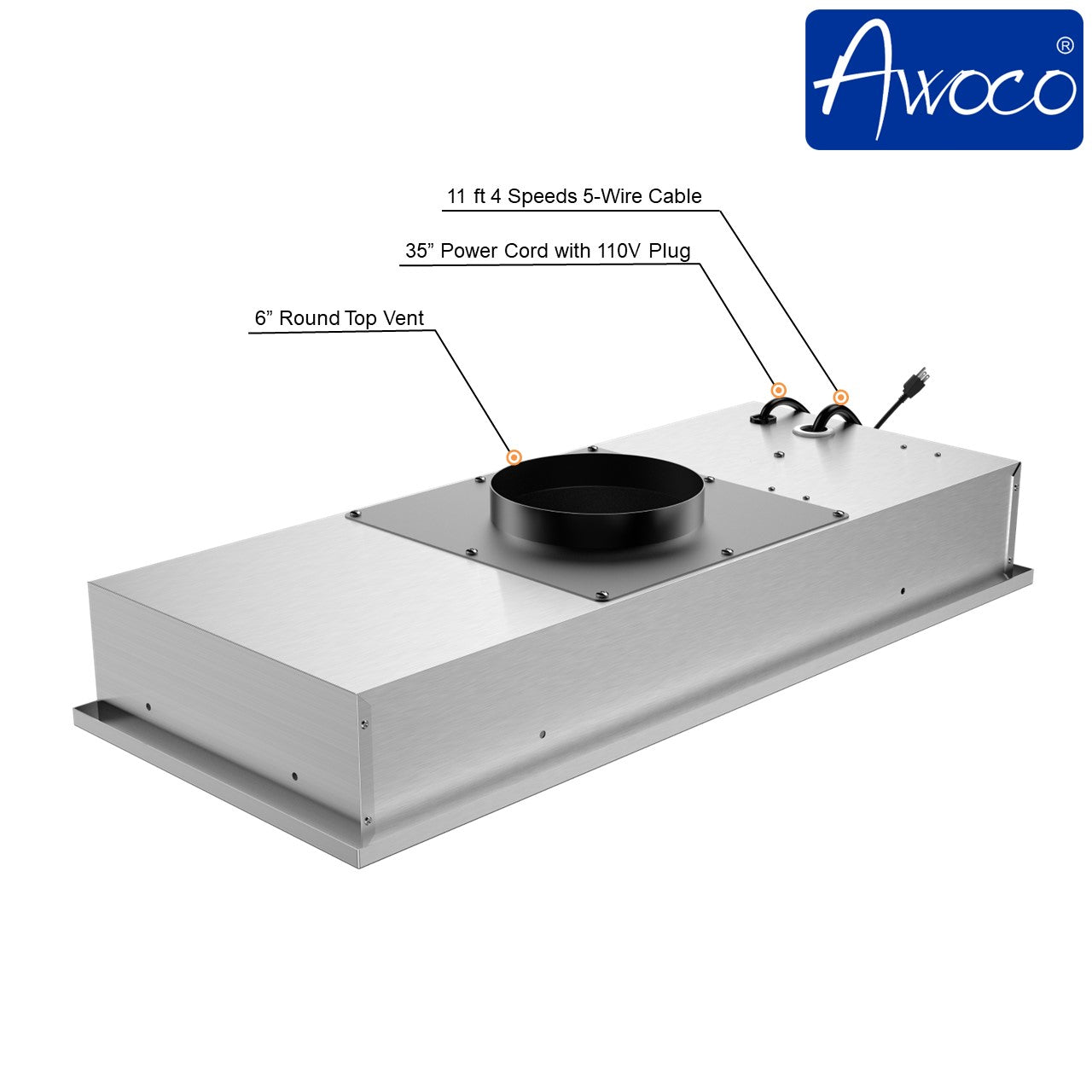

- DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.

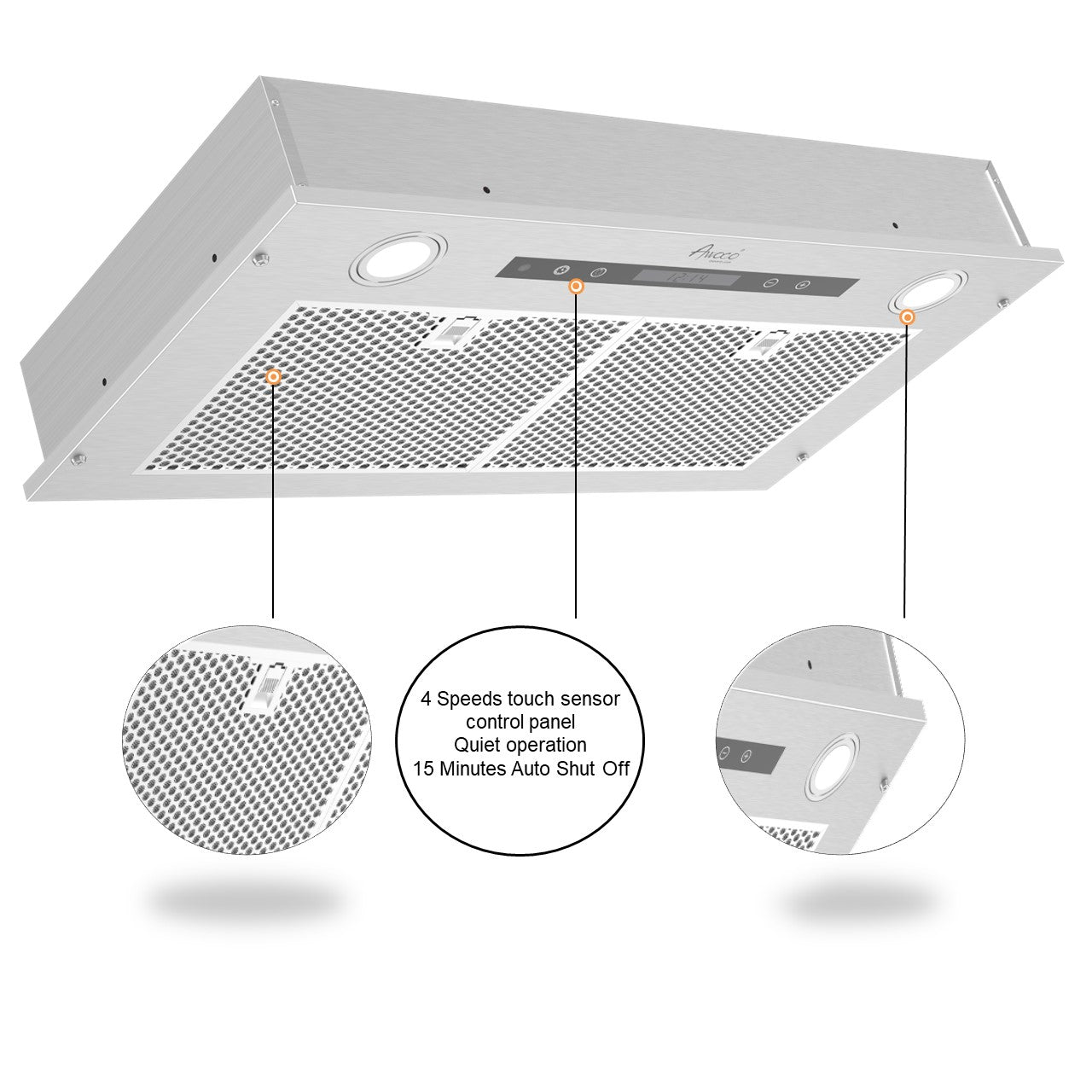

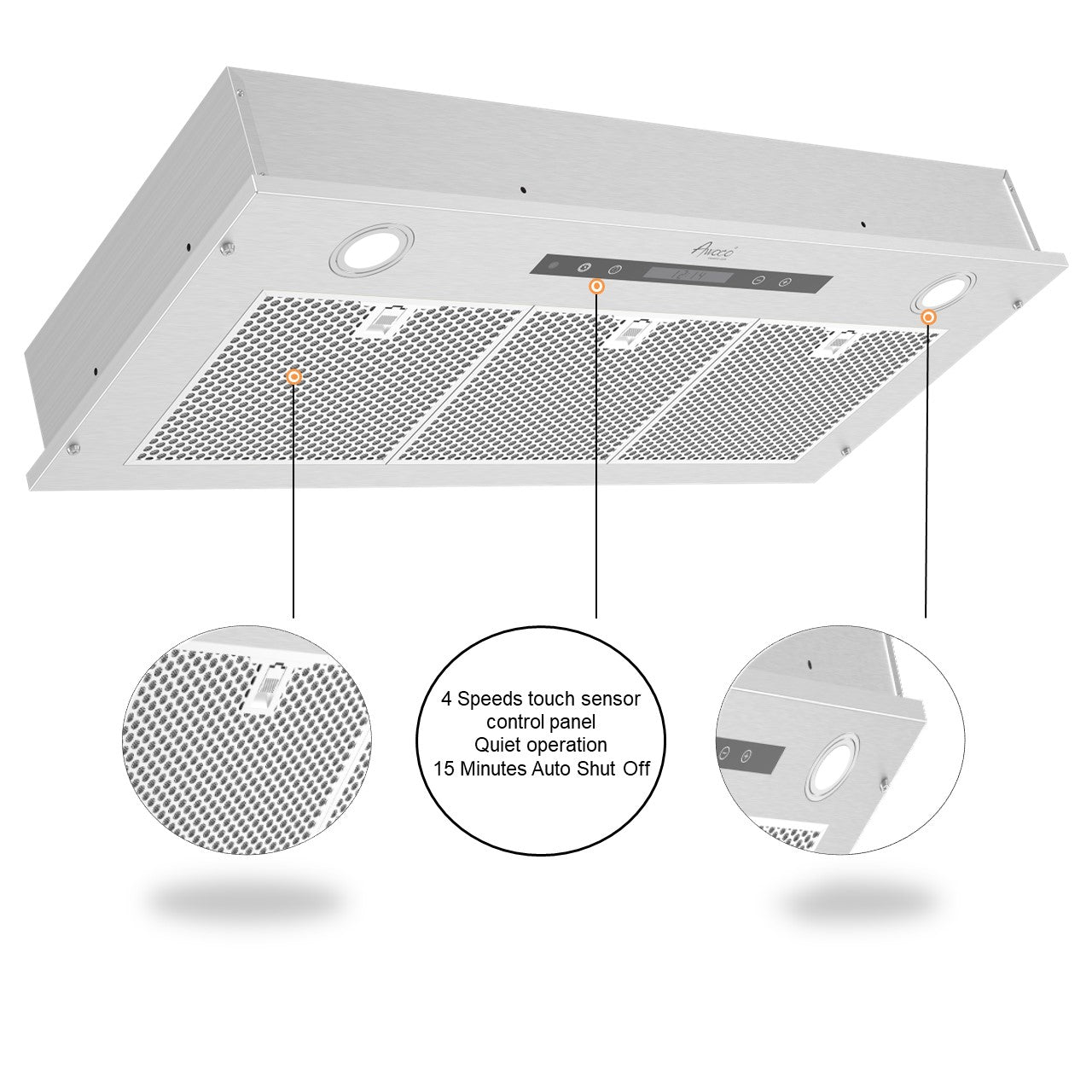

- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Q, I, II, III up to 800 CFM), touch sensor panel with wireless remote control. 2 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 110W Min /160W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones.
- 5/10/15 Minutes Shut Off Delay: Clock display; Remote Control cannot set up the clock time, but all other functions are accessible.
- DISHWASHER SAFE BAFFLE FILTERS: Dishwasher safe commercial style stainless steel baffle air filters. The oil is contained in the baffle filters, no oil holders required.
- 1 YEAR USA LIMITED PARTS WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

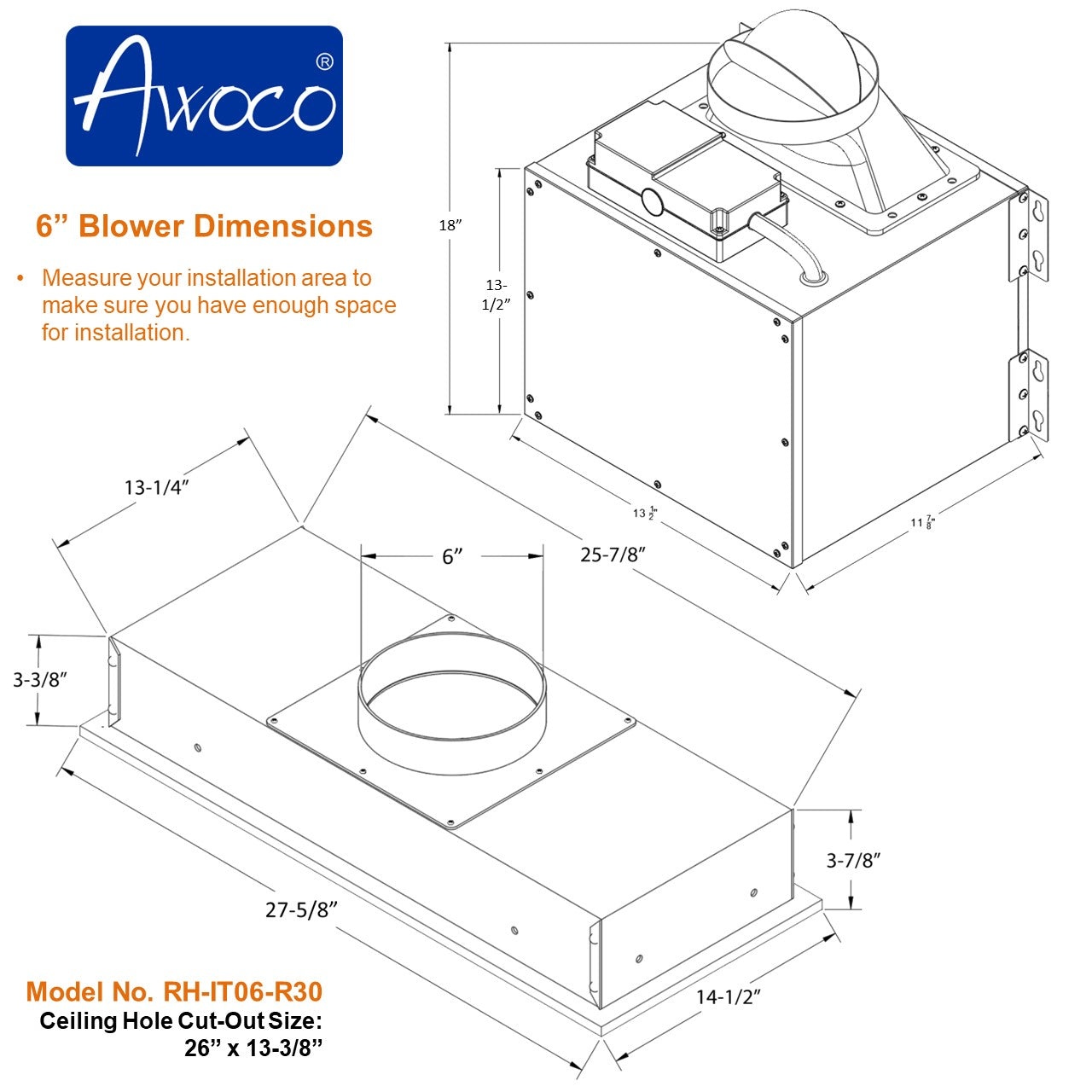

- 30" Hood unit overall dimensions: 27-5/8"W x 14-1/2"D x 4-1/8"H. Hood weight: 15.5 lbs.

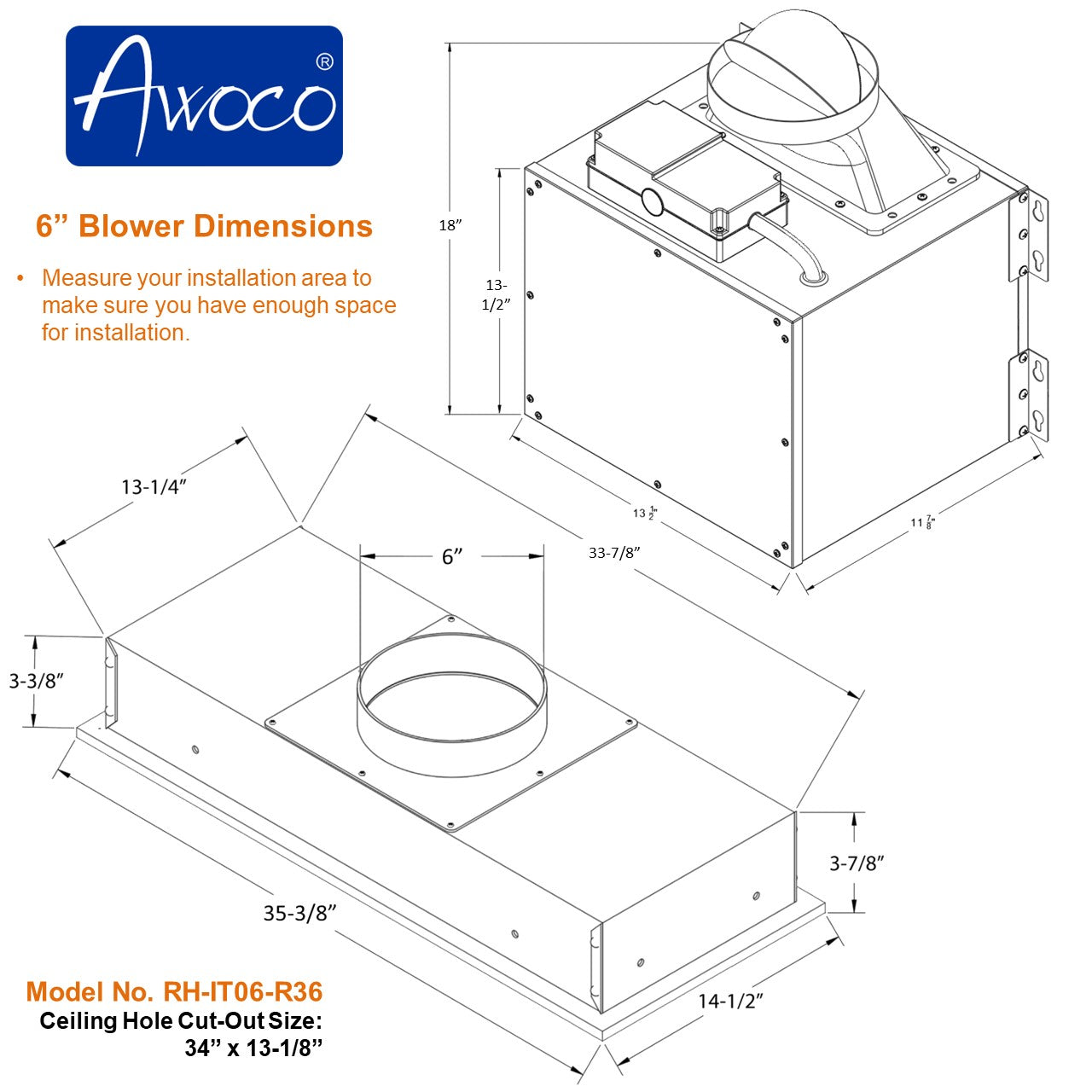

- 36" Hood unit overall dimensions: 35-3/8"W x 14-1/2"D x 4-1/8"H.

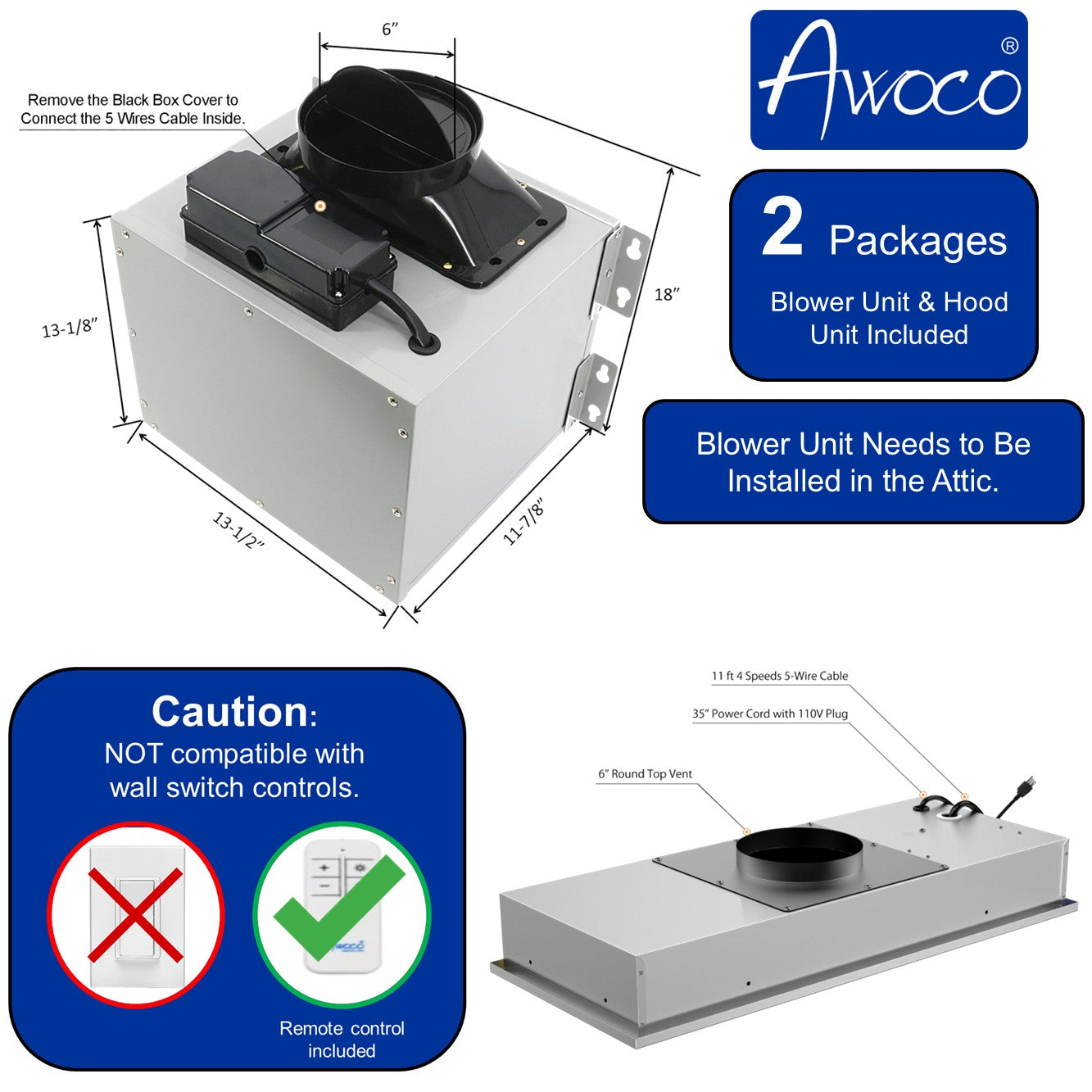

- Blower unit overall dimensions: 13-1/2"W x 11-7/8"D x 15-3/4"H. Blower weight: 20.4 lbs.
SHIPPING & RETURN
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
SPECIFICATIONS
Mounting Type | • Hood Unit: Under Cabinet or Wall-Mount. • Blower Unit: Attic Lumber-Mount. |
Venting | • Hood Unit: 6" round TOP vent. • Blower Unit: 6" round vent in and out. |
Power Rating | 120V~60Hz. |
Lighting | 2x 1.5W LED. |
Noise Level | 40dB / 50dB / 56dB / 60dB. |
Model No. | A | B | C | # of Baffle Filters | Max CFM | Min Wattage | Max Wattage |
RH-IT06-M30 | 27-3/4" | 26-1/8" | 6" | 2 | 800 | 110W | 150W |
RH-IT06-M36 | 35-3/8" | 33-3/4" | 3 |

USER-MANUAL DOWNLOAD
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
AWOCO SERVICE VIDEOS
SERVICE HELP: AWOCO 101 VIDEOS
Awoco RH-IT06-R Ceiling Mount 14-1/2”D Super Quiet Split Stainless Steel Range Hood, 4-Speed, 800 CFM, Remote Control with 6” Blower
