Ultra-Premium Specifications
Awoco products are engineered with performance in mind. Each one can go toe-to-toe with quality, big names brands.- DESCRIPTION
- SHIPPING & RETURN
- SPECIFICATIONS
- USER-MANUAL DOWNLOAD
- AWOCO SERVICE VIDEOS
- PARTS & ACCESSORIES
DESCRIPTION
- BUILT-IN/ INSERT TYPE: Hood insert improves ventilation and lighting over your stove while providing a very strong performance. Built with high quality 1mm thick 18-gauge stainless steel with satin finishing. Perfect for 30” kitchen ranges that fits snug into wood hood.

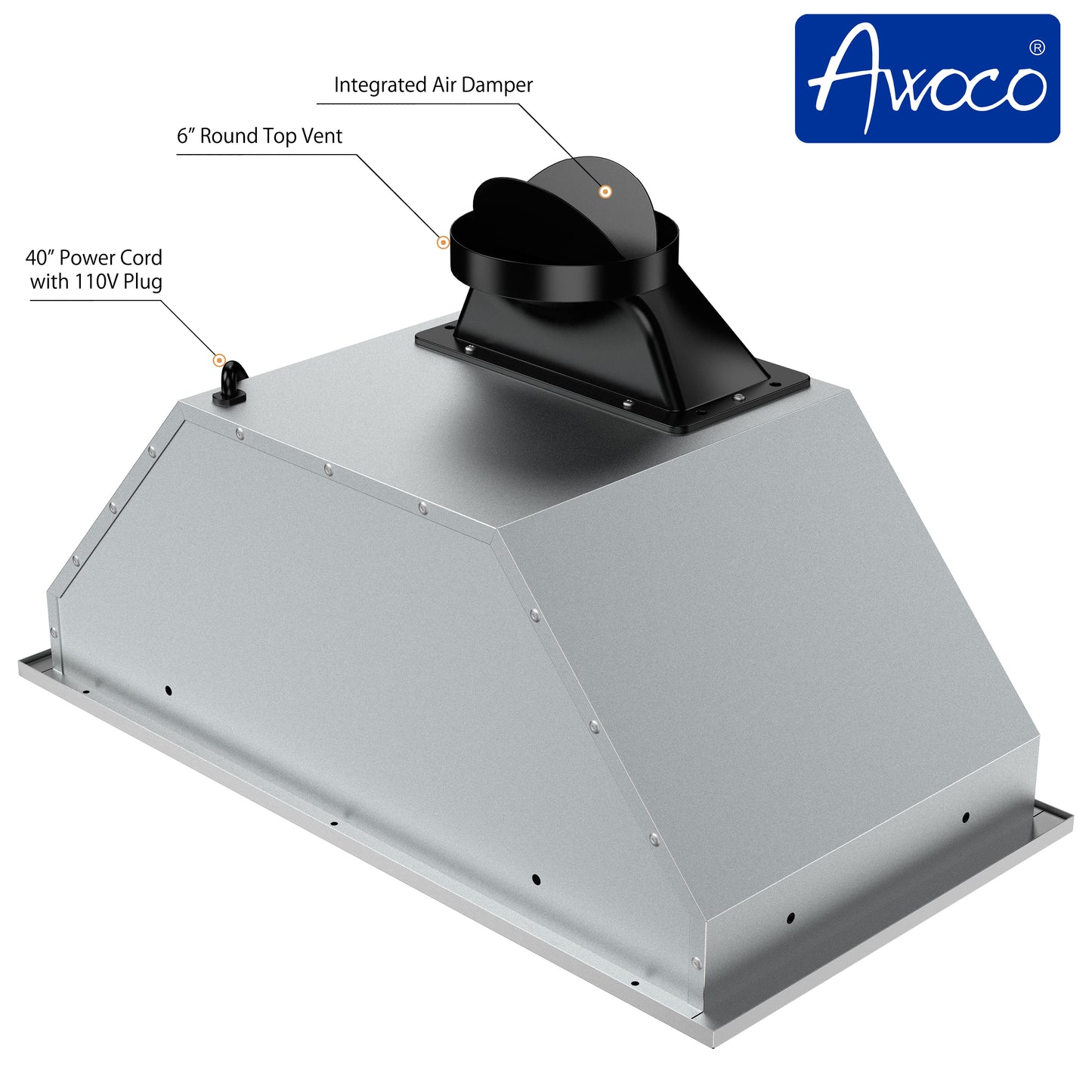

- DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent. Ducts are not included. Wood hood cut out hole size: 26-1/8" x 10-3/8". This is a ducted model, required vent on wall or roof designed for better performance.

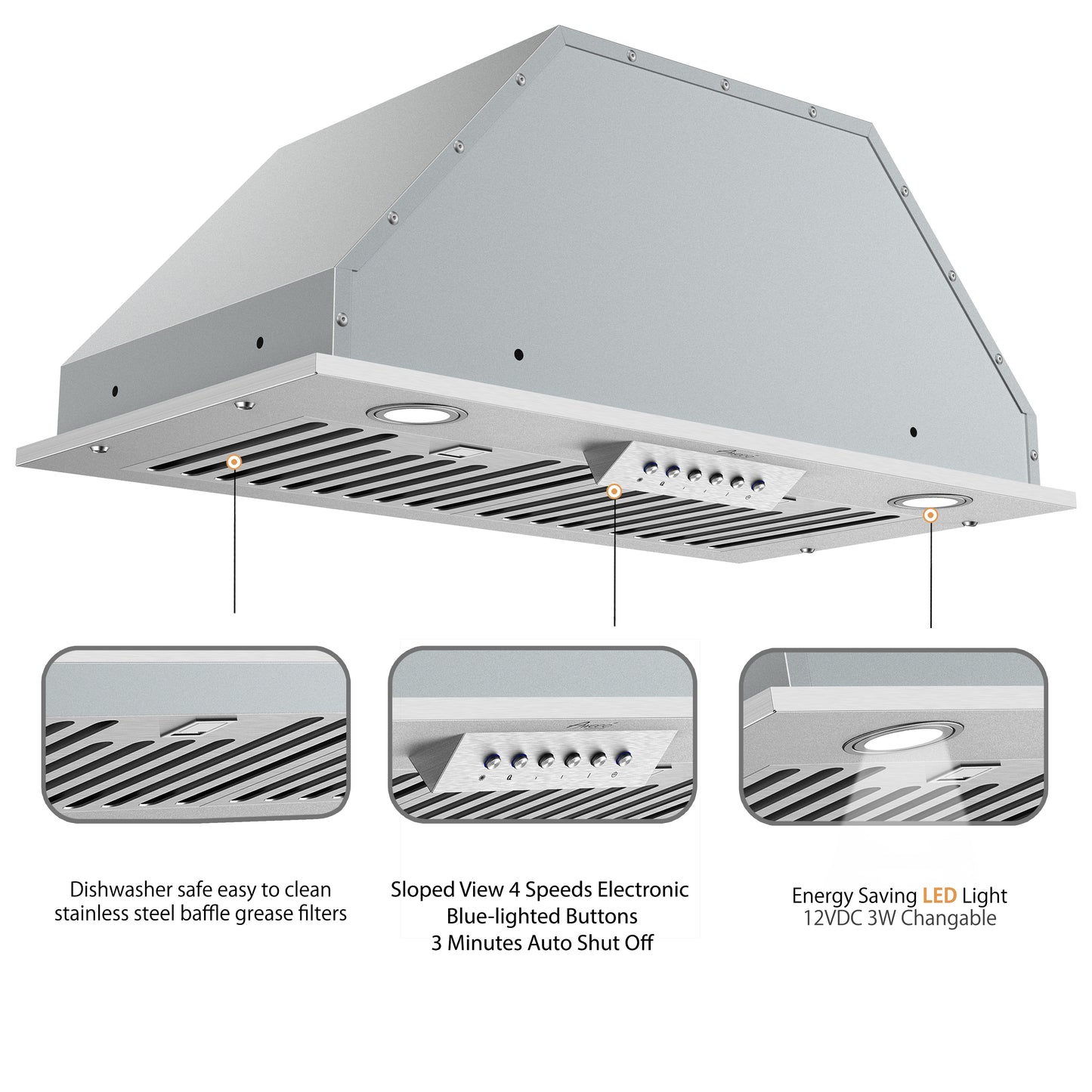

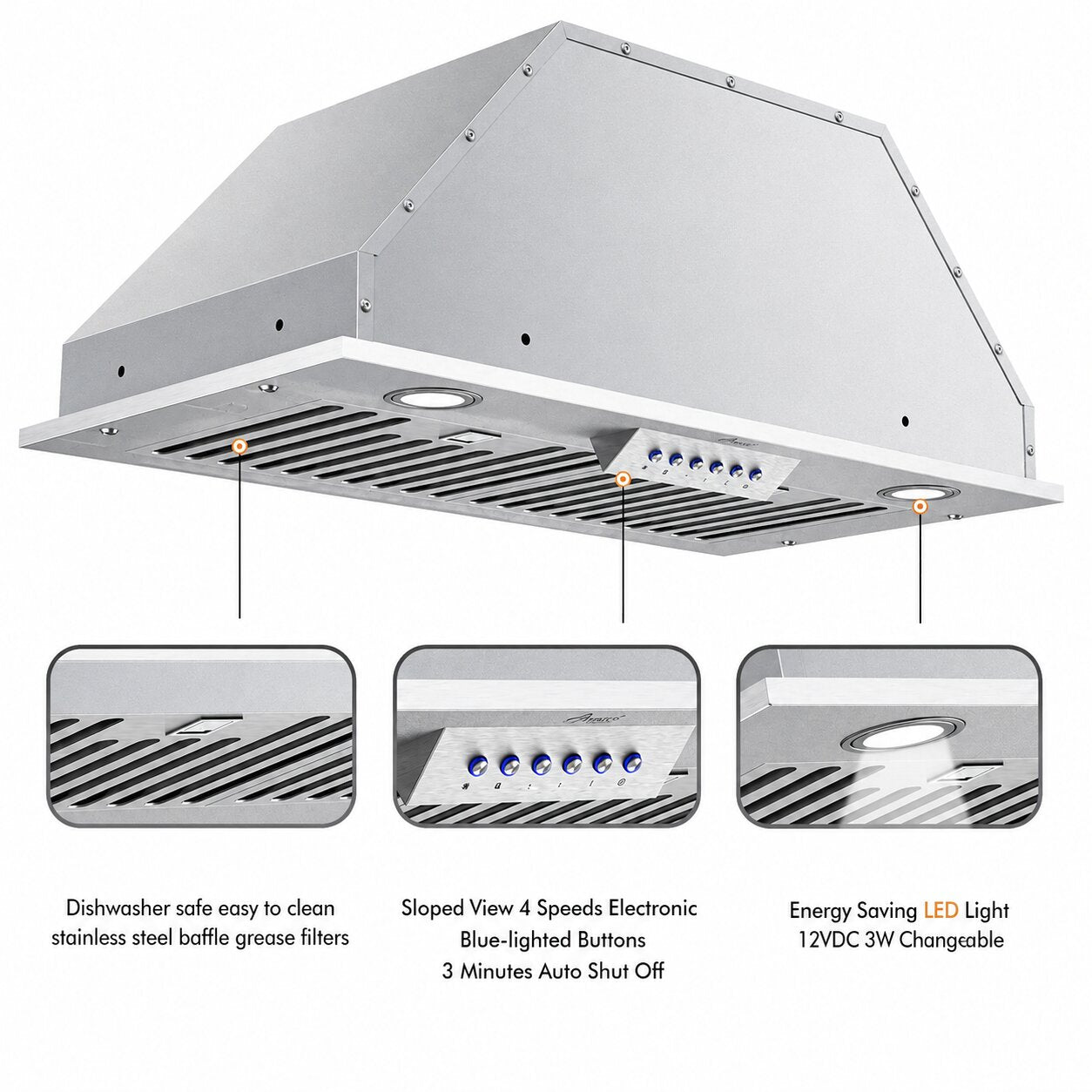

- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Q, I, II, III up to 650 CFM), sloped view blue highlighted electronic buttons with 2 3W energy saving cold bright LED lights. Power rating: 120V/60Hz, 130W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.

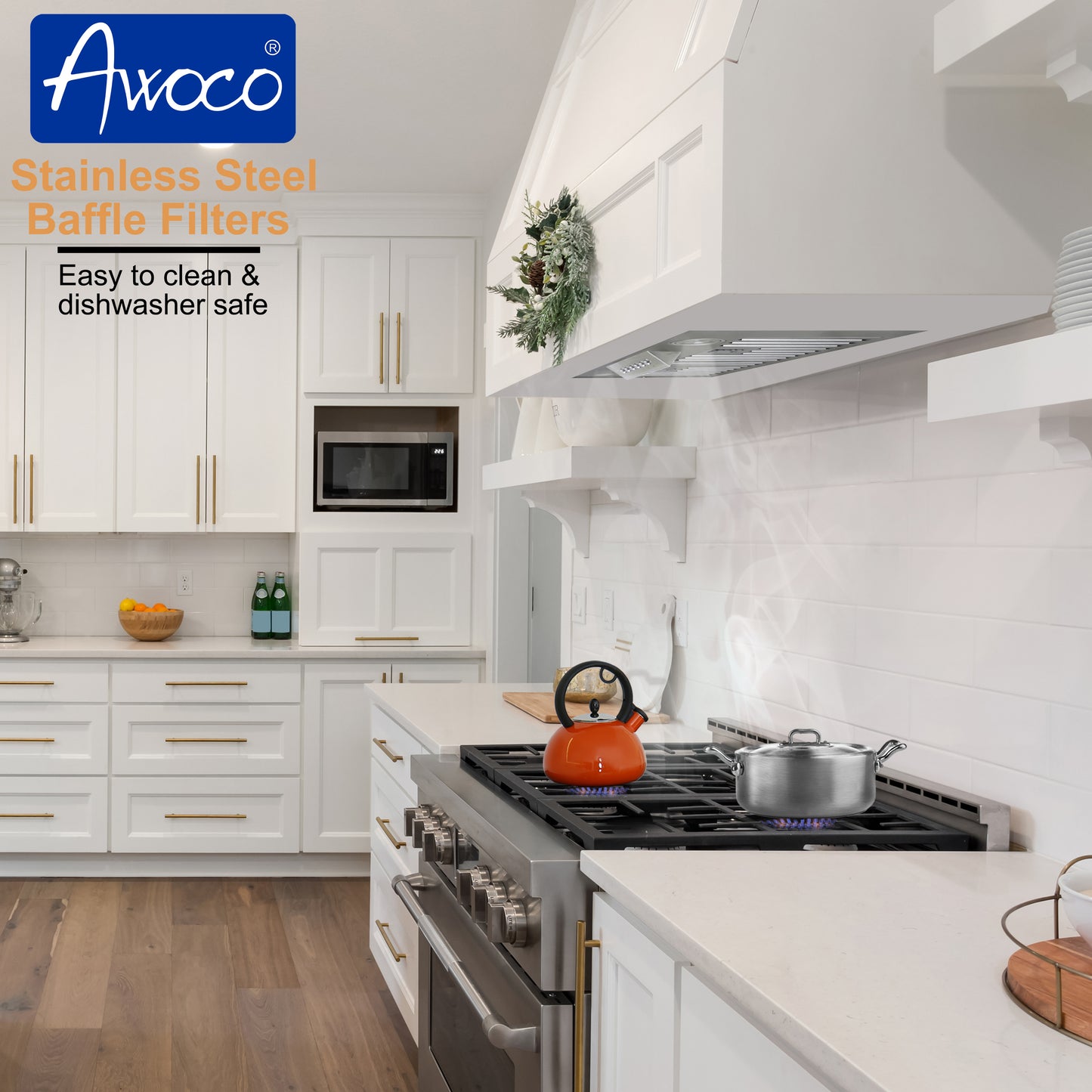

- DISHWASHER SAFE BAFFLE FILTERS: Dishwasher safe; commercial style stainless steel baffle air filters. The oil is contained in the baffle filters, no oil holders needed.
- 2 YEARS USA LIMITED PARTS WARRANTY: ETL Certified. Free parts, repair or exchange within 2 years. Awoco high quality product reputation and supreme customer service is a guarantee.

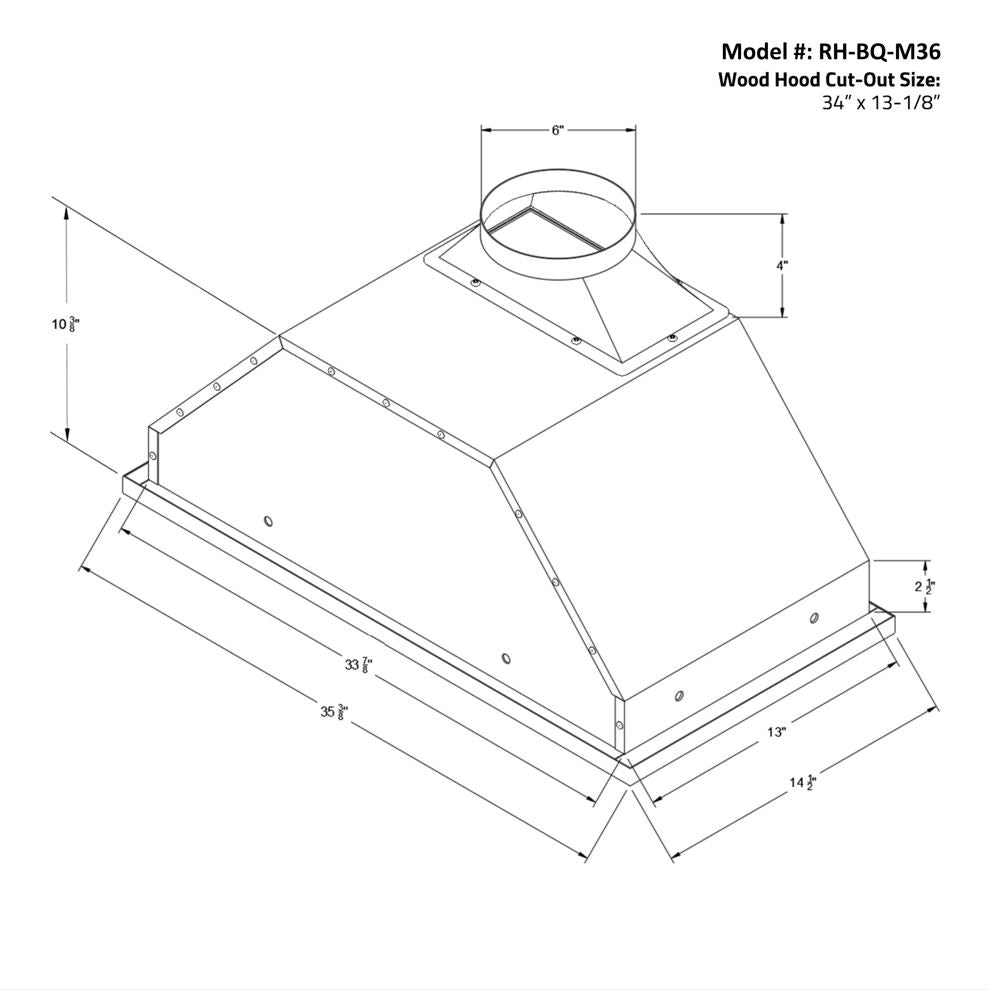

- 30" Hood Dimensions: 27-3/4"W x 14-1/2"D x 14-7/8"H. Hood weight: 26 lbs.
- 36" Hood Dimensions: 35-3/8"W x 14-1/2"D x 14-7/8"H. Hood weight: 29 lbs.
SHIPPING & RETURN
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS
SPECIFICATIONS
| Mounting Type | Insert Embedded to the Wood Hood. |
| Venting | 6" Round TOP Vent Exhaust. |
| Power Rating | 120V~60Hz, 130W Max. |
| Lighting | 2x 3W LED. |
| Noise Level | • Low: 38 dB. • Hight: 60 dB. |
| Model No. | Width | Depth | Height | # of Baffle Filters | Vent Size ("Duct") | Max CFM | Wood Hood Cutout Size |
| RH-BQ-30 | 27-3/4" | 11-3/4" | 14-7/8" | 2 | 6" Round | 600 | 26-1/8" x 10-3/8" |
| RH-BQ-36 | 35-3/8" | 3 | 34-1/8" x 10-3/8" |
USER-MANUAL DOWNLOAD
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
AWOCO SERVICE VIDEOS
SERVICE HELP: AWOCO 101 VIDEOS
PARTS & ACCESSORIES

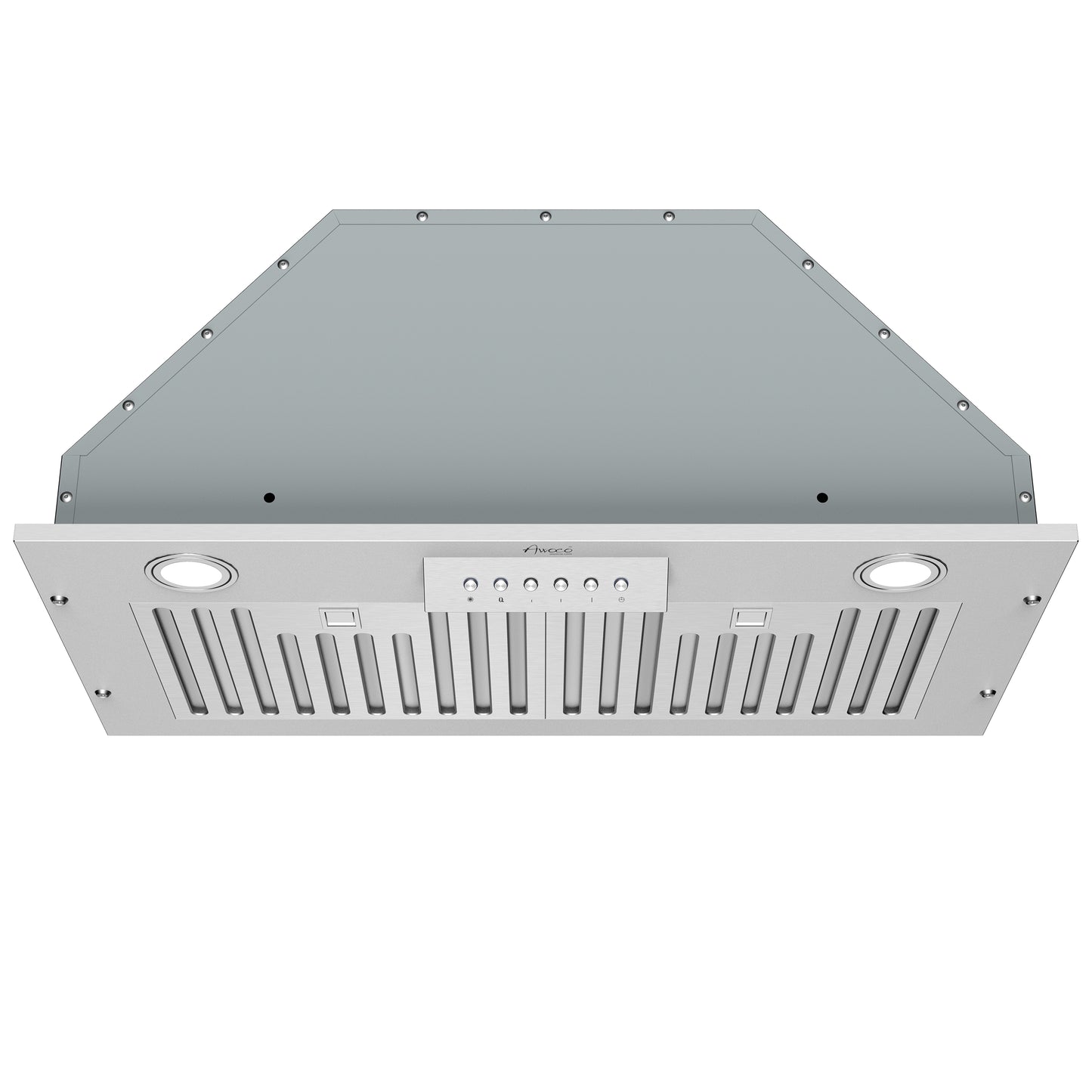

Awoco RH-BQ-M 14-1/2”D Built-in/Insert Stainless Steel Range Hood, 4-Speed, 650 CFM, LED Lights, Baffle Filters for Wood Hood
