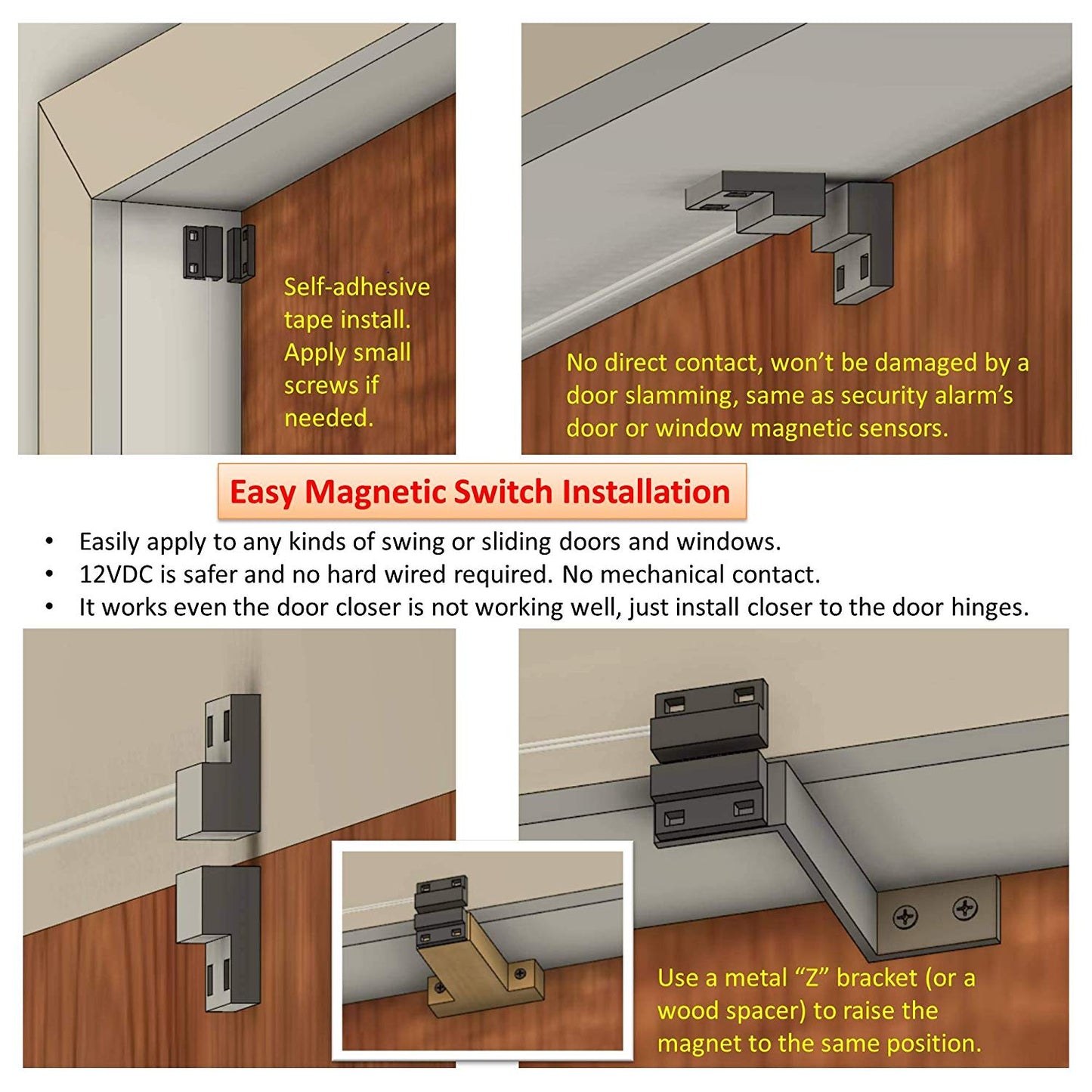

- [Magnetic Switch Controlled Circuit (US Patented)]: THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. Magnetic switch: this air curtain has an electrical-magnetic circuit control with a magnetic switch. The magnetic door switch installation is much easier than the traditional mechanical micro switch. No hard wired needed on the 12VDC low voltage magnetic switch.
- [Easy installation]:

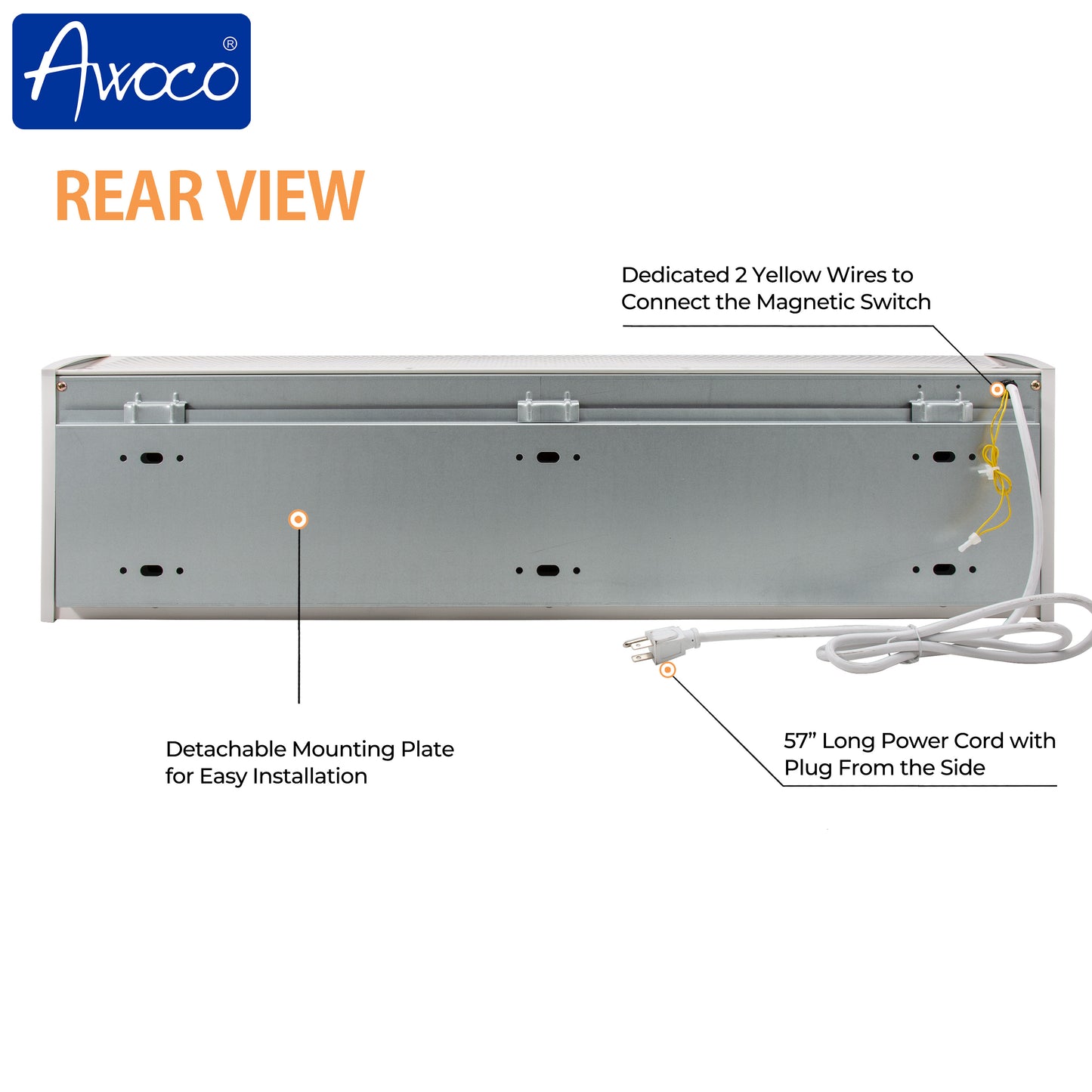

- 1) Mount the detachable mounting plate, then hang the air curtain up.

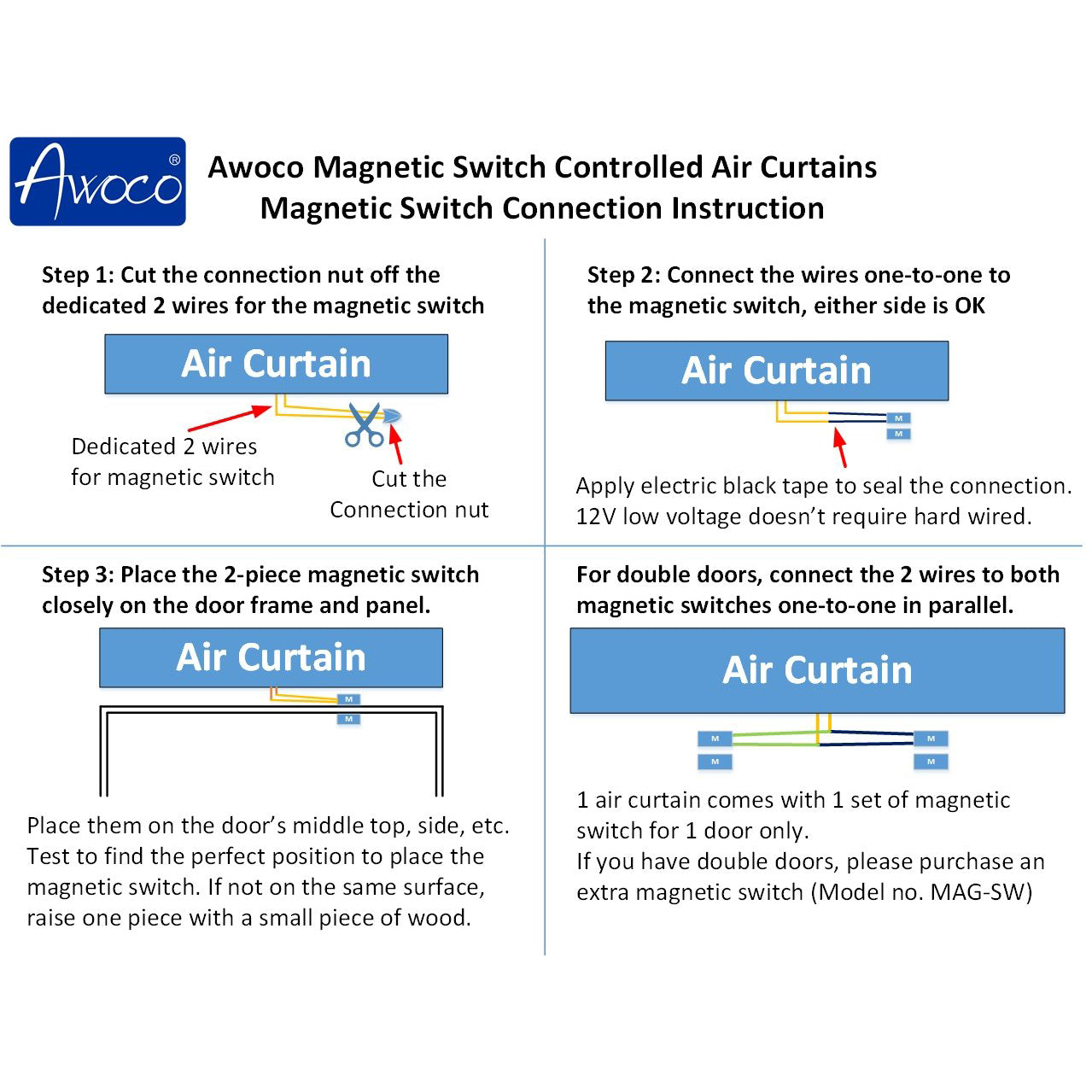

- 2) dedicated 2-wire for the magnetic switch connection. (Other brands might not have this.)
- 3) Detailed installation manual is included.
- [ETL Sanitation confirms to NSF Standard 37]: ETL Sanitation Listed, 1 speed confirms to NSF STD 37 for food service entranceway to meet Health Department Requirements. 110V-120V 60Hz. Less power consumption than other industrial air curtains.
- [Motor]: Adopting the technology of German electrical machinery, it runs smoothly with reduced low noise. Optimized electrical machinery, reliable and safe runs for 5,000 consecutive hours. Fan wheels are made of high-tech ABS, powerful wind-force.

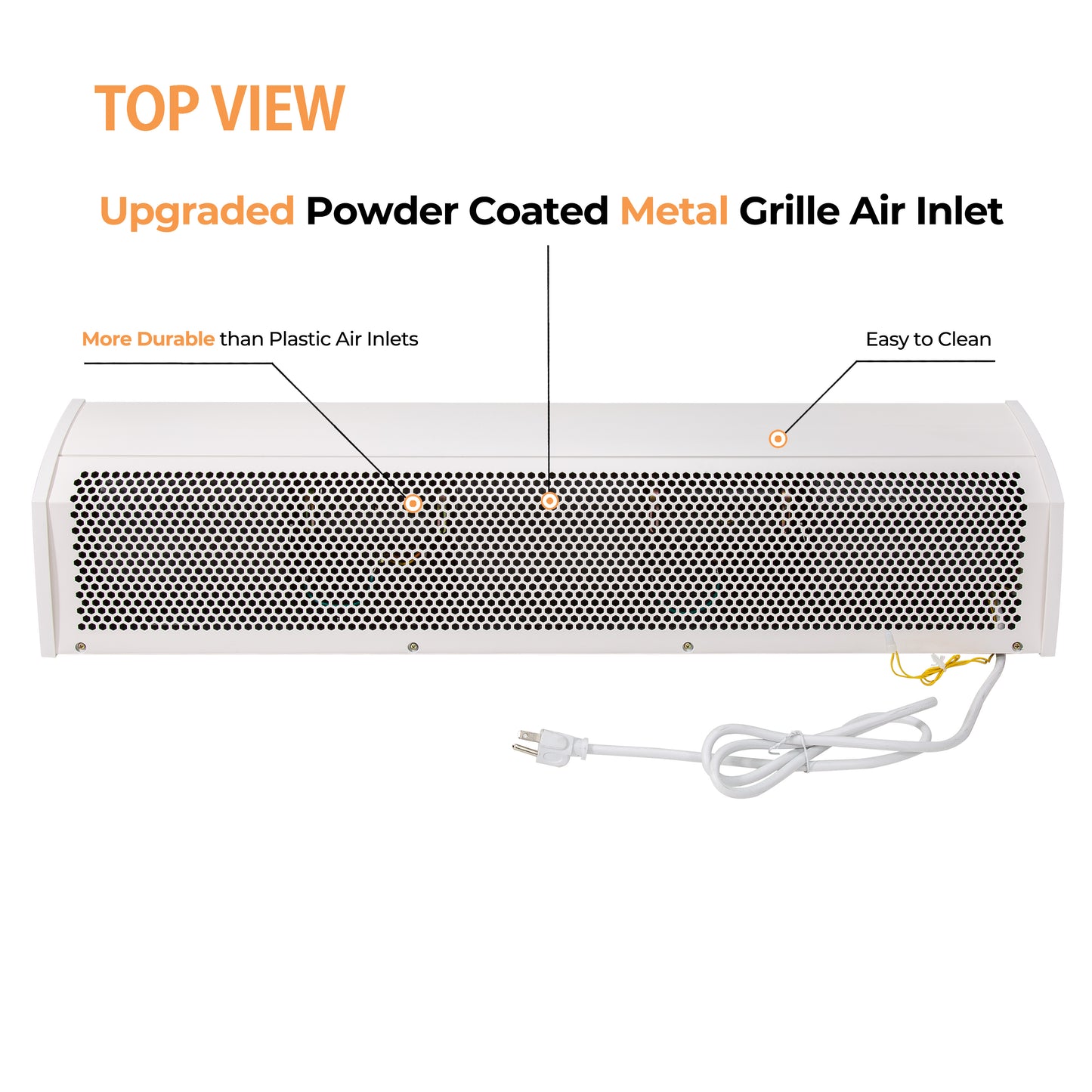

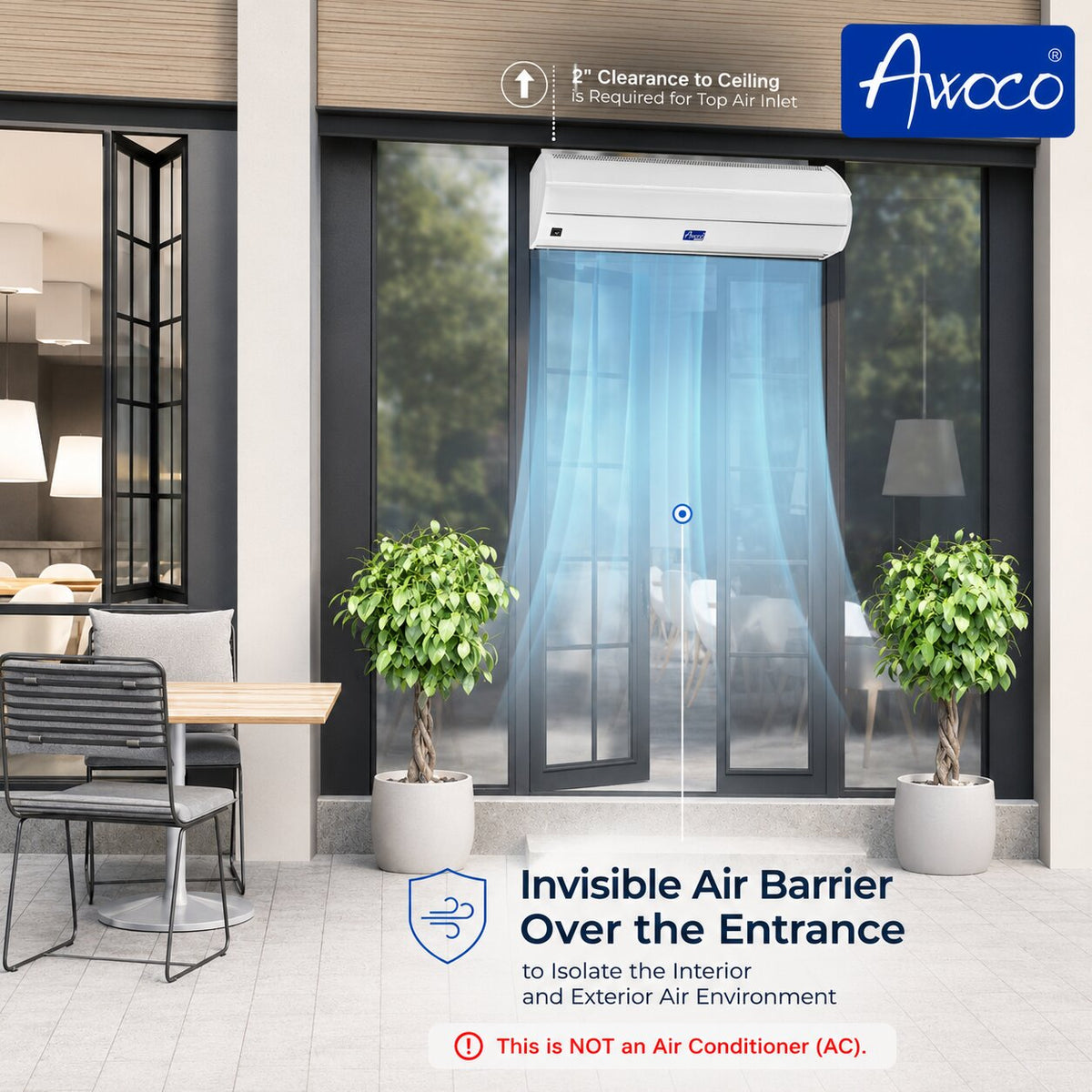

- [1 Year Warranty, Professional Tech Support]: UL listed. 1 year manufacturer warranty. Stainless Alloy cover is fireproof and anti-erosive, easy to clean. Lightweight and elegant, but high-quality build, perfect for restaurant front door and residential use. It is quiet but still powerful air flow. It is recommended to have an extra 2" of clearance from the ceiling for better circulation.
FULFILLMENT / DELIVERY
- Dispatch: Within 48 Hours
- Free shipping across all products
- Domestic delivery time - 4-10 business days (Mainland USA ONLY)
- Easy 30 days returns and exchanges
- Please look at our "Shipping Policy" section for further information.
RETURNS

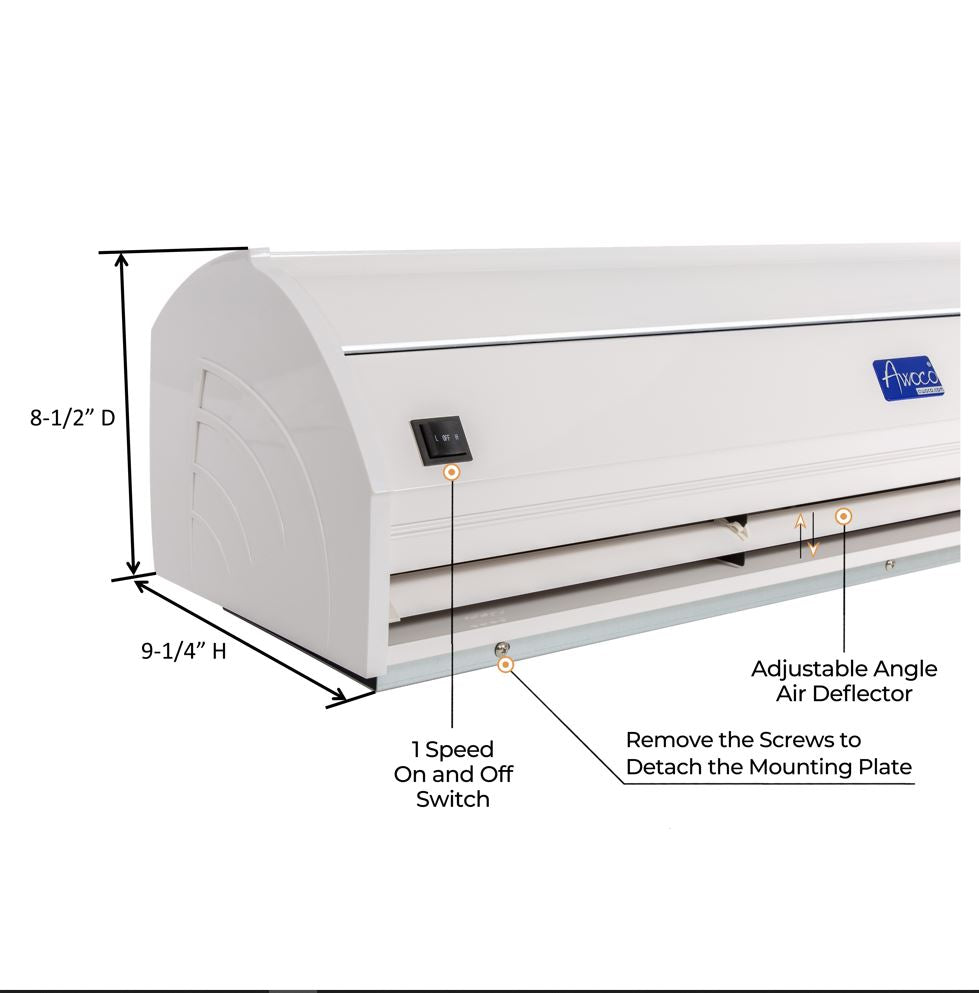

| Voltage | 120V, 60Hz. | Depth | 8-1/2 in. | Height | 9-1/4 in. | ||
| Air Velocity | 3150 FPM (Max.) | ||||||
| Model No. | For Door Size |
Width | Power (W/HP) |
Net Weight (LB) |
Current (A) |
Max. Air Volume (CFM) |
Max. Noise Level (dB) |
| FM3509-ETL | 36" | 35-1/2" | 300/0.4 | 28.7 | 3.13 | 907 | 52 |
| FM3510-ETL | 42" | 42" | 320/0.43 | 30.9 | 3.33 | 989 | 52 |
| FM3512-ETL | 48" | 47-1/4" | 400/0.54 | 34.2 | 4.17 | 1236 | 53 |
| FM3515-ETL | 60" | 59" | 500/0.67 | 44.1 | 5.21 | 1566 | 55 |
AWOCO USER MANUAL PDF: VIEW / DOWNLOAD
SERVICE HELP: AWOCO 101 VIDEOS
-
