Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch

  1. Home
  2. Air Curtains
  3. Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch
Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch

Awoco FM12 Slimline 2 Speeds Air Curtain, CE Certified, 120V Unheated with an Easy-Install Magnetic Switch

SKU:
FM1209T
$260.00
In stock
Add to wishlist Ask a question

Free Shipping on all Awoco Products.
Estimated Delivery: Saturday, Mar 29 - Wednesday, Apr 02. Varies per Carrier.
Pickup available at 9674 Telstar Ave Ste A, El Monte, CA 91731

Usually ready in 24 hours

Get Direction.

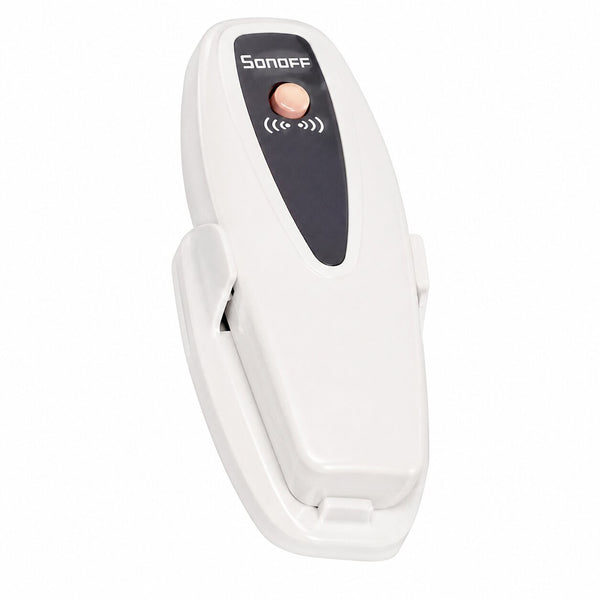

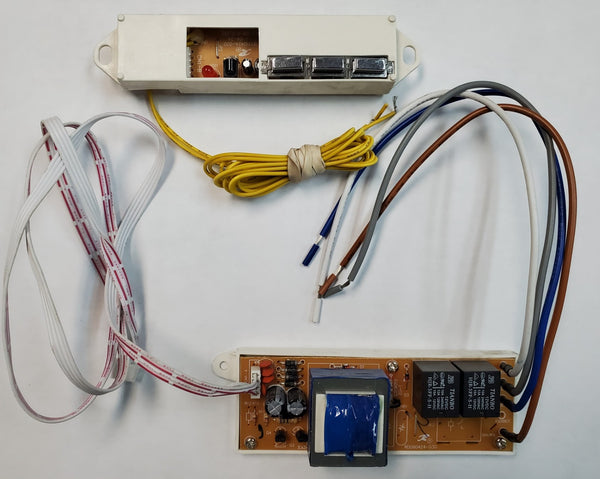

  • Magnetic switch: THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. This air curtain has an electrical-magnetic circuit control with a magnetic switch. The magnetic door switch installation is much easier than the traditional mechanical micro switch. No hard wired needed on the 12VDC low voltage magnetic switch. Remote Control Included.
  • Easy installation:
    • 1) Mount the detachable mounting plate, then hang the air curtain up.
    • 2) dedicated 2-wire for the magnetic switch connection. (Other brands might not have this.)
    • 3) Detailed installation manual is included.
  • 2 speeds of operation: A HI/LO/OFF switch and Remote Control to select High/Low speed. 110V-120V 60Hz. Less power consumption than other industrial air curtains.

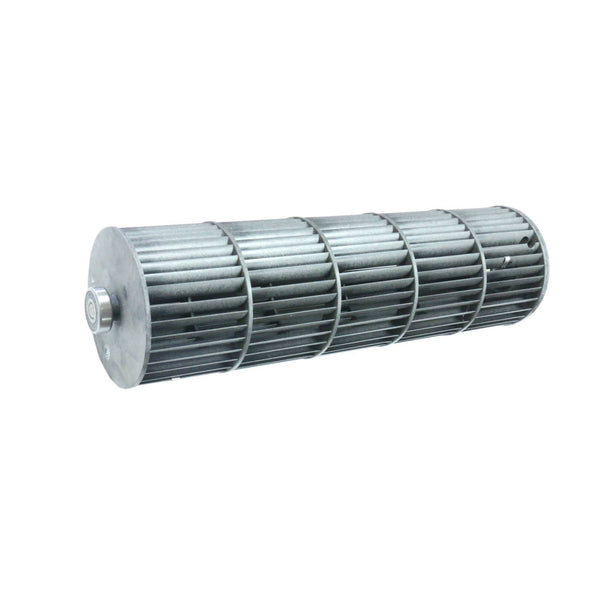

  • Motor: adopting the technology of German electrical machinery, it runs smoothly with reduced low noise. Optimized electrical machinery, reliable and safe; runs for 5,000 consecutive hours. Fan wheels are made of high-tech ABS, powerful wind-force.
  • 1 year manufacturer warranty: Fireproof and anti-erosive powder coated metal case, easy to clean slim body. CE Certified.
  • 36" Dimensions: 35-1/2” L x 7-3/4” D x 8-7/8” H. Weight: 22 LBS.
  • 40" Dimensions: 39-3/8” L x 7-3/4” D x 8-7/8” H. Weight: 24.3 LBS
  • 48" Dimensions: 47-1/4” L x 7-3/4” D x 8-7/8” H. Weight: 27.6 LBS.
  • Mounting plate size: 19-3/4” L x 7” H.
FULFILLMENT / DELIVERY
  • Dispatch: Within 48 Hours
  • Free shipping across all products
  • Domestic delivery time - 4-10 business days (Mainland USA ONLY)
  • Easy 30 days returns and exchanges
  • Please look at our "Shipping Policy" section for further information.
RETURNS

  • • You can return new, unopened items within 30 days under our hassle-free return policy - no questions asked.
  • • For refurbished products please inquire at sales@awoco.com.
  • • Please look at our "Refund Policy" section for further information.
    • Voltage 120V, 60Hz. Depth 7-1/2 in. Height 8-7/8 in.
    Air Velocity 1772 FPM (Low) – 2165 FPM (High)
    Model No. For
    Door Size    		 Width Power
    (W/HP)    		 Net Weight
    (LB)    		 Current
    (A)    		 Air Volume
    (CFM)    		 Noise Level
    (dB)
    Lo Hi Lo Hi
    FM1209T 36" 35-1/2" 140/0.19 22 1.46 874 1112 55 57
    FM1210T 40" 39-3/8" 190/0.25 24.3 1.98 1033 1271 56 58
    FM1212T 48" 47-1/4" 200/0.27 27.6 2.08 1271 1510 56 58

      AWOCO USER MANUAL PDF: VIEW / DOWNLOAD

      SERVICE HELP: AWOCO 101 VIDEOS
